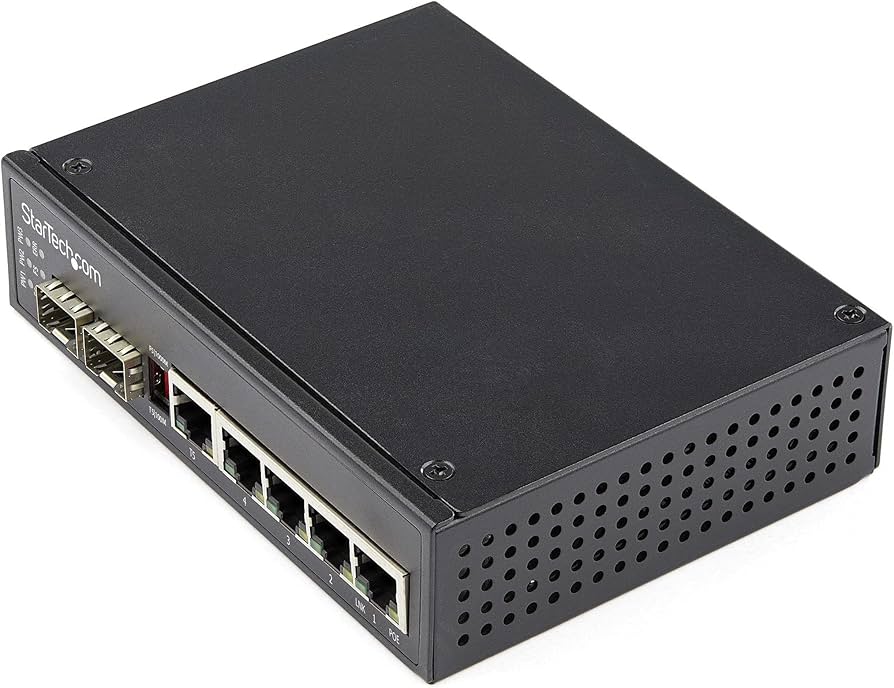

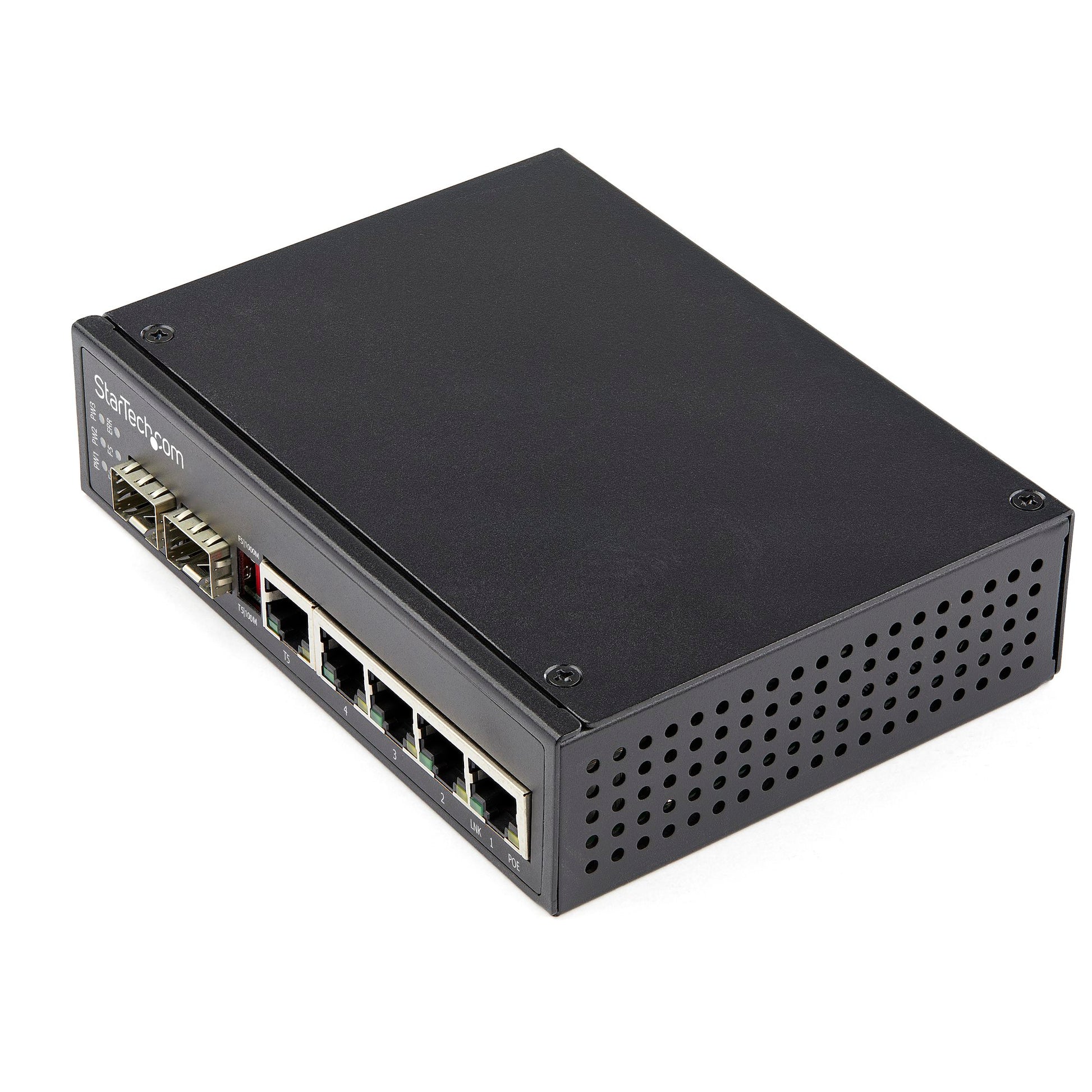

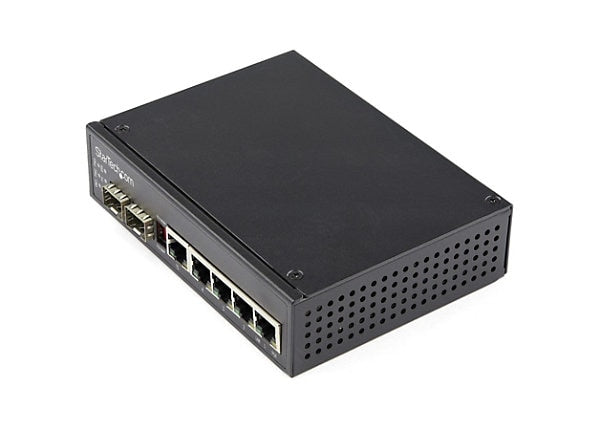

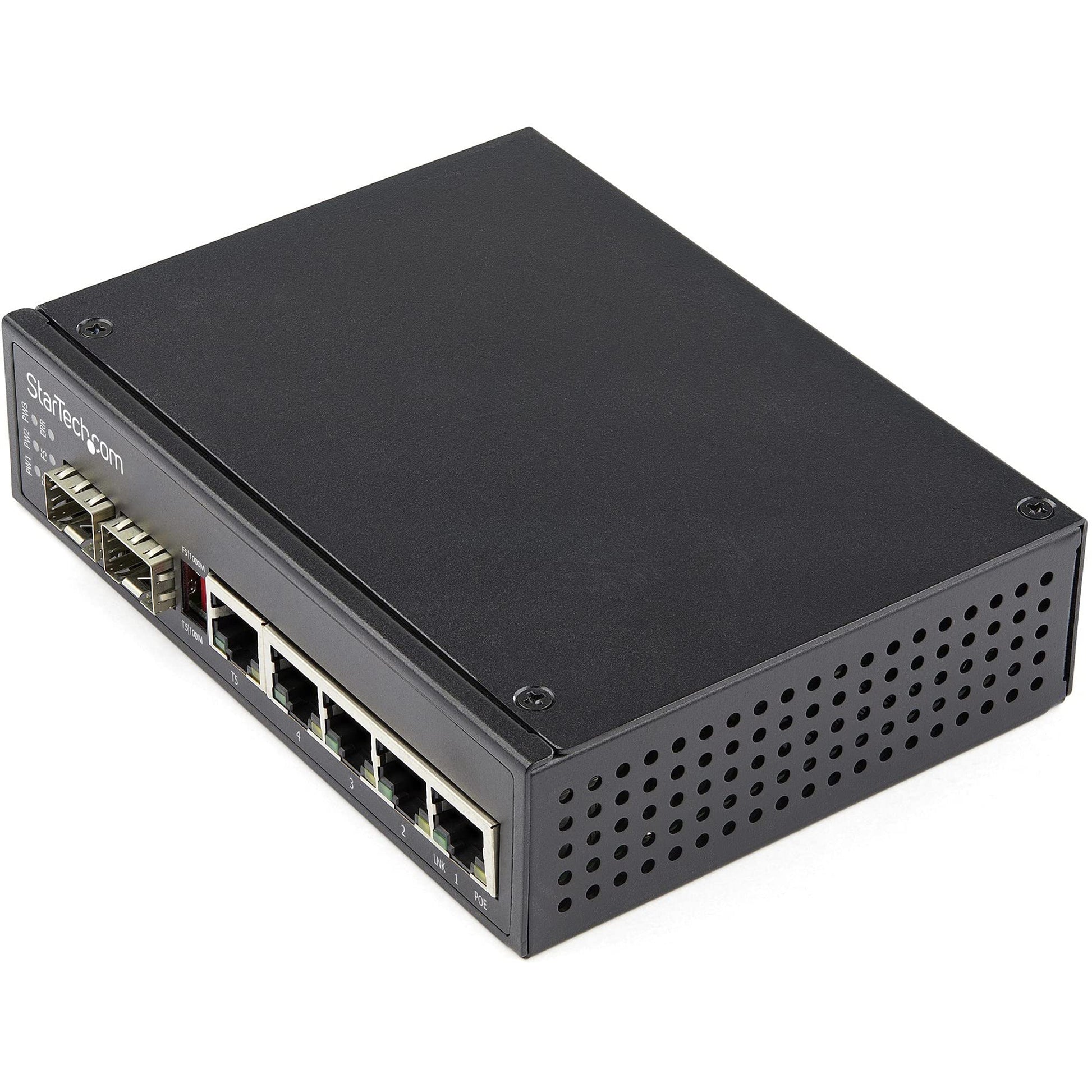

StarTech IES1G52UPDIN Industrial 6-Port Gigabit Switch with PoE+ & SFP

VENDOR: STARTECH Mfg Part#: IES1G52UPDIN UPC#: 065030889582
1 5
Photo is for illustration purposes only. Actual product may be different.
$372.00
$372.00
Sale Sold out
MSRP: $374.00
Shipping calculated at checkout.
  • Industrial rugged IP-30 housing with operating temperature range of -40°C to 75°C
  • 4 RJ-45 ports with PoE+ functionality (up to 30W per port) + 2 SFP slots for fiber uplink
  • Gigabit Ethernet data transfer rate up to 1 Gbps per port
  • Unmanaged switch design for easy, plug-and-play installation
  • DIN-rail mountable; DIN connector included for industrial deployment
  • MTBF of over 500,000 hours for reliable 24/7 operation

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for extreme environments with vibration, shock, and wide temperature tolerance (−40°C to 75°C)
  • Supports PoE+ on 4 ports to reduce additional power cabling and equipment for connected devices
  • DIN-rail installation with TAA compliance makes it ideal for government and industrial applications

Product Overview

Industrial 5 Port Gigabit Ethernet Switch - Up to 30W per 4 PoE ports - 75C to -40C hardened 5 RJ-45 ports (4 PoE) + 2 SFP slots MSA IP-30 housing MTBF 500k + hrs Vibration/shock/free fall rated Unmanaged DIN mountable/DIN connector included 2yr warr

Specifications

Product Overview
Product Type Unmanaged Industrial Ethernet Switch
Form Factor DIN Rail Mount
Power Requirements 12 ~ 57V DC (Redundant input)
Max Power Consumption 126 Watt
PoE Budget 120 Watts
MTBF 500,000+ hours at 25°C
Housing Type IP-30 Rated Hardened Metal Case
Warranty 2 Years

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, UL, RoHS, REACH
Enclosure Rating IP30

Advanced Security Features
Traffic Isolation
Access Control
Firewall Features
IDS/IPS
Content Filtering
Malware Protection

Interfaces
Total Ports 6
10/100/1000 Mbps RJ-45 Ports 4 x PoE+
Gigabit SFP Slots 2
PoE Standard IEEE 802.3af/at (PoE/PoE+)
Data Transfer Rate 10/100/1000 Mbps
Switching Capacity 12 Gbps
Forwarding Rate 8.93 Mpps
MAC Address Table Size 2K entries
Jumbo Frame Support Up to 9K
Buffer Memory 1 Mbit

Physical & Environmental
Width 104 mm (4.1 in)
Depth 143 mm (5.6 in)
Height 35 mm (1.4 in)
Product Weight 740 g (1.63 lb)
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% RH (non-condensing)
Storage Humidity 5% to 95% RH
Vibration Rating IEC60068-2-6
Shock Rating IEC60068-2-27
Free Fall IEC60068-2-32

Cloud Management & Licensing
Management Type Unmanaged
