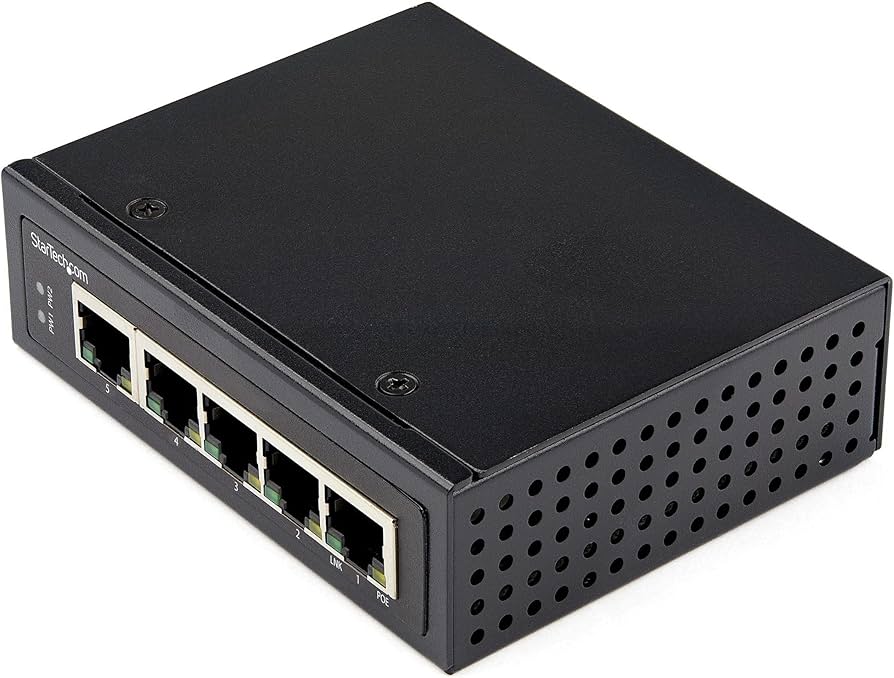

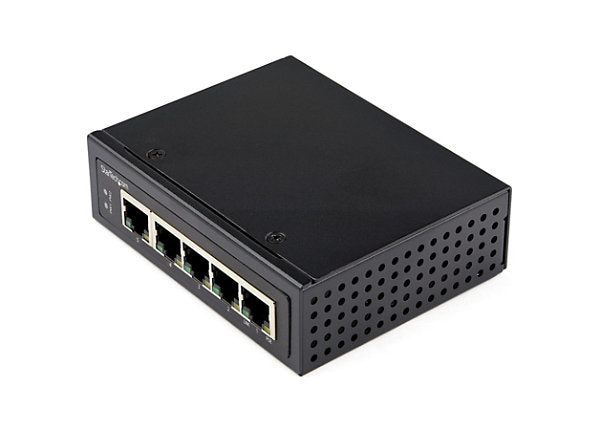

StarTech Industrial 5-Port Gigabit PoE+ Switch 30W DIN Mount

VENDOR: STARTECH Mfg Part#: IESC1G50UP UPC#: 065030889629
1 5
Photo is for illustration purposes only. Actual product may be different.
$364.00
$364.00
Sale Sold out
MSRP: $366.00
Shipping calculated at checkout.
  • 5 Gigabit Ethernet RJ-45 ports with PoE+ support (IEEE 802.3af/at)
  • Delivers up to 30W power per port with total power consumption of 126W
  • Operates in extreme environments (-40°C to 75°C) with IP-30 industrial protection
  • Redundant power input ensures continuous operation
  • DIN rail and wall mountable for flexible installation
  • 2-year support coverage and TAA compliance for government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports reliable PoE+ power and high-speed data for industrial deployments
  • Designed for durability in harsh environments with IP-30 rating and -40°C to 75°C operation
  • Redundant power inputs and alarm relay enhance uptime and monitoring capabilities

Product Overview

5 Port Gigabit PoE switch 30W PSE power per port to devices w/GbE on Cat5e/6 - Power over Ethernet Network IEEE 802.3af/at /10/100/1000 Mbps /Unmanaged /Alarm Relay /DIN/Wall Mount /Redundant Power Input IP-30 /Industrial Hardened -40C to 75C temp

Specifications

Product Overview
Product Type Industrial Unmanaged Gigabit PoE+ Switch
Form Factor DIN Rail / Wall Mountable
Number of Ports 5
PoE Budget 120 W Total (30 W per Port)
Max Power Consumption 126 W
Power Supply Redundant Terminal Block (12~56 VDC)
Mounting Options DIN Rail & Wall Mount
Industrial Hardened Design Yes
Switch Type Unmanaged

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, UL, RoHS
EMC Standards IEC61000-4-2/3/4/5/6/8/11, EN55032/35

Advanced Security Features
Alarm Relay Output 1 x Relay Output for Power Fault Notification
Surge Protection 6 kV Ethernet ESD Protection
Overload Current Protection Yes
Reverse Polarity Protection Yes

Interfaces
Uplink Ports 5 x 10/100/1000 Mbps RJ-45 (PoE+)
Data Transfer Rate 10/100/1000 Mbps per port
Data Link Protocol IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
PoE Standards IEEE 802.3af / IEEE 802.3at
Switching Capacity 10 Gbps
MAC Address Table Size 2K
Forwarding Rate 7.44 Mpps
Jumbo Frame Support 9K bytes
Packet Buffer Memory 1 Mbit

Physical & Environmental
Width 3.2 in (81 mm)
Height 1.3 in (33 mm)
Depth 4.1 in (104 mm)
IP Rating IP30
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% (non-condensing)
Cooling Type Fanless
Housing Material Aluminum

Cloud Management & Licensing
Cloud Managed No
Remote Management Protocol None (Unmanaged)
Licensing Required No
