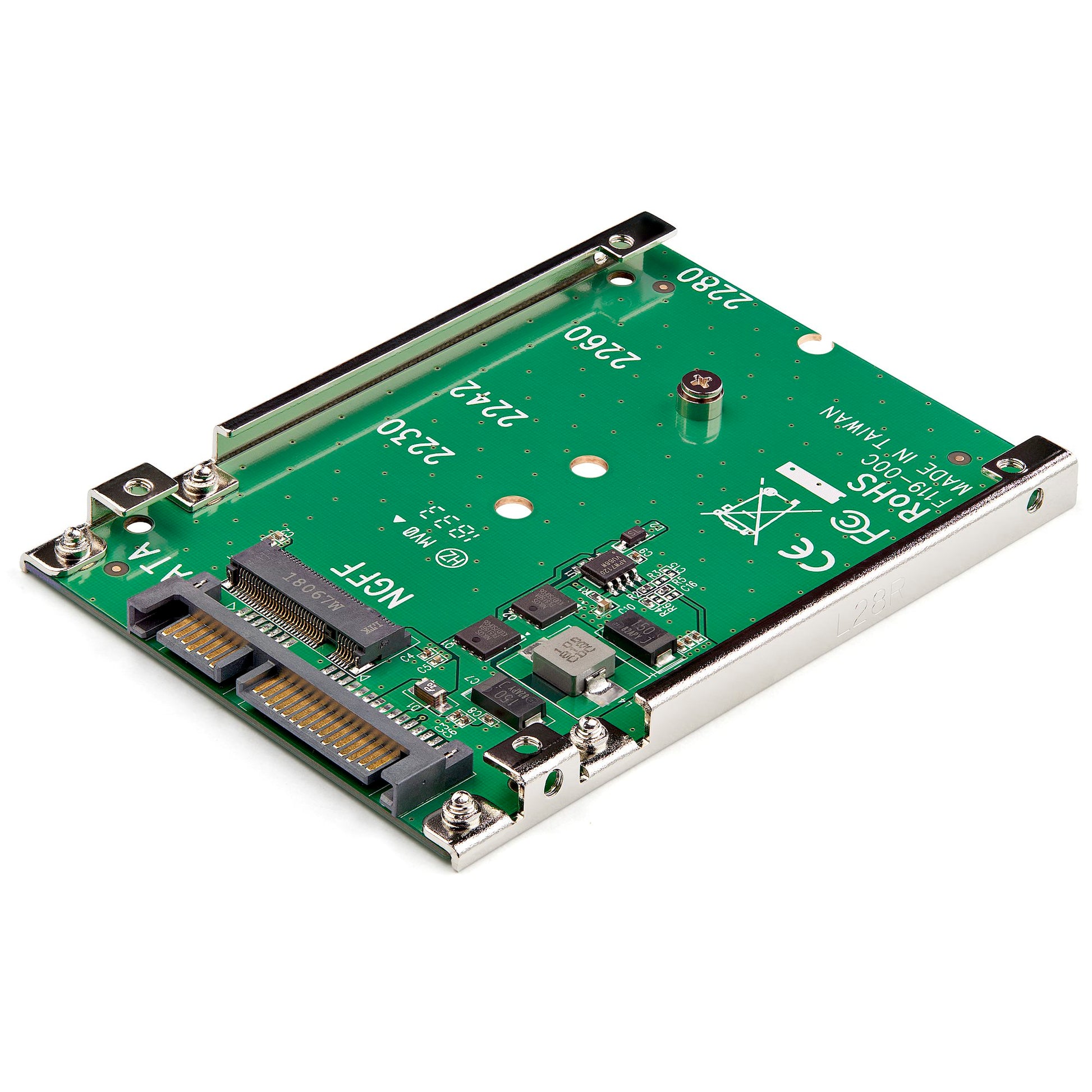

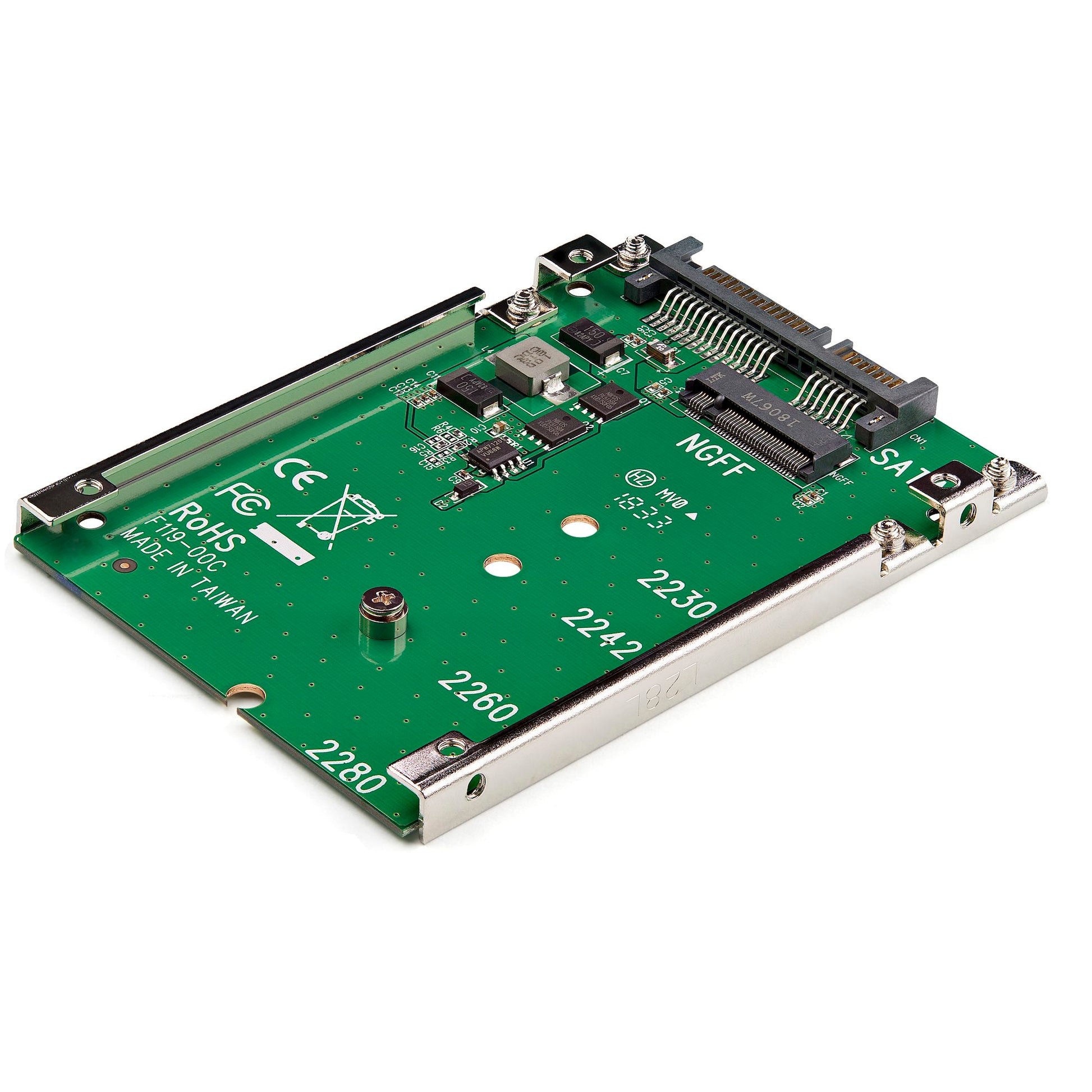

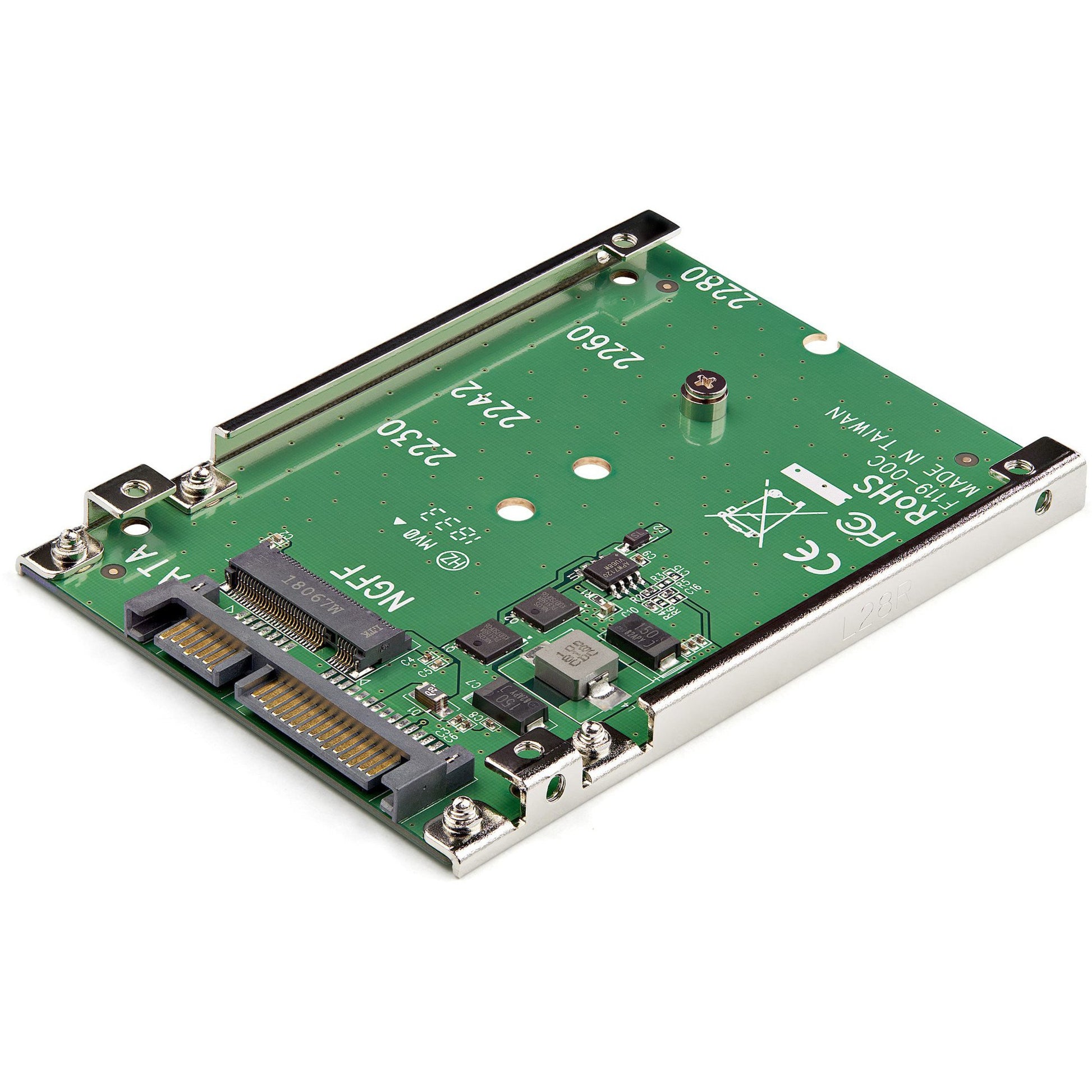

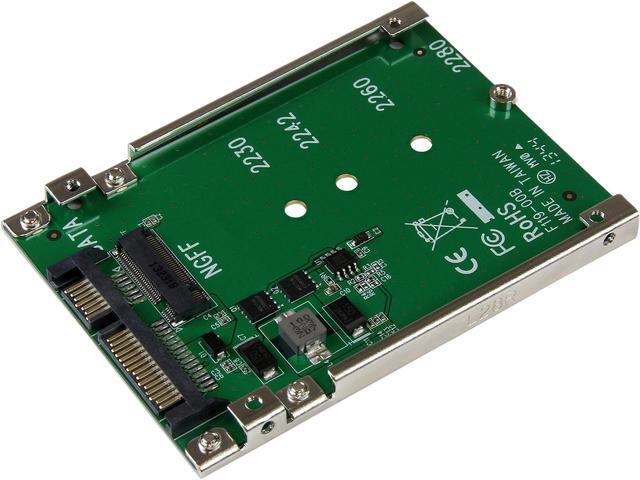

STARTECH M.2 SATA SSD to 2.5in SATA III Adapter, Open Frame, 7mm, SAT32M225

VENDOR: STARTECH Mfg Part#: SAT32M225 UPC#: 065030855600
1 5
Photo is for illustration purposes only. Actual product may be different.
$33.00
$33.00
Sale Sold out
MSRP: $36.00
Shipping calculated at checkout.
  • Converts B key M.2 SATA SSDs to 2.5in SATA form factor
  • Supports SATA III interface with up to 6Gbps data rate
  • Slim 7mm open frame housing fits standard drive bays
  • Compact dimensions: 2.8" x 3.9" x 0.3"
  • TAA compliant, suitable for government procurement
  • Includes 2-year manufacturer support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Repurpose existing M.2 SATA SSDs for broader utility in 2.5in SATA-based systems
  • Ensure high-speed SATA III performance in compact design for space-sensitive deployments
  • Meets TAA compliance standards, qualifying this adapter for enterprise and government contracts

Product Overview

Convert an M.2 SSD into a 7mm high 2.5in SATA 6Gbps Open Frame SSD - M.2 SSD to 2.5in SATA Adapter - Supports B key M.2 SSDs - 2.5 SATA Adapter - M.2 SSD to SATA - 2.5 in Sata Adapter - M.2 SSD to 2.5in SATA Adapter - 7mm SSD to SATA Adapter

Specifications

Product Overview
Product Type Adapter Converter
Form Factor 2.5 inch (Open Frame)
Compatible Drive Height 7 mm
Supported Drive Type M.2 SATA SSD (B-Key, B+M-Key)
Host Interface SATA III (6 Gbps)
Power Requirements Powered via SATA interface
Weight 28 g

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
CE Certified Yes
FCC Compliant Yes
REACH Compliant Yes

Advanced Security Features

Interfaces
Interface Type (Drive Side) M.2 SATA (B-Key/B+M Key)
Interface Type (Host Side) 7-pin SATA data + 15-pin SATA power
Drive Interface SATA III (6 Gbps)
Data Transfer Rate Up to 6 Gbps
Drive Size Supported 22x30mm, 22x42mm, 22x60mm, 22x80mm M.2 SSDs

Physical & Environmental
Width 2.8 Inch
Depth 3.9 Inch
Height 0.3 Inch
Product Color Black
Material Steel and Plastic
Maximum Operating Temperature 50°C (122°F)
Minimum Operating Temperature 0°C (32°F)
Maximum Storage Temperature 85°C (185°F)
Minimum Storage Temperature -40°C (-40°F)
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 5% to 95% RH (non-condensing)

Cloud Management & Licensing

Other
UPC 065030855600
Manufacturer Part Number SAT32M225
Service & Support Type 2 Years
Included Accessories Mounting screws
Tool-less Installation No
Installation Type Internal
