Products Memory, Storage and Components StarTech M.2 to 2.5in SATA ...

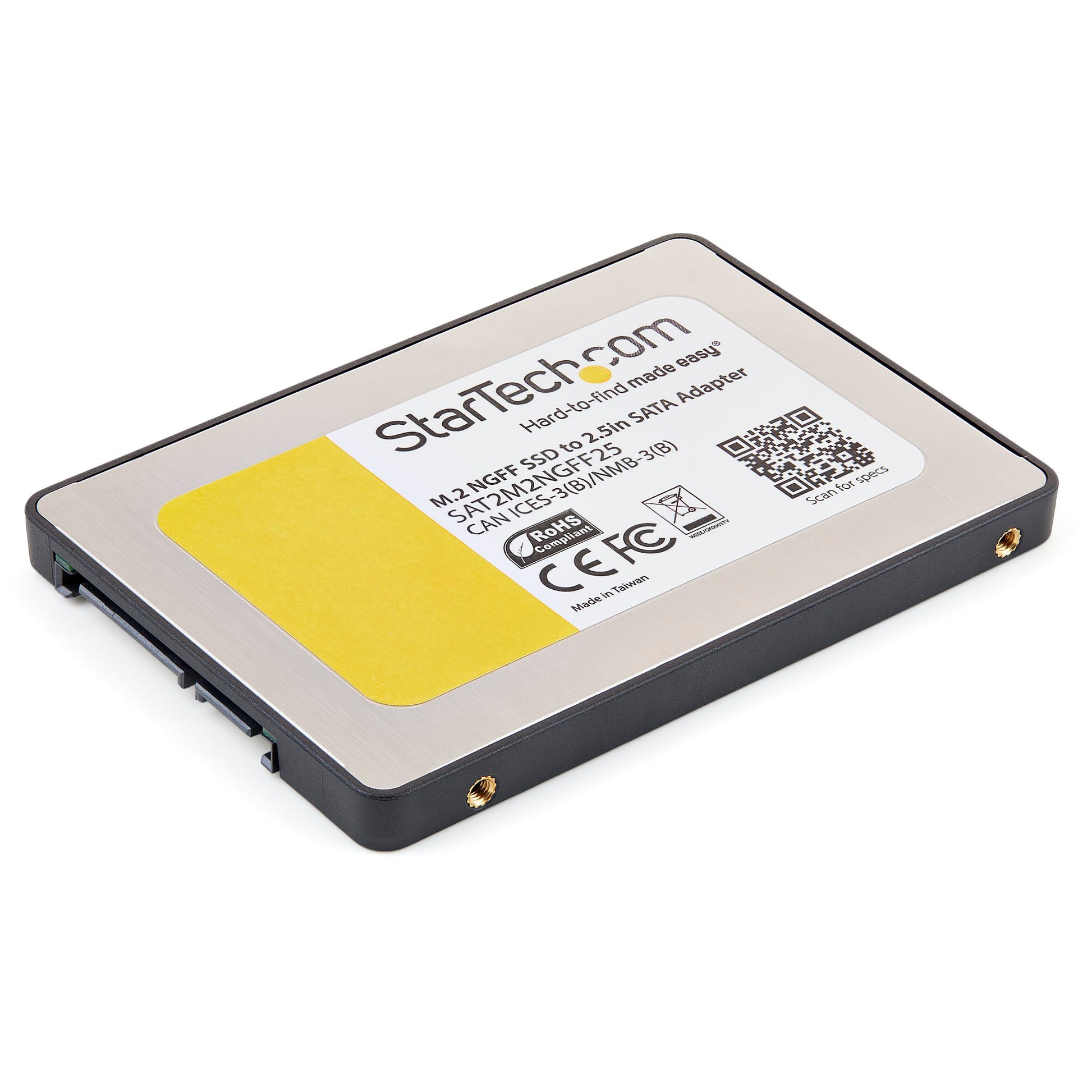

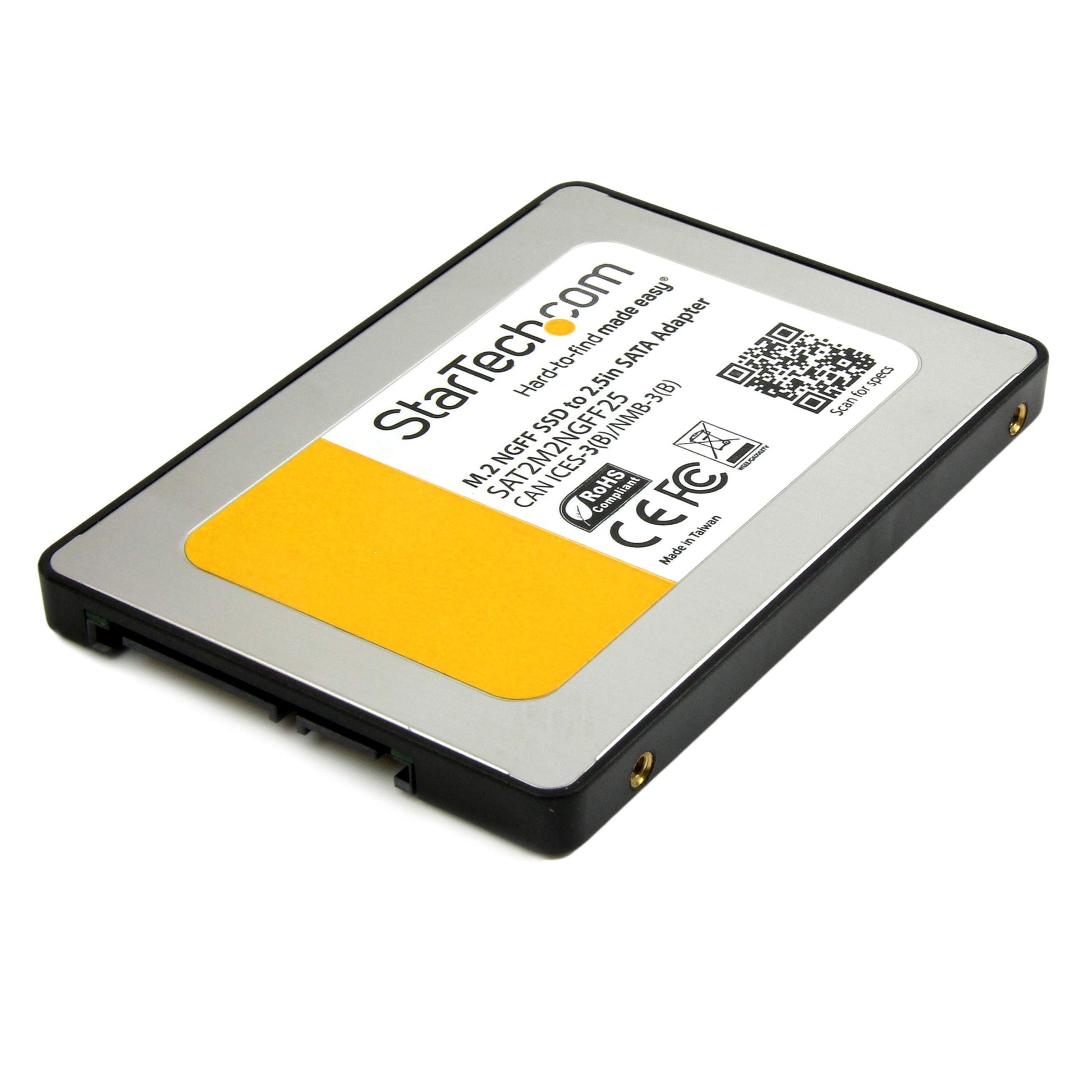

StarTech M.2 to 2.5in SATA III SSD Adapter - 6Gbps

VENDOR: STARTECH Mfg Part#: SAT2M2NGFF25 UPC#: 065030859288
1 5
Photo is for illustration purposes only. Actual product may be different.
$41.00
$41.00
Sale Sold out
MSRP: $51.00
Shipping calculated at checkout.
  • Supports one M.2 NGFF SSD device
  • Provides SATA III 6Gbps data transfer rate
  • Serial ATA controller interface type

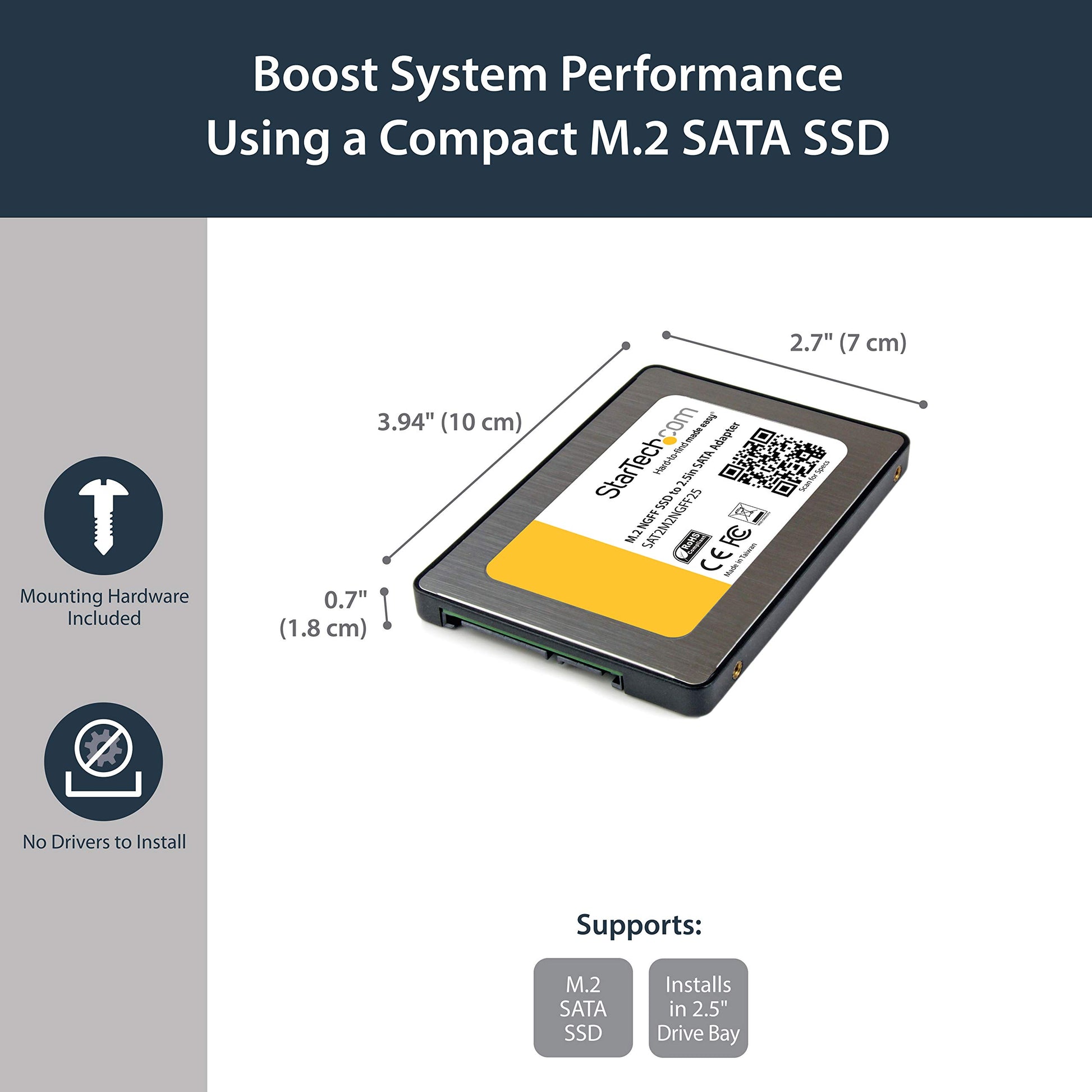

  • Physical dimensions: 2.7" width, 3.9" depth, 0.3" height
  • Enclosed housing design for drive protection
  • TAA-compliant and backed by 2-year warranty service

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables reuse of high-performance M.2 SSDs in standard 2.5in SATA deployments, maximizing hardware value
  • Supports up to 6Gbps throughput for fast read/write operations in data-intensive environments
  • Compact and protected enclosure ensures reliable operation in desktops, servers, and mobile solutions

Product Overview

Convert an M.2 solid-state drive into a standard 2.5in SATA III 6Gbps SSD - M.2 to SATA Adapter - M.2 to SATA Converter - M.2 SSD to SATA Adapter - M.2 to 2.5 in SATA Converter - Install M.2 Drive in 2.5in SATA Bay - M.2 to Hard Drive Adapter

Specifications

Product Overview
Product Type Drive Adapter
Form Factor 2.5-inch (9.5mm height)
Supported Device Solid State Drive (M.2 SATA SSD)
Max Storage Devices Qty 1
Enclosure Type Enclosed Housing
Power Requirements Powered via SATA interface
Drive Installation Tool-less installation
Hot Swap Capability Yes
Compatible Drive Form Factor M.2 B-Key or B+M-Key SSD (NGFF)

Physical & Environmental
Width 2.7 inch
Depth 3.9 inch
Height 0.3 inch
Product Weight 44 g
Color Black
Material Plastic and Steel
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% RH (non-condensing)

Cloud Management & Licensing
Management Interface
Licensing Requirements

Interfaces
Controller Interface Type Serial ATA (SATA III)
Data Transfer Rate 6 Gbps
Interface Connector on Host Side SATA Data & Power Combo (7+15 pin)
Drive Interface M.2 SATA (NGFF) B-Key or B+M-Key
Compatible Interface Standards SATA I/II/III

Compliance & Origin
TAA Compliance Yes
Country of Origin Taiwan
RoHS Compliance Yes
Certifications CE, FCC, REACH

Advanced Security Features
Hardware Encryption No
Secure Erase Support Dependent on SSD used
TRIM Command Support Dependent on SSD and host support
