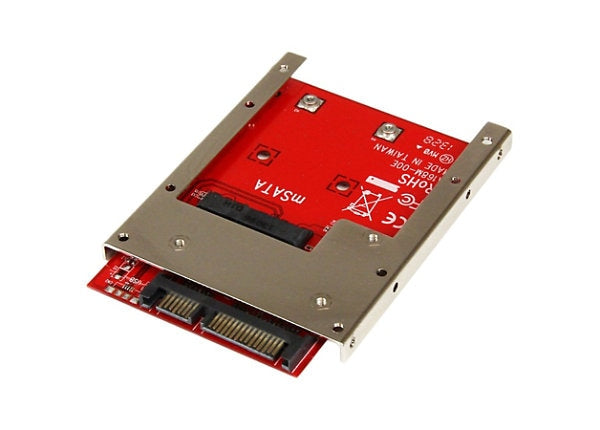

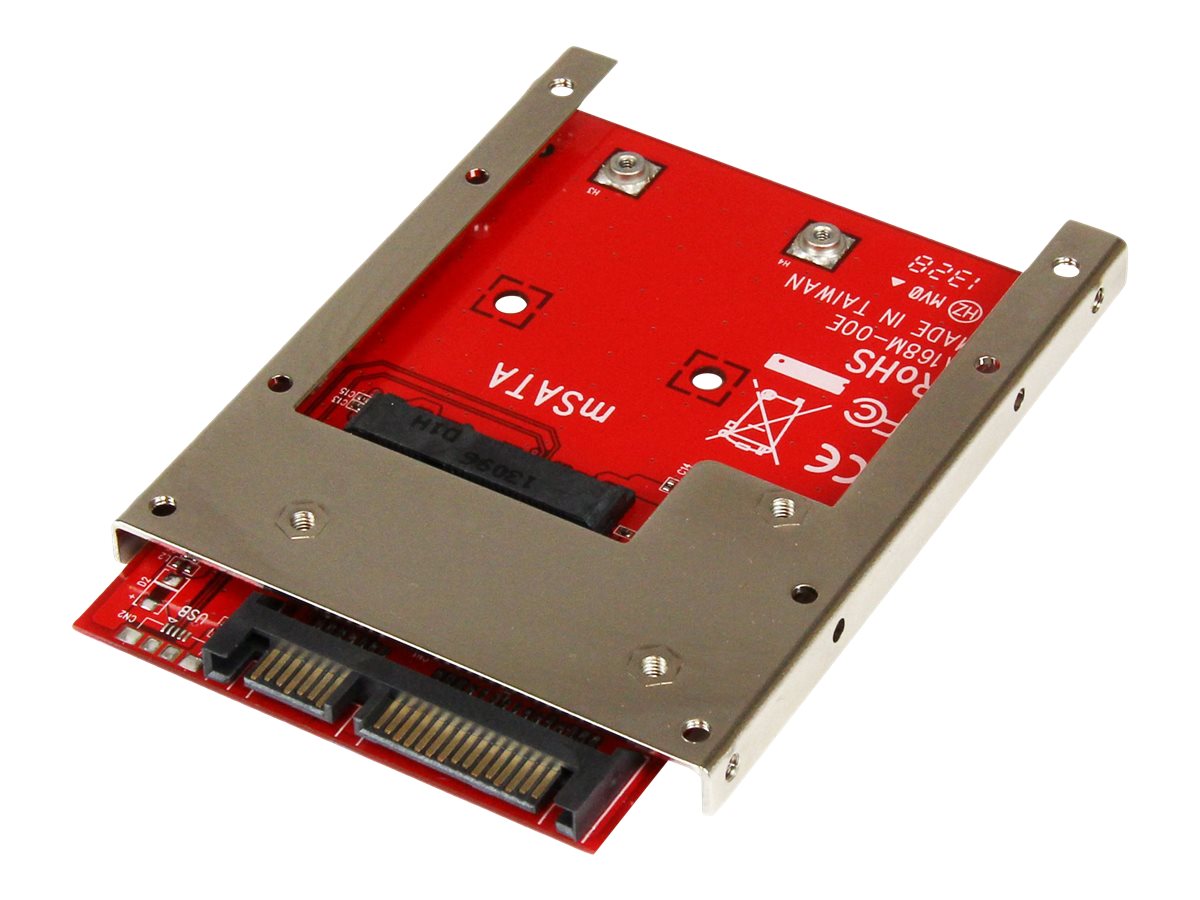

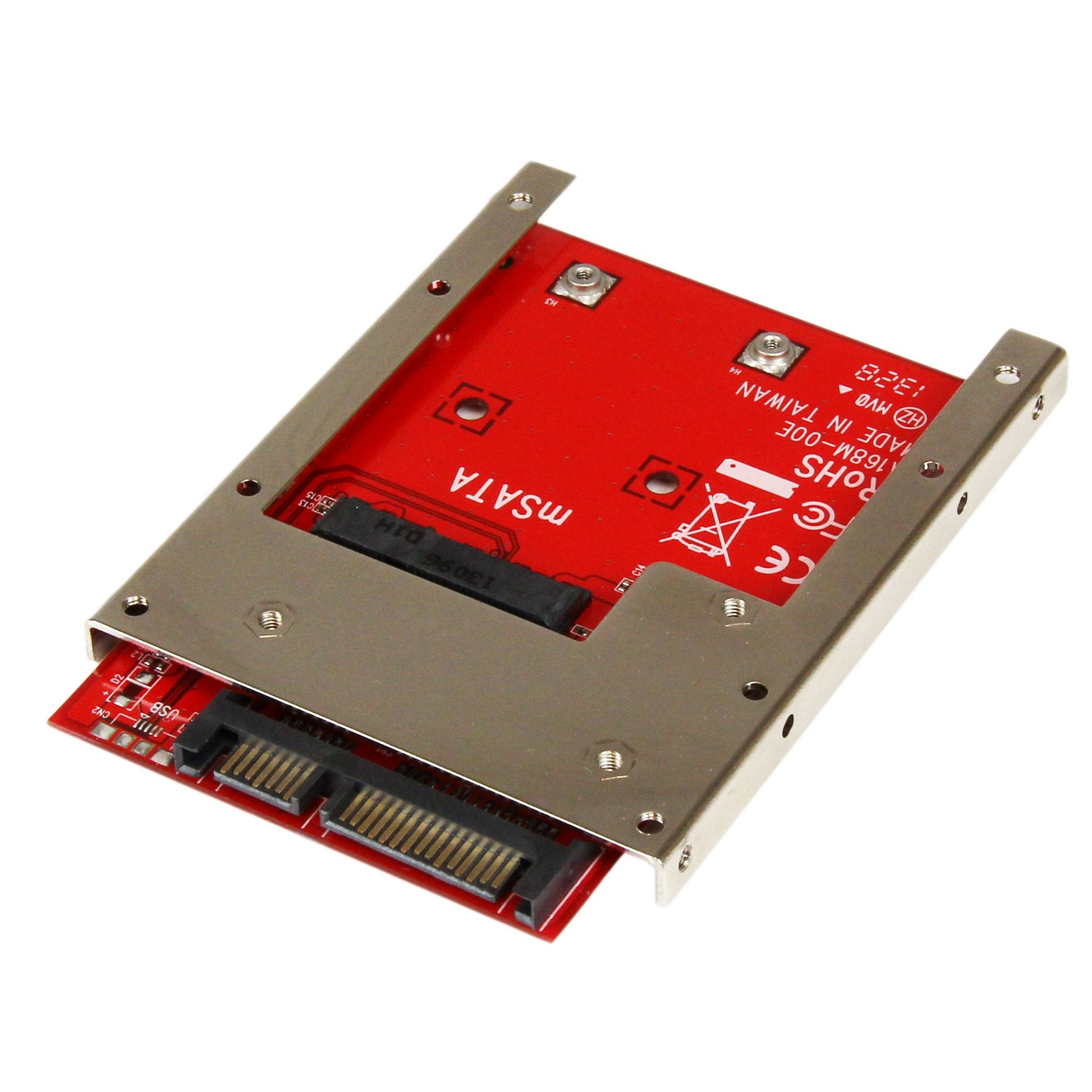

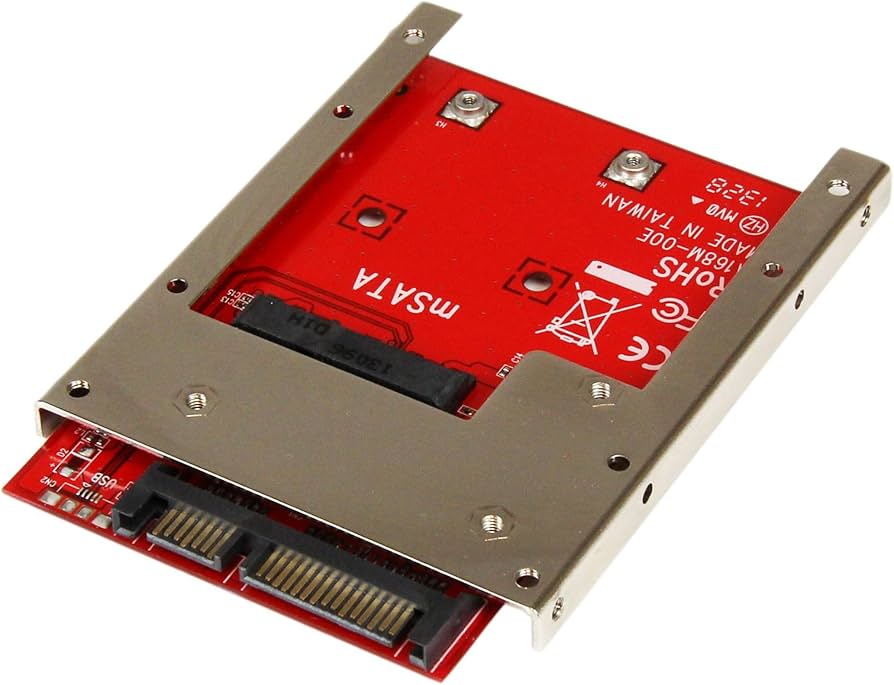

STARTECH mSATA SSD to 2.5in SATA 6Gbps Adapter Converter

VENDOR: STARTECH Mfg Part#: SAT32MSAT257 UPC#: 065030855624
1 5
Photo is for illustration purposes only. Actual product may be different.
$40.00
$40.00
Sale Sold out
MSRP: $43.00
Shipping calculated at checkout.
  • Converts mSATA SSD to standard 2.5-inch SATA 6Gbps format
  • Supports one solid state drive (SSD)
  • Maximum data transfer rate of 6 Gbps
  • Comes in a slim 7mm 2.5-inch SATA housing
  • Complies with TAA requirements; manufactured in Taiwan
  • Covered by a 2-year manufacturer support warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables easy reuse or migration of mSATA SSDs into standard SATA-based systems
  • Offers high-speed 6 Gbps data transfer for reliable SSD performance
  • Compact 7mm housing and TAA compliance make it ideal for industrial and government deployment

Product Overview

Convert an mSATA SSD into a 7mm high 2.5in SATA 6Gbps Open Bracket SSD - mSATA to 2.5 7mm SATA Adapter - Mini PCIe mSATA to SATA Adapter - mSATA to SATA Converter - mSATA to SATA 7mm Enclosure - mini PCIe SSD Adapter - mSATA to sata 3 Adapter

Specifications

Product Overview
Product Type Adapter Converter
Enclosure Type Open Bracket
Form Factor 2.5in SATA (7mm height)
Compatible Drive Form Factor Full-size and half-size mSATA SSD
Max Storage Devices Qty 1
Supported Device Solid State Drive
Color Black
Material Plastic and steel
Power Source Powered through SATA interface
Mounting Type Internal - fits any 2.5-inch SATA drive bay
Weight 50 g

Physical & Environmental
Width 2.8 Inch
Depth 3.9 Inch
Height 0.3 Inch
Product Dimensions (Metric) 100 mm x 70 mm x 7 mm
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity Operating: 10% ~ 90% RH, Non-condensing

Cloud Management & Licensing
Cloud Management

Interfaces
Interface Type (Host) SATA III (6 Gbps)
Interface Type (Drive) mSATA (Mini PCI Express form factor)
Data Transfer Rate 6 Gbps
Connector A 1 x SATA data 7-pin + 1 x SATA power 15-pin (standard SATA combo connector)
Connector B 1 x mSATA (Mini SATA) connector

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC
Warranty 2 Years
