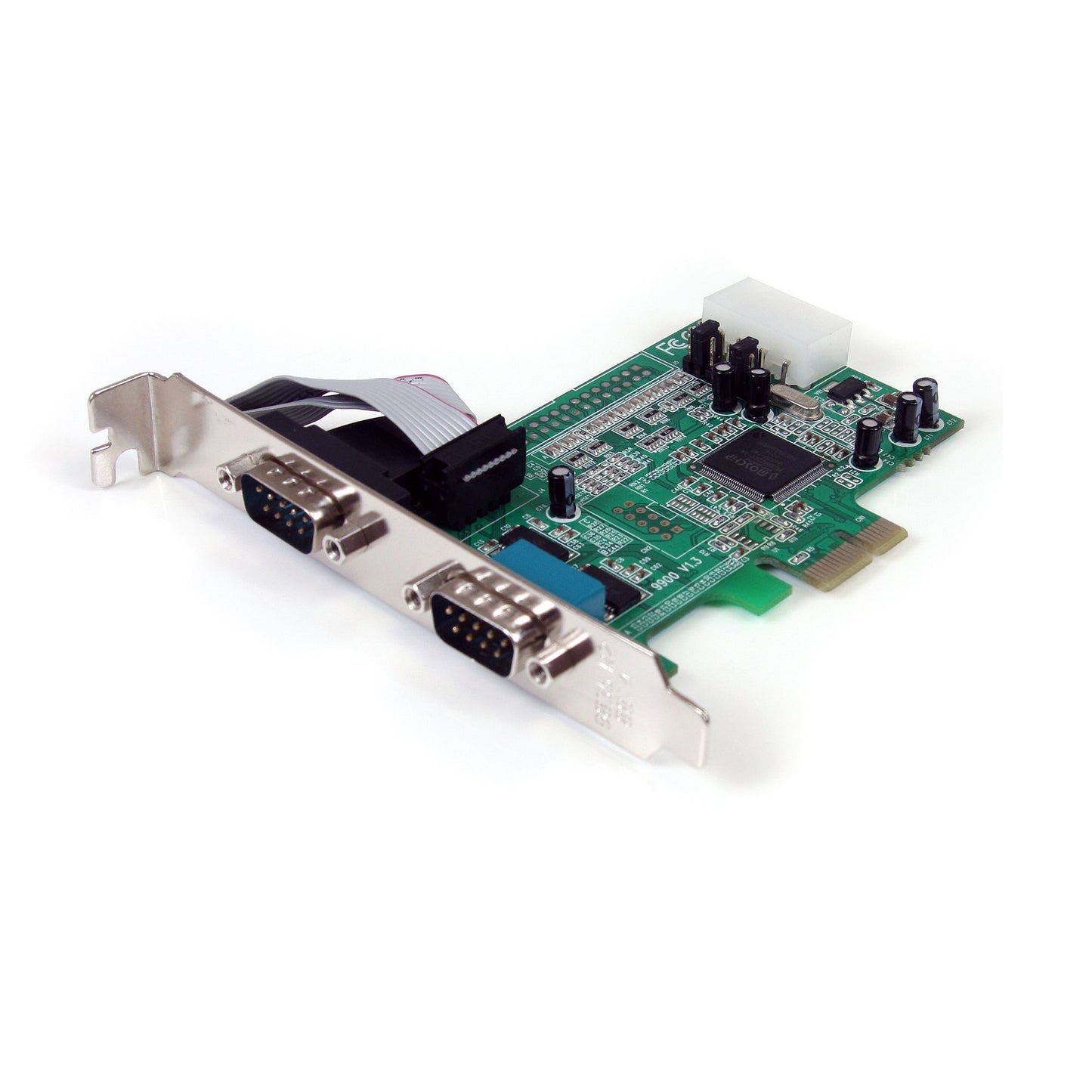

STARTECH PCI Express Serial Card, PCIe to RS232 (DB9)

VENDOR: STARTECH Mfg Part#: 11050-PC-SERIAL-CARD UPC#: 065030894777
1 5
Photo is for illustration purposes only. Actual product may be different.
$71.00
$71.00
Sale Sold out
MSRP: $89.00
Shipping calculated at checkout.
  • Supports RS232 (DB9) connectivity via PCI Express interface
  • Built-in LED indicators for monitoring serial activity
  • Compatible with 16C1050 UART for stable data handling
  • Provides 5V or 12V power through pin 9 on DB9 connector
  • TAA compliant, suitable for government or regulated industries
  • Manufactured in Taiwan with 2-year warranty coverage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Integrated 16C1050 UART ensures stable and compatible communication with legacy RS232 devices.
  • LED status indicators allow for easy troubleshooting and monitoring of serial data transmission.
  • Supports inline power delivery (5V/12V) through pin 9 for powered serial peripherals, adding flexibility.

Product Overview

Connect a serial RS232 (DB9) device using this PC Serial Card. Supports 16C1050 UART. LED lights to monitor activity on the PCI express DB9 card - The UART PCIe card supplies 5/12V over pin 9. Continue using legacy hardware with this RS232 PCIe card

Specifications

Product Overview
Product Type Serial Card
Form Factor Plug-in card (low profile and full-height brackets included)
Chipset 16C1050 UART
LED Indicators TX/RX Activity LEDs
Bracket Types Included Standard and Low Profile
Power Output on Pin 9 5V or 12V (configurable)
MTBF 2,532,691 hours
Power Requirements From PCIe Bus
Warranty 2 Years

Physical & Environmental
Enclosure Type Metal
Product Length 80 mm
Product Width 22 mm
Product Height 120 mm
Weight 60 g
Product Color Black
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% RH (non-condensing)

Cloud Management & Licensing
Management Interface Not Applicable
Licensing Requirements None
Cloud-Based Monitoring Not Supported

Interfaces
Interface Type PCI Express (PCIe) x1
Port Type RS-232 (DB9 Male)
Port Count 1
Data Transfer Rate Up to 921.6 Kbps
FIFO Buffer 256-byte transmit/receive FIFO
Surge Protection 15kV ESD protection on all RS-232 lines

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
CE Certified Yes
FCC Compliant Yes
REACH Compliant Yes

Advanced Security Features
Hardware Security Features 15kV ESD protection on all signal lines
