Products Memory, Storage and Components StarTech PCIe 4.0 x4 U.3 NV...

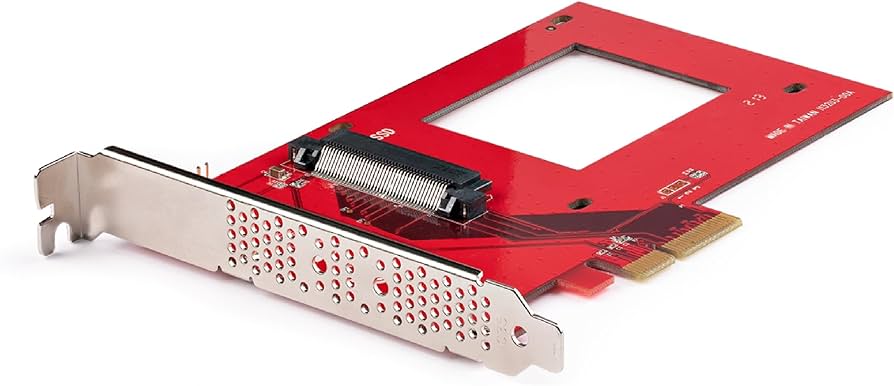

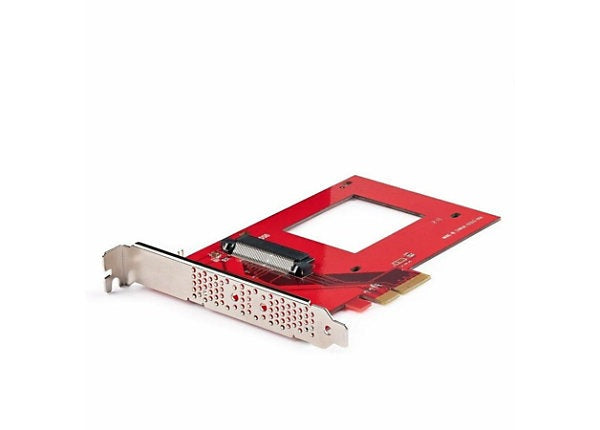

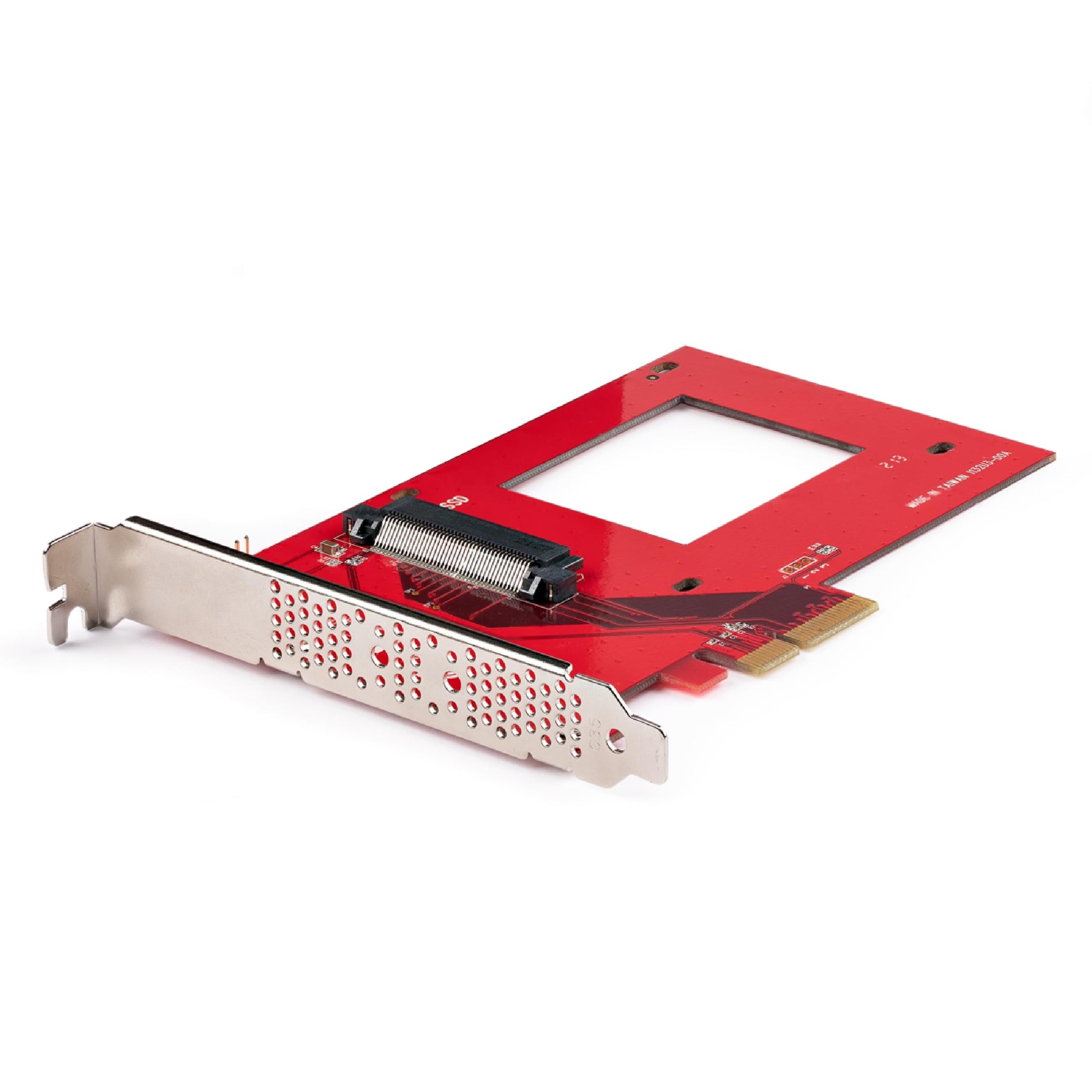

StarTech PCIe 4.0 x4 U.3 NVMe SSD Adapter Card - TAA Compliant

VENDOR: STARTECH Mfg Part#: PEX4SFF8639U3 UPC#: 065030899000
1 5
Photo is for illustration purposes only. Actual product may be different.
$63.00
$63.00
Sale Sold out
MSRP: $79.00
Shipping calculated at checkout.
  • Compatible with 2.5-inch U.3 NVMe SSDs via PCIe 4.0 x4/x8/x16 slot
  • Supports PCIe 3.0 for backward compatibility
  • Pre-installed vented full-profile bracket for improved airflow
  • Drive mounting screws included for hassle-free installation
  • SFF-TA-1001 compliant design
  • TAA compliant for government or enterprise acquisition

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables high-speed U.3 NVMe SSD deployment in PCIe 4.0 x4/x8/x16 slots, enhancing system performance.
  • TAA compliance ensures suitability for government and secure enterprise environments.
  • Pre-installed bracket and included mounting hardware streamline installation and reduce setup time.

Product Overview

INSTALL A 2.5INCH U.3 NVME SSD INTO A DESKTOP/SERVER USING AN A PCIE 4.0 X4, X8, OR X16 SLOT; NOT COMPATIBLE WITH U.2 DRIVES; WORKS WITH PCI EXPRESS 3.0; PRE-INSTALLED VENTED FULL-PROFILE BRACKET; DRIVE MOUNTING SCREWS INCLUDED; OS INDEPENDENT

Specifications

Product Overview
Product Type PCIe U.3 NVMe SSD Adapter Card
Form Factor Full-height (vented bracket pre-installed)
Bracket Type Full-profile (pre-installed) and low-profile bracket included
Interface Bus Type PCI Express 4.0
Compatible PCIe Slots x4, x8, x16
Chipset ID Broadcom PEX PCIe bridge (exact part unlisted)
Drive Compatibility 2.5in U.3 NVMe SSD (SFF-TA-1001 connector)
Non-Compatible Drives U.2 NVMe SSDs
Power Requirements Powered through PCIe slot
Hot Swappable No
Tool-less Installation No – includes drive-mounting screws

Physical & Environmental
Width 18 mm (0.7 in)
Length 120 mm (4.7 in)
Height 70 mm (2.8 in)
Product Weight 62 g (2.2 oz)
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 15% to 90% RH (non-condensing)

Cloud Management & Licensing
Software/Driver Requirements OS independent – no drivers required
Remote Management Not supported
Bundled Software None

Additional Information
Included Accessories Drive mounting screws, low-profile bracket
UPC 065030899000
Manufacturer Part Number PEX4SFF8639U3
Manufacturer StarTech

Interfaces
Internal Connector SFF-8639 (U.3 interface)
Host Interface PCIe x4 (Gen 4.0), backward compatible with PCIe 3.0
Supported Link Speed PCIe Gen 4.0 x4 – up to 64 Gbps
Connector Type 1 x PCI Express x4 Male
Interface Standard SFF-TA-1001 (U.3)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Environmental Compliance RoHS, REACH

Advanced Security Features
Encryption Support Dependent on installed SSD; adapter provides pass-through only
Secure Boot Compatibility Yes, when supported by SSD and host BIOS/UEFI
Data Sanitization Support Dependent on SSD capabilities
