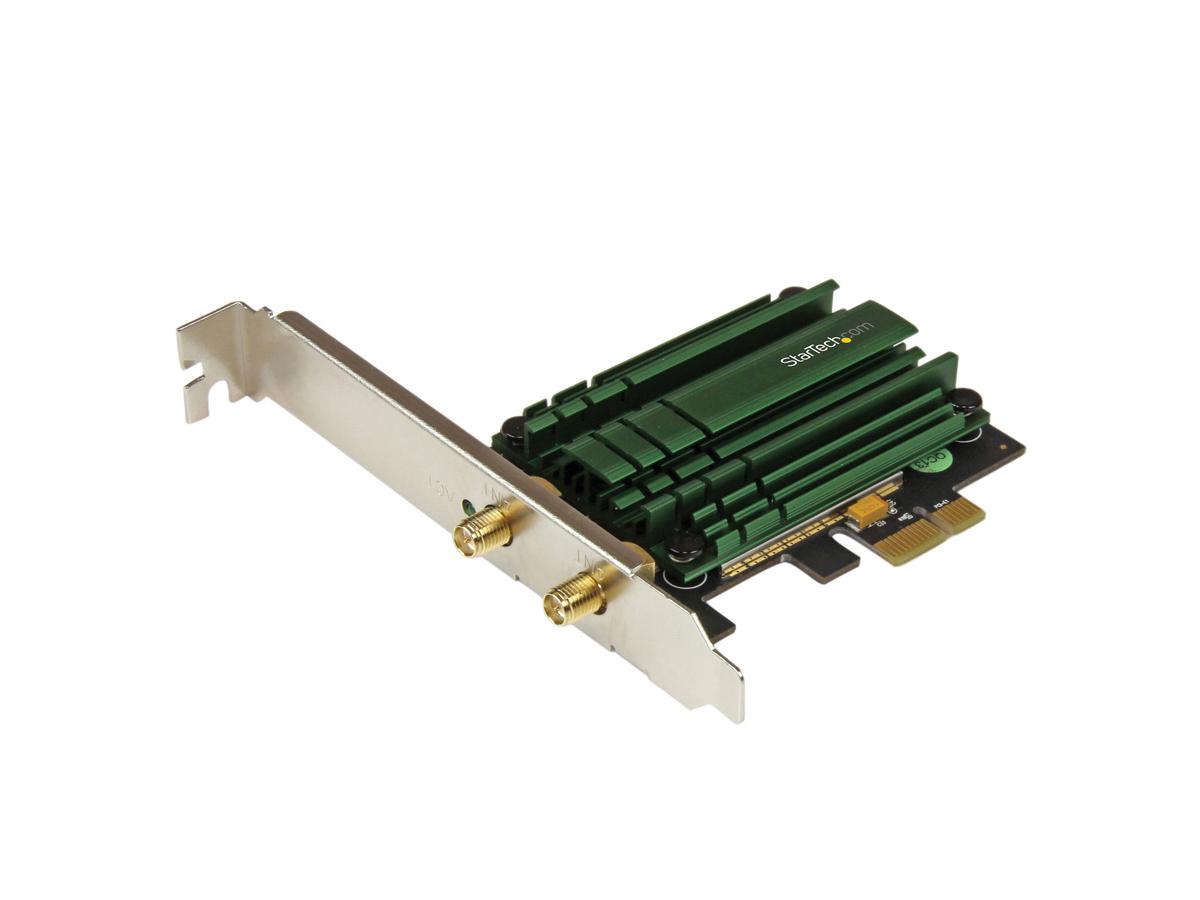

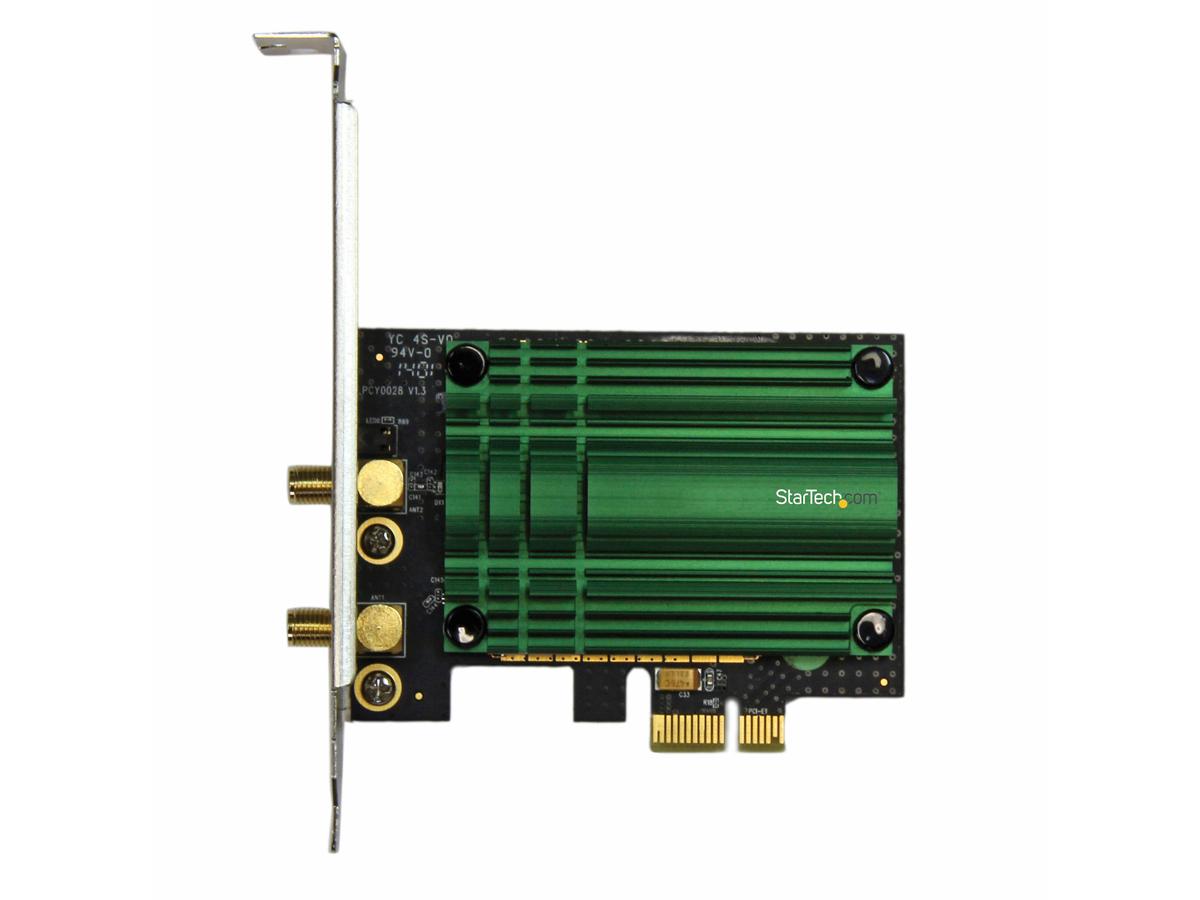

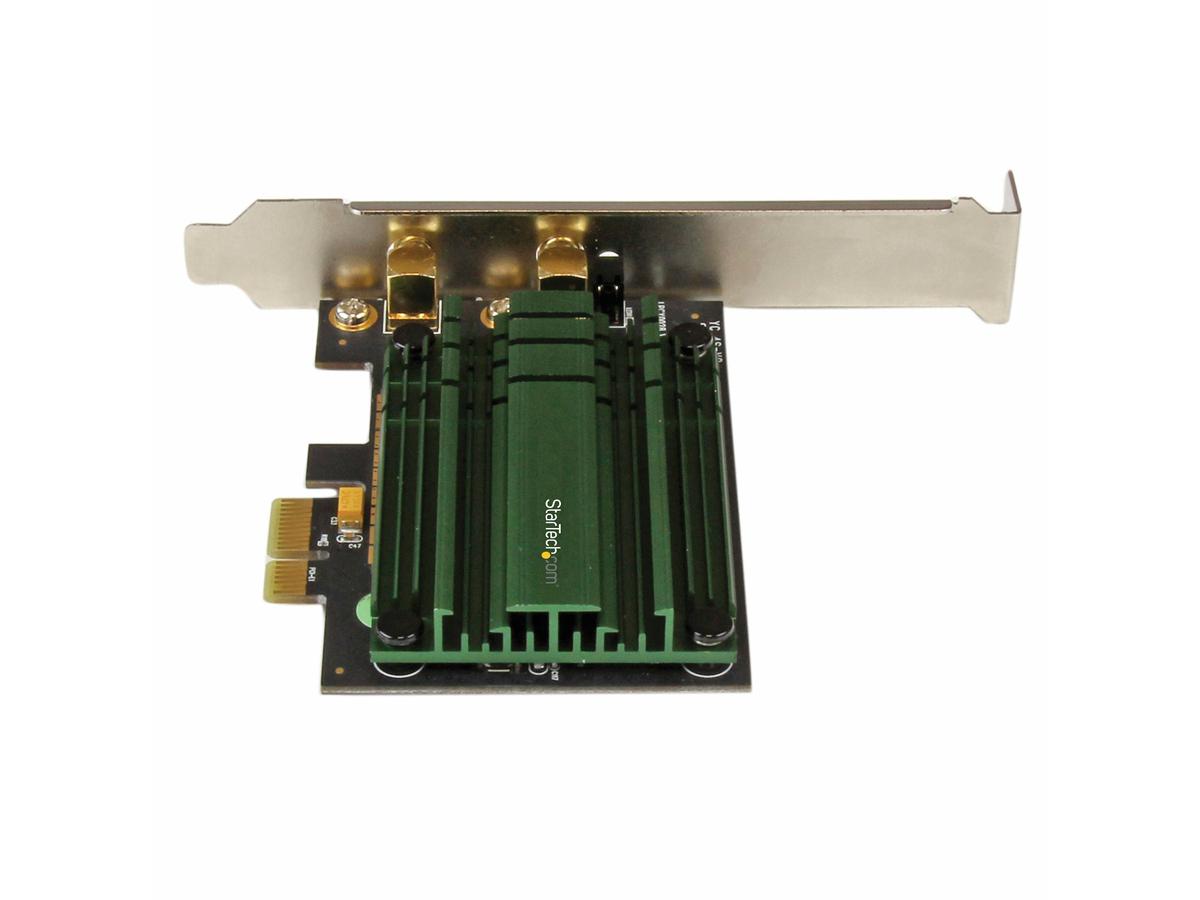

StarTech PCIe AC1200 Dual Band Wireless Network Adapter

VENDOR: STARTECH Mfg Part#: PEX867WAC22 UPC#: 065030857512
1 5
Photo is for illustration purposes only. Actual product may be different.
$130.00
$130.00
Sale Sold out
MSRP: $141.00
Shipping calculated at checkout.
  • PCI Express interface with external form factor for easy PC integration
  • Dual-band 2.4 GHz and 5 GHz support for flexible wireless performance
  • Supports IEEE 802.11ac, 802.11n, 802.11g, 802.11a, and 802.11b standards
  • Maximum data transfer rate of up to 1 Gbps
  • Secure WiFi connectivity with WPA and WPA2-PSK encryption standards
  • Includes 2 RP-SMA antenna connectors for improved signal reception

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed wireless connectivity up to 1 Gbps, ideal for streaming and data-intensive apps
  • TAA compliant and RoHS certified, suitable for government and regulated industry deployments
  • Backed by a 2-year warranty for reliable long-term performance and peace of mind

Product Overview

Add high speed 802.11ac WiFi connectivity to a desktop PC through a PCI Express slot with dual band 2.4 / 5GHz frequencies and up to 867Mbps - PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card - Wireless-AC Card

Specifications

Product Overview
Product Type Network Adapter
Form Factor Internal (PCIe Card)
Weight 56 g
Power Requirements 3.3V/1.1A via PCI Express slot

Wireless Features
Wireless Standards 802.11ac, 802.11n, 802.11g, 802.11a, 802.11b
Wi-Fi Frequencies 2.4 GHz and 5 GHz Dual Band
Modulation 64-QAM, 256-QAM, OFDM
Transmit Power 17 dBm (typical)
Antenna Type Detachable Dual High-Gain Antennas
Internal/External Antenna External (via RP-SMA)
Maximum Wireless Security WPA2-PSK
Security Algorithms 64/128-bit WEP, WPA, WPA2-PSK

Compliance & Origin
Country of Origin Taiwan
RoHS Compliant Yes
TAA Compliant Yes
Certifications CE, FCC, IC, RoHS, REACH

Advanced Security Features
Supported Security Protocols WEP, WPA, WPA2
Network Access Control MAC address filtering

Interfaces
Interface Type PCI Express 2.0 x1
Number of Antenna Ports 2
Antenna Connector Type RP-SMA
Port Type Internal PCIe
Data Transfer Rate Up to 867 Mbps (5 GHz), 300 Mbps (2.4 GHz)
Data Link Protocol IEEE 802.11ac/n/g/a/b

Physical & Environmental
Width 17.78 mm (0.7 in)
Height 86.36 mm (3.4 in)
Depth 119.38 mm (4.7 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Operating Humidity 10% ~ 90% RH, non-condensing
Storage Humidity 5% ~ 90% RH, non-condensing

Cloud Management & Licensing
Software/Driver Availability Drivers available for Windows 7, 8, 10, Linux
Included Software Driver and utility software on CD or via download
