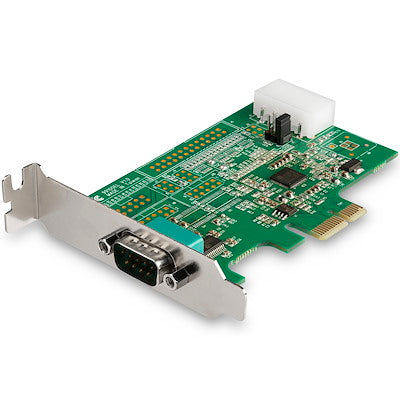

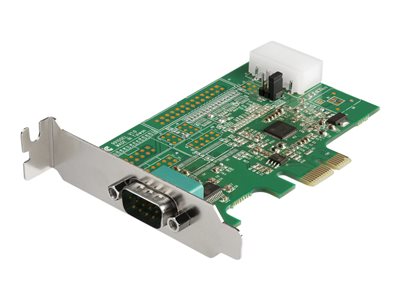

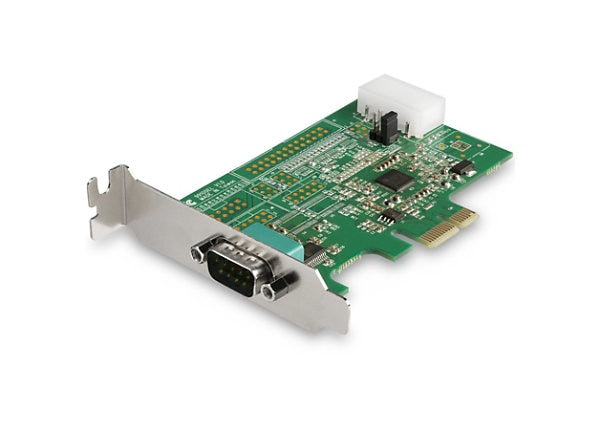

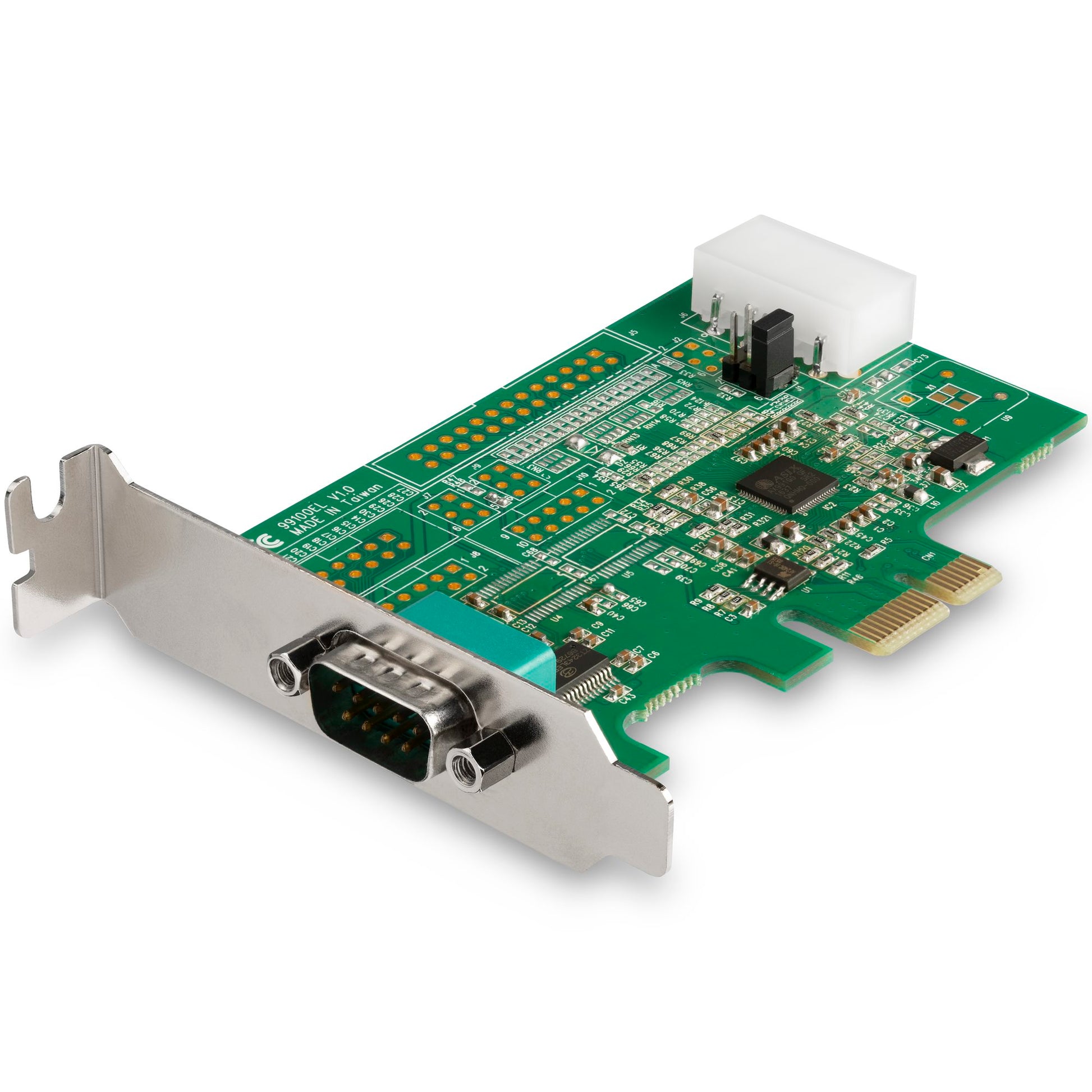

StarTech PCIe RS232 Serial Adapter Card with 16950 UART (PEX1S953LP)

VENDOR: STARTECH Mfg Part#: PEX1S953LP UPC#: 065030881159
1 5
Photo is for illustration purposes only. Actual product may be different.
$66.00
$66.00
Sale Sold out
MSRP: $82.00
Shipping calculated at checkout.
  • - PCI Express x1 interface for efficient system integration
  • - 1-port RS232 serial adapter card with 16950 UART and ASIX AX99100
  • - Bi-directional data rates up to 921.6Kbps per port
  • - 256-byte FIFO buffer and support for 9th data bit
  • - Configurable Pin 9 power output (5V/12V/None) up to 2A total
  • - Includes both standard and low-profile brackets for flexible installation

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Ensures industrial-grade reliability and signal integrity with 16950 UART and ASIX AX99100 chipsets
  • - Versatile deployment thanks to TAA compliance and dual bracket options for various system types
  • - Long-term value supported by lifetime warranty and broad OS support (Windows/Linux)

Product Overview

1 port PCI Express RS232 serial controller card w/16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port / 256 byte FIFO / 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Expansion card w/low profile (Std bracket incl) - Win/Linux

Specifications

Product Overview
Product Type PCIe RS232 Serial Adapter Card
Form Factor Low Profile (Standard Bracket Included)
Chipset ASIX AX99100
UART Type 16950
FIFO Buffer 256-byte
Data Bit Support 5, 6, 7, 8, 9
Flow Control Software (XON/XOFF), Hardware RTS/CTS
Power Output on Pin 9 5V, 12V or none (Selectable via Jumper)
Power Output Capacity Up to 2A total
Max Baud Rate 921.6 Kbps
Connectivity Technology Wired
Bracket Types Included Low-profile and full-height

Physical & Environmental
Width 5.9 in (14.99 cm)
Depth 3.9 in (9.91 cm)
Height 2.6 in (6.6 cm)
Weight 60 g (2.12 oz)
Housing Material Steel
LED Indicators TX/RX Activity
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity Tolerance 5% - 95% RH (non-condensing)
Product Color Green

Cloud Management & Licensing
Management Interface
Licensing Requirements
Bundled Software Drivers for Windows and Linux

Package Information
Included Accessories Low-profile bracket, user manual, driver CD
Package Weight 0.24 lb (0.11 kg)
Package Dimensions (L x W x H) 6.7 x 5.6 x 1.2 in
UPC 065030881159

Interfaces
Host Interface PCI Express x1
Serial Ports 1 x RS-232 (DB9)
Interface Type RS-232 Serial Port
Connector Type DB-9 Male

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Environmental Standards WEEE, REACH
Certifications CE, FCC

Advanced Security Features
ESD Protection 15kV Air and Contact Protection
