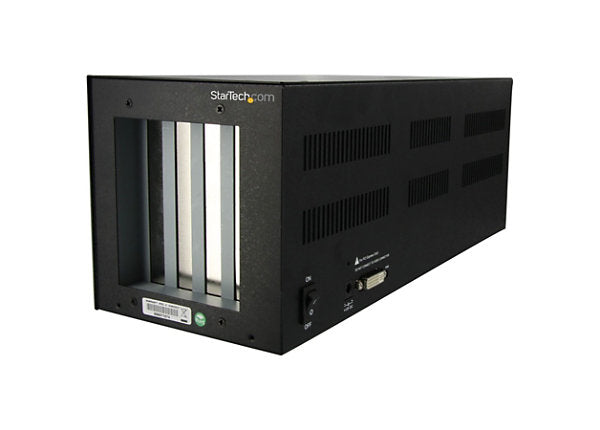

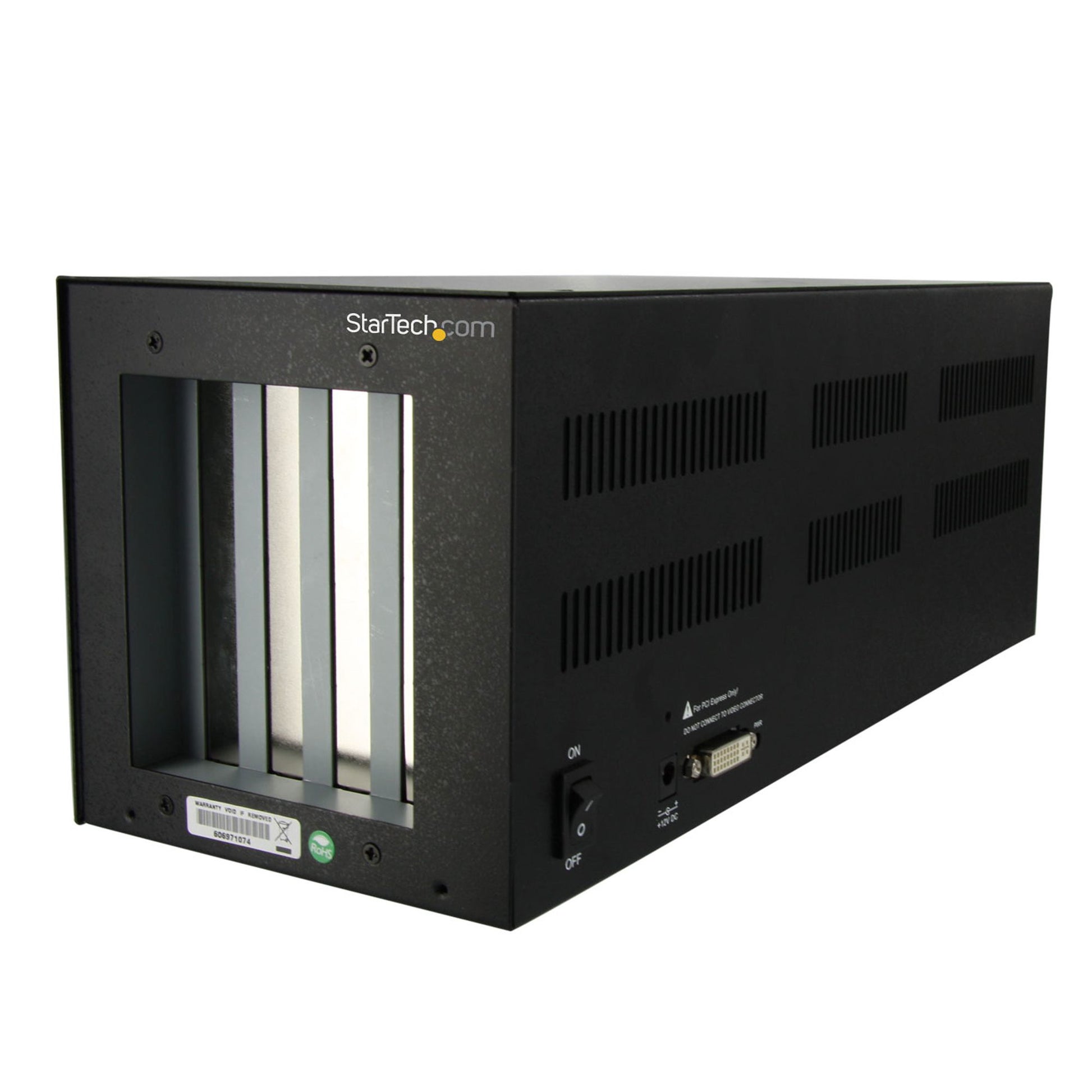

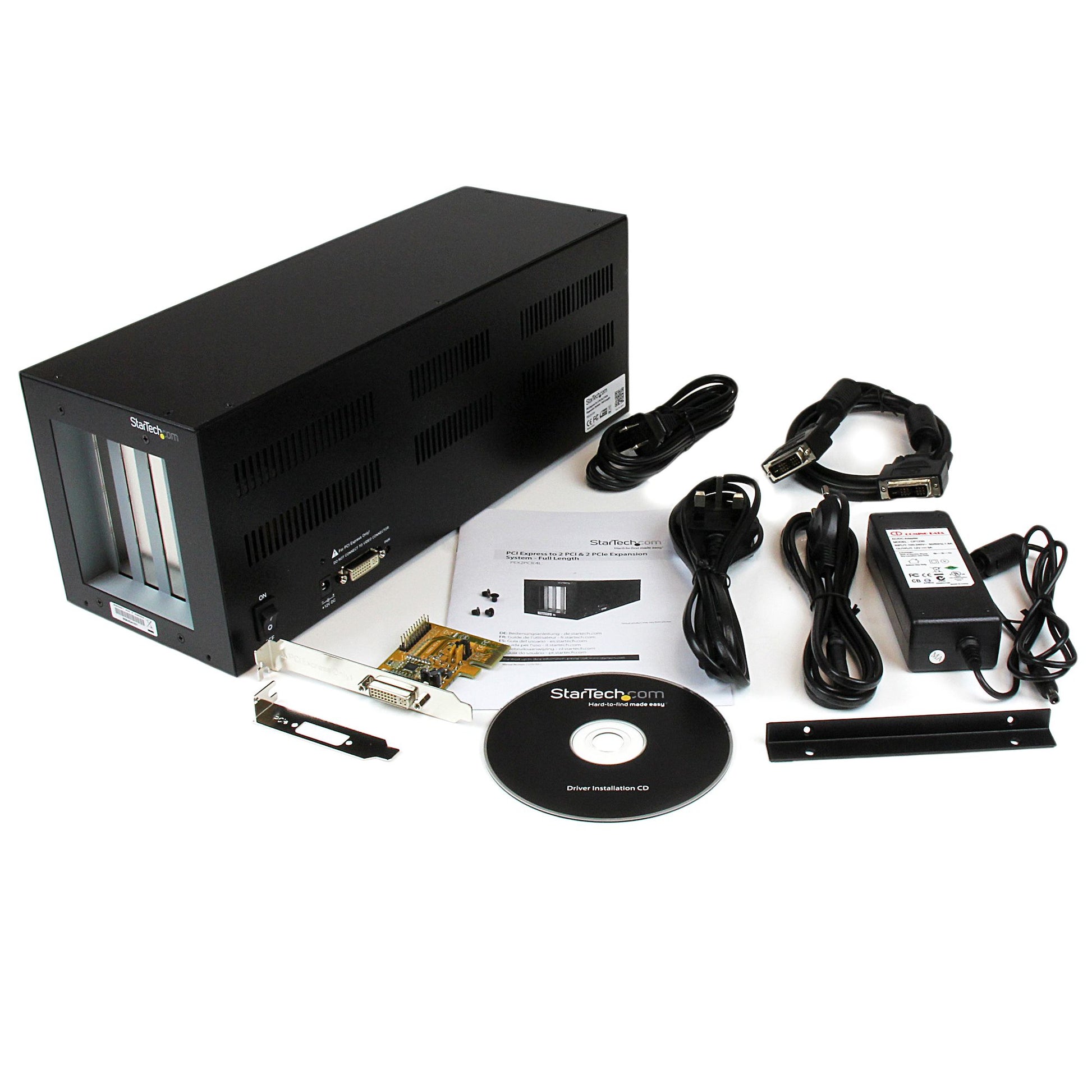

STARTECH PCIE to 2 PCI & 2 PCIe Expansion System - PEX2PCIE4L

VENDOR: STARTECH Mfg Part#: PEX2PCIE4L UPC#: 065030835305
1 5
Photo is for illustration purposes only. Actual product may be different.
$693.00
$693.00
Sale Sold out
Shipping calculated at checkout.
  • Adds 2 PCI and 2 PCI Express x1 expansion slots externally
  • External form factor with 250 MBps data transfer rate
  • Power-efficient operation with 36W power consumption
  • TAA and RoHS compliant for regulated sector use
  • Compact dimensions: 15" depth, 5.4" width, 3.6" height
  • Includes 2-year service and support coverage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for professionals needing legacy PCI and modern PCIe slot expansion over a single PCI Express interface
  • External, compact chassis allows system upgrades without opening desktop or laptop casing
  • Fully TAA and RoHS compliant, making it suitable for government and enterprise procurement environments

Product Overview

Add Two PCI & Two PCI Express Expansion Card Slots to a Desktop or Laptop Computer System - pci expansion chassis - external pci slot - pci express to pci expansion box

Specifications

Product Overview
Product Type Expansion Enclosure System
Form Factor External
Enclosure Color Black
Weight 4.2 lb
Power Consumption Operational 36 Watt
Power Adapter Included Yes
External Power Adapter Output Voltage 12V DC
Power Input 100–240V AC, 50/60Hz
Supported Host Bus PCI Express x1 (Gen 1)

Physical & Environmental
Width 5.4 Inch
Depth 15 Inch
Height 3.6 Inch
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity (Operating) 10% – 85% RH (Non-Condensing)
Humidity (Storage) 5% – 95% RH (Non-Condensing)
Cooling Type Active (internal cooling fan)

Cloud Management & Licensing
Cloud Management
License Requirement No

Interfaces
Interface Type PCI Express
Interface Version PCIe 1.0
Number of PCI Slots 2
Number of PCIe Slots 2
PCI Slots Form Factor Full-height, Full-length (FHFL)
PCIe Slots Form Factor Full-height, Half-length (FHHL)
Data Transfer Rate 250 MBps
Slot Bandwidth x1 Lane per PCIe Slot
Expansion Slots 2 x PCI, 2 x PCIe x1
Host Connector 1 x PCI Express x1
Cable Type PCIe Host Cable
Cable Length 3.28 ft (1.0 m)

Compliance & Origin
Country of Origin TAIWAN
RoHS Yes
TAA Compliance Yes
Certifications CE, FCC, REACH
