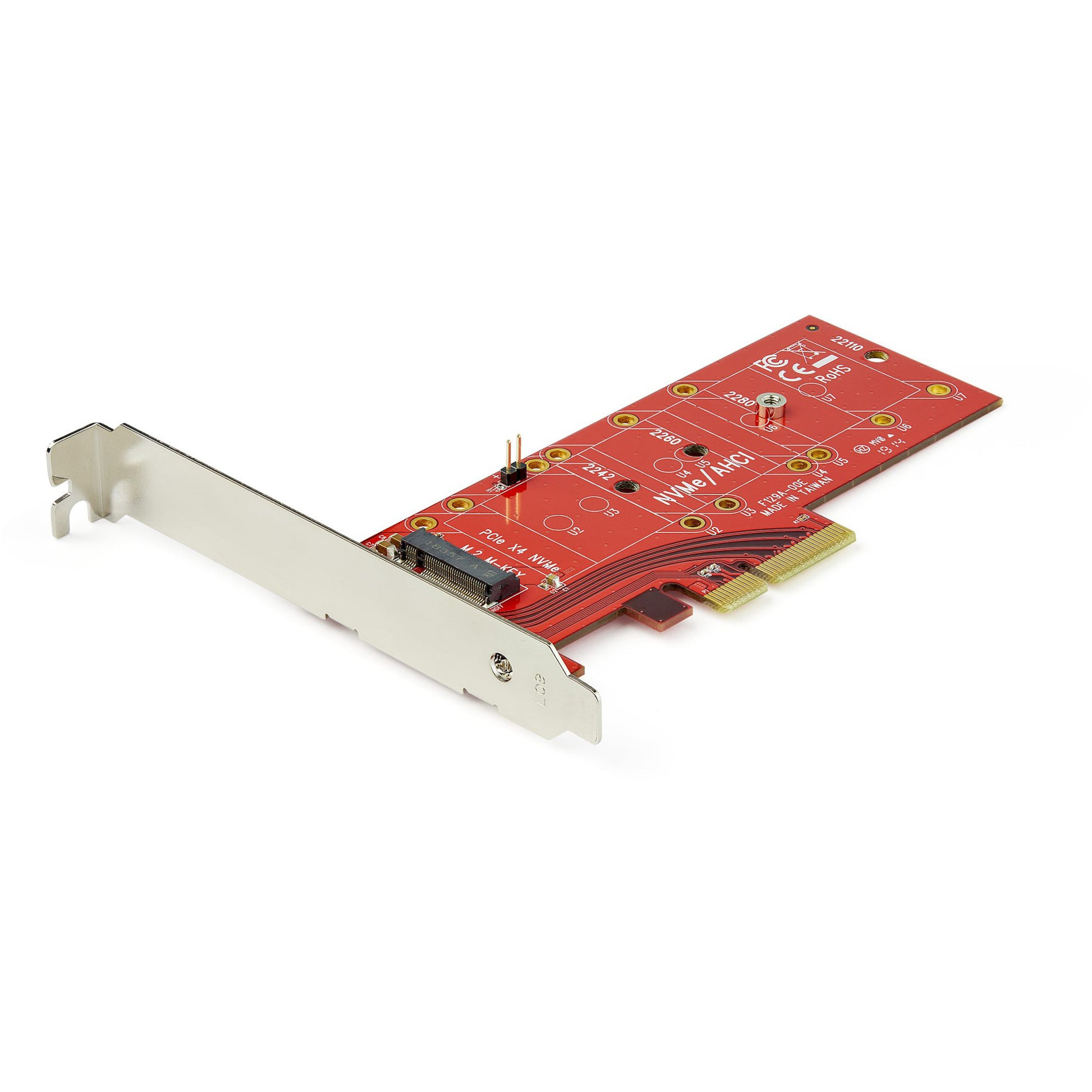

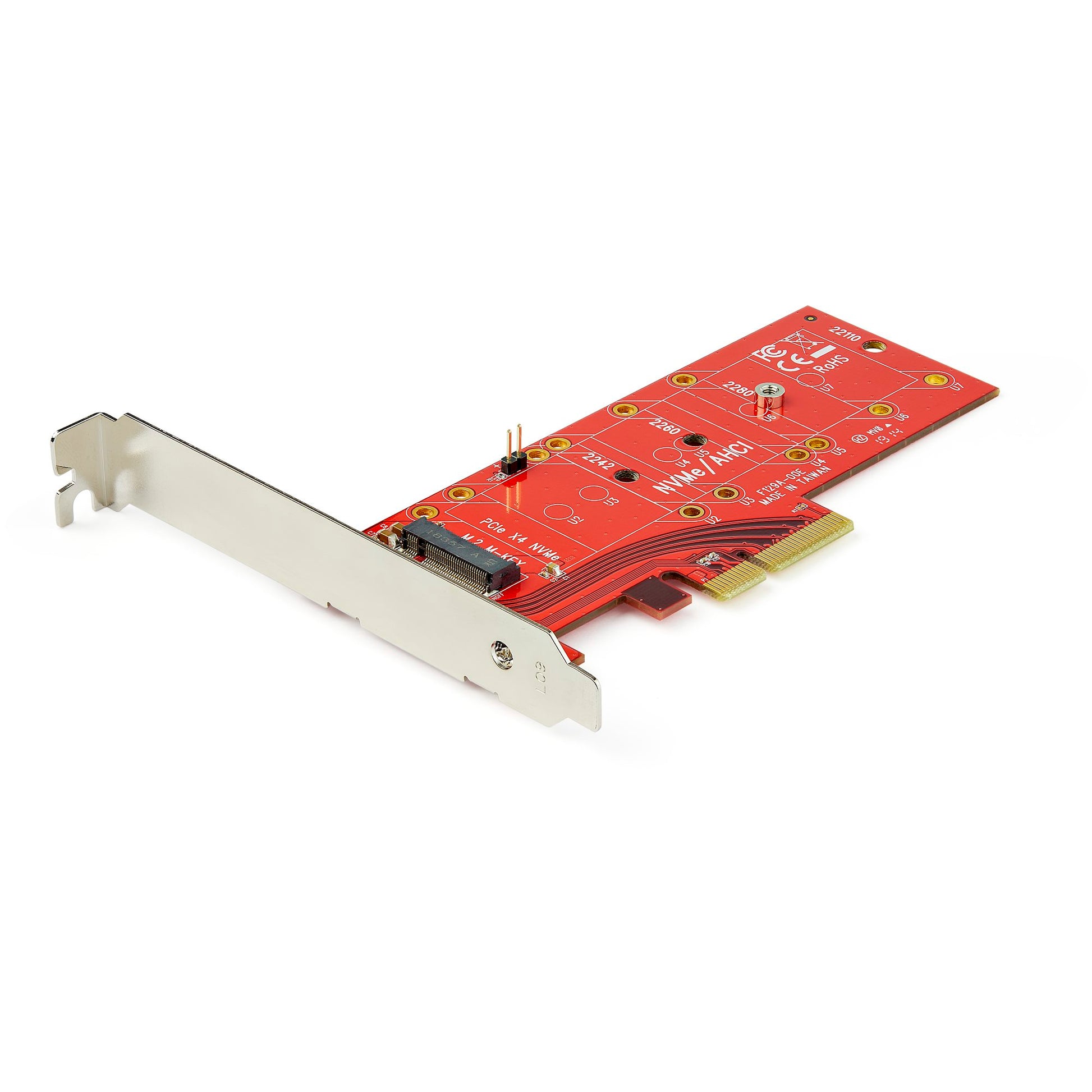

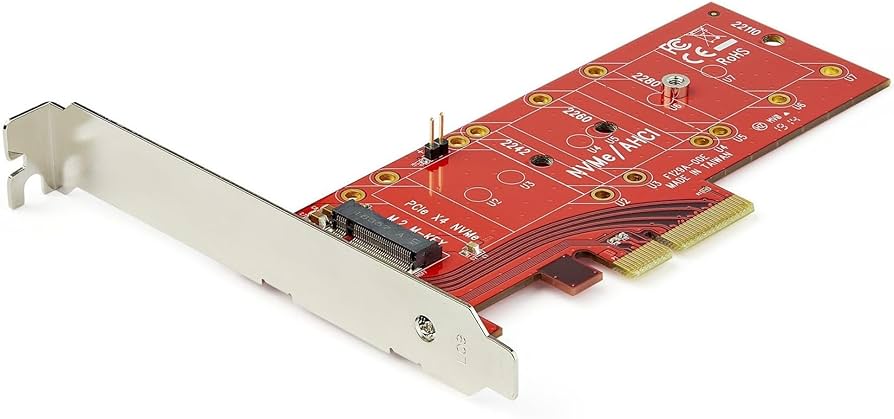

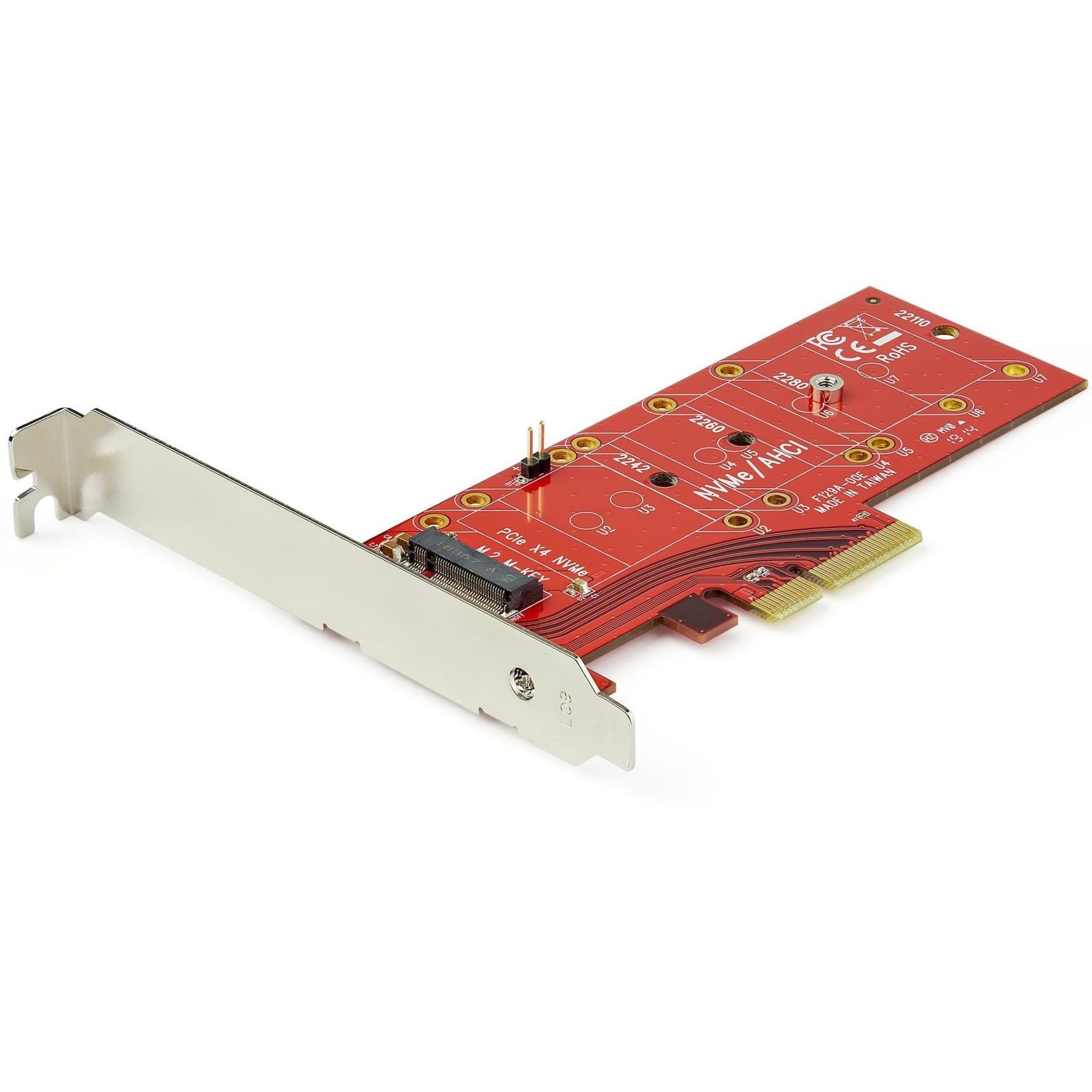

StarTech PEX4M2E1 PCIe 3.0 x4 to M.2 NVMe/AHCI SSD Adapter Card

VENDOR: STARTECH Mfg Part#: PEX4M2E1 UPC#: 065030865043
1 5
Photo is for illustration purposes only. Actual product may be different.
$34.00
$34.00
Sale Sold out
MSRP: $43.00
Shipping calculated at checkout.
  • Supports M-key M.2 NGFF PCIe SSDs (NVMe or AHCI)
  • PCI Express 3.0 x4 interface for high-speed data transfer
  • Durable steel construction ensures long-term reliability
  • Compact dimensions: 5.3" depth, 3.1" width, 0.2" height
  • TAA compliant for government and enterprise applications
  • Backed by a 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enhances performance by enabling ultra-fast PCIe data access via M.2 NVMe or AHCI SSDs.
  • Built for long-term use with high-quality steel construction and compact form factor.
  • TAA compliance and 2-year warranty make it an ideal choice for secure and professional IT environments.

Product Overview

Connect a PCIe M.2 SSD (NVMe or ACHI) to your computer through PCI Express for ultra-fast data access - x4 PCI Express to M.2 PCIe SSD Adapter - M.2 NGFF SSD (NVMe or ACHI) Adapter Card - Expansion bay adapter supports M key M.2 NGFF PCIe SSD

Specifications

Product Overview
Product Type Drive Converters
Form Factor Plug-in Card
Compatible Drive Type M.2 PCIe NVMe or AHCI SSD
Supported Drive Interface PCIe 3.0 x4 (NVMe or AHCI)
Connector Type M-Key M.2
Internal/External Internal
Mounting Type Expansion Slot (PCI Express)
Power Requirements Powered via PCIe bus
Hot-Swap Support No
Weight 45 g
Warranty 2 Years

Physical & Environmental
Color Red
Material Steel
Width 3.1 Inch (79 mm)
Depth 5.3 Inch (135 mm)
Height 0.2 Inch (5 mm)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Humidity (Operating) 20% ~ 80% RH (Non-Condensing)
LED Indicators Drive Power/Activity

Cloud Management & Licensing
Cloud Management
Licensing Required

Interfaces
Host Interface PCI Express 3.0 x4
Drive Interface M.2 PCIe NVMe or AHCI (M-Key)
Port Count 1 x M.2 Slot
Data Transfer Rate Up to 32 Gbps (Theoretical Max via PCIe 3.0 x4)
Bus Type PCI Express

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliance Yes
CE Certified Yes
FCC Certified Yes
REACH Compliant Yes

Advanced Security Features
Hardware Encryption Dependent on Installed SSD
Security Features Not Applicable – Passive Adapter Card
