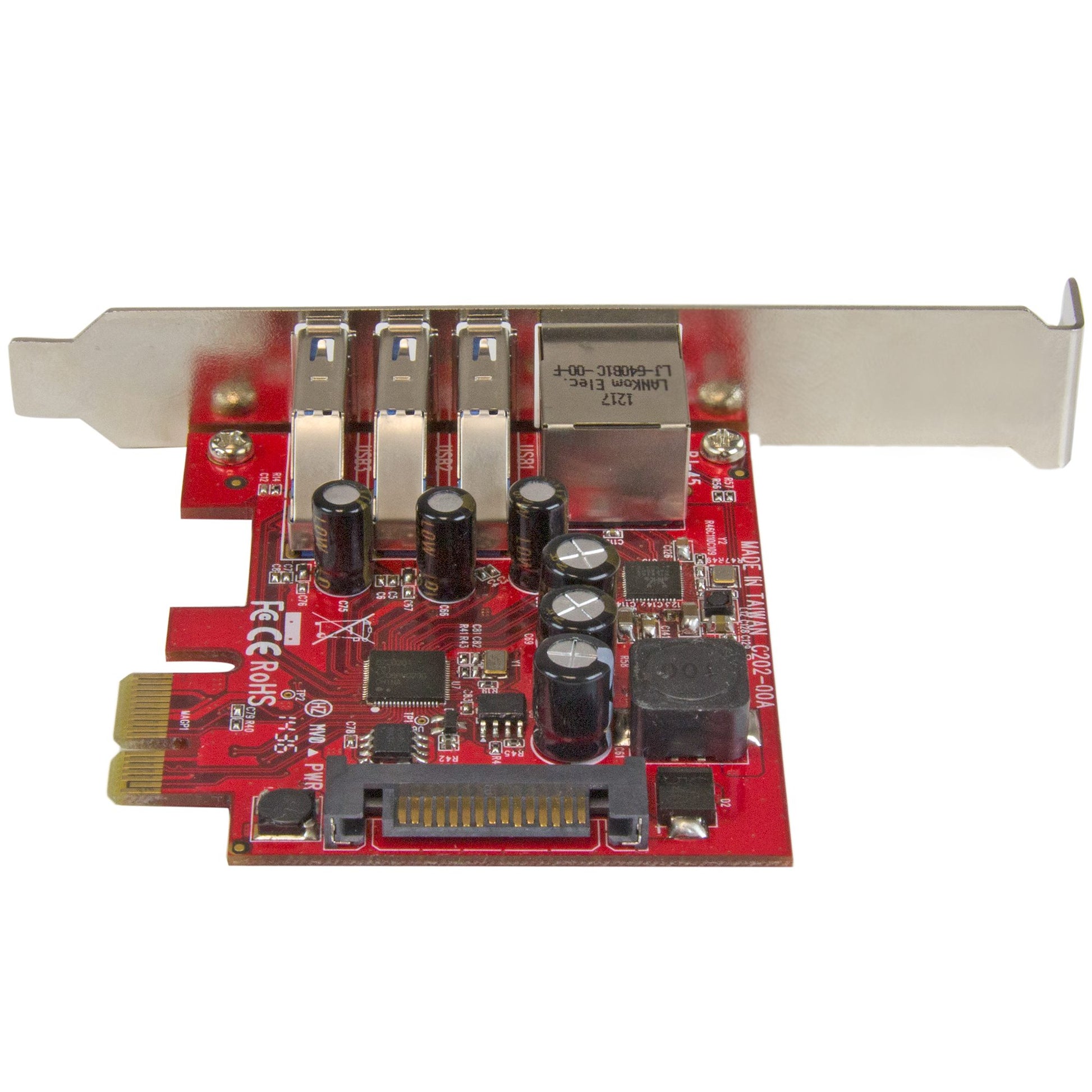

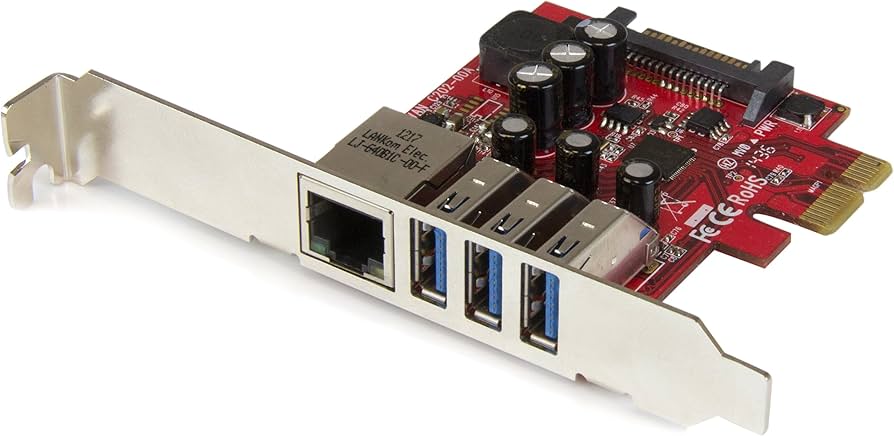

StarTech PEXUSB3S3GE PCIe USB 3.0 & Gigabit Ethernet Adapter Card

VENDOR: STARTECH Mfg Part#: PEXUSB3S3GE UPC#: 065030860796
1 5
Photo is for illustration purposes only. Actual product may be different.
$75.00
$75.00
Sale Sold out
MSRP: $93.00
Shipping calculated at checkout.
  • 3 USB Type-A ports supporting 5 Gbps data transfer rate
  • Integrated Gigabit Ethernet interface with PCIe connectivity
  • Compliant with IEEE 802.3az, 802.3x, 802.1q, 802.1p standards
  • Supports wired connectivity with UASP and SATA power support
  • Fits standard and low-profile PC enclosures
  • RoHS and TAA compliant, includes 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Combines USB 3.0 and Gigabit Ethernet into one card, saving expansion slots
  • Supports high-speed data transfer up to 5 Gbps ideal for modern peripherals
  • Designed for compatibility with standard and low-profile PCs ensuring flexibility

Product Overview

Running low on expansion slots Merge USB 3.0 and GbE into a single PCIe combo card - 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet - Fits Standard Low-Profile PCs - UASP - SATA Power - USB 3 with Network Adapter Card - Backward Compatible

Specifications

Product Overview
Product Type Network Adapter
Form Factor Plug-in card (low profile and full-height brackets included)
Weight 82 g
Power Requirements Requires SATA power connector
Chipset Renesas / NEC µPD720202 and Realtek RTL8111G
Bus Type PCI Express 2.0 x1
Bracket Type Low-profile (included), Full-height (pre-installed)

Wireless Features

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC, REACH
WEEE Compliant Yes

Advanced Security Features
MAC Address Filtering
PXE Boot Support Yes
Wake-on-LAN (WoL) Yes

Interfaces
Interface Type PCI Express
Ports 3 x USB 3.0 Type-A, 1 x RJ-45 (Gigabit Ethernet)
USB Port Quantity 3
USB Standard USB 3.0/3.1 Gen 1
USB Max Data Transfer Rate 5 Gbps
Ethernet Port Quantity 1
Ethernet Standards 10/100/1000 Mbps
Ethernet Data Transfer Rate 1 Gbps
USB Features UASP support
Network Protocols Supported IEEE 802.3, 802.3u, 802.3ab
Flow Control Support IEEE 802.3x full duplex
VLAN Tagging Support IEEE 802.1Q
QoS Support IEEE 802.1p Layer 2 Priority Encoding

Physical & Environmental
Dimensions (W x D x H) 17.8 mm x 76.2 mm x 119.4 mm (0.7 x 3 x 4.7 in)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 85°C (14°F to 185°F)
Operating Humidity 20% to 80% RH (non-condensing)
Storage Humidity 15% to 90% RH (non-condensing)
Enclosure Color Red
MTBF 107,599 hours

Cloud Management & Licensing
Management Interface
Subscription or Licensing Required
