| Product Type | PCIe SATA RAID Controller Card |
| Form Factor | Full-height and low-profile (brackets included) |
| RAID Support | RAID 0, RAID 1, SPAN (BIG), JBOD |
| Chipset | ASMedia ASM1061 |
| Power Requirements | Powered via PCI Express slot |
| Color | Red |
| Supported Operating Systems | Windows 11/10/8/7, macOS 10.6+, Linux 3.5+ |
| Weight | 59 g (2.1 oz) |

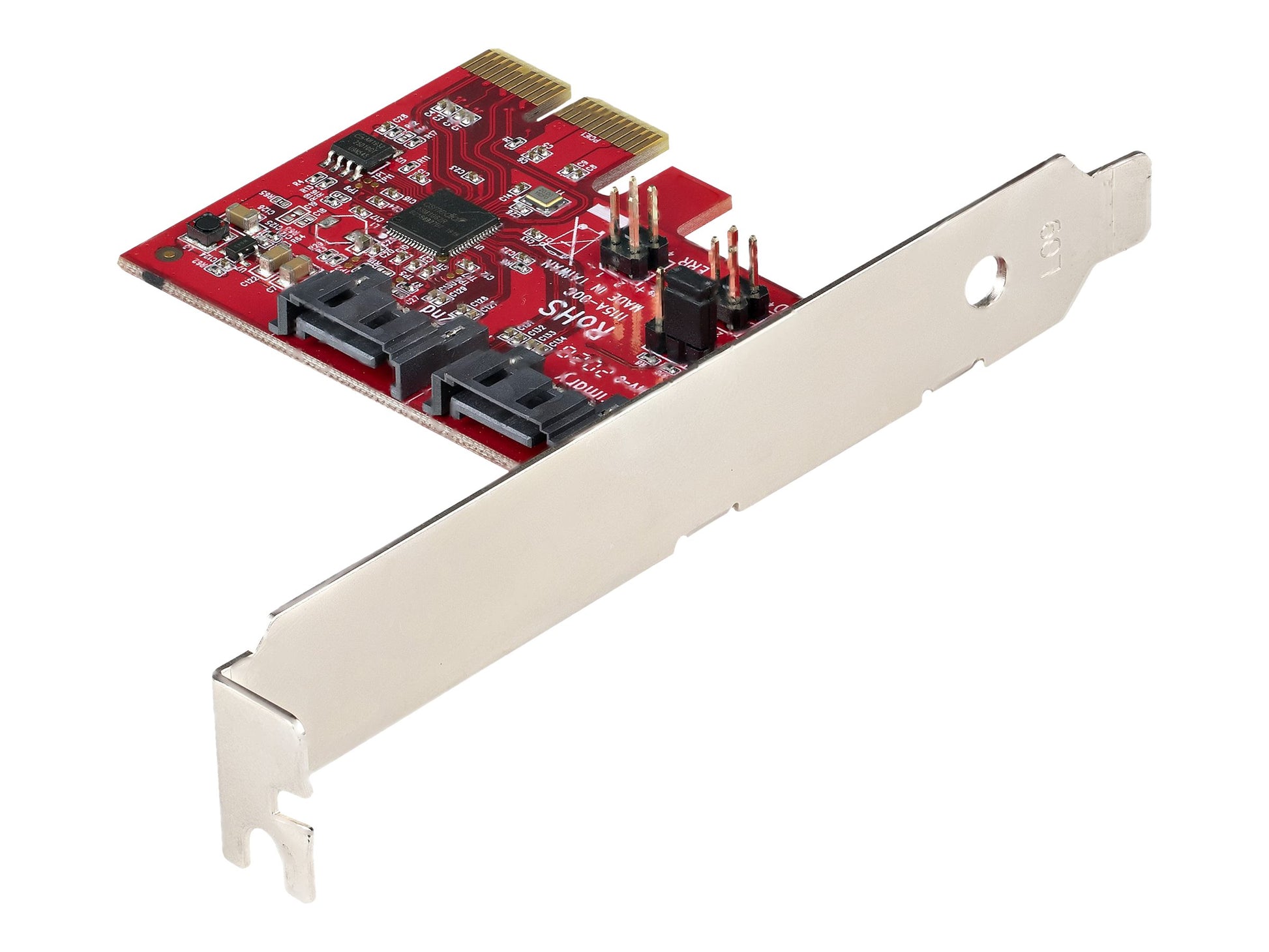

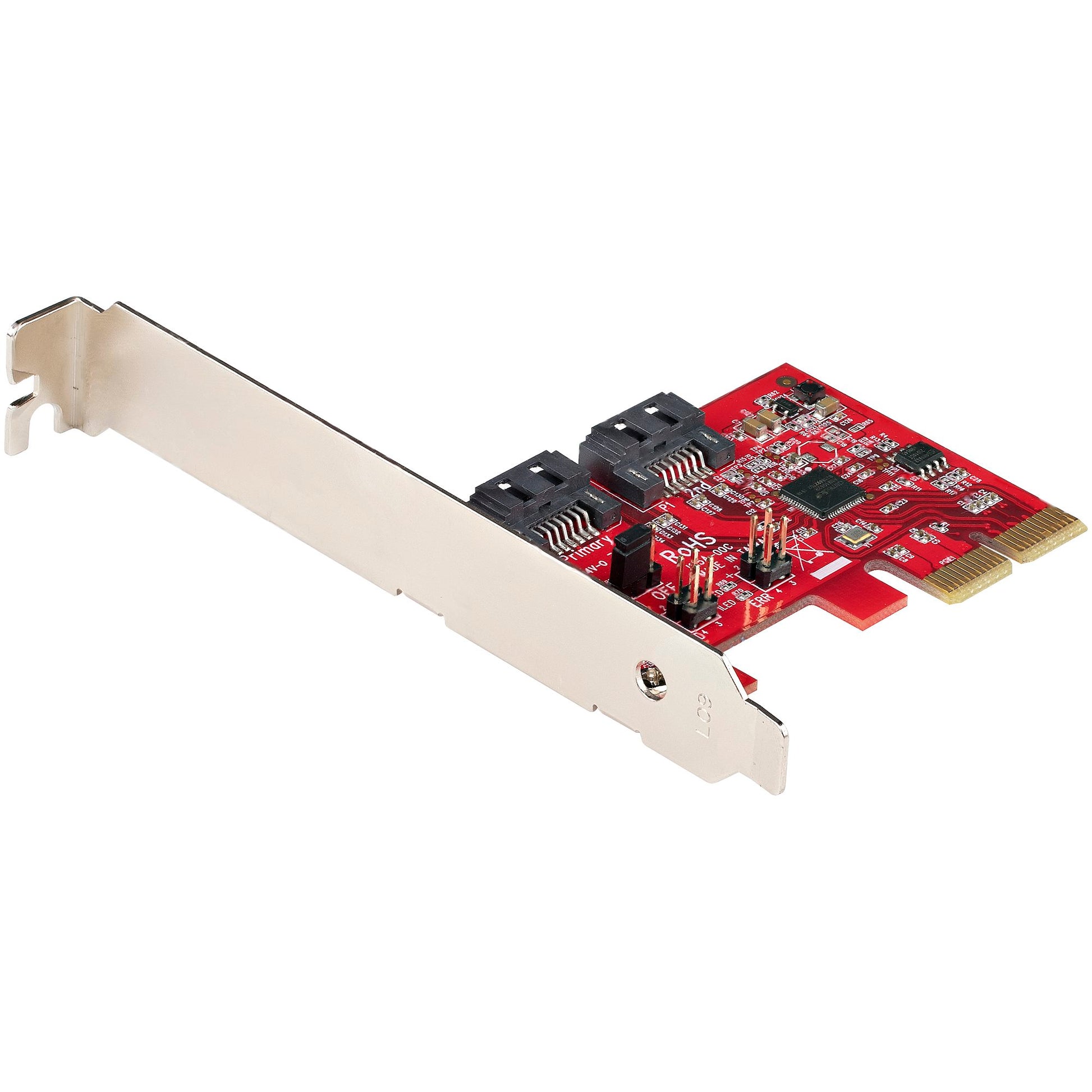

STARTECH SATA III 6Gbps PCIe 2-Port RAID Card (2P6GR-PCIE-SATA-CARD)
Photo is for illustration purposes only. Actual product may be different.
Regular price
$74.00
Regular price
Sale price
$74.00
Unit price
per
MSRP: $92.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 2-port SATA III PCIe x2 card supporting 6Gbps per port
- RAID support including RAID 0, RAID 1, JBOD, and SPAN modes
- Compatible with Windows, Linux (BIOS-level), and macOS (software RAID)
- PCI Express 2.0 interface ensures high-speed connectivity

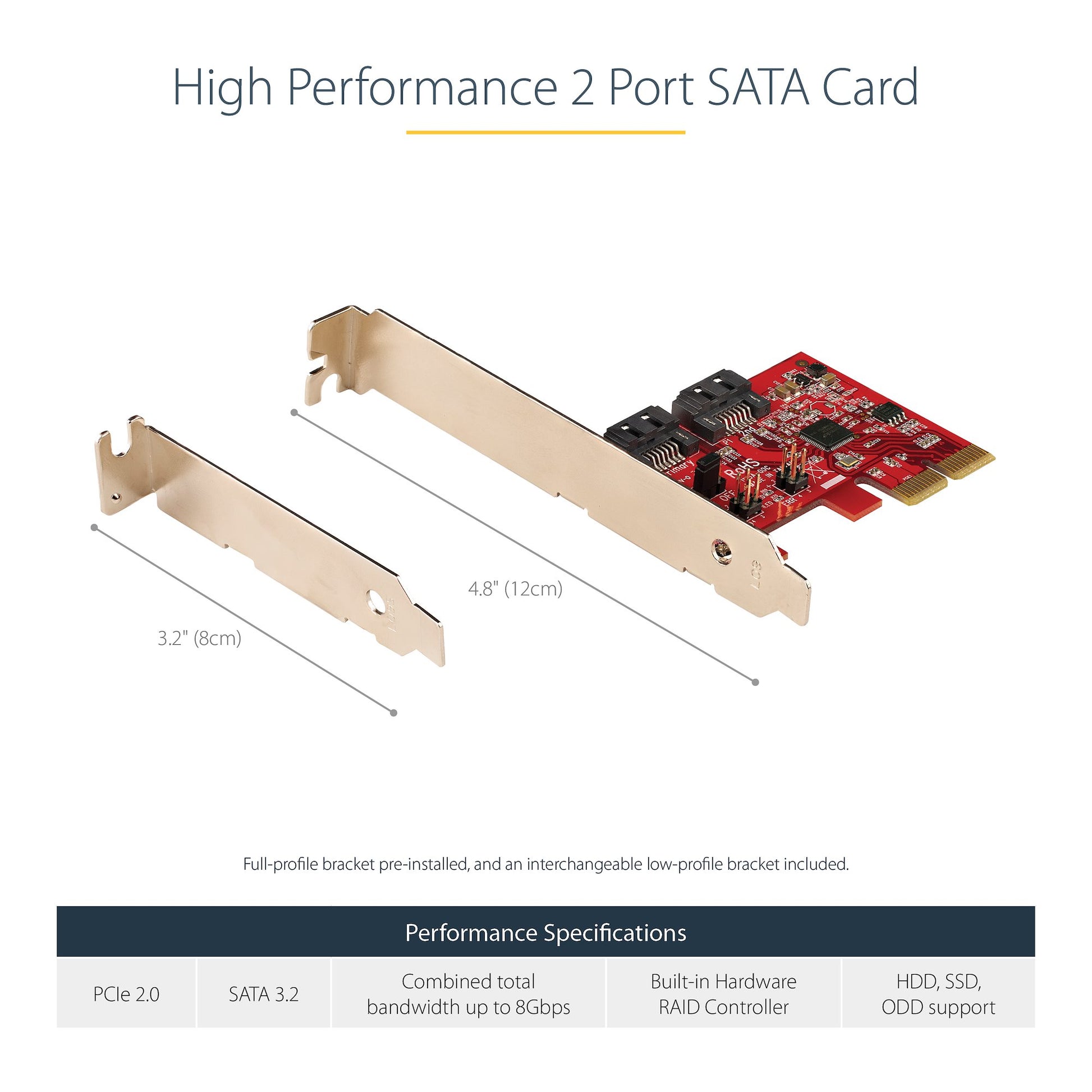

- Full and low-profile bracket support for flexible installation
- TAA compliant and backed by lifetime service & support
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Supports versatile RAID configurations ideal for redundancy or speed optimization.
- Compatible with major operating systems, enabling wide deployment across IT environments.
- Lifetime support and TAA compliance make it suitable for long-term commercial or government use.
Product Overview
SATA III 6Gbps PCIe x2 expansion adapter card converter - 2-Port SATA 3 - RAID 0/1/SPAN/JBOD - BIOS level RAID setup/config (Win/Linux) - OS level RAID setup/config/monitor (Win) - Software RAID on Mac - PCI Express 2.0 controller - Full/low-profileSpecifications
Product Overview
Physical & Environmental
| Width | 2.7 in (68 mm) |
| Height | 4.8 in (122 mm) |
| Depth | 0.9 in (22 mm) |
| Product Height with Bracket | Full-height bracket installed |
| Low-profile Bracket Included | Yes |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity | 20% ~ 80% RH (non-condensing) |
Cloud Management & Licensing
| RAID Management Interface | BIOS-level configuration, OS software utility (Windows) |
| Software Included | RAID management utility and drivers for Windows |
| Mac RAID Support | Software RAID via macOS Disk Utility |
| License Required | No licensing required |
| Bundled RAID Utility | Yes (BIOS config and Windows software) |
Interfaces
| Host Interface | PCI Express 2.0 x2 |
| Internal Ports | 2 x SATA 6Gbps (SATA III) |
| Port Type | 7-pin SATA Data (L-Type) |
| Number of SATA Ports | 2 |
| Maximum Data Transfer Rate per Port | 6 Gbps |
| Total Bandwidth | Up to 10 Gbps (PCIe x2) |
| Drive Type Supported | SATA I/II/III HDDs and SSDs |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| RoHS Compliance | Yes |
| CE Certified | Yes |
| FCC Compliance | Yes |
| REACH Compliant | Yes |
| Certifications | CE, FCC, RoHS, REACH |
