STARTECH SM Fiber Ethernet Media Converter SC GbE

VENDOR: STARTECH Mfg Part#: MCMGBSCSM10 UPC#: 065030878241
1 5

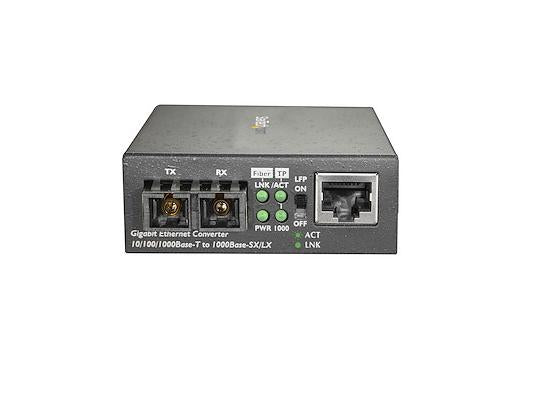

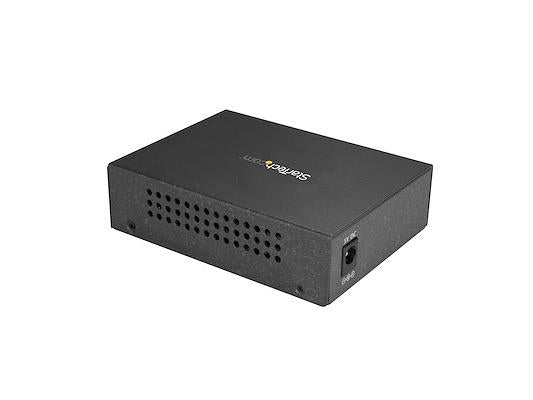

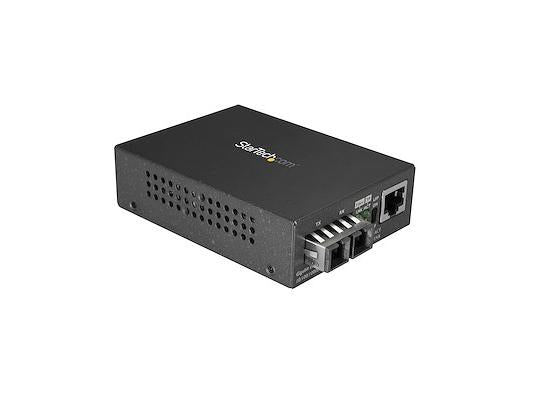

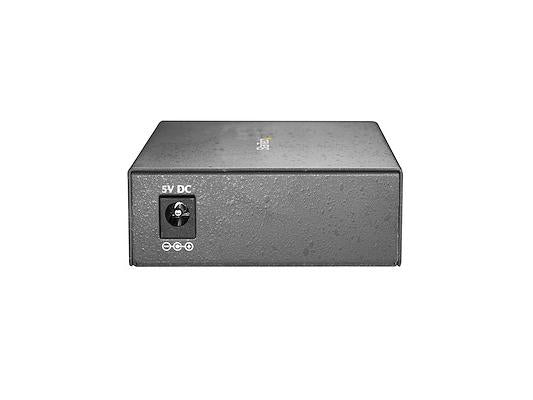

Photo is for illustration purposes only. Actual product may be different.
$130.00
$130.00
Sale Sold out
MSRP: $141.00
Shipping calculated at checkout.
  • Supports 1000BASE-LX over single-mode fiber at 1310 nm for up to 10 km
  • Interfaces include RJ-45 for copper and SC for fiber connectivity
  • Unmanaged operation with Link Fault Pass-Through and VLAN support
  • Compact and durable black enclosure with mounting brackets
  • Data transfer rate of up to 1 Gbps
  • TAA compliant with built-in ESD, contact, and air surge protection

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for bridging copper and fiber networks over long distances up to 10 km using SMF.
  • No configuration required with easy plug-and-play setup in unmanaged network environments.
  • Enhanced with Link Fault Pass-Through, VLAN support, and ESD protection for network integrity and reliability.

Product Overview

Single mode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit), 1000BASE-LX, 1310nm, 10km (6.2mi), Unmanaged, SMF, SC, RJ45, Mounting Brackets, LFP, VLAN, ESD Surge + Contact & Air Protection, 2 Yr Warranty

Specifications

Product Overview
Device Type Media Converter
Product Name STARTECH SM Fiber Ethernet Media Converter SC GbE
Manufacturer StarTech
Manufacturer Part Number MCMGBSCSM10
Form Factor Standalone, Compact
Power Requirements External power adapter, 12V DC, 1A
Enclosure Color Black
Mounting Options Wall mountable with included brackets
Warranty 2 Years

Physical & Environmental
Width 4.1 Inch (104 mm)
Depth 2.8 Inch (71 mm)
Height 1.0 Inch (26 mm)
Weight 225 g (0.5 lb)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Operating Humidity 10% to 90% RH, non-condensing
Storage Humidity 5% to 95% RH, non-condensing
Housing Material Metal

Cloud Management & Licensing
Management Interface Unmanaged
Licensing Requirements None

Interfaces
Network Interface 1 x RJ-45 (10/100/1000 Mbps), 1 x SC (1000BASE-LX)
Port Count 2
Data Transfer Rate 1 Gbps
Supported Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3z
Connector Types RJ-45 and SC Single-Mode Fiber
Duplex Mode Full/Half-Duplex (auto negotiation on copper)
Auto MDI/MDIX Yes
Error Detection Link Fault Pass-through (LFP), Far-End Fault (FEF)
Flow Control IEEE 802.3x full-duplex flow control
Packet Buffer Memory 512 KB
Max Frame Size 9,216 bytes (Jumbo Frames)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
EMC Compliance EN55032/55024

Advanced Security Features
Surge Protection ESD Surge + Contact & Air Protection
VLAN Transparency Pass-through VLAN tagging
