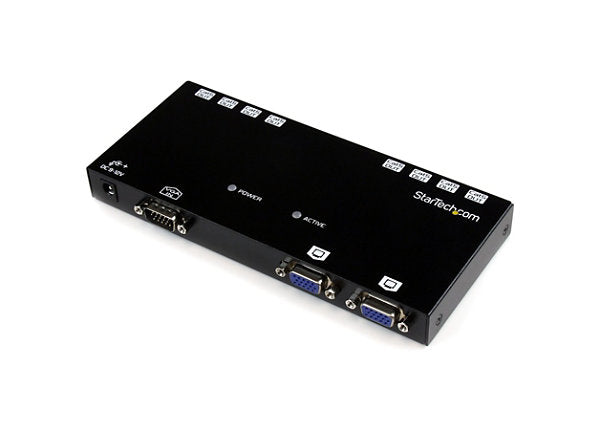

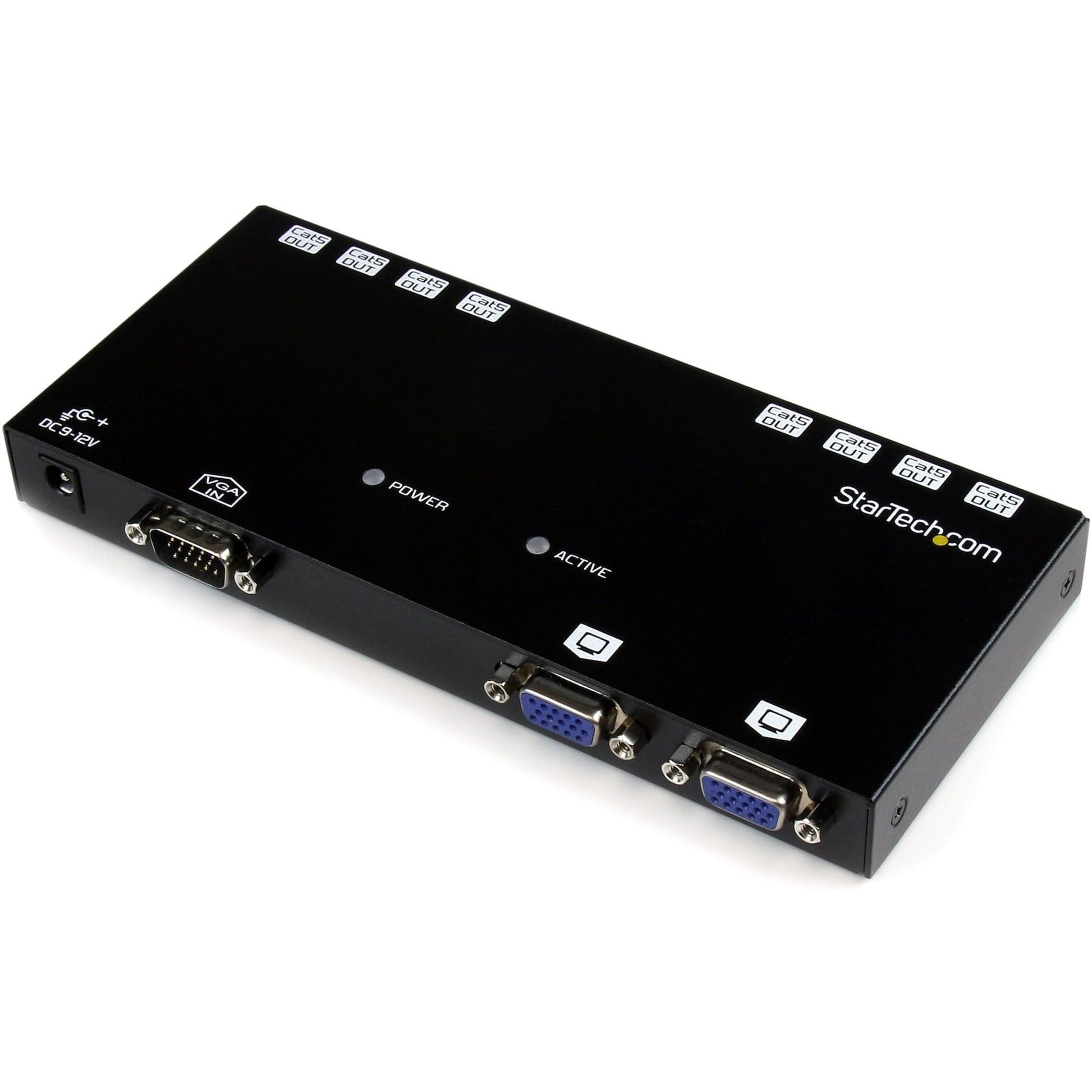

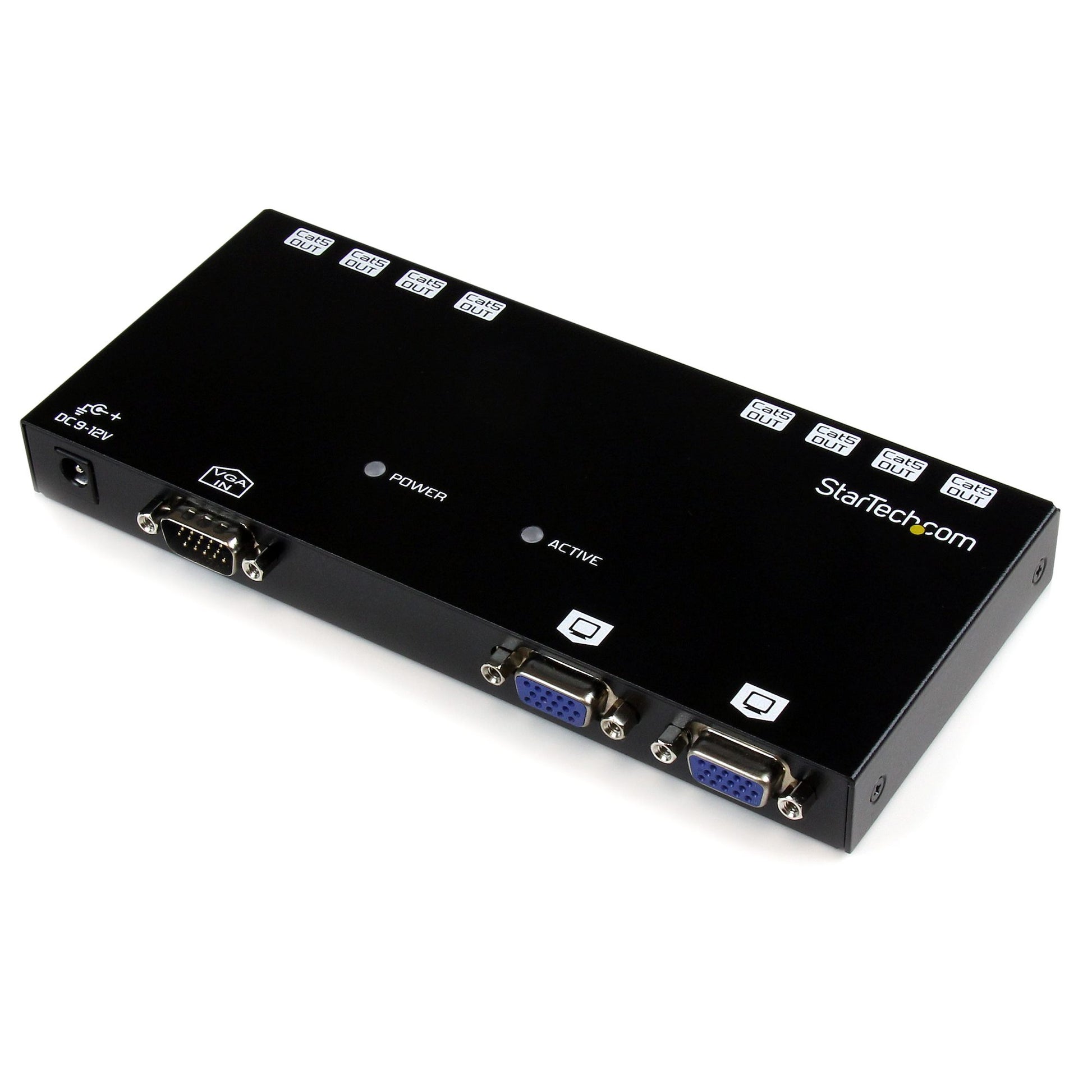

StarTech ST1218T 8-Port VGA Video Extender over Cat5, 150m Range

VENDOR: STARTECH Mfg Part#: ST1218T UPC#: 065030830584
1 5
Photo is for illustration purposes only. Actual product may be different.
$353.00
$353.00
Sale Sold out
MSRP: $355.00
Shipping calculated at checkout.
  • Supports up to 150 meters (492 ft.) VGA signal extension over Cat 5 UTP cable
  • 8-port distribution from a single VGA source to multiple displays
  • External form factor for flexible deployment in AV environments
  • VGA (15-pin, High Density D-Sub) interface
  • TAA compliant for government installations
  • Backed by a 2-year manufacturer's warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Distribute VGA video output to eight displays simultaneously, ideal for scaling signage or presentation systems.
  • Extend video signals up to 150 meters using affordable Cat 5 or better cabling, reducing infrastructure costs.
  • Built-in reliability and policy compliance with a 2-year warranty and TAA compliance for government use.

Product Overview

This 8 Port transmitter unit is designed for use with StarTech.coms ST121 VGA Video over Cat5 extender series - a convenient video distribution system allows a single VGA source to be broadcast to multiple displays at up to 492 ft. (150m) away.

Specifications

Product Overview
Product Type VGA Video Extender Transmitter
Form Factor External
Weight 760 g
Power Requirements 9V DC, 600mA
Max Transfer Distance 150 m (492 ft)
Connectivity Technology Wired
Included Accessories 9V DC Power Adapter, Mounting Brackets

Wireless Features

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC
RoHS Compliant Yes
Warranty 2 Years

Advanced Security Features

Interfaces
Local Video Output 1 x VGA (HD-15) Female
Video Input 1 x VGA (HD-15) Male
RJ-45 Output Ports 8 x RJ-45 Female
Cabling Type UTP Cat5 or better
Video Bandwidth 250 MHz
Maximum Resolution 1600 x 1200 @ 150 m
LED Indicators Power, Video output per port

Physical & Environmental
Material Steel
Enclosure Color Black
Product Height 44 mm
Product Width 220 mm
Product Depth 130 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 80°C (14°F to 176°F)
Humidity Range (Operating) 0% - 80% RH (non-condensing)
