STARTECH ST121R VGA Extender Receiver over Cat 5

VENDOR: STARTECH Mfg Part#: ST121R UPC#: 065030824323
1 4

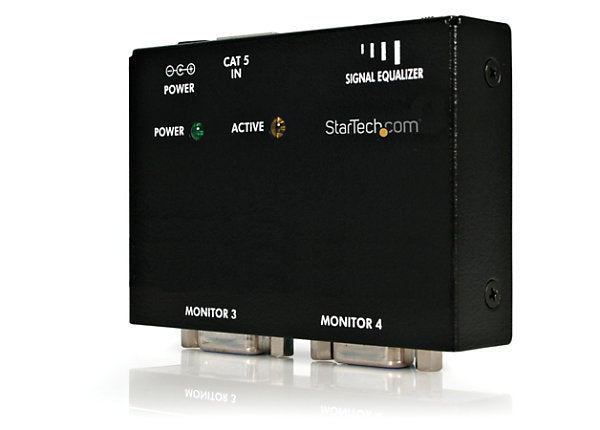

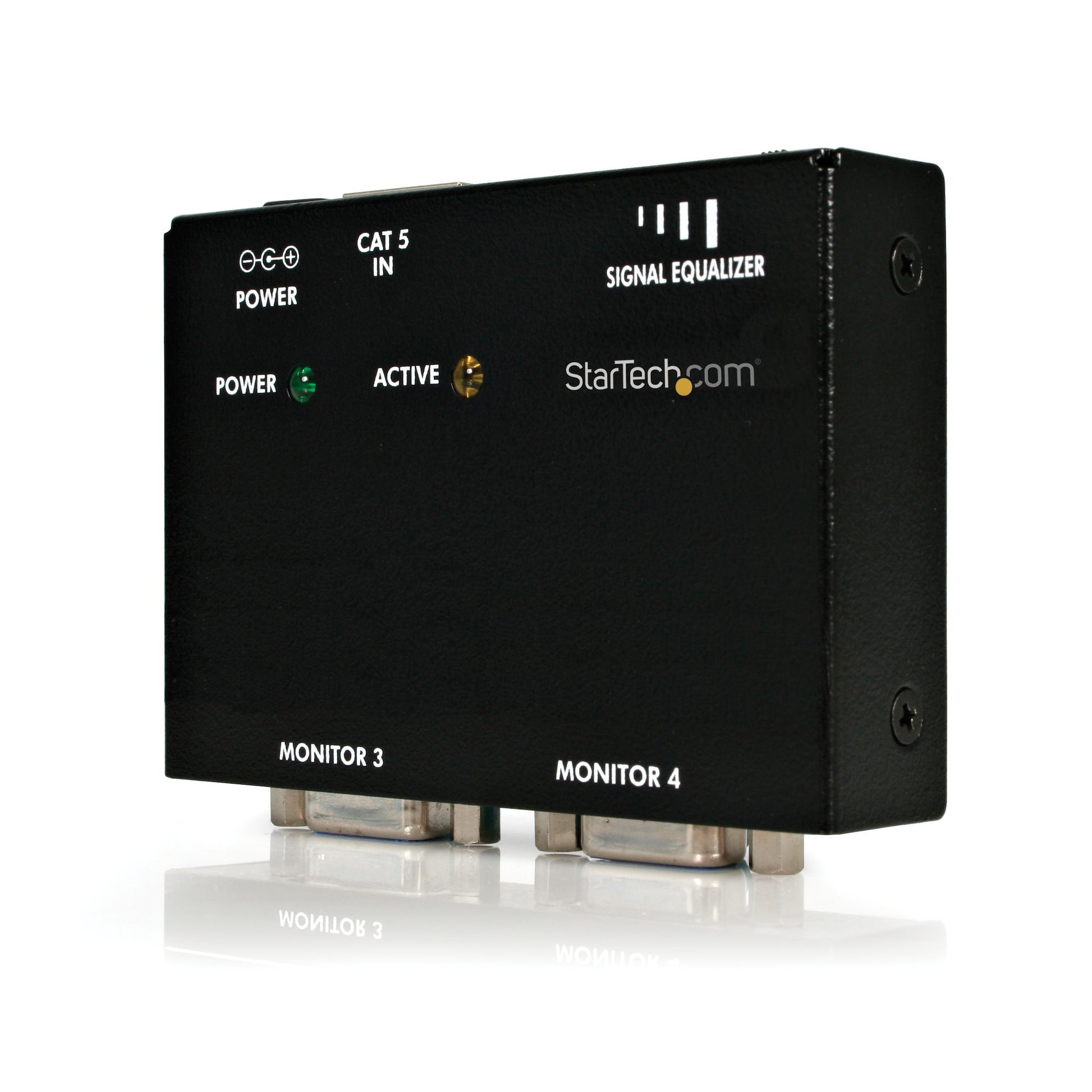

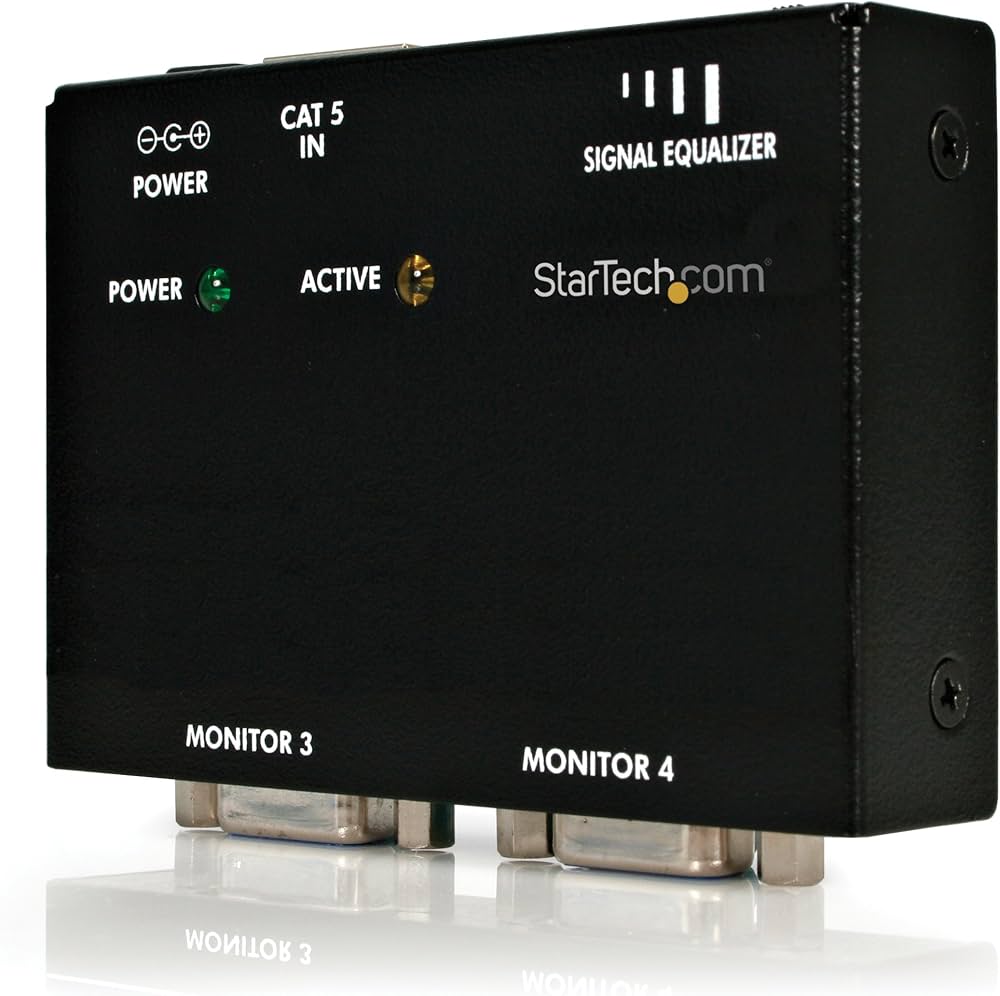

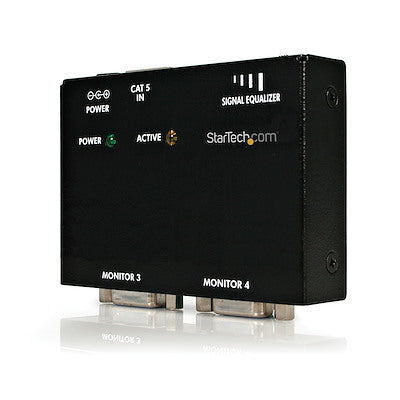

Photo is for illustration purposes only. Actual product may be different.
$118.00
$118.00
Sale Sold out
MSRP: $126.00
Shipping calculated at checkout.
  • Receiver device for VGA signal extension over Cat 5 UTP or better cabling
  • Supports analog video resolutions up to 1024x768
  • Maximum transfer distance of 150 meters (492 feet)
  • Wired Ethernet-based data link for stable connectivity
  • Compact dimensions: 2.6" W x 3.3" D x 0.8" H with black enclosure
  • TAA compliant and backed by a 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Efficiently extends VGA video up to 150 meters, ideal for long-distance A/V setups
  • TAA compliance ensures suitability for government and institutional procurement
  • Compact and rugged design facilitates discreet and flexible placement

Product Overview

Extend and distribute a VGA signal to up to 4 displays over Cat5 cable - vga receiver - VGA over Cat5 Receiver - VGA to Cat5 receiver -vga over cat 5 extender

Specifications

Product Overview
Product Type VGA Extender Receiver
Form Factor Standalone Unit
Enclosure Color Black
Power Requirements 5V DC, 1A (external power adapter)
Input Voltage AC 100-240V
Power Consumption Max 2.5W
Max Transfer Distance 150 m (492 ft)
Service & Support Type 2-Year Manufacturer Warranty

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
CE Certified Yes
FCC Compliant Yes

Advanced Security Features

Interfaces
Signal Input RJ45 (from transmitter)
Signal Output VGA (HD15 Female)
Max Analog Resolution 1024 x 768 @ 60Hz
Supported Video Modes VGA, SVGA, XGA
Connectivity Technology Wired
Cabling Type Cat5 UTP or better
Data Link Protocol Ethernet (for signal transmission via Cat5)
Number of Ports 1 x RJ45, 1 x VGA

Physical & Environmental
Width 2.6 in (66 mm)
Depth 3.3 in (84 mm)
Height 0.8 in (20 mm)
Product Weight 100 g (0.22 lbs)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% to 80% RH, non-condensing
Storage Humidity 10% to 90% RH, non-condensing
Enclosure Type Steel
