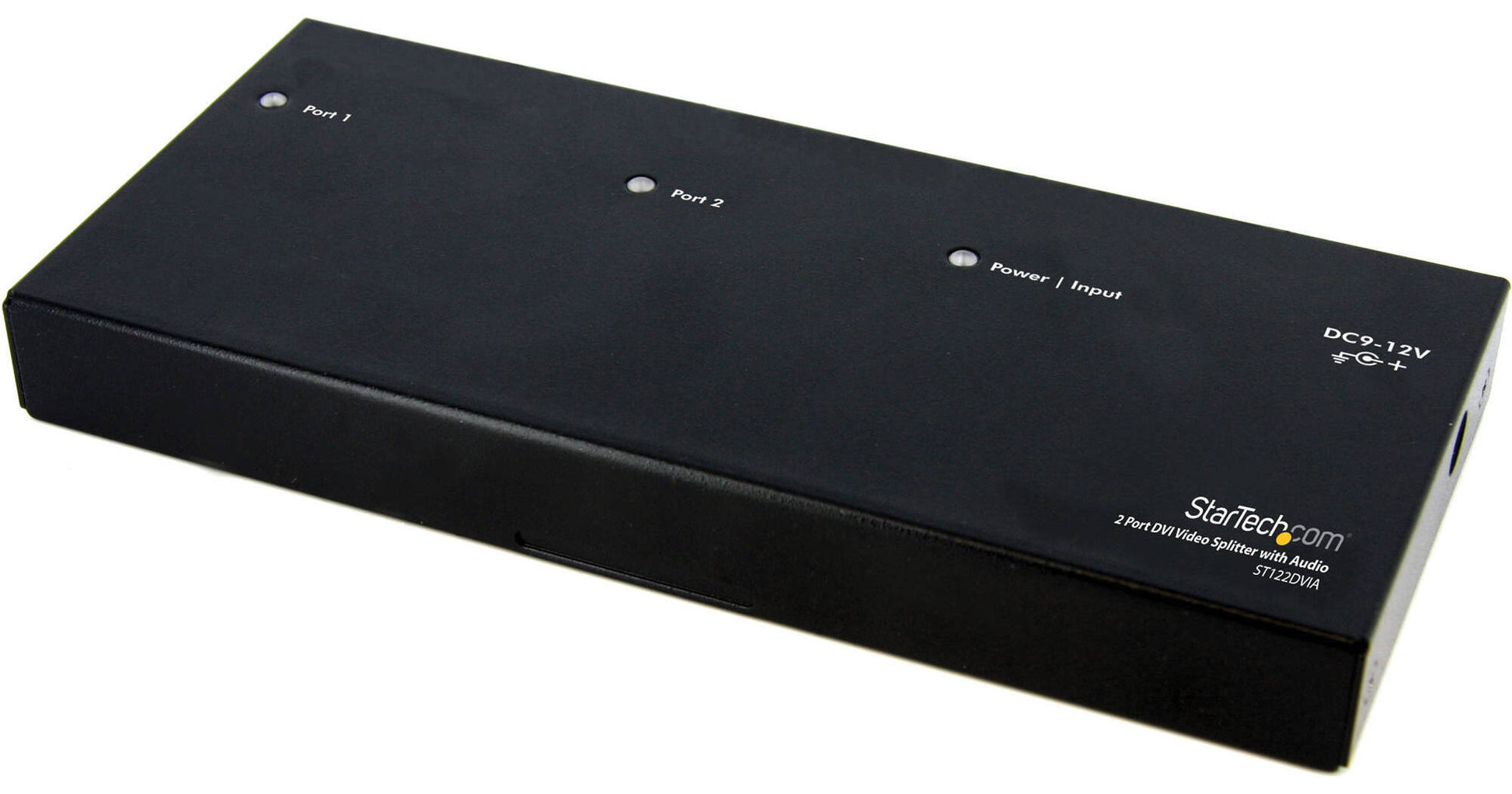

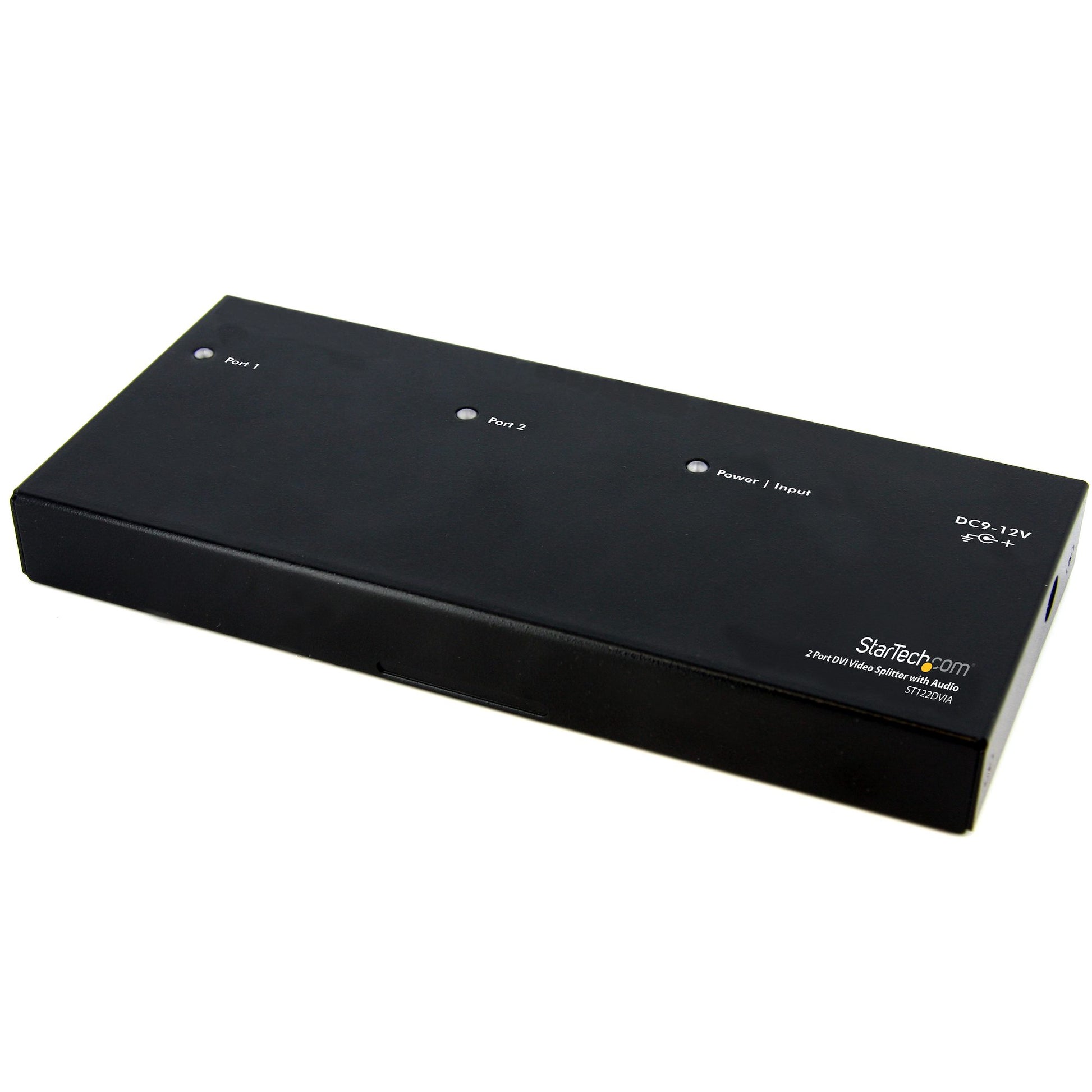

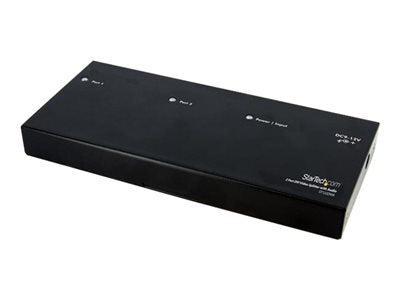

StarTech ST122DVIA 2-Port DVI Video Splitter with Audio

VENDOR: STARTECH Mfg Part#: ST122DVIA UPC#: 065030839563
1 5
Photo is for illustration purposes only. Actual product may be different.
$170.00
$170.00
Sale Sold out
MSRP: $183.00
Shipping calculated at checkout.
  • 2-port DVI video splitter with 3.5 mm audio output support
  • Supports up to 1920 x 1200 resolution at 60 Hz
  • Includes 1 DVI-I input, 2 DVI-I outputs, and corresponding 3.5 mm audio jacks
  • Compact black enclosure: 3.4" W x 7.1" D x 0.8" H
  • TAA compliant; manufactured in Taiwan
  • Covered by a 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables simultaneous high-definition video and audio mirroring on two displays, ideal for digital signage and presentations.
  • TAA compliance ensures it meets government procurement specifications for corporate and federal use.
  • Compact and durable hardware includes a 2-year warranty for long-term reliability and peace of mind.

Product Overview

ST122DVIA - 2 Port DVI Video Splitter with Audio - TAA - Split a DVI source with audio to two displays - Supports resolutions of up to 1920 x 1200 pixels @ 60 Hz

Specifications

Product Overview
Manufacturer StarTech
Model ST122DVIA
Product Type 2-Port DVI Video Splitter with Audio
Form Factor External
Color Black
Weight 520 g
Power Requirements 5V DC, 2A
Included Accessories 1 x DVI splitter, 1 x universal power adapter (NA/UK/EU/AUS), 1 x instruction manual
Warranty 2 Years

Physical & Environmental
Width 3.4 inches (86.4 mm)
Depth 7.1 inches (180.3 mm)
Height 0.8 inches (20.3 mm)
Enclosure Type Steel
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 10% to 85% RH (non-condensing)
Storage Humidity 5% to 90% RH (non-condensing)

Cloud Management & Licensing
Cloud-Based Management
Licensing Requirement No licensing required

Interfaces
Input Connector 1 x DVI-I (29-pin), 1 x 3.5 mm Mini-Jack (3 position)
Output Connectors 2 x DVI-I (29-pin), 2 x 3.5 mm Mini-Jack (3 position)
Interface Type DVI-I
Audio Support Yes - 3.5mm stereo audio
Port Count 2
Max Resolution 1920 x 1200 @ 60Hz
Signal Type Digital and Analog (via DVI-I)
Video Bandwidth 165 MHz
Daisy Chain Support Yes - Cascadable up to 3 levels

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Compliance Standards WEEE, REACH
UPC 065030839563

Advanced Security Features
Security Features No active security features; passive video/audio splitter
