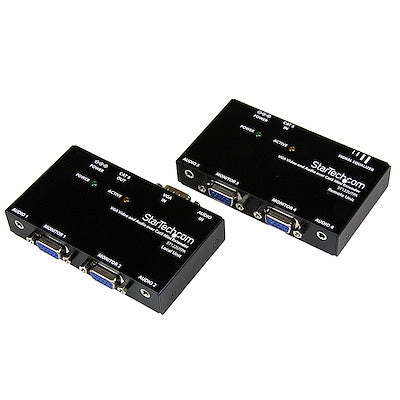

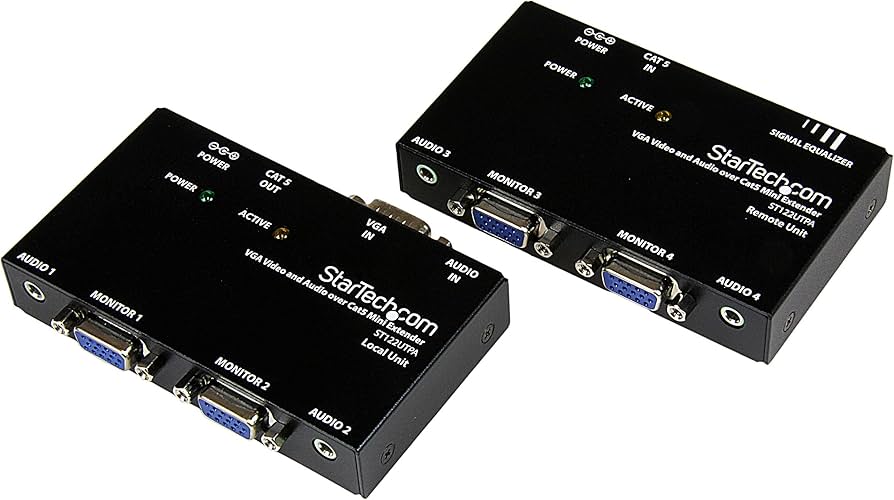

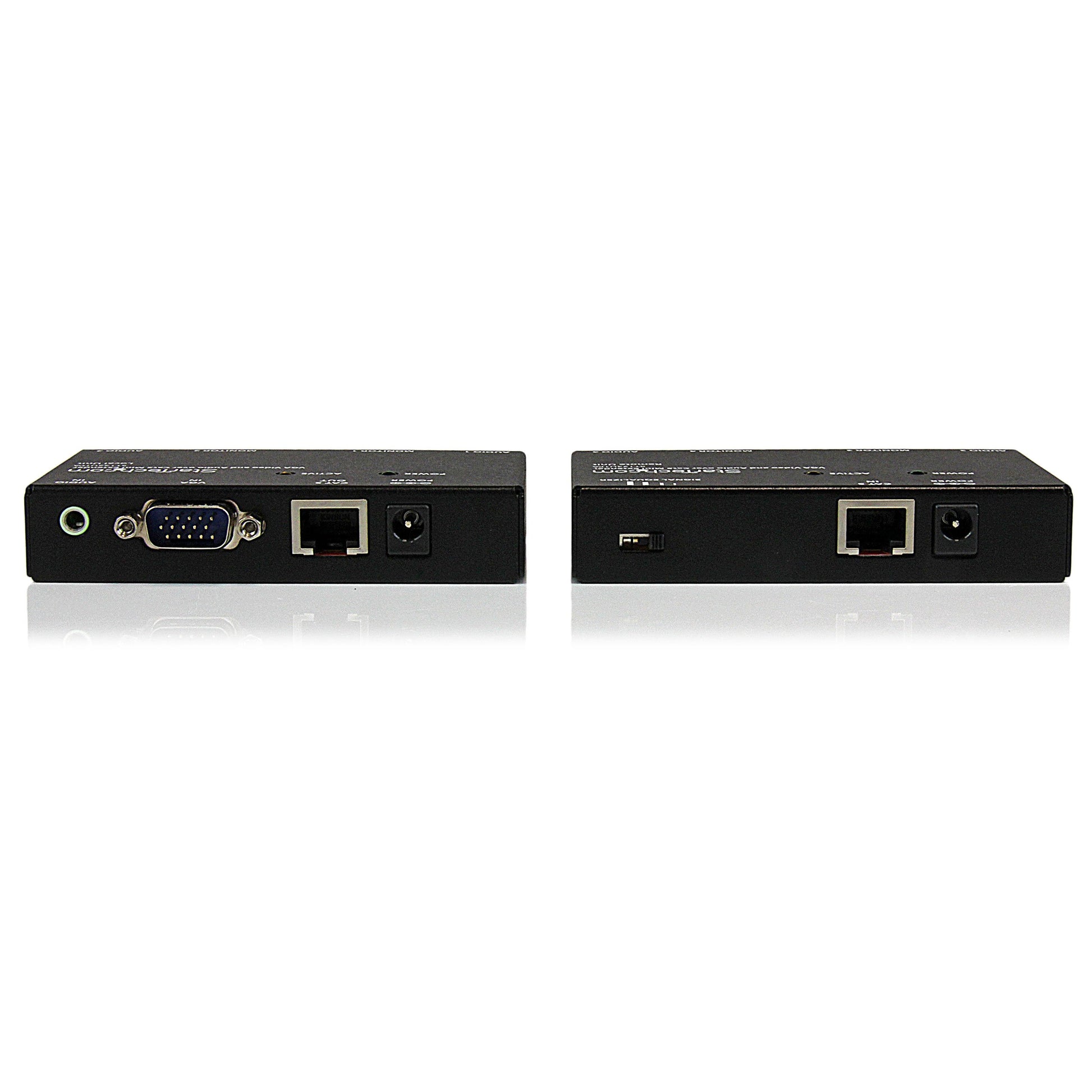

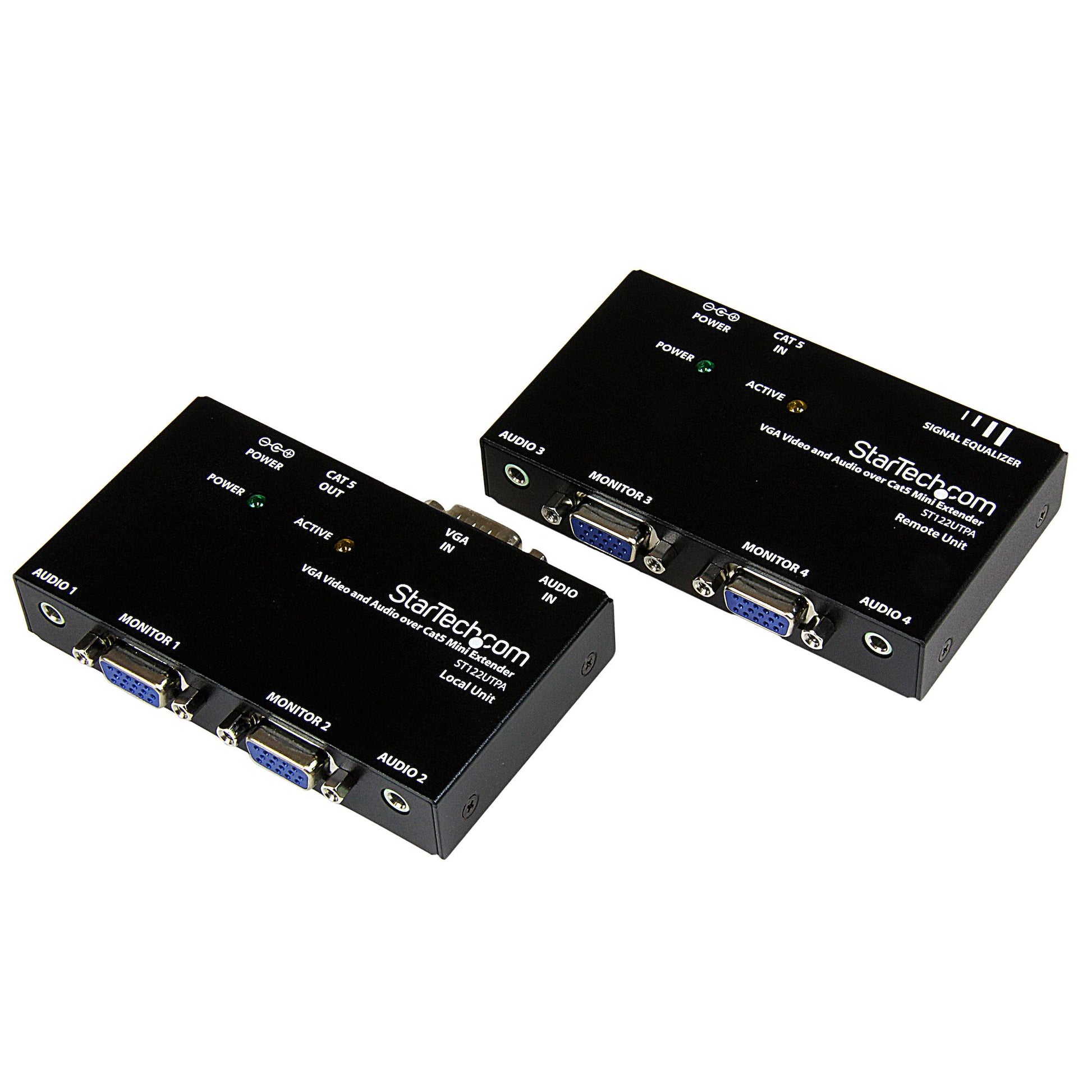

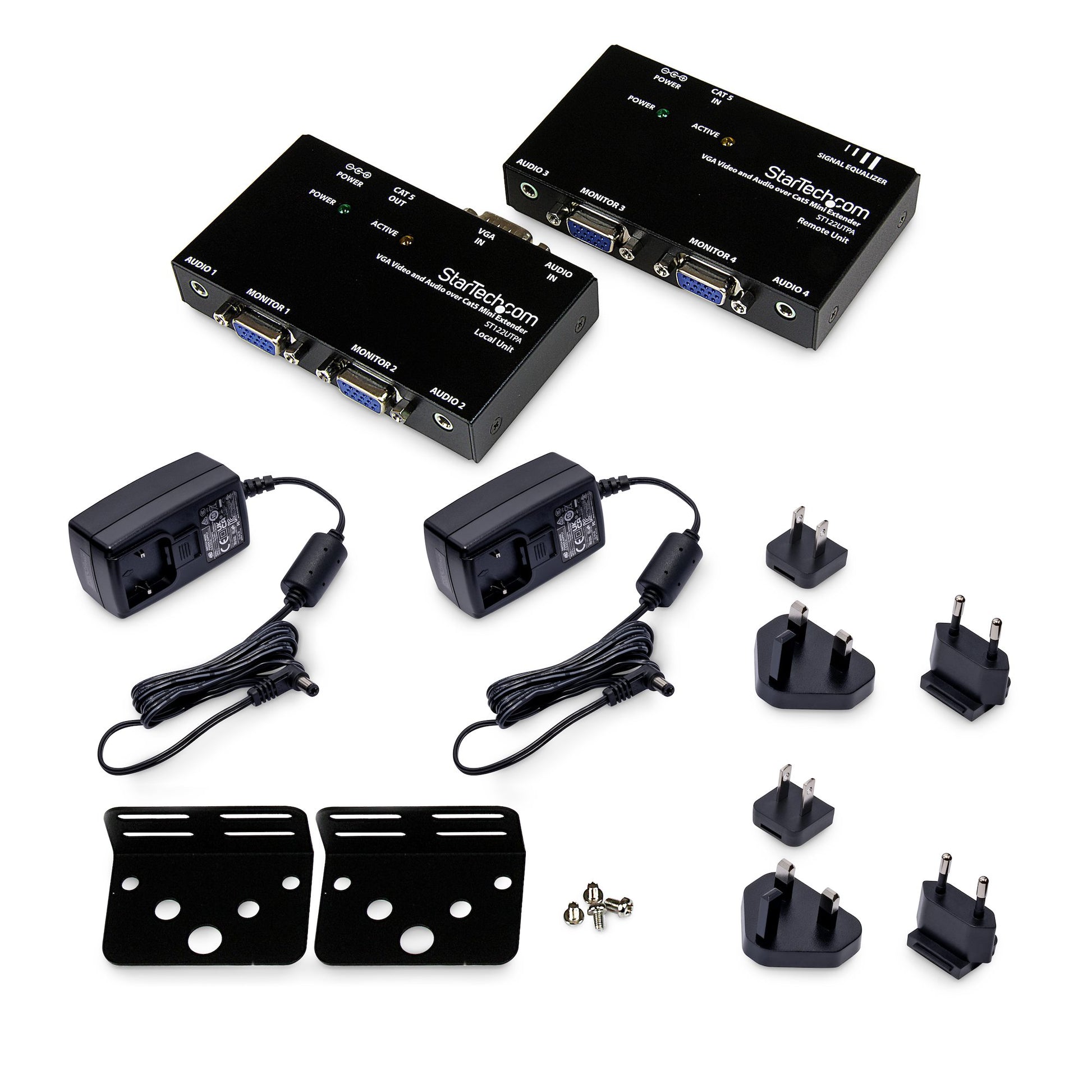

STARTECH ST122UTPA VGA Video Extender over Cat5 with Audio

VENDOR: STARTECH Mfg Part#: ST122UTPA UPC#: 065030811408
1 5
Photo is for illustration purposes only. Actual product may be different.
$199.00
$199.00
Sale Sold out
MSRP: $201.00
Shipping calculated at checkout.
  • Supports VGA video extension up to 150 feet (50 meters) at 1440x900 resolution
  • Transmits both VGA video and accompanying stereo audio over a single Cat5 cable
  • External device form factor with wired connectivity for stable signal transmission
  • Single-port unit with RJ-45 interface, compatible with Ethernet infrastructures
  • Compact dimensions (3.3 x 2.4 x 0.8 inches) in a durable black enclosure
  • Complies with TAA regulations and includes 2-year warranty support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Optimized for professional AV environments, this extender supports long-distance VGA transmission with minimal signal degradation.
  • Reduces infrastructure costs by using standard Cat5 cables instead of proprietary video cabling.
  • TAA compliance and warranty support make it suitable for government and enterprise procurement.

Product Overview

Extend and distribute a VGA signal and the accompanying audio to a remote display over Cat5 cable - vga extender - vga video extender over cat5 - vga monitor extender - vga over cat5 - vga over utp

Specifications

Product Overview
Product Type VGA Video Extender over Cat5 with Audio
Form Factor External
Enclosure Color Black
Connectivity Technology Wired
Power Requirements External power adapter (included)
Power Consumption (Max) 300 mA
Warranty 2 Years

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Environmental Standards RoHS, CE, FCC
Certifications CE, FCC, RoHS

Advanced Security Features

Interfaces
Video Input 1 x VGA - HD-15
Video Output 1 x VGA - HD-15
Audio Input 1 x 3.5mm stereo jack
Audio Output 1 x 3.5mm stereo jack
Extension Interface 1 x RJ-45 (Cat5 UTP or better)
Max Supported Resolution 1440 x 900 @ 150 ft / 50 m
Max Transmission Distance 300 ft (91 m)
Networking Ports Quantity 1
Video Bandwidth 150 MHz

Physical & Environmental
Width 3.3 in (83 mm)
Depth 2.4 in (61 mm)
Height 0.8 in (20 mm)
Weight 180 g (0.4 lb)
Humidity Range (Operating) 0% to 80% (non-condensing)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
