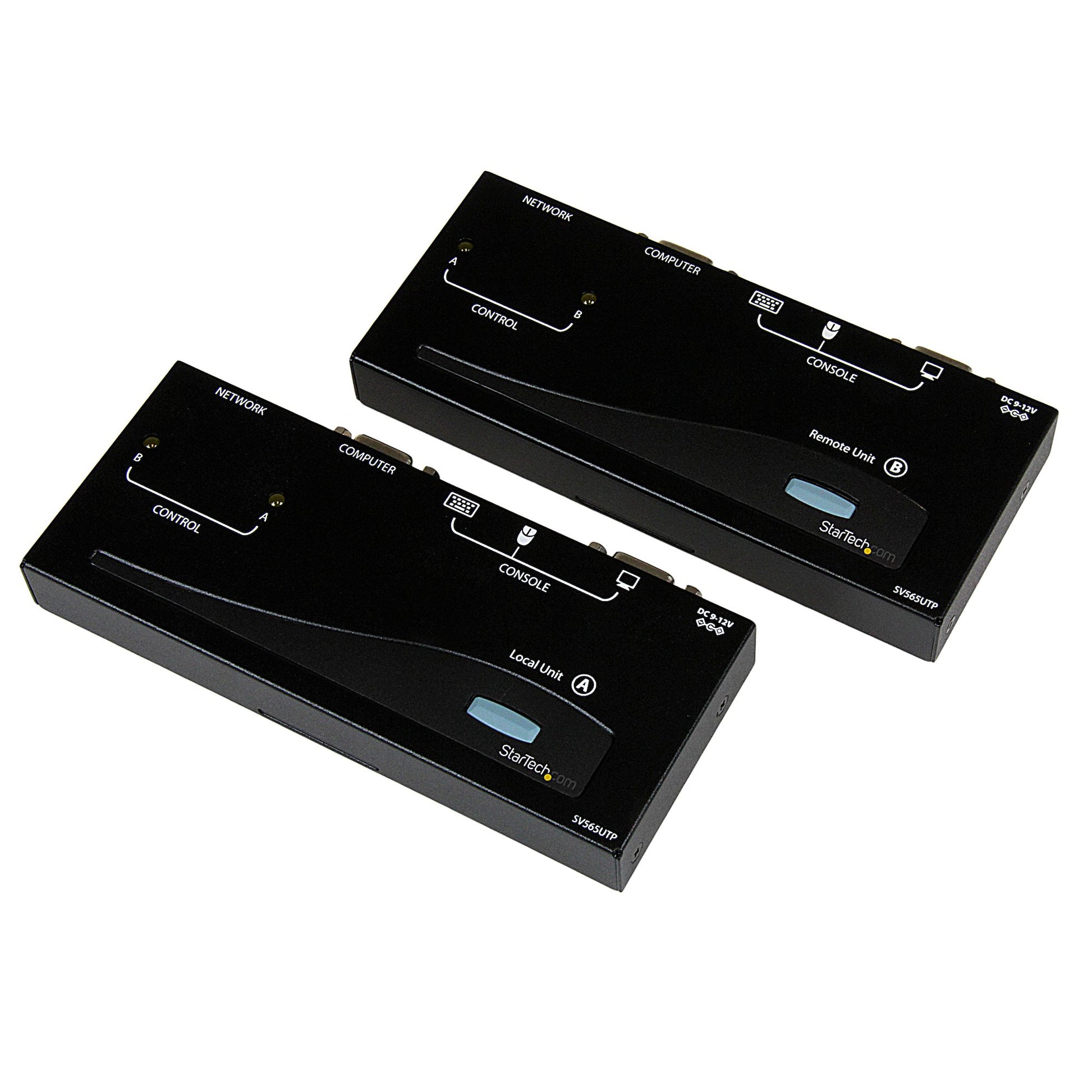

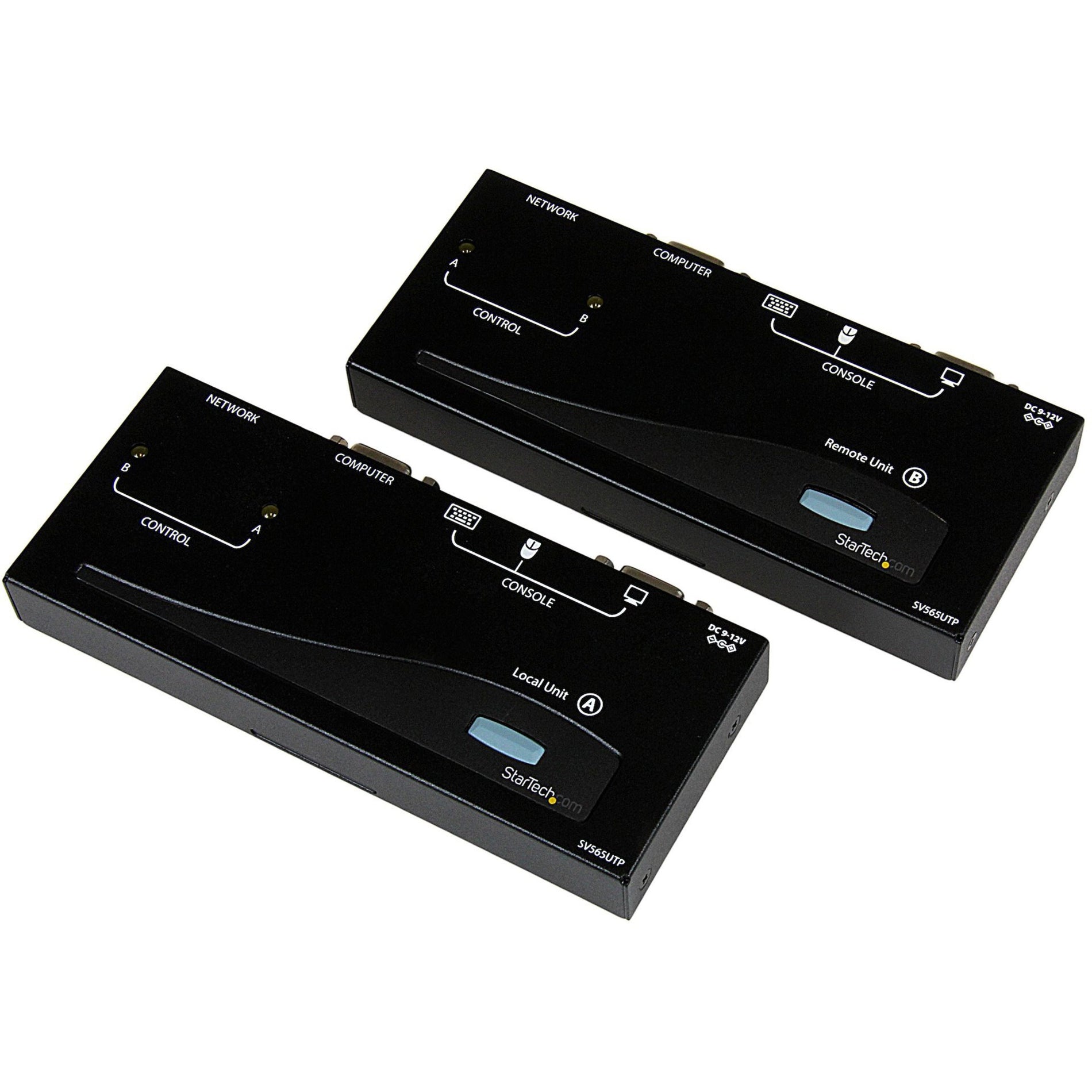

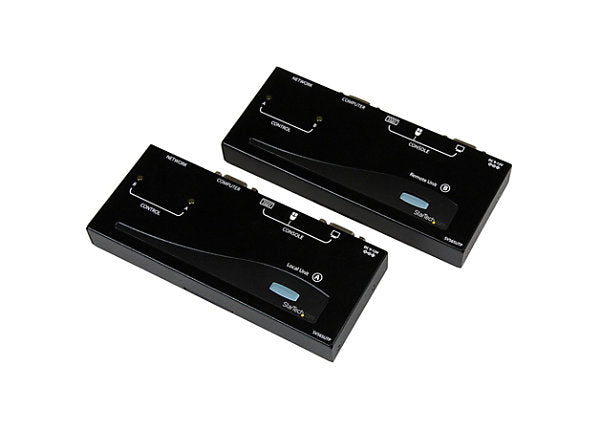

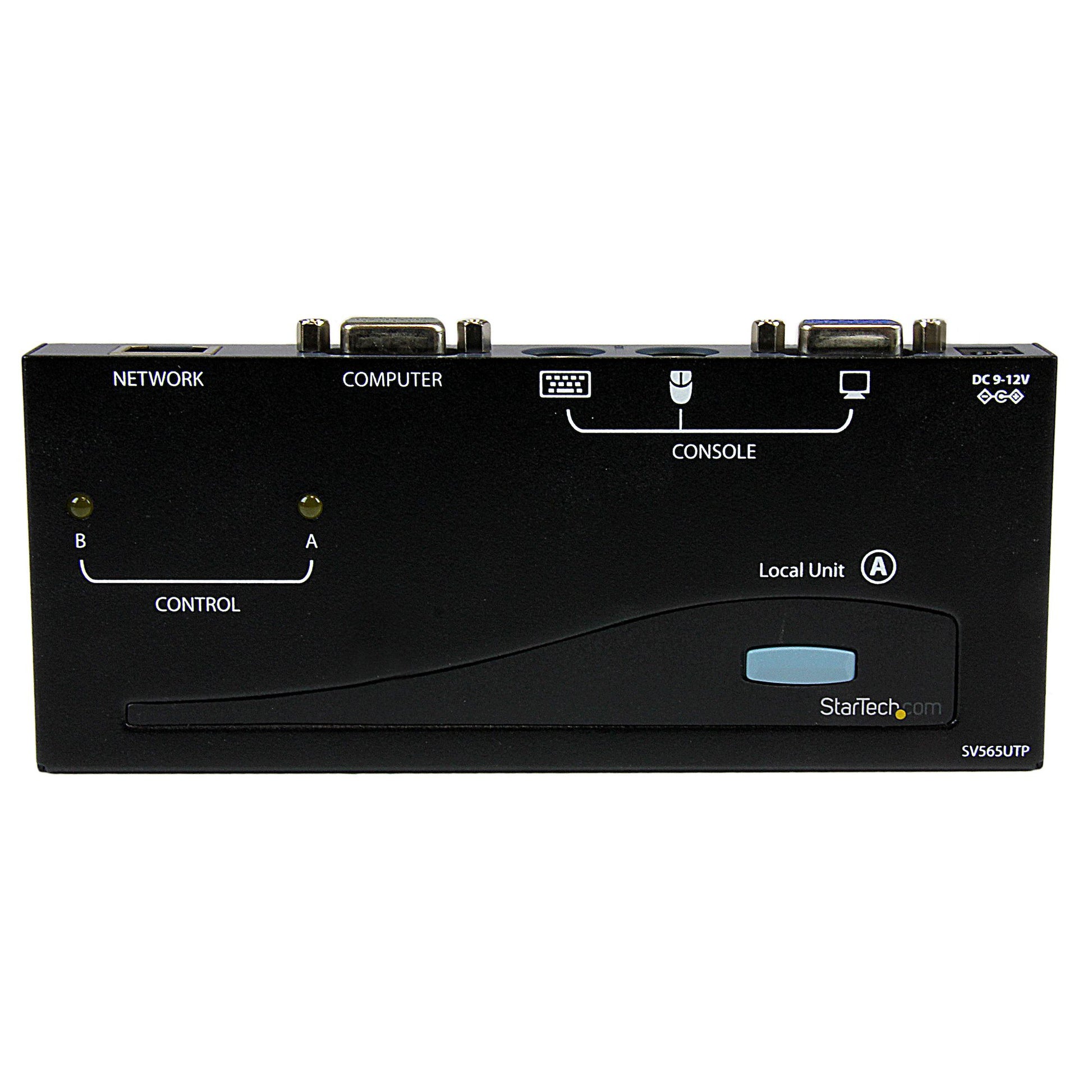

StarTech SV565UTP USB PS2 KVM Console Cat5 Extender - 500ft TAA

VENDOR: STARTECH Mfg Part#: SV565UTP UPC#: 065030812887
1 5
Photo is for illustration purposes only. Actual product may be different.
$286.00
$286.00
Sale Sold out
MSRP: $288.00
Shipping calculated at checkout.
  • KVM extender supporting USB and PS/2 interface types over Cat5 cable
  • Supports VGA video up to 1280x1024 resolution at distances up to 300ft
  • Easy installation using industry-standard UTP network cabling
  • Compact dimensions: 6.1" width, 3.0" depth, 0.8" height
  • Includes 1 local unit; TAA compliant and manufactured in Taiwan
  • Backed by a 2-year manufacturer's warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports extended console operation of USB/PS2/VGA systems up to 500 feet away, enhancing flexibility in remote management scenarios
  • Designed for enterprise and government use with TAA compliance and robust feature support
  • Simple installation using standard Cat5 cabling reduces setup time and infrastructure costs

Product Overview

SV565UTP - USB PS2 KVM Console Extender Cat5 Extender - 500 ft - TAA - Operate a USB or PS/2 & VGA KVM or PC up to 500ft away as if it were right in front of you

Specifications

Product Overview
Product Type KVM Console Extender
Model Number SV565UTP
Form Factor External
Enclosure Color Black
Mounting Type Desktop (Standalone)
Maximum Distance Supported 500 ft (152 meters)
Power Requirements 9V DC, 600mA
Power Adapter Included Yes
KVM Support USB and PS/2
Video Encoding Analog VGA
Video Signal Type RGBHV

Physical & Environmental
Width 6.1 in (155 mm)
Depth 3.0 in (76 mm)
Height 0.8 in (20 mm)
Unit Weight 0.6 lb (0.27 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity (Operating) 0% - 80% RH (Non-Condensing)
Material Steel

Cloud Management & Licensing
Remote Management Capabilities None (Point-to-point hardware extension)
Software or Licensing Required No

Interfaces
Console Ports 2 x PS/2, 1 x VGA
Host Ports 1 x VGA
Remote Communication Port 1 x RJ-45
Keyboard/Mouse Interface USB or PS/2
Recommended Cable Type Category 5 UTP (or better)
Maximum Video Resolution 1280 x 1024 at 300 ft (100 m)
Maximum Extension Distance 500 ft (152.4 m)
Number of Host Computers Supported 1
Number of Users Supported 1 (remote console user)

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC
RoHS Compliant Yes

Advanced Security Features
Data Encryption No
Authentication No authentication mechanisms supported
