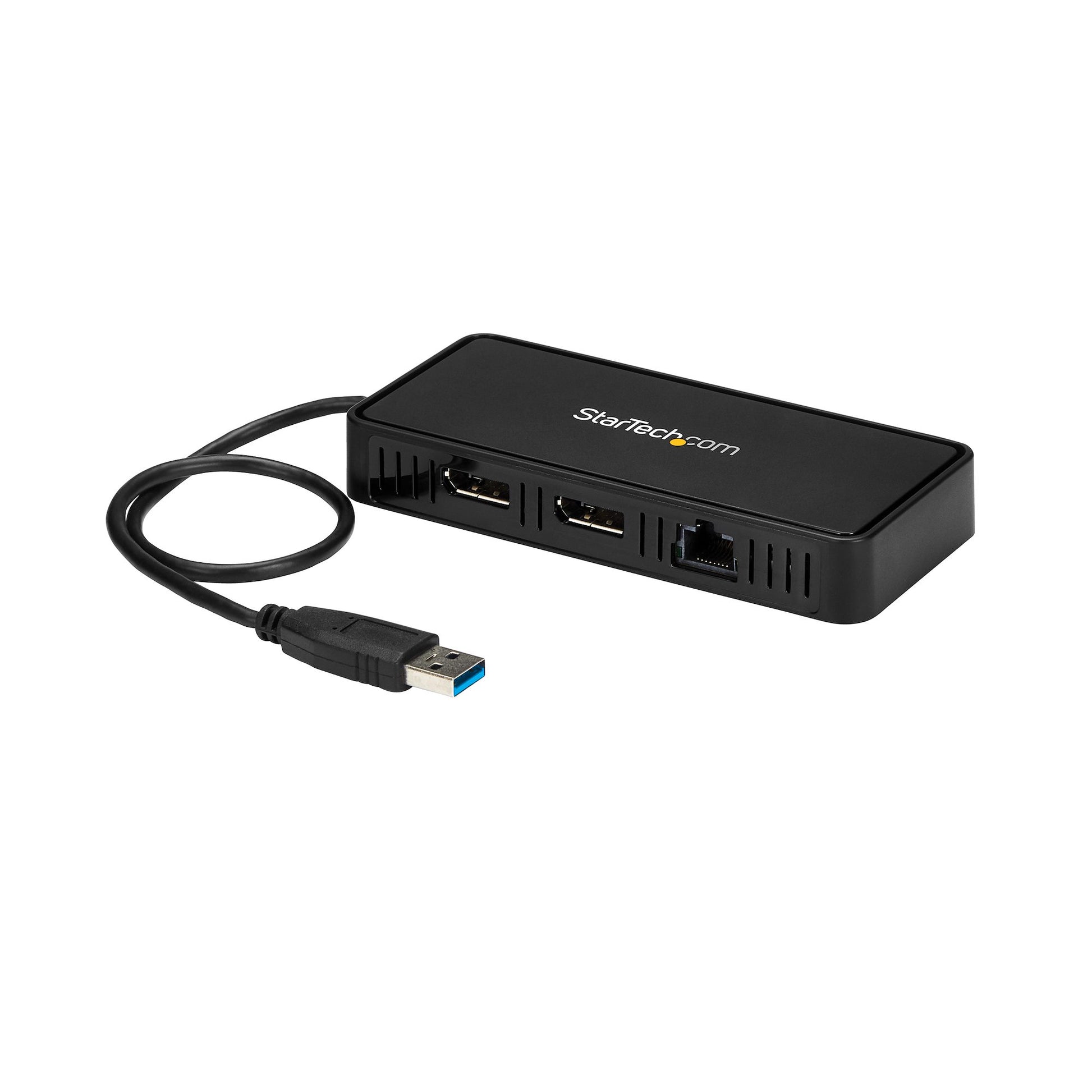

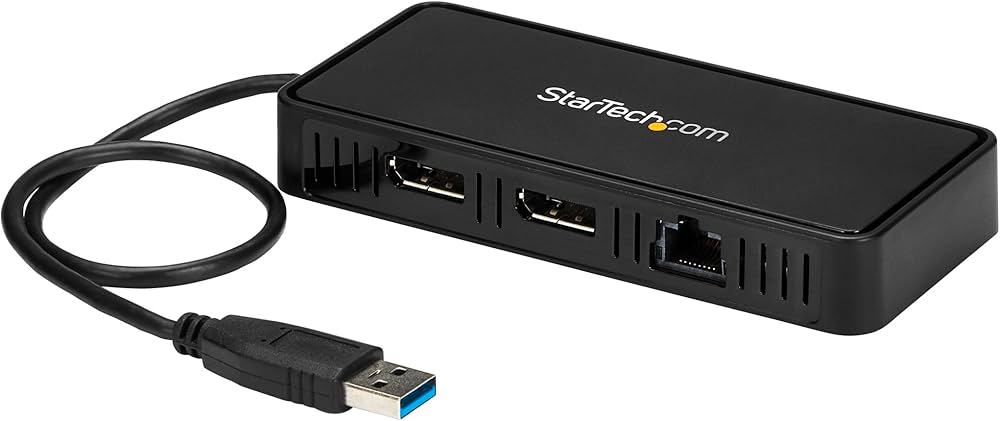

STARTECH USB 3.0 Mini Dock - Dual 4K DisplayPort & GbE

VENDOR: STARTECH Mfg Part#: USBA2DPGB UPC#: 065030874328
1 5
Photo is for illustration purposes only. Actual product may be different.
$63.00
$63.00
Sale Sold out
MSRP: $78.00
Shipping calculated at checkout.
  • Dual DisplayPort outputs supporting 4K resolution at 60Hz each
  • DisplayLink certified for broad system compatibility
  • Bus-powered via USB 3.0 Type-A connection (no external power required)
  • Integrated Gigabit Ethernet port for wired network access
  • Compact black enclosure with 1ft attached USB cable
  • TAA and RoHS compliant; includes 3-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables dual 4K monitor productivity through a single USB 3.0 connection, ideal for professionals managing multiple applications.
  • No external power supply required thanks to bus-powered design, enhancing portability and reducing desktop clutter.
  • Certified for TAA compliance with a trusted 3-year warranty, making it suitable for enterprise and government deployments.

Product Overview

USB 3.0 mini dock with dual monitor DisplayPort 4K 60Hz / Gigabit Ethernet - DisplayLink certified - Bus powered USB docking station - 1ft attached cable - Compatible w/ USB Type-A laptops/ultrabooks - Works w/ Windows Chrome OS - Auto driver setup

Specifications

Product Overview
Manufacturer StarTech
Product Name USB 3.0 Mini Dock - Dual 4K DisplayPort & GbE
Manufacturer Part Number USBA2DPGB
UPC 065030874328
Device Type Dock
Form Factor External (Bus-powered)
Color Black
Power Requirements Bus-powered via USB 3.0
Output Voltage 5V DC
Product Length 3.1 in (80 mm)
Product Width 2.4 in (60 mm)
Product Height 0.8 in (20 mm)
Weight 92 g (3.2 oz)

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
RoHS Compliant Yes
TAA Compliant Yes
Certifications CE, FCC, DisplayLink Certified
Warranty 3 Years

Advanced Security Features
Security Slot None

Interfaces
USB Host Interface USB 3.0 Type-A (attached cable, 1ft)
DisplayPort Outputs 2 x DisplayPort 1.2 (20-pin, Female)
USB Downstream Ports 1 x USB 3.0 Type-A (Female)
Ethernet Port 1 x RJ-45 (Gigabit Ethernet)
Maximum Digital Resolutions 2 x 3840 x 2160 @ 60Hz (4K)
Supported Display Modes Extended or Mirrored
Chipset ID DisplayLink - DL6950

Physical & Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 10% to 90% RH (non-condensing)
Housing Material Plastic
Cable Length 1 ft (30.5 cm)
LED Indicators Link & Activity (Network)

Cloud Management & Licensing
Management Interface DisplayLink Software (auto driver installation)
Licensing Requirements No additional licenses required
Compatible Operating Systems Windows XP/Vista/7/8/8.1/10/11, Chrome OS
