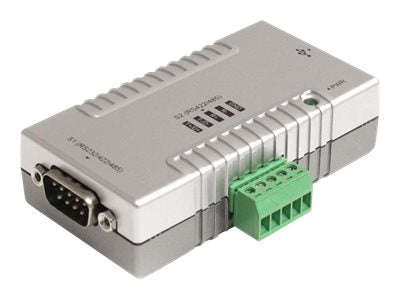

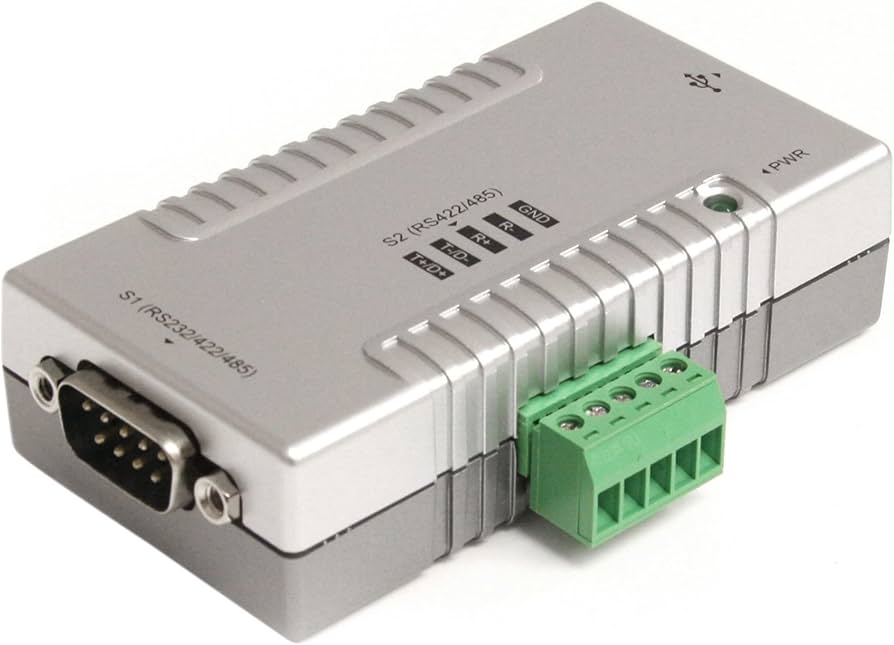

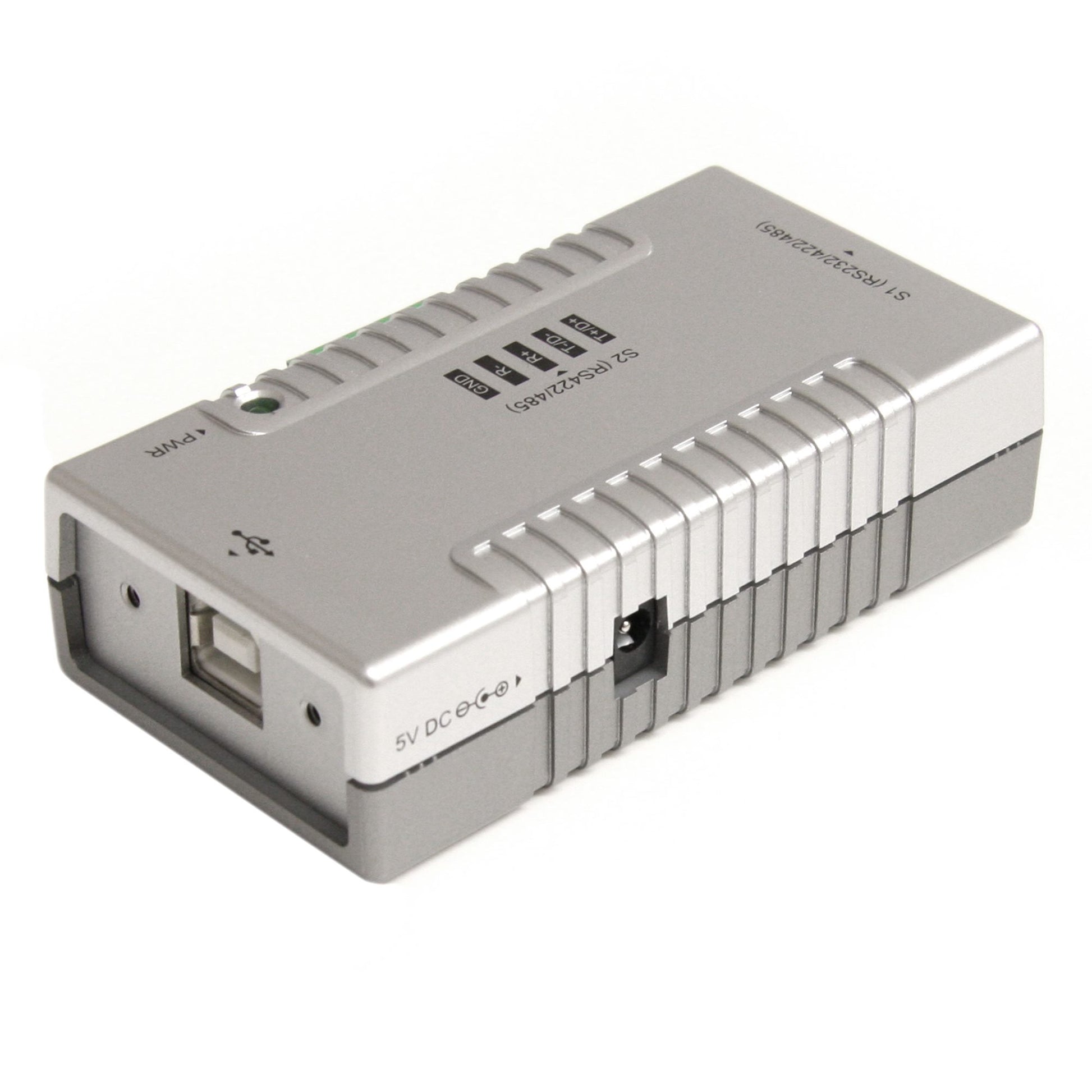

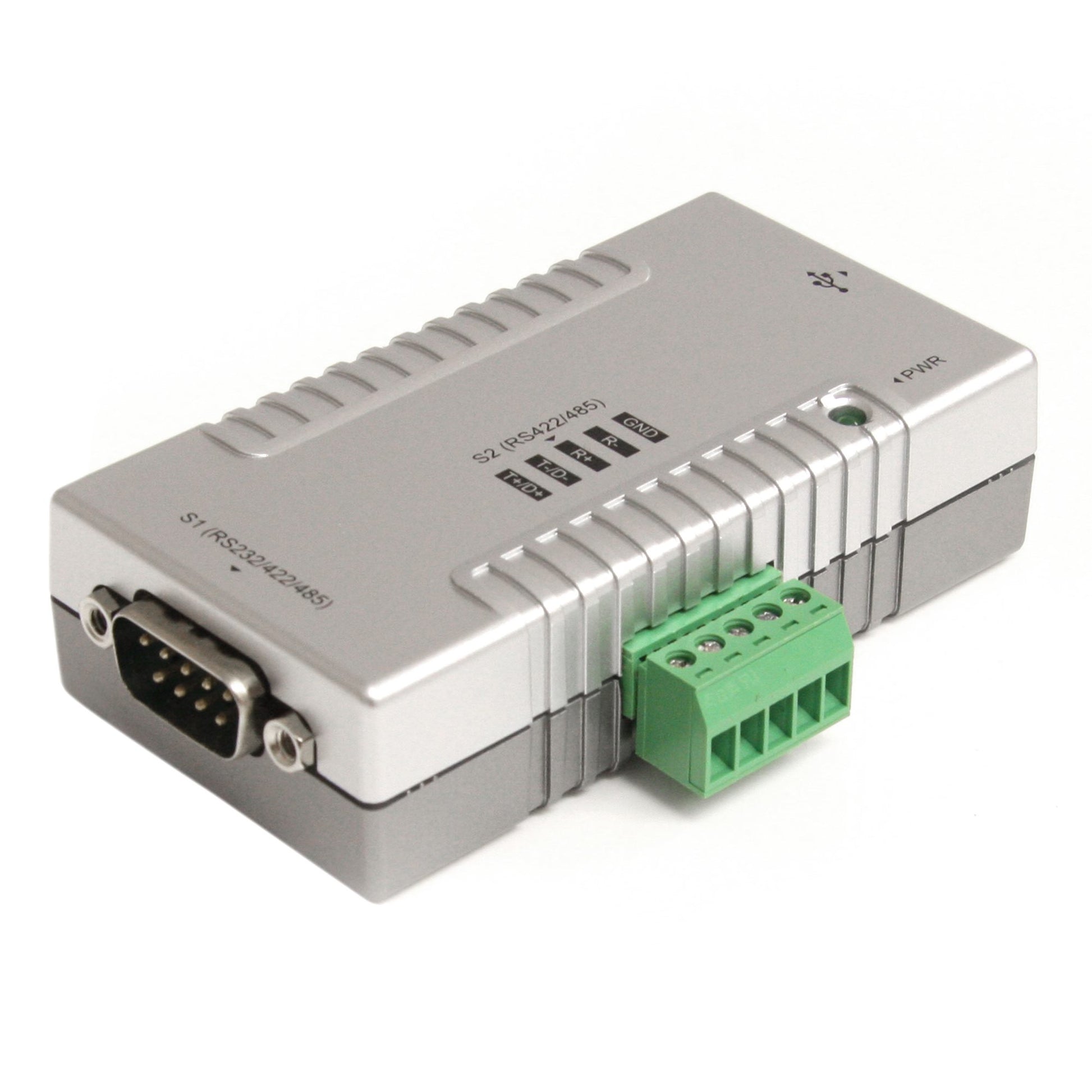

StarTech USB to RS232/422/485 Serial Adapter, ICUSB2324852

VENDOR: STARTECH Mfg Part#: ICUSB2324852 UPC#: 065030840965
1 5
Photo is for illustration purposes only. Actual product may be different.
$144.00
$144.00
Sale Sold out
MSRP: $155.00
Shipping calculated at checkout.
  • Supports RS232, RS422, and RS485 serial communication protocols
  • Offers up to 921 Kbps data transfer rate for fast serial communications
  • Includes 1 DB9 port and 1 terminal block (5-wire) for flexible connectivity
  • External form factor with compact dimensions (1.7 x 3.2 x 0.9 inches)
  • TAA-compliant and RoHS certified for regulatory alignment
  • Backed by lifetime support for long-term reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports legacy serial protocols (RS232, RS422, RS485), making it ideal for industrial device integration
  • High-speed data transfer up to 921 Kbps ensures smooth communication with serial peripherals
  • Lifetime support and TAA compliance provide extra assurance for government and enterprise buyers

Product Overview

Add RS232, RS422 and RS485 support to your laptop or desktop computer via USB - USB to RS232 RS422 RS485 - USB to Serial - USB to DB9 - USB to serial Adapter - USB to serial port

Specifications

Product Overview
Product Type Serial Adapter
Form Factor External
Enclosure Color Gray
Power Source USB-Powered
Weight 95 g
Chipset FTDI FT232RL + ZT485E
Mounting Options DIN rail or wall-mountable via included hardware
LED Indicators Power, TX, RX

Wireless Features
Wireless Support

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Certifications CE, FCC
Country of Origin Taiwan

Advanced Security Features
Surge Protection 15kV ESD Protection on each signal pin
Isolation No galvanic isolation

Interfaces
Interface Type USB to Serial (RS-232/422/485)
Host Interface USB Type-B Female
Connector Type DB-9 Male, Terminal Block (5-Pin)
Number of Serial Ports 1
Networking / Ports Qty 2
Data Transfer Rate 921.6 Kbps
USB Specification USB 1.1 / USB 2.0 compatible
ESD Protection 15kV (Air), 8kV (Contact)
Max Cable Length 5 meters (USB)

Physical & Environmental
Width 1.7 Inch
Depth 3.2 Inch
Height 0.9 Inch
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity (Operating) 5% to 95% RH (non-condensing)
Product Material Plastic

Cloud Management & Licensing
Cloud Management
Licensing Requirements No license required
Drivers Included Yes – Windows, Linux, macOS
OS Compatibility Windows 11/10/8/7, Linux, macOS
