StarTech VGA to Cat 5 Monitor Extender Kit - ST121UTPEP

VENDOR: STARTECH Mfg Part#: ST121UTPEP UPC#: 065030835398
1 5

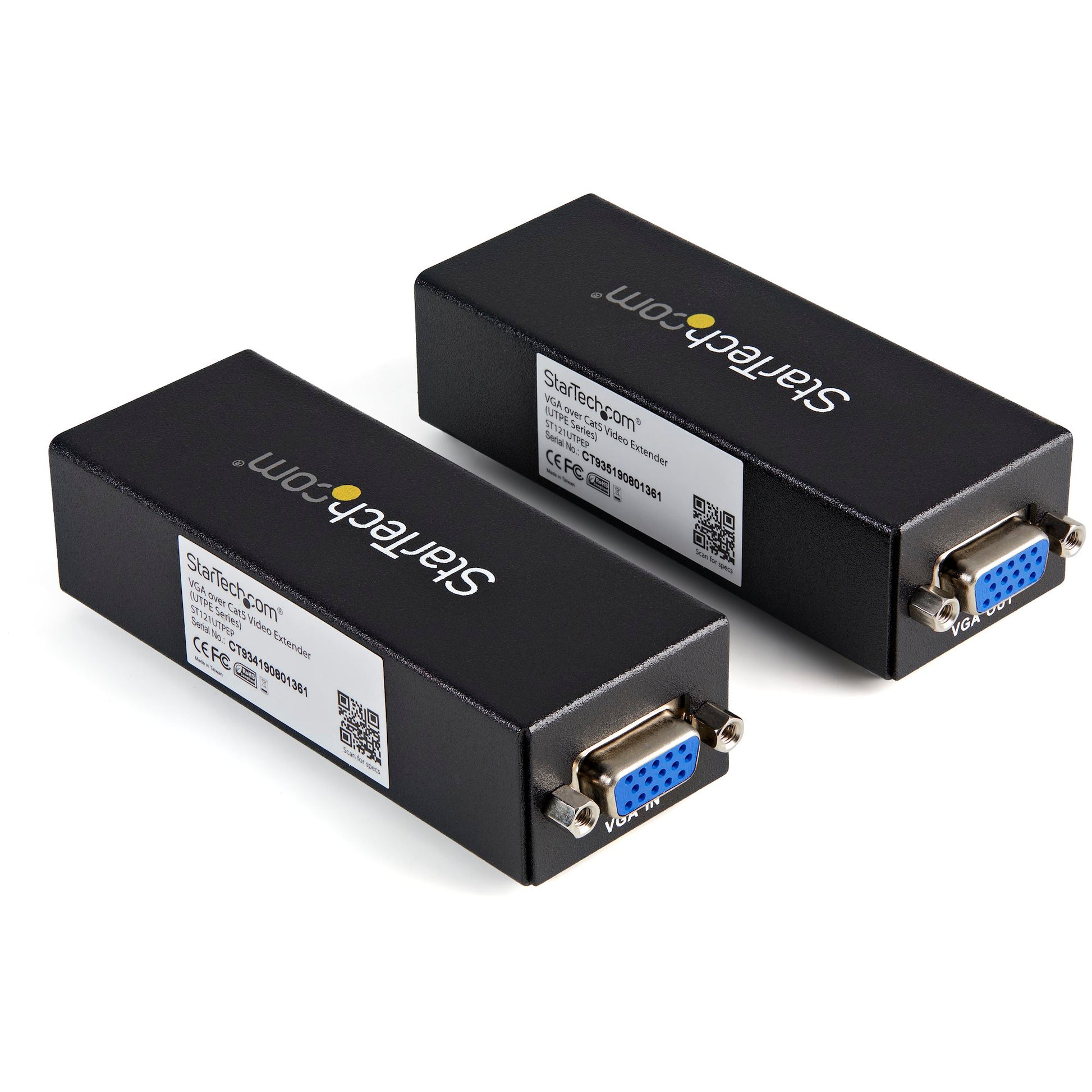

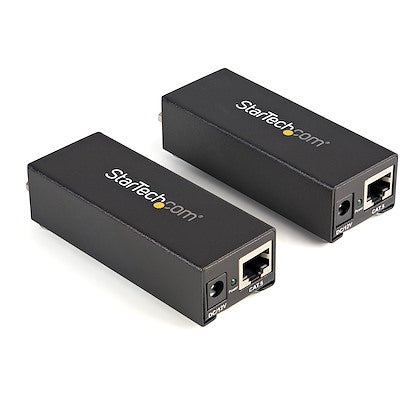

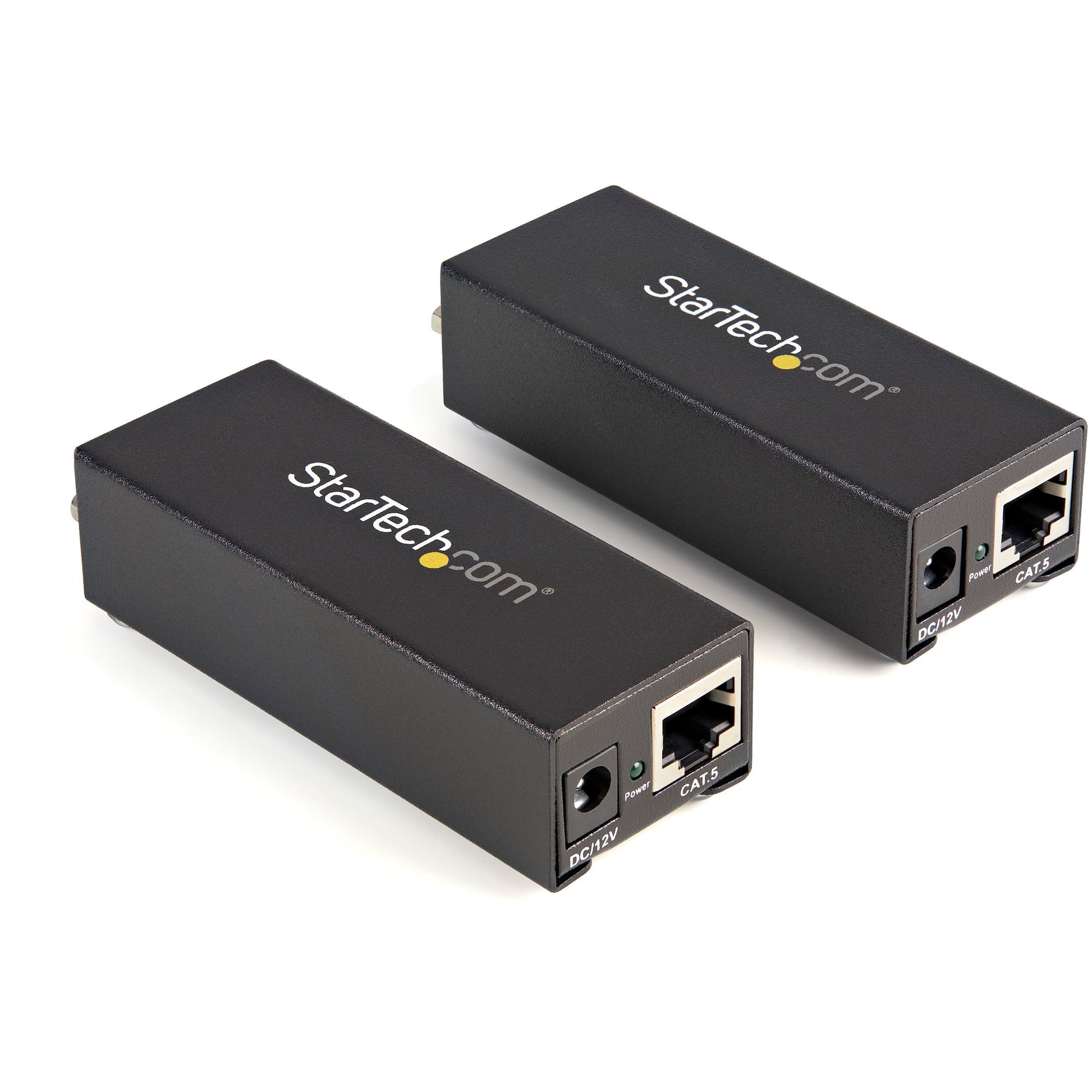

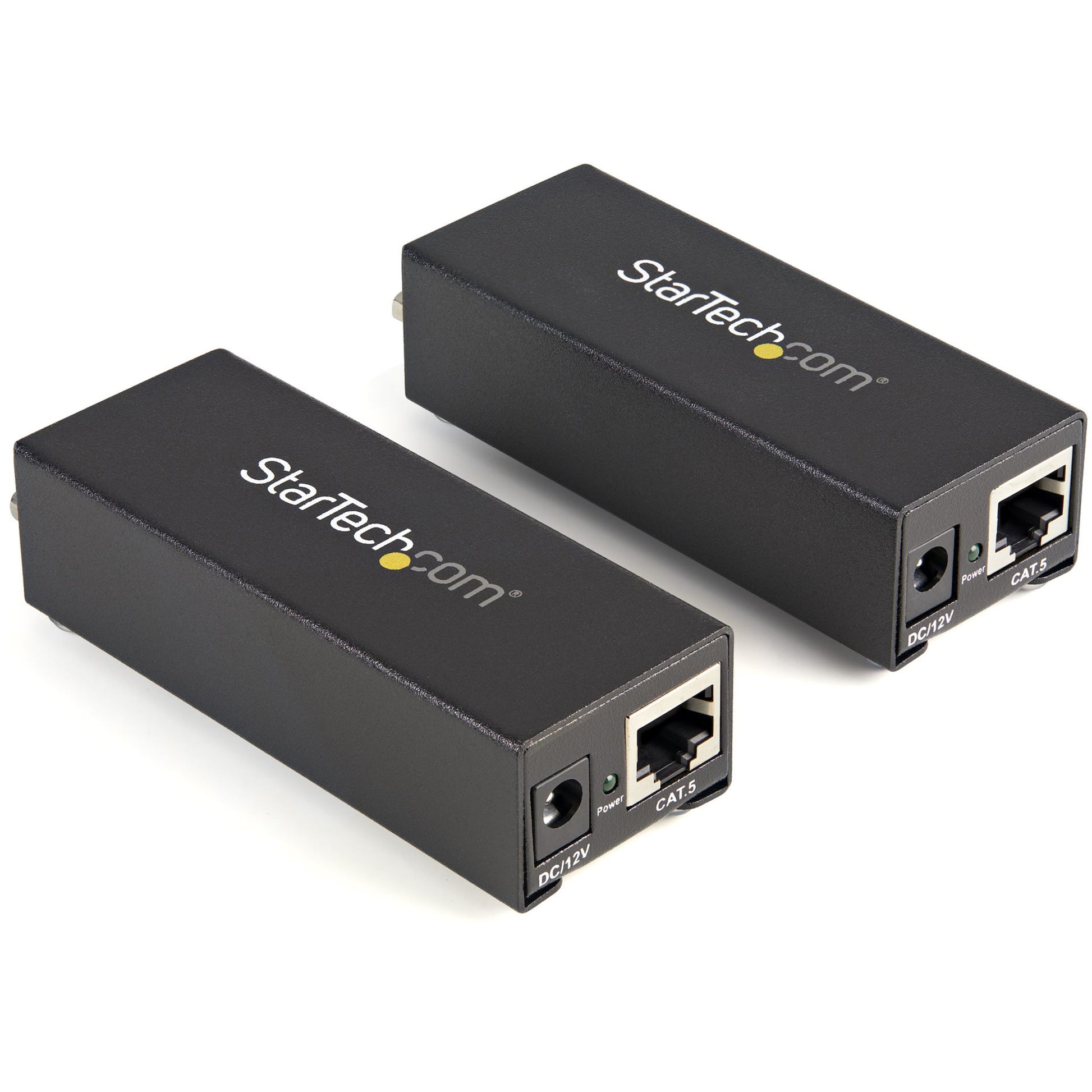

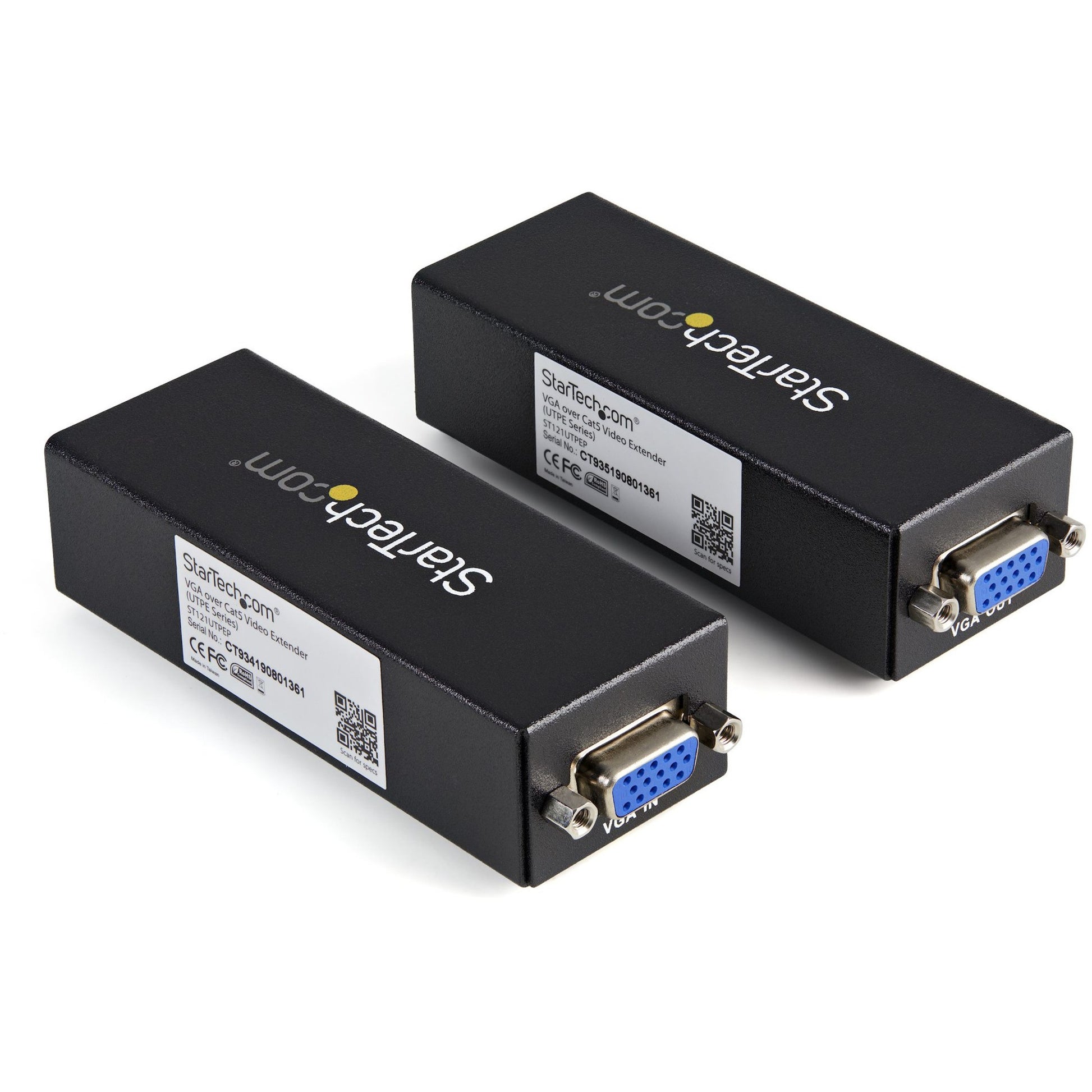

Photo is for illustration purposes only. Actual product may be different.
$215.00
$215.00
Sale Sold out
MSRP: $217.00
Shipping calculated at checkout.
  • Extends VGA signals up to 80 meters over Cat 5 UTP cabling
  • Wired connectivity with Ethernet data link protocol
  • Supports high-quality resolutions for remote VGA displays
  • Compact design with dimensions of 5.4 x 3.9 x 1 inches
  • TAA compliant for use in government or federal setups
  • Includes 2-year service and support coverage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Eliminates the need for bulky VGA cables by leveraging standard Cat 5 cabling for long-distance video transmission
  • TAA compliance ensures suitability for government and federally funded procurement
  • Compact, reliable design provides simple installation with a 2-year warranty for peace of mind

Product Overview

Extend a VGA signal to a remote display using Cat5 cabling - vga extender - vga to cat5 - cat 5 vga extender - cat5 vga extender - monitor extender

Specifications

Product Overview
Manufacturer StarTech
Product Name VGA to Cat 5 Monitor Extender Kit
Manufacturer Part Number ST121UTPEP
Product Type Video Extender
Form Factor External
Enclosure Color Black
Power Requirements Wall power adapter (included)
Power Consumption 1W (typical)
Max Transfer Distance 80 m (262 ft)
Service & Support Type 2 Years

Physical & Environmental
Width 5.4 in (137 mm)
Depth 3.9 in (99 mm)
Height 1 in (25 mm)
Unit Weight 0.3 lb (0.14 kg) per unit
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Humidity (Operating) 10% to 80% RH (non-condensing)
Humidity (Storage) 5% to 95% RH (non-condensing)
Product Includes Transmitter unit, Receiver unit, Power adapter, User manual

Cloud Management & Licensing
Cloud Management
Licensing Requirements
Web Management Interface

Interfaces
Local Unit Interface 1 x VGA (Input)
Remote Unit Interface 1 x VGA (Output)
RJ-45 Ports 1 x RJ-45 (for Cat5 UTP link)
Cabling Type Cat 5 UTP (or better)
Data Link Protocol Ethernet
Connectivity Technology Wired
Video Bandwidth 180 MHz
Max Resolution Supported 1920 x 1200 @ 60Hz
Supported Cables Cat5, Cat5e, Cat6

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
CE Certified Yes
FCC Compliant Yes
REACH Compliant Yes
