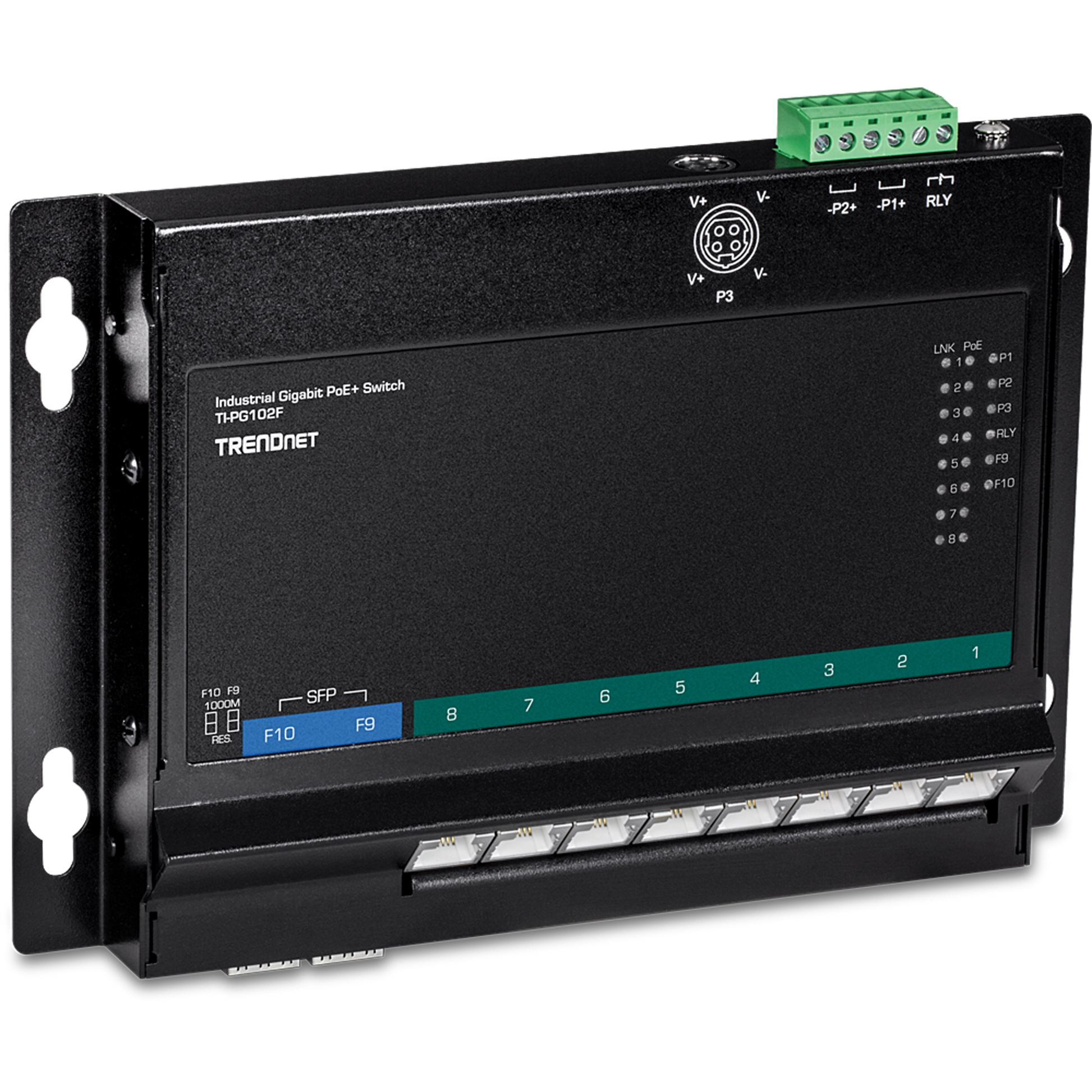

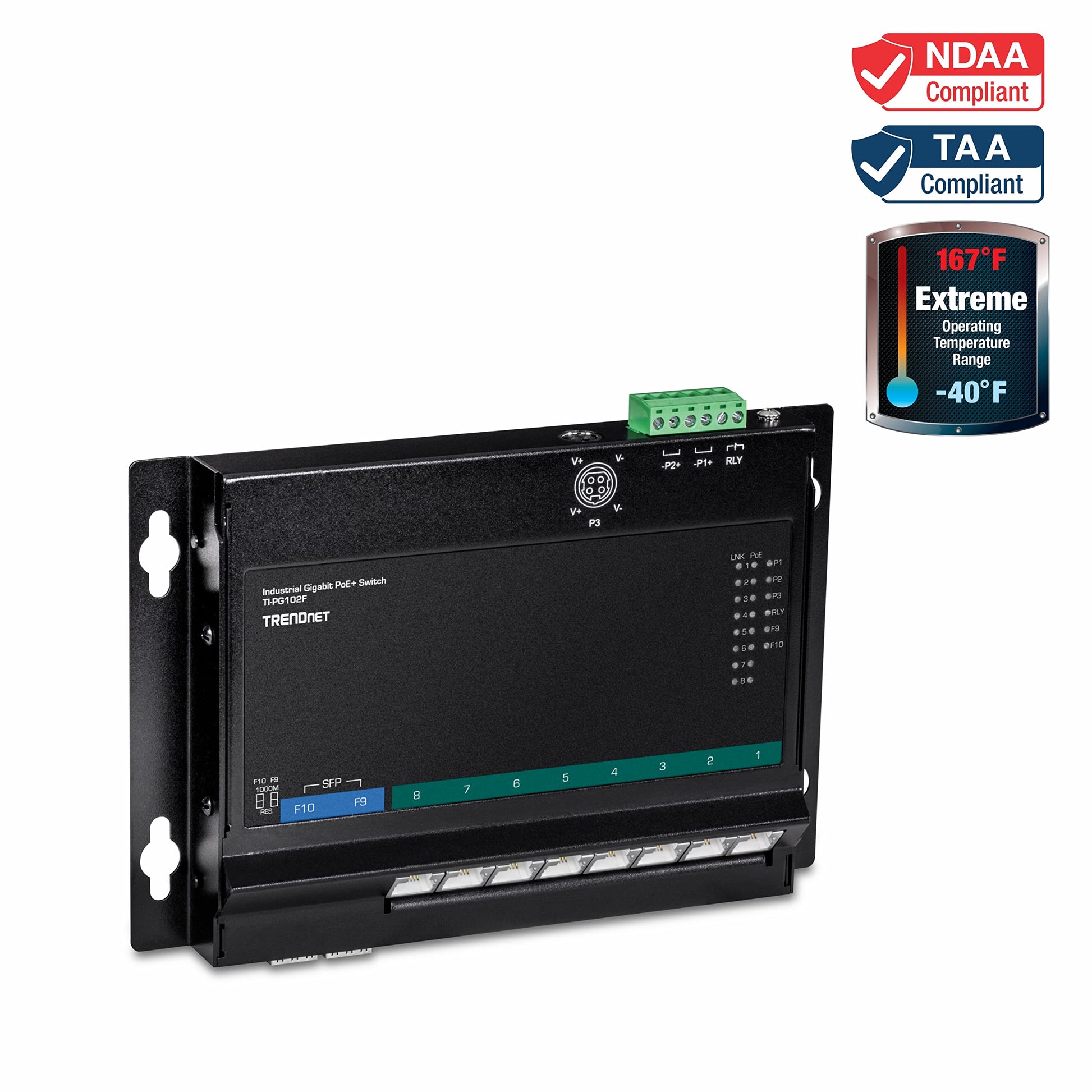

TRENDnet 10-Port Industrial Gigabit PoE+ Wall-Mount Switch

VENDOR: TRENDNET Mfg Part#: TI-PG102F UPC#: 710931161786
1 5
Photo is for illustration purposes only. Actual product may be different.
$549.00
$549.00
Sale Sold out
MSRP: $563.00
Shipping calculated at checkout.
  • 10 Gigabit Ethernet ports including PoE+ for powered device connectivity
  • Supports Gigabit SFP uplink interfaces for fiber extension
  • Full-duplex data transfer rate of up to 2000 Mbps
  • Compact industrial design: 5.9" x 5.7" x 1", wall-mountable
  • Low power consumption at only 4.8 Watts
  • TAA compliant and includes a lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for industrial networking with PoE+ and SFP flexibility, ideal for surveillance and IoT deployments
  • Compact front-access wall-mount design allows easy installation and maintenance in tight spaces
  • Lifetime warranty and TAA compliance ensure long-term reliability and viability for government-grade applications

Product Overview

TRENDnets Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses.

Specifications

Product Overview
Product Type Industrial Gigabit PoE+ Switch
Form Factor Wall-Mount
Model Number TI-PG102F
Switch Type Unmanaged
PoE Support PoE+
Total Number of Ports 10
SFP Slots 2
Weight 1.37 lbs (0.62 kg)
Max Power Consumption 4.8 Watts
Power Input Dual 48 – 56 V DC power inputs

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, EN 60950-1, EN 55032, EN 61000-3-2, EN61000-4-2/4/5/6
RoHS Compliant Yes
Safety Standards IEC 62368-1

Advanced Security Features
Security Features Hardware-based switch does not include additional security layers

Interfaces
RJ-45 Ports 8 x Gigabit PoE+
SFP Ports 2 x 100/1000 Mbps SFP slots
PoE Power Budget 120 Watts
PoE Standard IEEE 802.3at/af
Data Transfer Rate 2000 Mbps (full duplex)
Forwarding Rate 14.88 Mpps
Switching Capacity 20 Gbps

Physical & Environmental
Width 5.9 in (150 mm)
Depth 5.7 in (145 mm)
Height 1.0 in (26 mm)
Enclosure Type IP30-rated metal
Mount Type Wall-mountable
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity Max. 95% non-condensing
Heat Dissipation 16.4 BTU/hr
Cooling Method Passive cooling (fanless)
Mean Time Between Failures (MTBF) Over 700,000 hours

Cloud Management & Licensing
Cloud Management No
Management Type Unmanaged
License Requirement None
