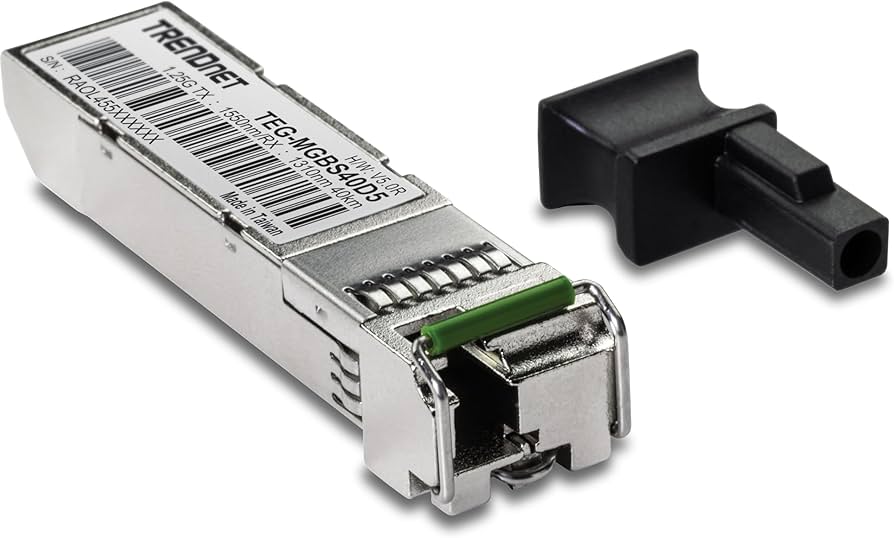

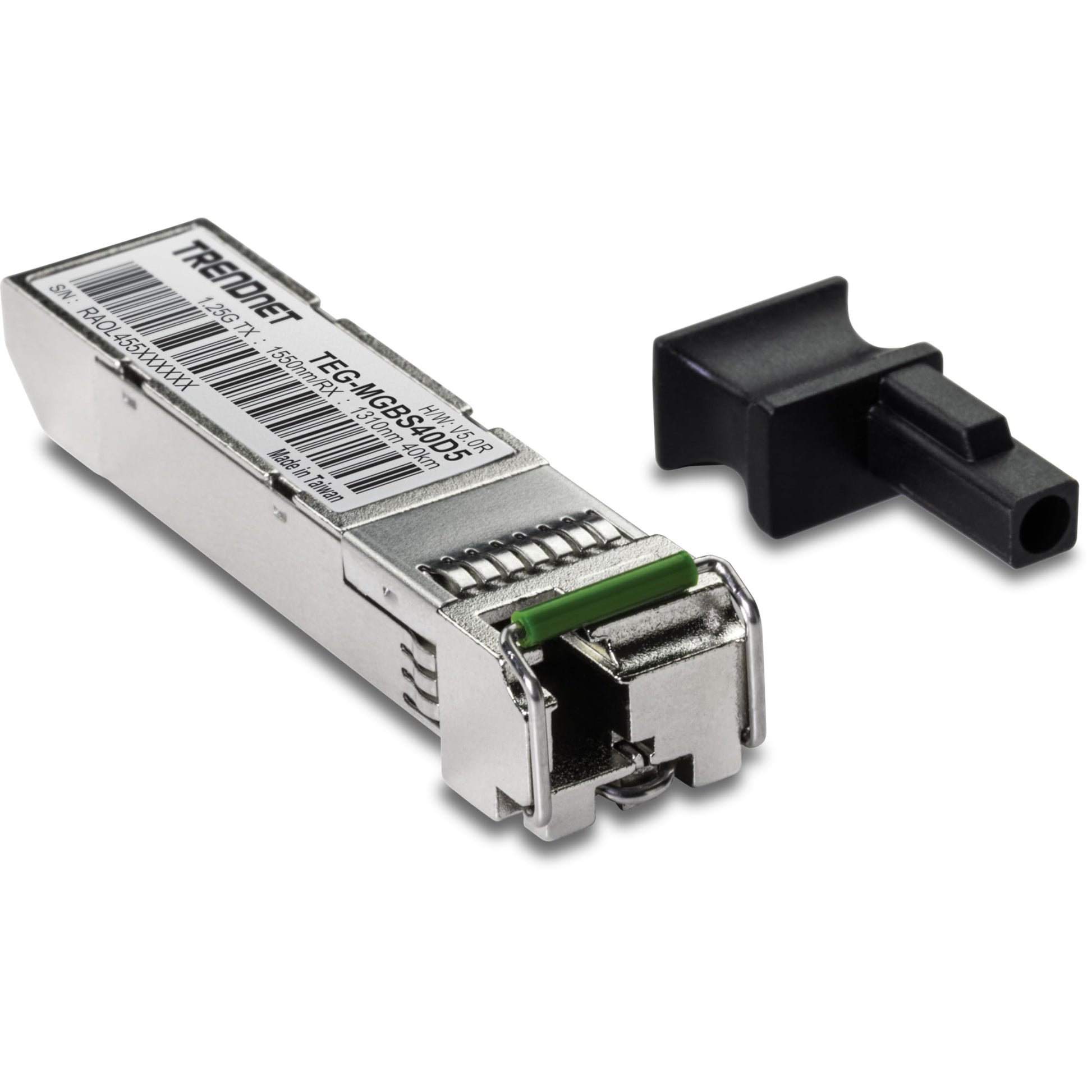

TRENDnet Mini-GBIC Single-Mode LC Module 1550nm, 40KM (TEG-MGBS40D5)

VENDOR: TRENDNET Mfg Part#: TEG-MGBS40D5 UPC#: 710931610307
1 5
Photo is for illustration purposes only. Actual product may be different.
$159.00
$159.00
Sale Sold out
MSRP: $163.00
Shipping calculated at checkout.
  • Supports up to 40 km transmission distance over single-mode fiber
  • Dual wavelength operation at 1550nm for high-performance connectivity
  • TAA compliant, suitable for government and enterprise use
  • LC connector type for reliable optical connections
  • Manufactured in Taiwan for quality assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for long-range fiber deployments up to 40km, minimizing the need for signal boosters or repeaters
  • TAA compliance supports requirements for public sector or government procurement
  • Backed by TRENDnet’s networking expertise, ensuring integration with existing infrastructure

Product Overview

Mini-GBIC Dual Wavelength Single-Mode LC Module 1550(40KM)

Specifications

Product Overview
Product Type SFP Mini-GBIC Transceiver Module
Form Factor Plug-in module
Wavelength 1550 nm (TX), 1310 nm (RX)
Maximum Transfer Distance 40 km
Power Consumption < 1.5 W
DDM Support (Digital Diagnostics Monitoring) Yes
Hot Swappable Yes
Power Supply 3.3 V DC
Transceiver Type Single-Mode
Wave Division Multiplexing Yes, Bi-Directional (WDM)

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC
RoHS Compliant Yes

Advanced Security Features

Interfaces
Interface Type SFP (Mini-GBIC)
Connector Type LC Duplex
Data Transfer Rate 1.25 Gbps
Compatible Interfaces IEEE 802.3z 1000Base-BX
Optical Fiber Standards 9/125 µm Single-Mode Fiber

Physical & Environmental
Dimensions (W x D x H) 0.5 x 2.2 x 0.5 in (13 x 56 x 12.5 mm)
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 10% to 85% RH, non-condensing
Storage Humidity 5% to 95% RH, non-condensing
Housing Material Metal
Weight 20 g (0.7 oz)
