| Product Type | Mini-GBIC Transceiver Module |
| Form Factor | Mini-GBIC (SFP) |
| Device Type | Transceiver |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet |
| Power Consumption | 1W (typical) |
| Max Transfer Distance | 2 km |
| Wavelength | 1310 nm |
| Hot Swappable | Yes |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |

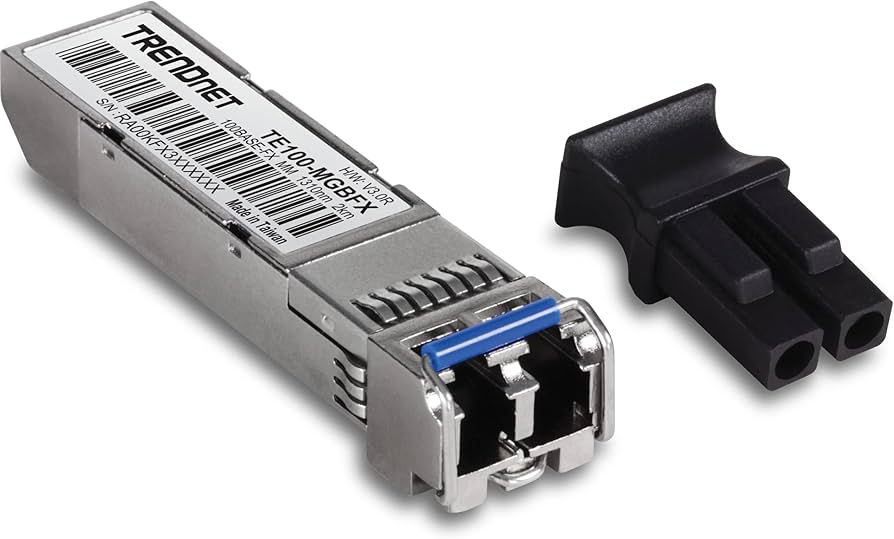

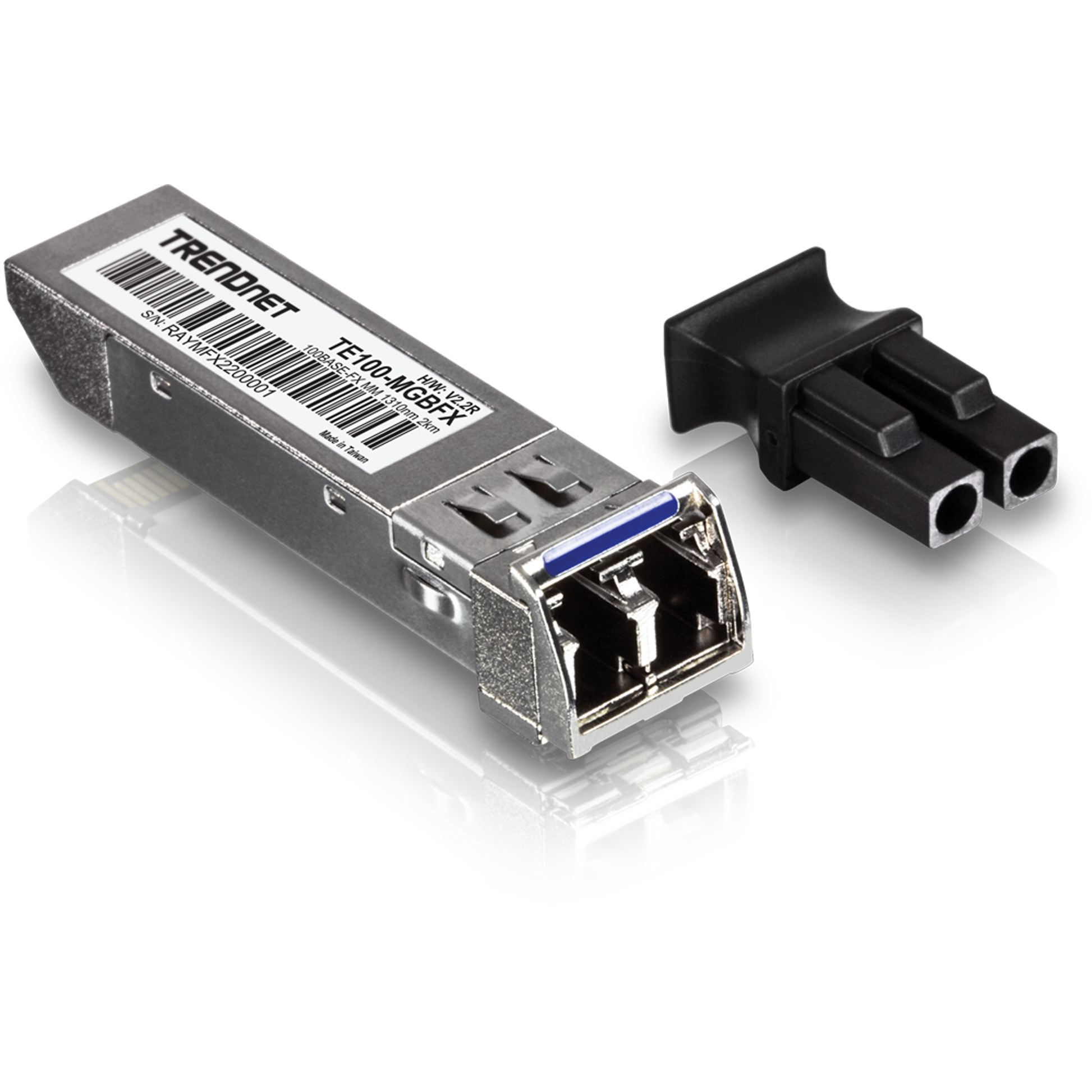

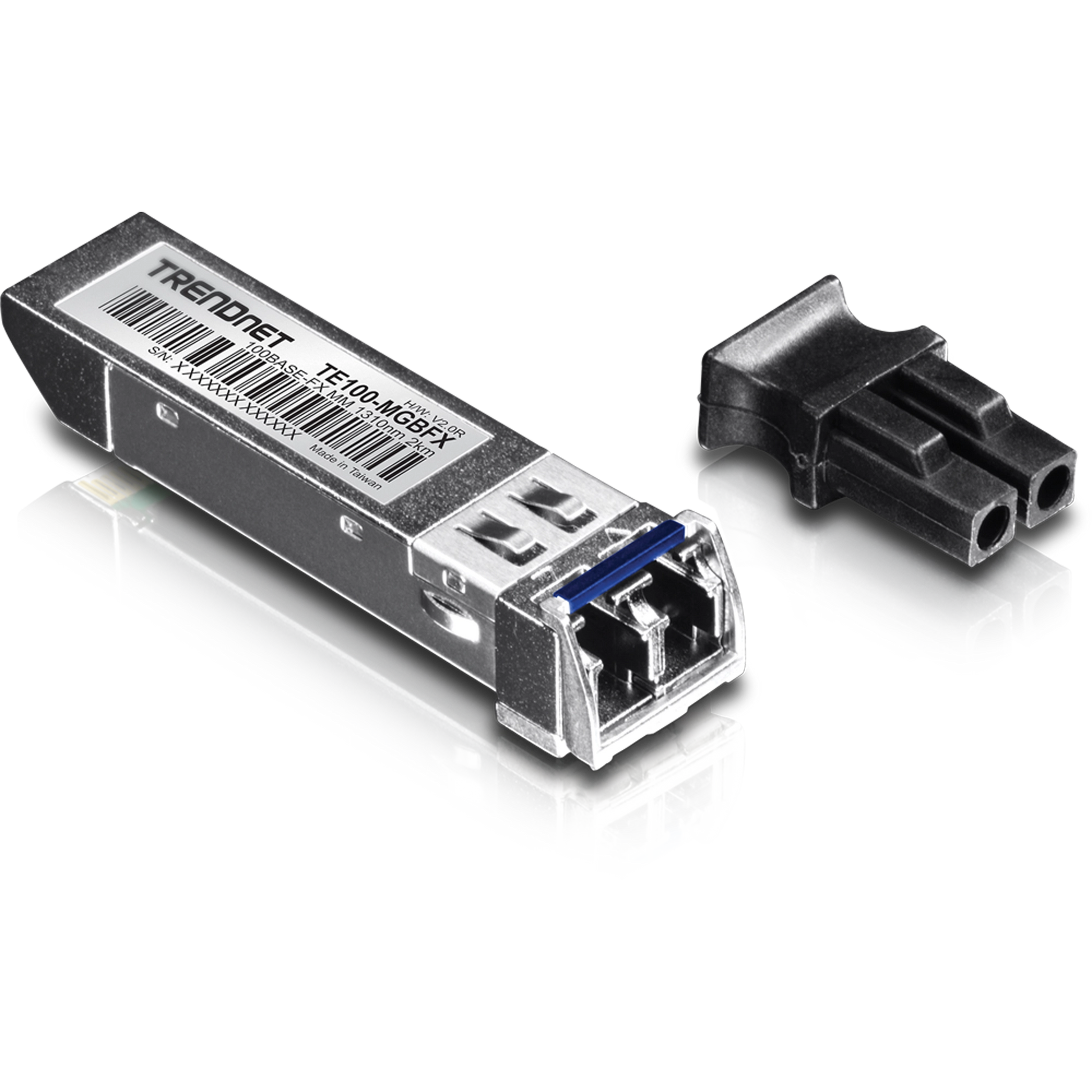

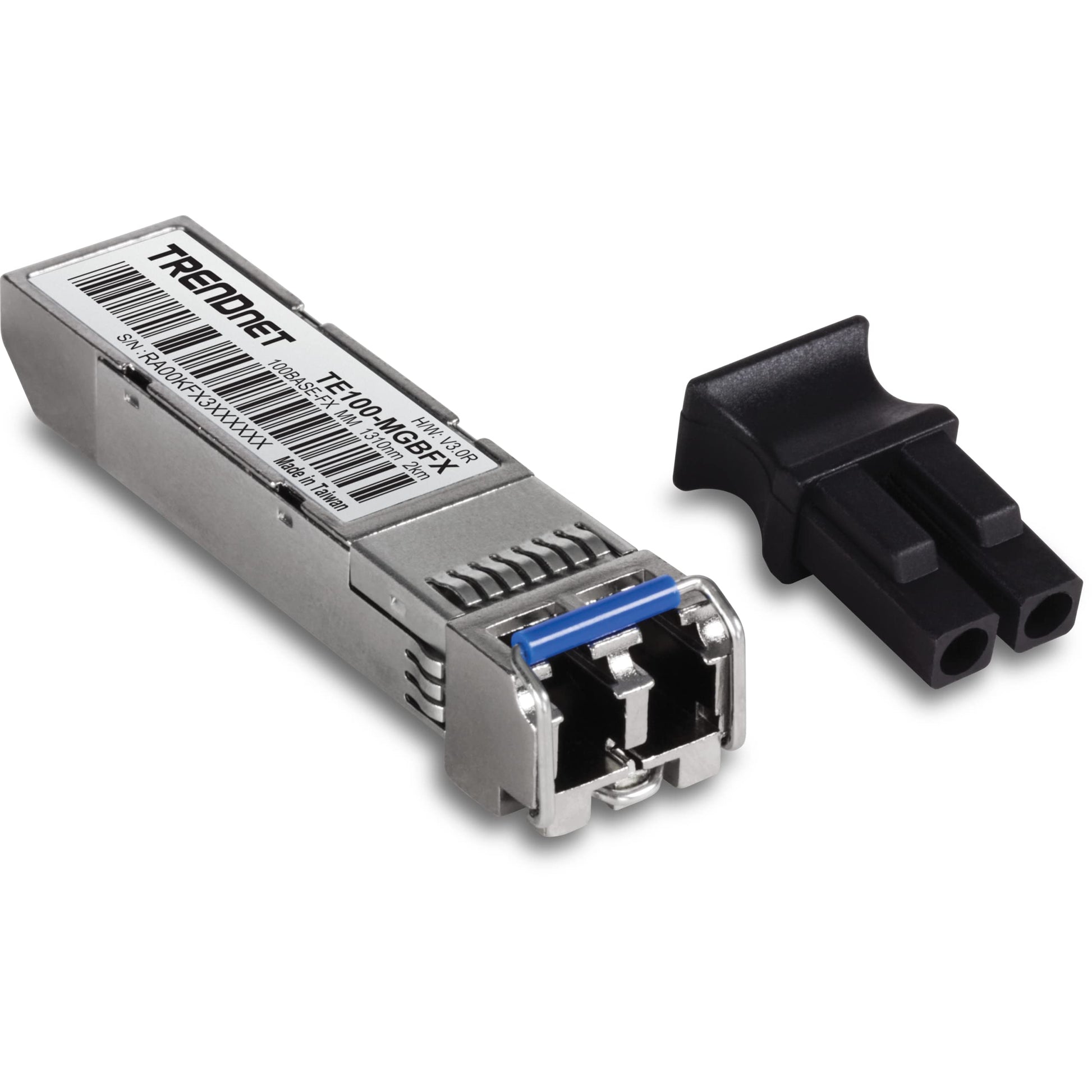

TRENDnet TE100-MGBFX Mini-GBIC Multi-Mode 100Base-FX LC Module (2KM)
Photo is for illustration purposes only. Actual product may be different.
Regular price
$34.00
Regular price
Sale price
$34.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- • Supports 100Base-FX Fast Ethernet over multimode fiber
- • LC duplex interface with 1310nm wavelength
- • Data transfer rate up to 100 Mbps
- • Max transfer distance of 2 km
- • TAA compliant and includes 3-year limited warranty
- • Manufactured in Taiwan using quality components
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- • Ideal for short-range fiber deployments up to 2km, perfect for campus or intra-building links
- • TAA compliance makes it suitable for government or regulated industry environments
- • Backed by a 3-year warranty, ensuring long-term peace of mind and reduced maintenance costs
Product Overview
The TRENDnet TE100-MGBFX is a mini-GBIC form-factor transceiver built to extend 100Base-FX Fast Ethernet connectivity over multimode fiber. Using an LC duplex connector, this module supports a maximum data transfer rate of 100 Mbps and operates at a wavelength of 1310 nm. It enables stable, wired network extension up to 2 kilometers, making it an optimal choice for campus environments, building-to-building links, and short-haul fiber deployments.
With full compliance to TAA standards and a 3-year limited warranty, this transceiver module ensures dependable performance in enterprise and government applications. Its compact design makes it highly suitable for high-density deployments, while the multimode fiber interface ensures cost-efficient scalability within existing infrastructures. Manufactured in Taiwan, the TE100-MGBFX is a robust option for environments requiring reliable and affordable fiber Ethernet expansion.
Specifications
Product Overview
Wireless Features
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | CE, FCC |
| RoHS Compliant | Yes |
| MTBF | 1,333,658 hours |
Advanced Security Features
Interfaces
| Interface Type | LC Duplex |
| Connector Type | LC |
| Port Type | 100Base-FX |
| Compatible Slots | Standard SFP slots |
| Data Transfer Rate | 100 Mbps |
Physical & Environmental
| Enclosure Type | Metal |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W x D x H) | 13.7 x 56.5 x 8.5 mm (0.54 x 2.22 x 0.33 in.) |
| Weight | 20 g (0.71 oz) |
Cloud Management & Licensing
Other Specifications
| Compatibility | Compatible with MSA-compliant SFP slots |
| DDM (Digital Diagnostic Monitoring) | No |
| Warranty | 3-year limited warranty |
| UPC | 710931205213 |
| Manufacturer Part Number | TE100-MGBFX |
| Manufacturer | TRENDnet |
