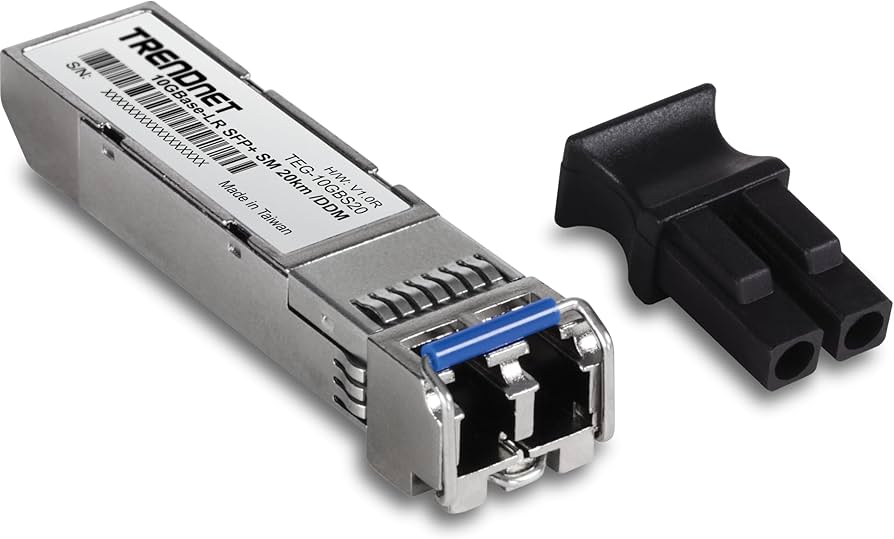

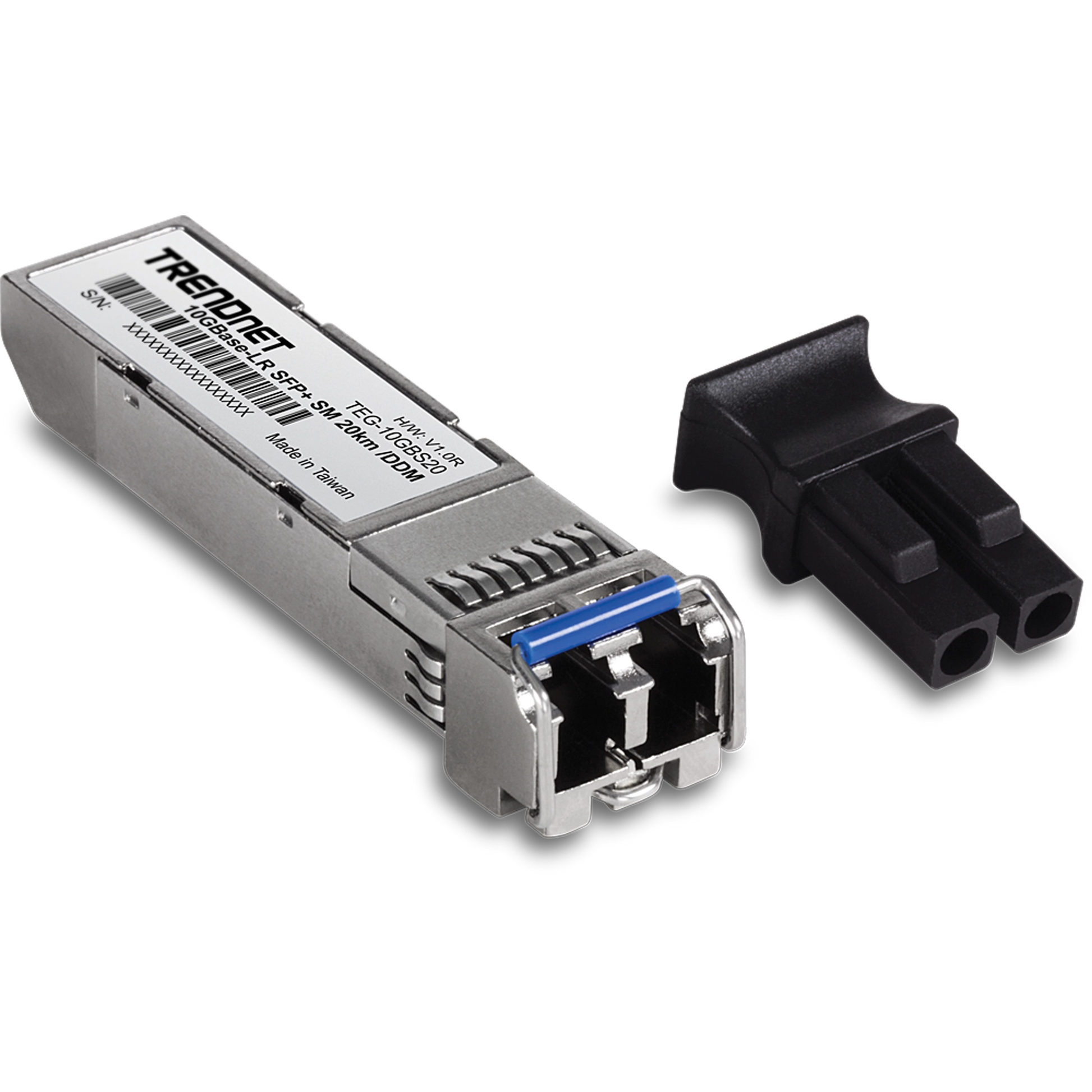

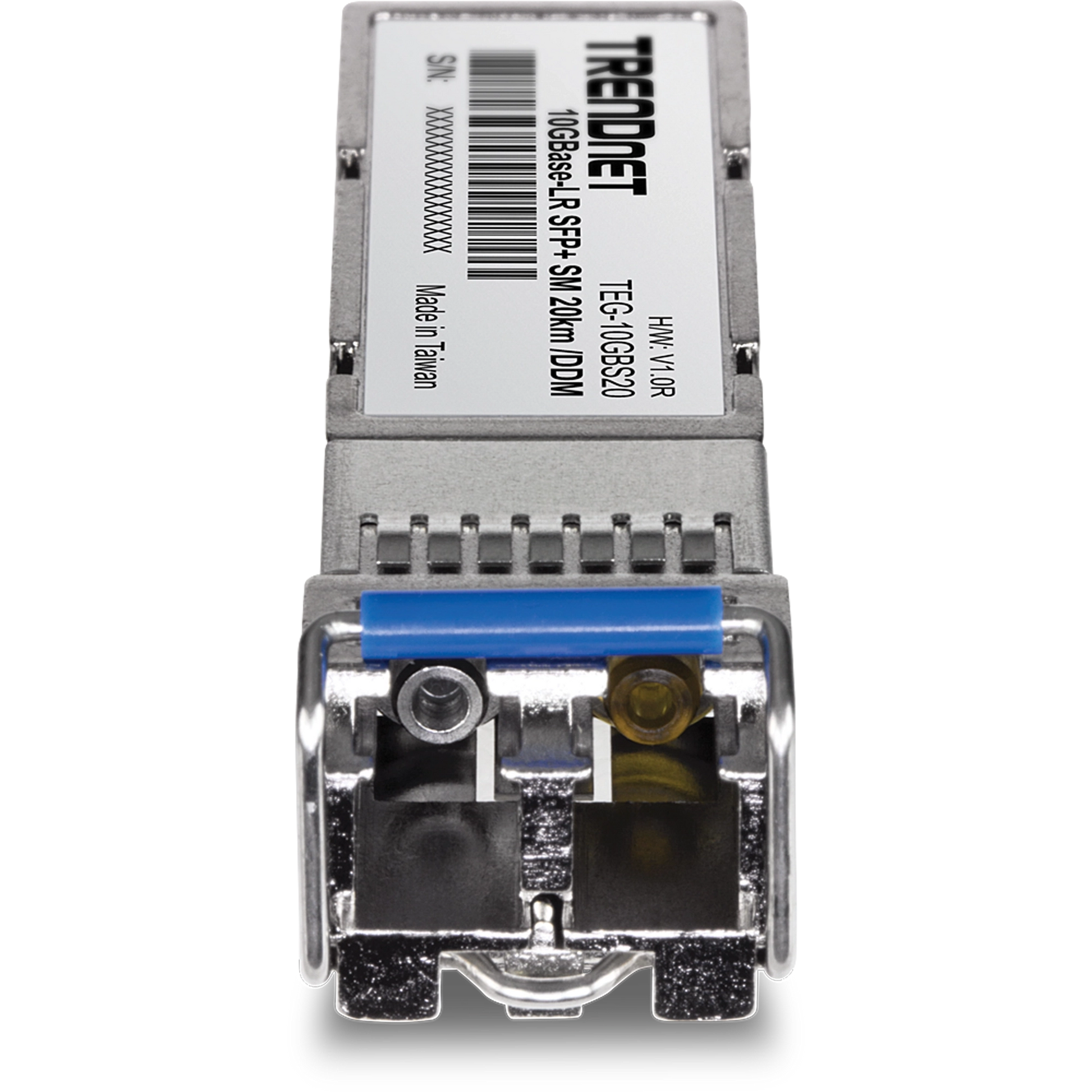

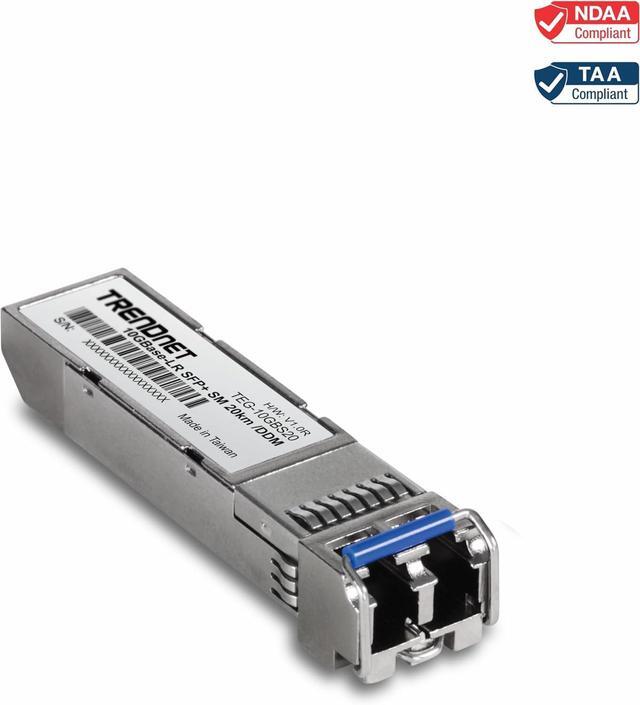

TRENDNET TEG-10GBS20 10GBASE-LR SFP+ Single Mode LC Module

VENDOR: TRENDNET Mfg Part#: TEG-10GBS20 UPC#: 710931141184
1 5
Photo is for illustration purposes only. Actual product may be different.
$120.00
$120.00
Sale Sold out
MSRP: $121.00
Shipping calculated at checkout.
  • 10GBASE-LR SFP+ transceiver for high-speed 10Gbps networking
  • Supports single-mode fiber connections up to 20KM with LC connectors
  • Digital Diagnostic Monitoring (DDM) provides real-time performance data
  • Compliant with TAA regulations for government procurement use
  • Manufactured in Taiwan, ensuring quality and compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed 10Gbps data transmission over long distances up to 20KM, ideal for enterprise and data center environments
  • Equipped with Digital Diagnostic Monitoring (DDM) for real-time monitoring and simplified troubleshooting
  • TAA compliance makes it suitable for federally regulated projects and secure network implementations

Product Overview

10GBASE-LR SFP+ Single Mode LC Module (20KM with DDM)

Specifications

Product Overview
Product Type SFP+ Transceiver Module
Transceiver Type 10GBASE-LR
Form Factor SFP+
Wavelength 1310 nm
Maximum Data Rate 10 Gbps
Max Transmission Distance 20 km
Power Consumption 1.5 W (maximum)
Hot Pluggable Yes
Digital Diagnostic Monitoring (DDM) Yes

Physical & Environmental
Dimensions 56.5 x 13.4 x 8.5 mm
Operating Temperature 0 °C to 70 °C (32 °F to 158 °F)
Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity 5% to 95% RH (non-condensing)
Storage Humidity 5% to 95% RH (non-condensing)
Housing Material Metal
Weight 18 g (0.63 oz)

Cloud Management & Licensing
Managed via Cloud
Software Licensing Required No
Plug-and-Play Yes

Interfaces
Host Interface SFP+ Slot
Connector Type LC Duplex
Interface Standards IEEE 802.3ae 10GBASE-LR
Fiber Mode Supported Single Mode
Cable Type 9/125 μm Single-Mode Fiber
Transmit Power Range –8.2 to 0.5 dBm
Receiver Sensitivity –14.4 dBm
Minimum Optical Power Budget 6.2 dB

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC
EMI/EMC Standards EN 55032 Class B, EN 55035

Advanced Security Features
Secure Firmware
Tamper Detection
MAC Address Filtering
DDOS Protection Support
