TRENDnet TEG-3102WS 10-Port 2.5G Web Smart Switch

VENDOR: TRENDNET Mfg Part#: TEG-3102WS UPC#: 710931140910
1 5
Photo is for illustration purposes only. Actual product may be different.
$319.00
$319.00
Sale Sold out
MSRP: $327.00
Shipping calculated at checkout.

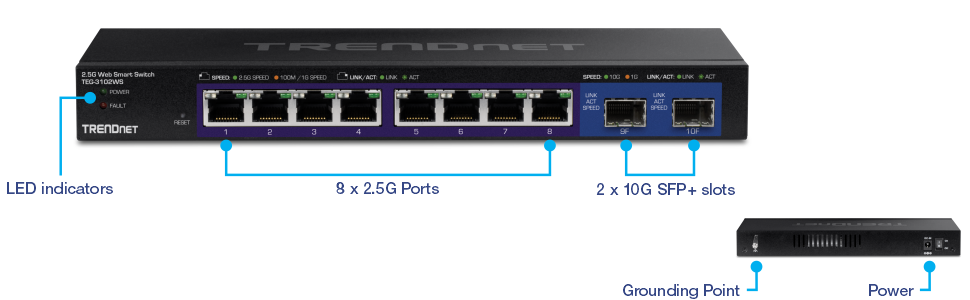

  • 10-port switch with eight 2.5GBASE-T ports and two 10G SFP+ slots
  • Supports wired connectivity for high-speed, secure networking
  • Offers data transfer rate of 20 Gbps ideal for SMB backbones
  • TAA compliant and manufactured in Taiwan for government-grade use
  • Backward compatible with 100/1000BASE-T devices
  • Compact design with max power consumption of 152.3W

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers superior performance with eight 2.5G and two 10G SFP+ ports for high-throughput environments.
  • Ensures operational confidence with TAA compliance and a robust lifetime warranty for long-term support.
  • Supports flexible deployment in existing network infrastructure thanks to backward compatibility with 100/1000BASE-T devices.

Product Overview

The TRENDnet TEG-3102WS is a high-performance 10-port 2.5G Web Smart Switch with eight 2.5G ports and two 10G SFP+ slots, offering robust connectivity and 20 Gbps switching capacity. Designed for professional networks, it supports backward compatibility with legacy Ethernet standards and is TAA compliant for government use. With a compact form factor, energy-efficient power design, and lifetime warranty, this switch is built for reliable long-term deployment.

Specifications

Product Overview
Product Type Web Smart Switch
Form Factor Desktop
Weight 1.46 lbs.
Power Supply Type Internal
Power Requirements 100 - 240V AC, 50/60Hz
Maximum Power Consumption 152.3 Watt
Switching Capacity 20 Gbps
Model Number TEG-3102WS

Physical & Environmental
Width 9.45 in
Depth 4.09 in
Height 1.06 in
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 10% to 90% RH (non-condensing)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Storage Humidity 5% to 95% RH (non-condensing)
Cooling Type Fanless design

Cloud Management & Licensing
Management Interface Web-based GUI
VLAN Support Yes, IEEE 802.1Q VLAN
QoS Features Queue scheduling, 802.1p CoS
Port Trunking Yes (LACP)
IGMP Snooping Yes, v1/v2/v3
Spanning Tree Protocol IEEE 802.1d, 802.1w
Event Logging Yes
Firmware Upgrade Via Web GUI

Interfaces
Ethernet Ports 8 x 2.5GBASE-T (RJ-45)
SFP+ Ports 2 x 10G SFP+
Total Ports 10
Uplink Speed 10 Gbps (SFP+)
Downlink Speed 2.5 Gbps (RJ-45)
Auto-Negotiation Yes
Auto-MDI/MDI-X Yes
Backward Compatibility 10/100/1000 Mbps
MAC Address Table Size 32K entries
Jumbo Frame Support Yes, up to 12KB
Packet Buffer Memory 2MB
Throughput 29.76 Mpps

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS

Advanced Security Features
Access Control List (ACL) Yes
Port Security Yes
Storm Control Broadcast, Multicast & Unknown Unicast
Loop Detection Yes
DoS Attack Prevention Yes
802.1X Authentication Yes
