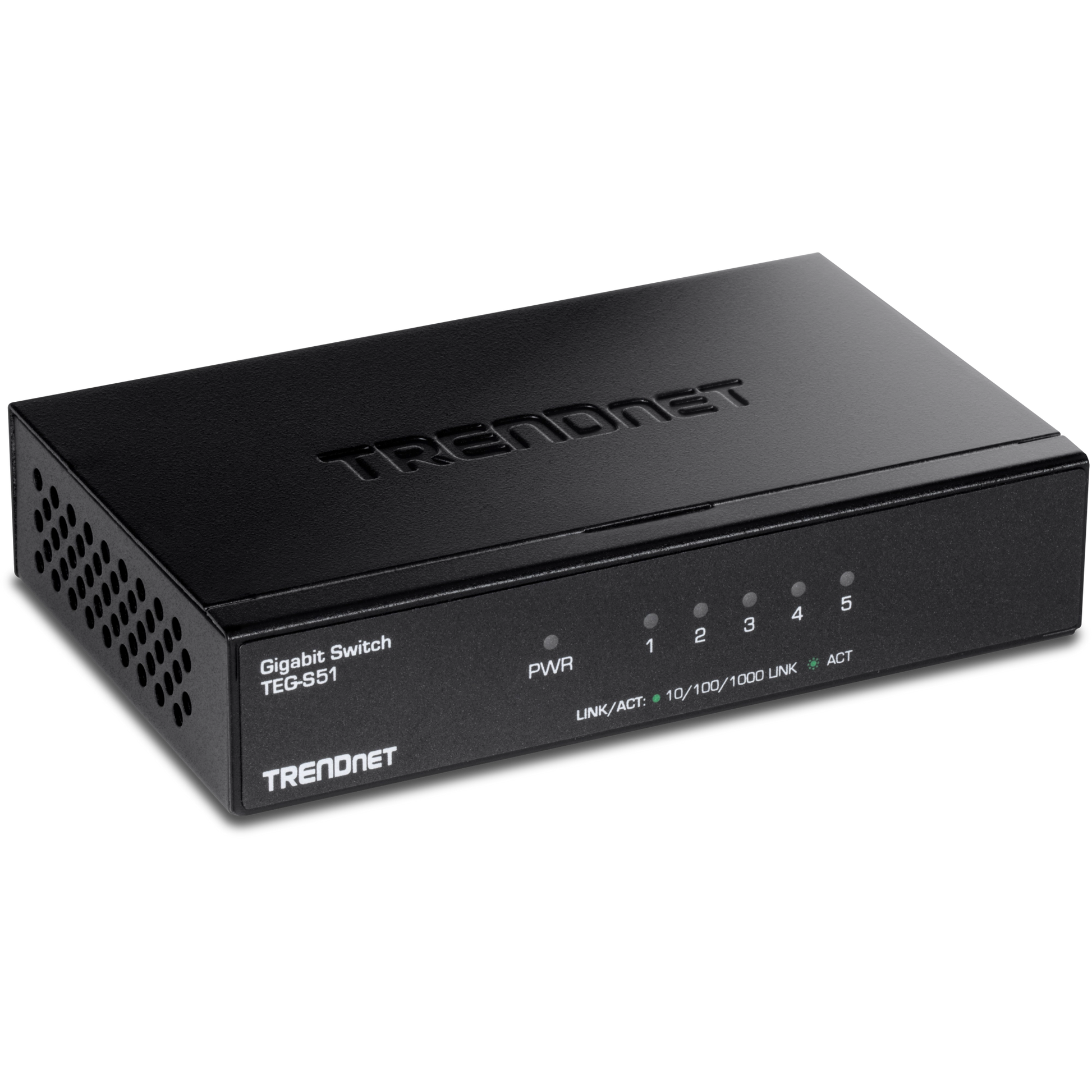

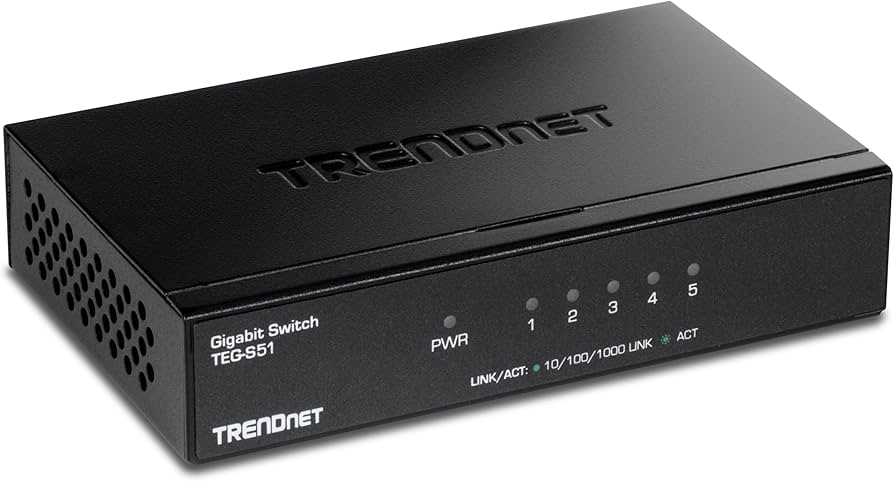

TRENDnet TEG-S51 5-Port Gigabit Switch with Metal Case

VENDOR: TRENDNET Mfg Part#: TEG-S51 UPC#: 710931140774
1 5
Photo is for illustration purposes only. Actual product may be different.
$24.00
$24.00
Sale Sold out
MSRP: $26.00
Shipping calculated at checkout.
  • 5 x Gigabit Ethernet ports for high-speed connectivity
  • 2 SFP ports for fiber uplink capability
  • 10 Gbps data transfer rate support
  • Sturdy metal case suitable for industrial applications
  • Compact dimensions (75 mm x 121 mm x 26 mm)
  • TAA compliant and includes a lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for government and enterprise use thanks to TAA compliance
  • Enhanced reliability with lifetime warranty and solid metal housing
  • Flexible fiber connectivity via integrated SFP ports for scalable deployments

Product Overview

The TRENDnet TEG-S51 is a compact and efficient 5-port Gigabit Ethernet switch engineered for high-speed networking applications. It features five Gigabit ports, enabling seamless data transfers across devices at up to 10 Gbps aggregate throughput. Built with a rugged metal enclosure, this switch is ideal for demanding business or light industrial environments. Additionally, two SFP ports provide flexibility for fiber uplinks, enhancing connectivity across longer distances or differing interfaces.

This model supports standard Gigabit Ethernet protocols and operates on a 100–240V AC input with a 5V DC output, making it suitable for both commercial and government installations. The unit’s compact form factor (75 mm x 121 mm x 26 mm) enables easy deployment in constrained spaces. TAA compliance ensures it meets federal government regulations for use in procurement contracts. Lifetime warranty coverage enhances the total value by providing long-term support and confidence in performance.

With TRENDnet’s established reputation in networking hardware, the TEG-S51 offers a practical, secure, and scalable solution for expanding Ethernet networks.

Specifications

Product Overview
Product Type Unmanaged Gigabit Ethernet Switch
Form Factor Desktop
Enclosure Type Metal
Number of Ports 5
Number of SFP Ports 2
Switching Capacity 10 Gbps
MAC Address Table Size 2K entries
Packet Buffer Memory 192 KB
Power Supply External
Power Consumption 2.6 W (max.)
Power Input 100 – 240V AC, 50/60 Hz
Power Output 5V DC, 1A
Warranty Lifetime warranty

Physical & Environmental
Width 75 mm
Depth 121 mm
Height 26 mm
Weight 210 g
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity Max. 90% non-condensing
Storage Humidity Max. 95% non-condensing

Cloud Management & Licensing
Management Type Unmanaged
Cloud-Based Management Support No
Licensing Required No

Interfaces
Port Type RJ-45
Port Speed 10/100/1000 Mbps
Total RJ-45 Ports 5
Total SFP Ports 2
Interface Standards IEEE 802.3, 802.3u, 802.3ab
Full Duplex Mode Yes
Auto-MDI/MDIX Yes
Jumbo Frame Support Yes, up to 9KB
Switching Method Store-and-forward

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC
RoHS Compliant Yes

Advanced Security Features
MAC Address Filtering No
Port Security No
802.1X Authentication No
DoS Protection No
