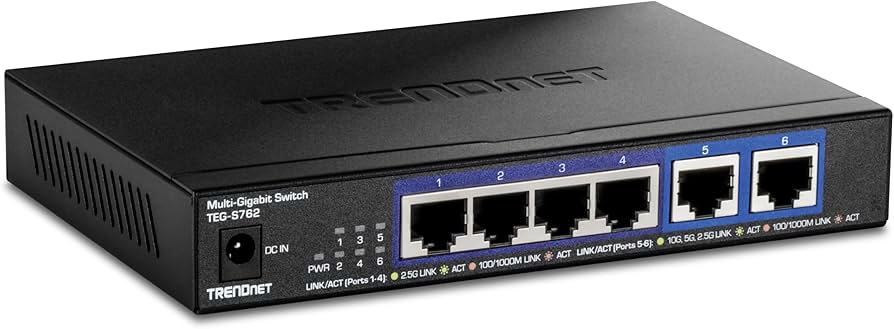

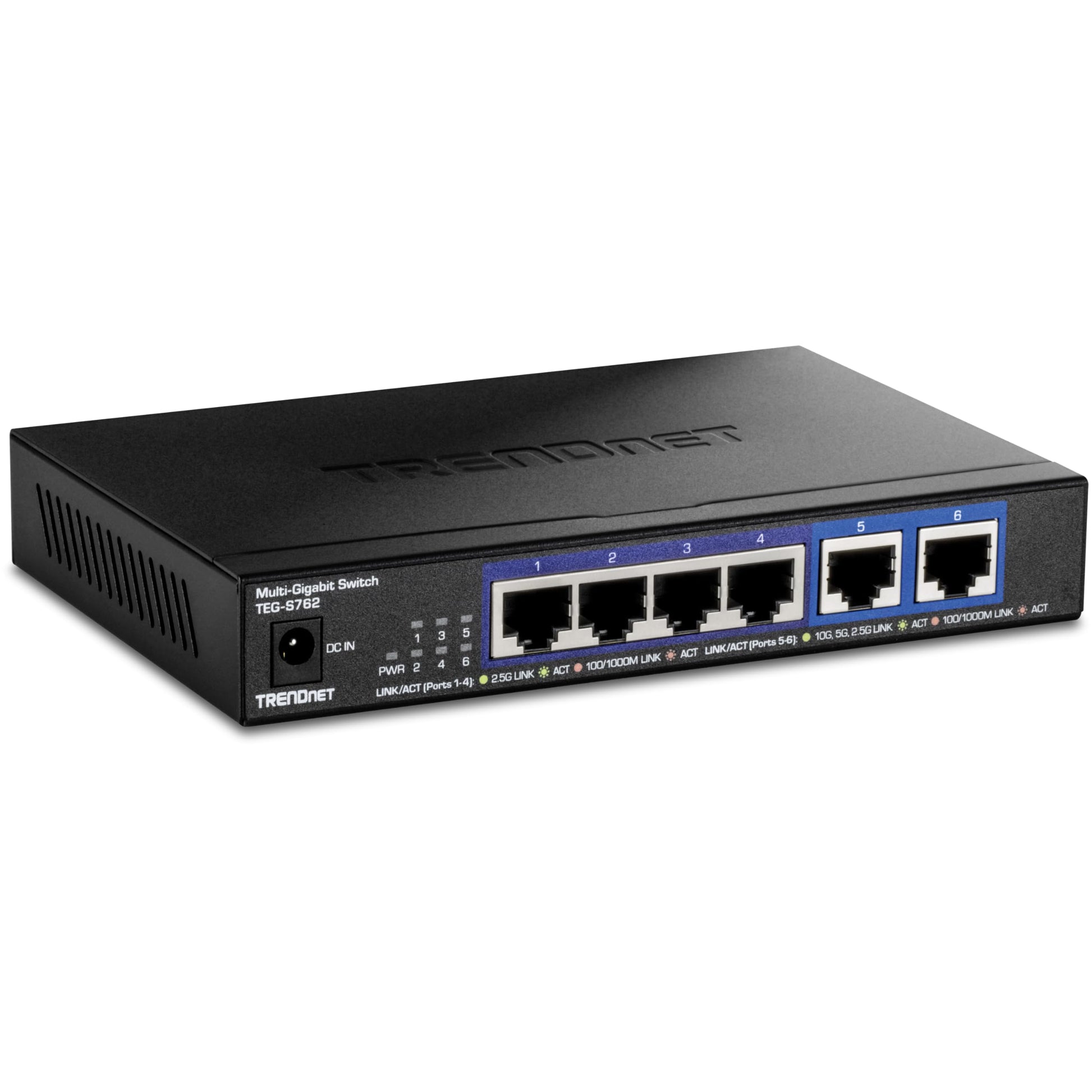

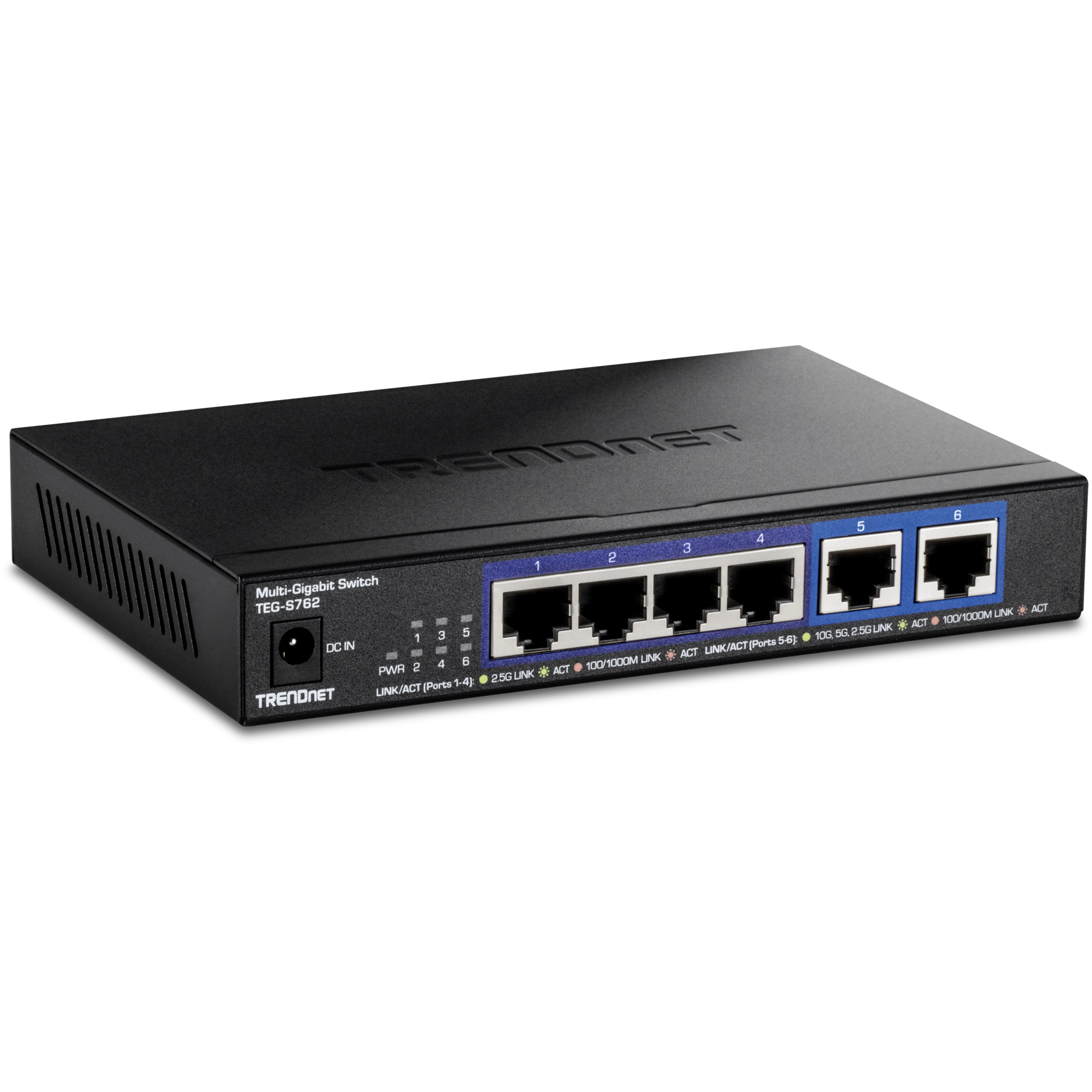

TRENDnet TEG-S762 6-Port 10G Switch with 2 x 10G and 4 x 2.5G Ports

VENDOR: TRENDNET Mfg Part#: TEG-S762 UPC#: 710931140729
1 4
Photo is for illustration purposes only. Actual product may be different.
$191.00
$191.00
Sale Sold out
MSRP: $199.00
Shipping calculated at checkout.
  • 2 x 10G ports and 4 x 2.5G ports for high-speed wired connections
  • 10 Gbps maximum data transfer rate
  • Supports jumbo frames up to 9KB for efficient data transmission
  • 16K MAC address table for advanced packet processing
  • Compact size: 7" W x 5.7" D x 1.3" H and fanless design
  • Max power consumption of only 11.9W; operates on 100–240V AC

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Provides enterprise-grade 10G Ethernet performance for small to mid-sized deployments

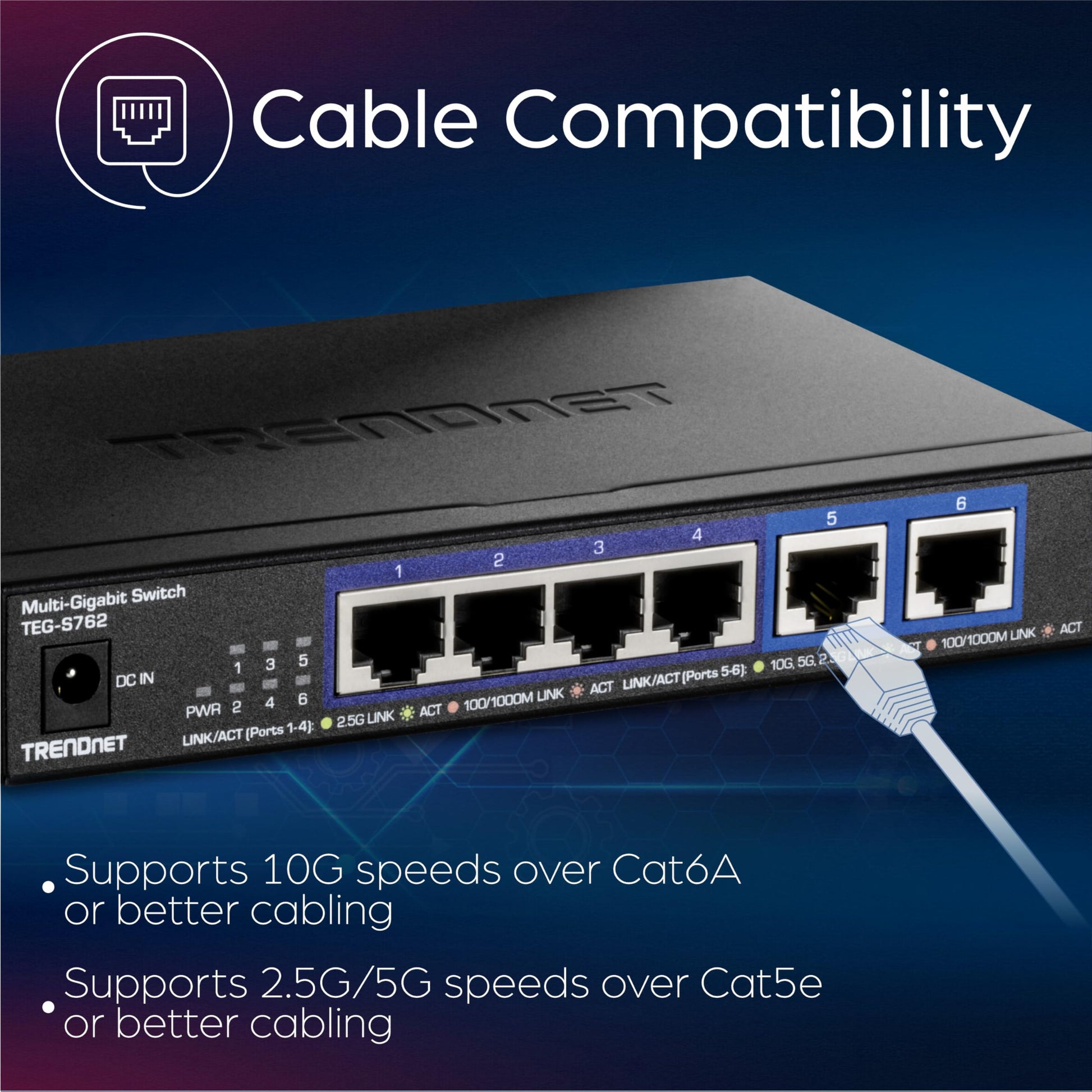

  • Compatible with legacy Cat5e cabling, minimizing infrastructure upgrade costs
  • Includes lifetime warranty and built with a high MTBF of 379,884 hours for long-term reliability

Product Overview

The TRENDnet TEG-S762 is a compact, unmanaged 6-port switch with 2 x 10G ports and 4 x 2.5G ports, ideal for high-performance wired networks in business settings. It supports 10 Gbps data transfer, jumbo frame support up to 9KB, and a 16K MAC address table for efficient traffic management. With a low max power consumption of 11.9W, it operates silently and reliably within 0°C to 40°C. Designed for quick deployment, it’s fully compatible with existing Cat5e or better cabling and includes a lifetime warranty for added peace of mind.

Specifications

Product Overview
Product Type Unmanaged Ethernet Switch
Model TEG-S762
Form Factor Desktop
Weight 5.12 lbs
Power Requirements 100 - 240V AC, 50/60 Hz
Power Supply Type External AC adapter (12V, 1A)
Maximum Power Consumption 11.9 Watt
MTBF 379884 hours
Included Accessories Quick Installation Guide, Power Adapter

Physical & Environmental
Width 7 in (178 mm)
Depth 5.7 in (145 mm)
Height 1.3 in (33 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 5% to 90% RH (non-condensing)
Fanless Design Yes (silent operation)
Housing Material Metal

Cloud Management & Licensing
Managed/Unmanaged Unmanaged
Cloud Management No
License Required No

Interfaces
Total Number of Ports 6
10G Ethernet Ports 2 x 10GBASE-T RJ-45
2.5G Ethernet Ports 4 x 2.5GBASE-T RJ-45
Ethernet Standards IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3x
Auto-MDIX Yes
Jumbo Frame Support Up to 9KB
Switching Capacity 60 Gbps
MAC Address Table Size 16K entries
LED Indicators Power, Link/Activity (per port)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Environment Standards RoHS Compliant

Advanced Security Features
MAC Address Filtering No
DoS Attack Prevention No
Access Control Lists (ACL) No
802.1X Authentication No
