TRENDnet TEW-740APBO N300 2.4 GHz Outdoor PoE Access Point

VENDOR: TRENDNET Mfg Part#: TEW-740APBO UPC#: 710931160819
1 5
Photo is for illustration purposes only. Actual product may be different.
$137.00
$137.00
Sale Sold out
MSRP: $141.00
Shipping calculated at checkout.
  • Supports IEEE 802.11b wireless standard with 2.4 GHz frequency
  • Integrated high-gain 10 dBi antenna for extended outdoor coverage
  • Delivers data transfer rates up to 100 Mbps
  • Compatible with Ethernet networks and supports Power over Ethernet (PoE)

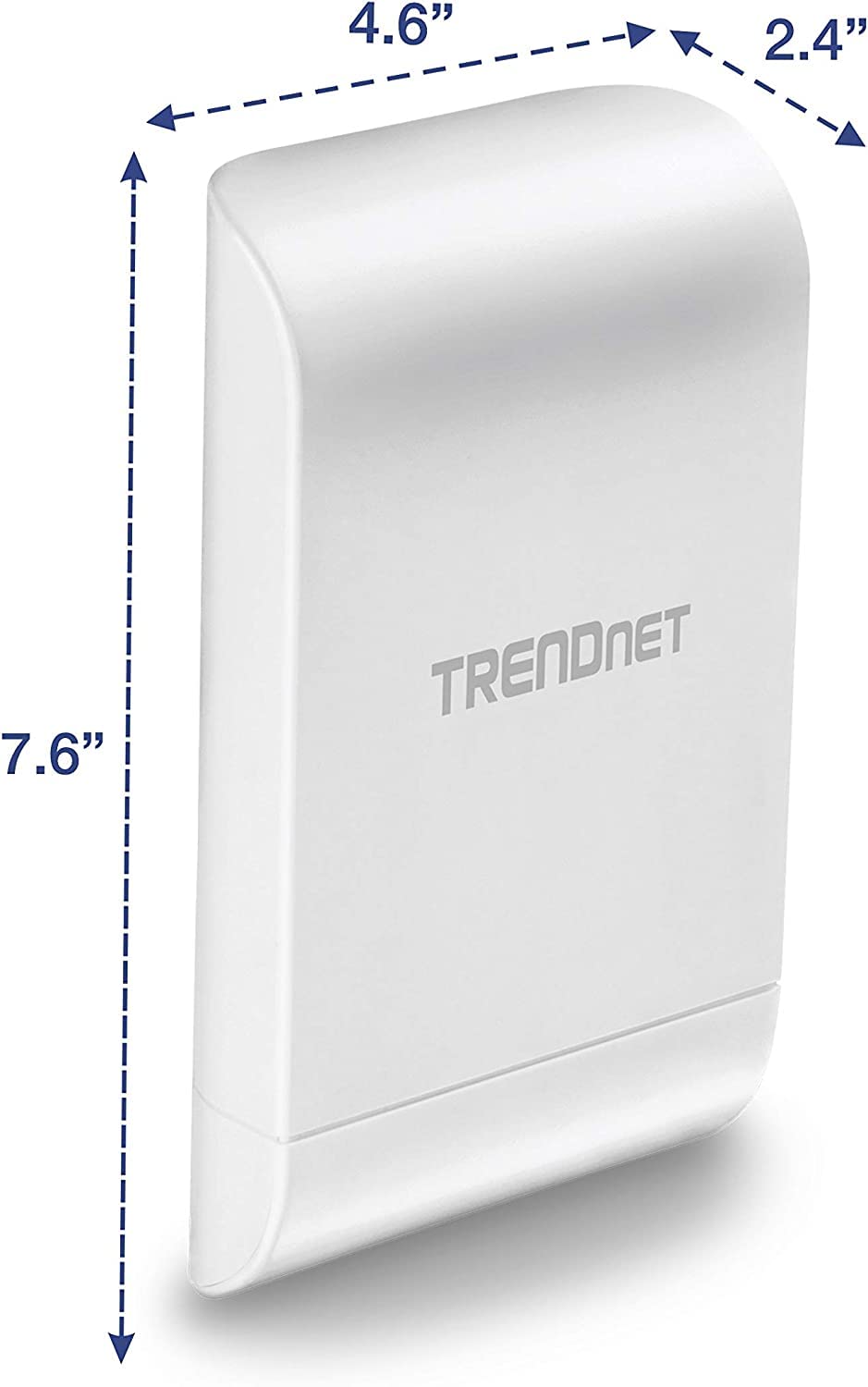

  • Rugged outdoor enclosure with compact dimensions (4.90" W x 8.60" D x 2.10" H)
  • TAA compliant and comes with a 3-year limited warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for outdoor deployment with weather-resistant design, ideal for exterior installations
  • Includes high-gain 10 dBi antenna to significantly boost wireless range and performance
  • PoE support simplifies installation and reduces power cabling requirements

Product Overview

The TRENDnet TEW-740APBO N300 Outdoor PoE Access Point offers a reliable and flexible wireless solution tailored for outdoor deployment. Operating on the 2.4 GHz frequency band with IEEE 802.11b compliance, it delivers data speeds up to 100 Mbps, suited for outdoor campuses, yards, and industrial areas. Equipped with a 10 dBi high-gain antenna, it provides extended wireless coverage without performance degradation.

Featuring PoE support and Ethernet connectivity, the unit is easy to install in power-limited areas. Its rugged, weather-resistant design ensures enduring performance across diverse environmental conditions. Compact and TAA-compliant, the TEW-740APBO is backed by a 3-year limited warranty, making it a trusted choice for enterprise and government installations.

Specifications

Product Overview
Type Outdoor PoE Wireless Access Point
Model Number TEW-740APBO
Form Factor Wall / pole mountable outdoor enclosure
Environment Outdoor
Mounting Type Pole / wall mountable
Antenna Gain 10 dBi
Power Supply Via Passive PoE Injector
Power Consumption Up to 8 Watts
Warranty 3-year limited warranty

Wireless Features
Wireless Standard IEEE 802.11n (2.4 GHz)
Frequency Band 2.4 GHz
Wireless Speed Up to 300 Mbps (802.11n)
Antenna Type Integrated directional antenna
Antenna Gain 10 dBi
Wireless Modes AP, WDS AP, WDS Bridge, Client Bridge
Wireless Security WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
Max Wireless Clients Up to 32

Compliance & Origin
Country of Origin Taiwan
TAA Compliance Yes
Certifications FCC, CE, RoHS

Advanced Security Features
Wireless Security Protocols WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
MAC Address Filtering Yes
SSID Broadcast Control Enable/Disable SSID Broadcast
AP Isolation Yes

Interfaces
Networking Type Ethernet
Ethernet Ports 1 x 10/100 Mbps LAN port
Data Transfer Rate Up to 300 Mbps (wireless); 100 Mbps (Ethernet)
LAN Interface 10/100 Base-T
PoE Support Yes (Passive PoE)
Networking Standards IEEE 802.11b/g/n
WAN Connection Type None (Bridge/AP mode only)
Bridge Modes Supported Access Point, WDS Bridge, WDS Access Point, Client Bridge

Physical & Environmental
Width 4.90 in (124 mm)
Depth 8.60 in (218 mm)
Height 2.10 in (54 mm)
Enclosure Rating IP66 rated weatherproof housing
Operating Temperature -30°C to 70°C (-22°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface Web-based management (HTTP/HTTPS)
SNMP Support SNMP v1, v2c
Remote Management Web UI
