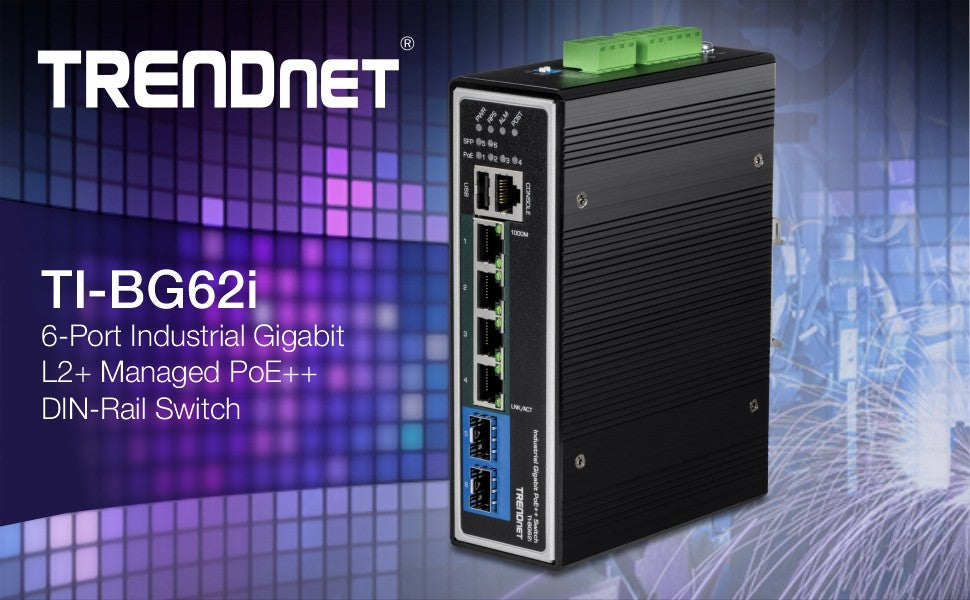

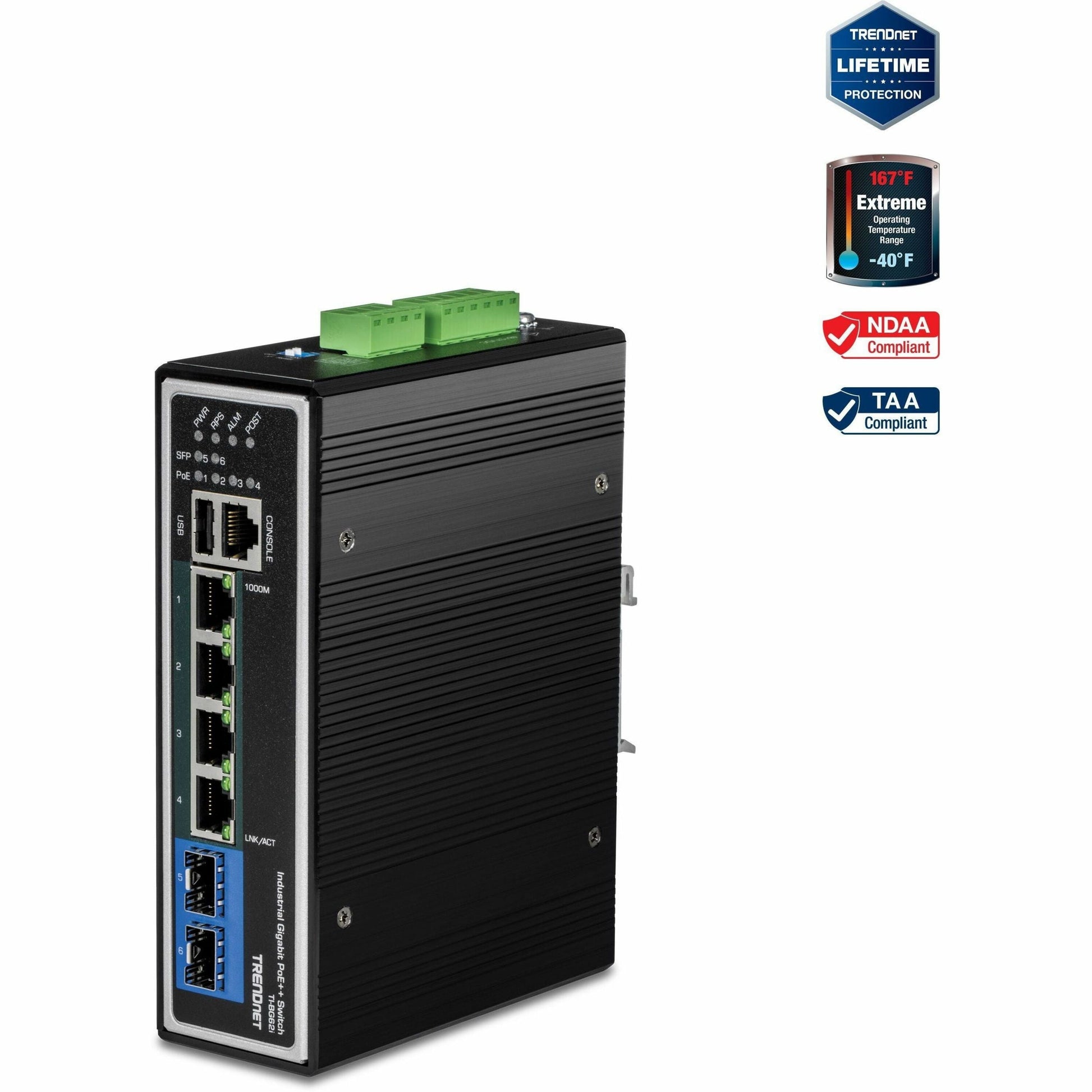

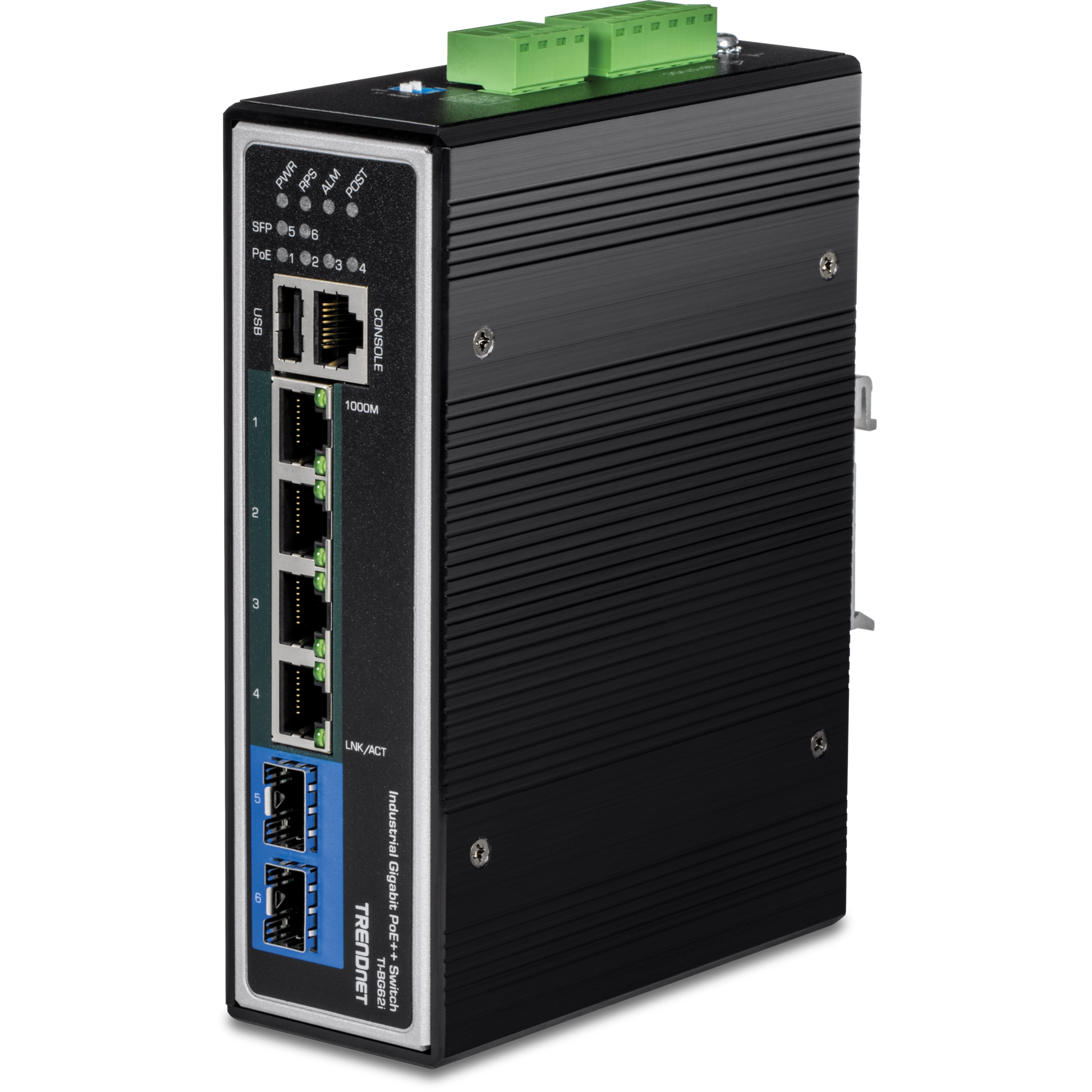

TRENDnet TI-BG62I 6-Port Industrial Gigabit L2+ Managed PoE++ Switch

VENDOR: TRENDNET Mfg Part#: TI-BG62I UPC#: 710931162318
1 5
Photo is for illustration purposes only. Actual product may be different.
$876.00
$876.00
Sale Sold out
MSRP: $895.00
Shipping calculated at checkout.
  • 4 x Gigabit PoE++ ports for high-powered devices
  • 2 x SFP slots supporting 1000Base-FX fiber modules
  • Layer 2+ management with support for IEEE 802.3af/at/az/ad/u/z/ab/x
  • DIN-rail mountable industrial design with a rugged metal enclosure
  • MTBF of 379,100 hours at 25°C for long-term reliability
  • 20 Watt maximum power consumption for energy-efficient operation

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Engineered for industrial reliability with a high MTBF of 379,100 hours, minimizing maintenance and downtime
  • Built-in PoE++ ports reduce infrastructure complexity by powering multiple high-demand devices directly
  • Government-ready and secure deployment with full TAA compliance and 3-year warranty coverage

Product Overview

6-Port Industrial Gigabit L2+ Managed PoE++ DIN-Rail Switch

Specifications

Product Overview
Product Type Industrial Managed PoE++ Switch
Form Factor DIN-Rail Mountable
Model TI-BG62I
Enclosure Color Black
Weight 2.1 lbs.
Max Power Consumption 20 Watt
MTBF 379100 hours @ 25°C
Service & Support Type 3-Year Warranty

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, EN 61000-6-2, EN 61000-6-4
RoHS Compliant Yes

Advanced Security Features
Access Control ACL Layer 2/3/4, MAC Filtering
802.1X Authentication Supported
DHCP Snooping Supported
DoS Prevention Supported
RADIUS / TACACS+ Supported

Interfaces
Total Ports 6
PoE Ports 4 x Gigabit PoE++ ports
SFP Ports 2 x 100/1000Base SFP slots
Data Transfer Rate 10 Mbps / 100 Mbps / 1 Gbps
Supported Protocols IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3az, 802.3ad
Switching Capacity 12 Gbps
Forwarding Rate 8.93 Mpps
MAC Address Table 16K entries
Packet Buffer 1.5 Mbits
Jumbo Frame Support Up to 10 KB
PoE Power Budget 240 Watts

Physical & Environmental
Width 6.69 inches
Depth 4.65 inches
Height 1.97 inches
Operating Temperature -40° – 75°C (-40° – 167°F)
Storage Temperature -40° – 85°C (-40° – 185°F)
Humidity (Operating) 5% – 95% (non-condensing)
Cooling Method Fanless
Ingress Protection Rating IP30-rated Metal Enclosure
Installation DIN-Rail & Wall Mountable

Cloud Management & Licensing
Management Interface Web-based GUI, CLI, SNMP v1/v2c/v3, RMON, HTTPS, SSH
VLAN Support 802.1Q VLAN (Up to 256 groups)
IGMP Snooping Supported
QoS 802.1p, DSCP, Rate Limiting
Link Aggregation 802.3ad LACP (Up to 3 groups)
Spanning Tree Protocol RSTP / MSTP
Port Mirroring Supported
Storm Control Broadcast/Multicast/Unknown Unicast
