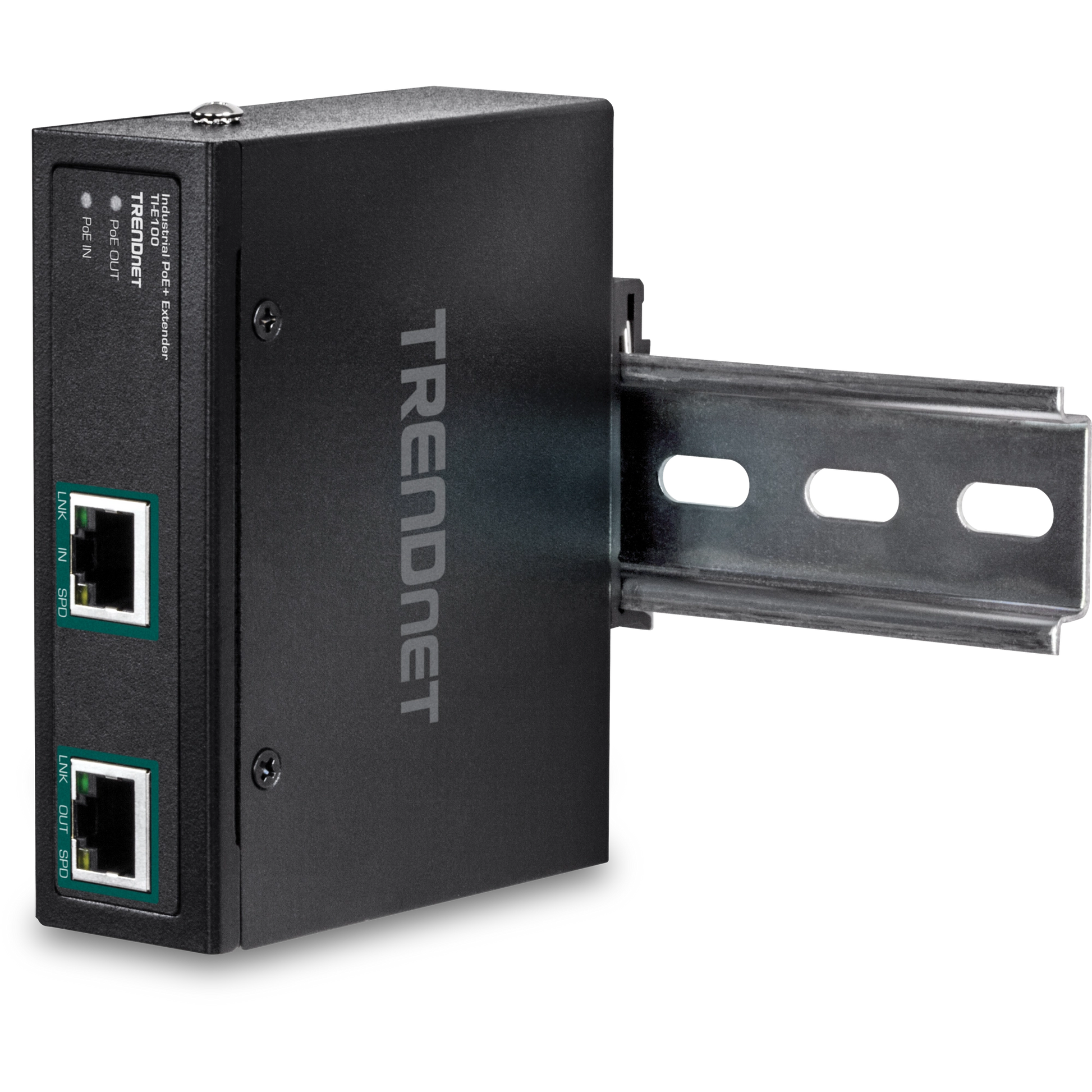

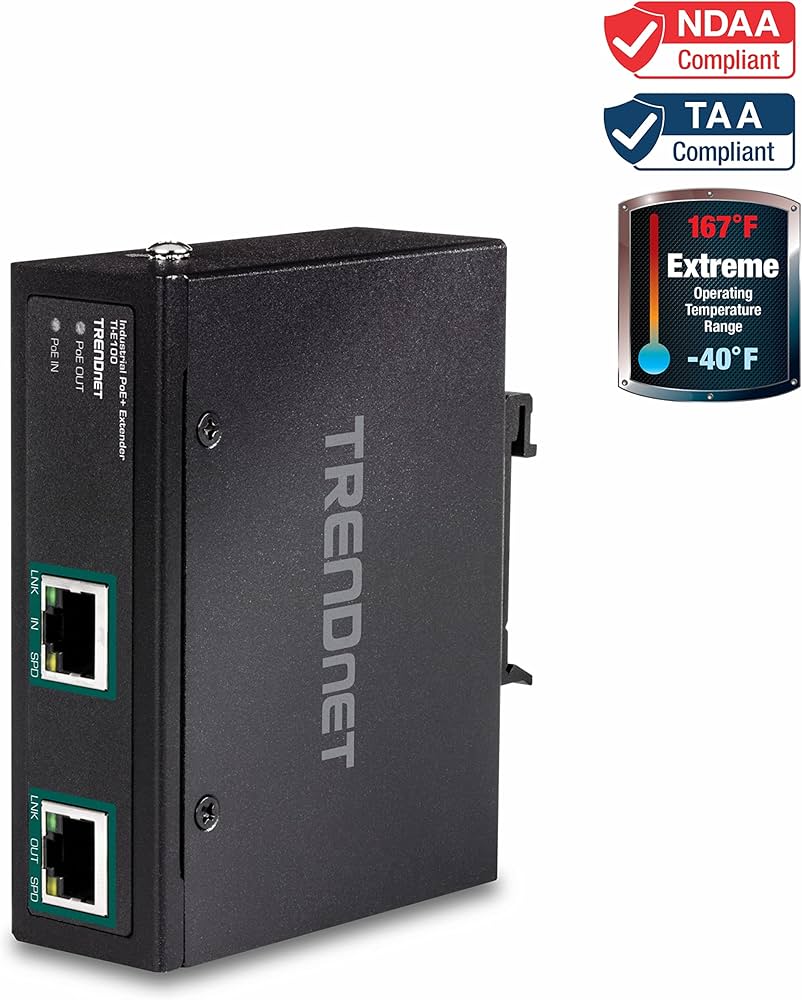

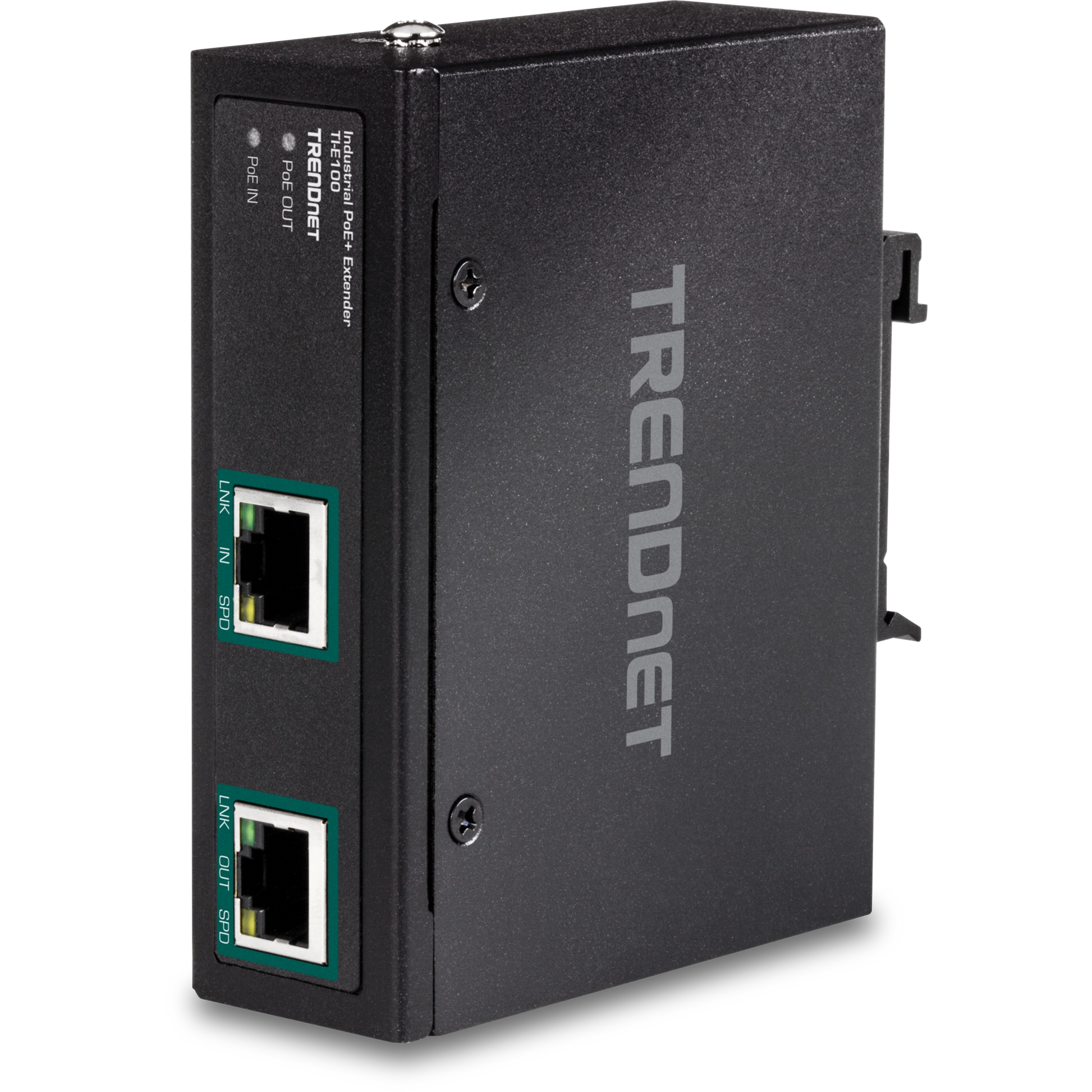

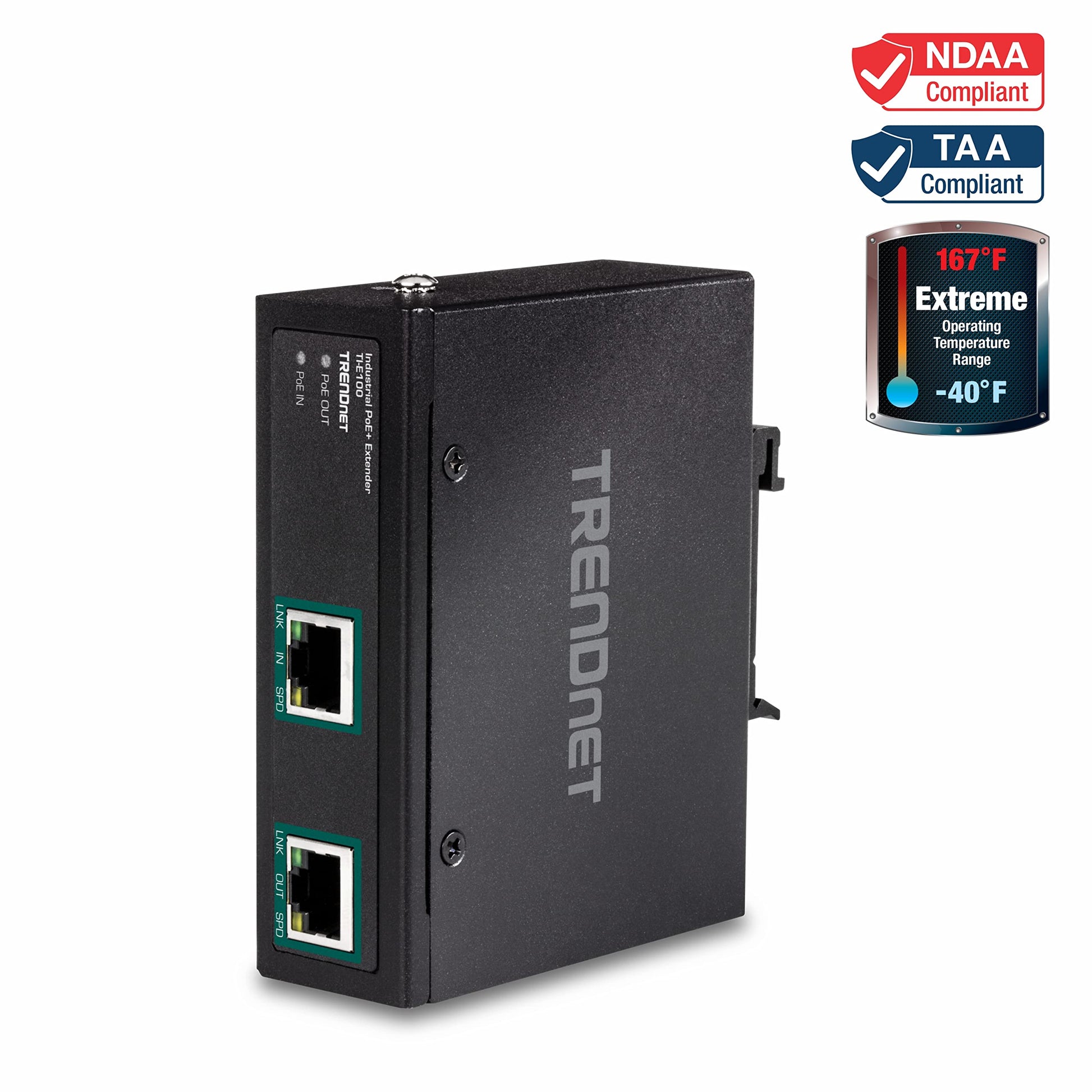

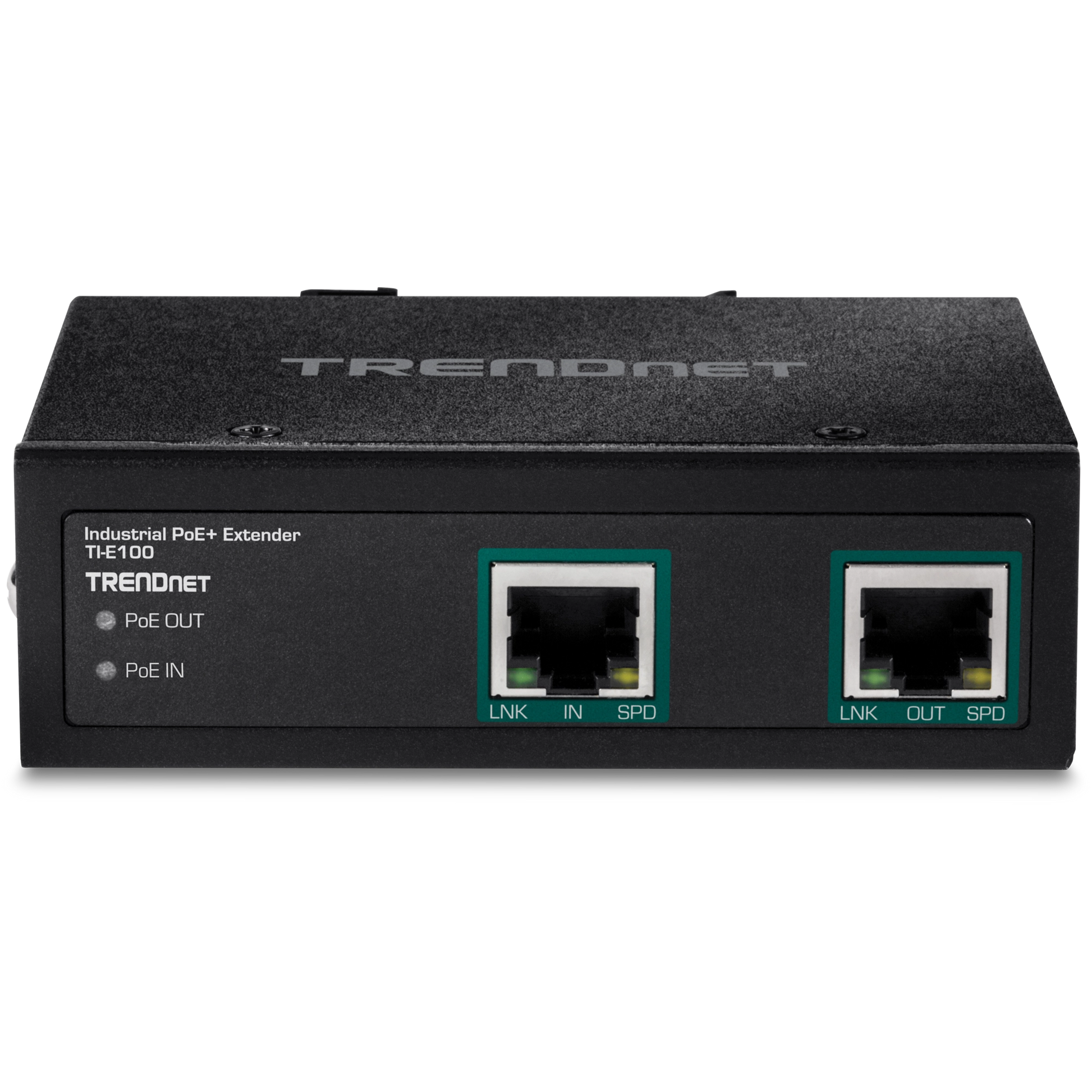

TRENDnet TI-E100 Industrial Gigabit PoE+ Extender

VENDOR: TRENDNET Mfg Part#: TI-E100 UPC#: 710931161809
1 5
Photo is for illustration purposes only. Actual product may be different.
$143.00
$143.00
Sale Sold out
MSRP: $149.00
Shipping calculated at checkout.
  • Extends PoE/PoE+ signal an additional 100 meters (328 feet)
  • Supports Gigabit Ethernet with 2 Gbps total data transfer rate
  • Equipped with two Gigabit PoE+ ports
  • Compact industrial housing: 4 x 3.1 x 1.25 inches
  • Maximum power consumption of only 3.5 Watts
  • Complies with TAA for government and secure installations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables cost-effective long-distance PoE installations without additional power wiring
  • Supports high-bandwidth applications with Gigabit throughput and low power use
  • TAA compliance and 3-year warranty support secure, long-term deployments

Product Overview

Industrial Gigabit PoE+ Extender, model TI-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation.

Specifications

Product Overview
Product Type Industrial Gigabit PoE+ Extender
Form Factor DIN-rail mountable, wall-mountable
Weight 204 g (7.2 oz)
Power Requirements Powered via PoE; 802.3at standard
Max Power Consumption 3.5 Watt

Physical & Environmental
Width 4 inch (102 mm)
Depth 3.1 inch (80 mm)
Height 1.25 inch (32 mm)
Operating Temperature -40° – 75° C (-40° – 167° F)
Storage Temperature -40° – 85° C (-40° – 185° F)
Operating Humidity 5% – 95% (non-condensing)
Enclosure Type IP30-rated metal housing
Mounting Options DIN-rail and wall mountable
Surge Protection 6kV Ethernet, 6kV power line
Shock Resistance EN 60068-2-27
Vibration Resistance EN 60068-2-6

Cloud Management & Licensing
Cloud Management No
Management Interface Unmanaged
Licensing Requirements None

Wireless Features
Wi‑Fi Support

Interfaces
Total Ports 2
Port Type 10/100/1000 Mbps Gigabit Ethernet PoE+
PoE+ Input Port(s) 1 x Gigabit Ethernet (PoE+ In)
PoE+ Output Port(s) 1 x Gigabit Ethernet (PoE+ Out)
Supported PoE Standards IEEE 802.3af, IEEE 802.3at
Data Transfer Rate 2 Gbps switching capacity
Data Link Protocol Gigabit Ethernet

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-32
RoHS Compliant Yes

Advanced Security Features
MAC Address Filtering No
Loop Detection No
Port Security No
