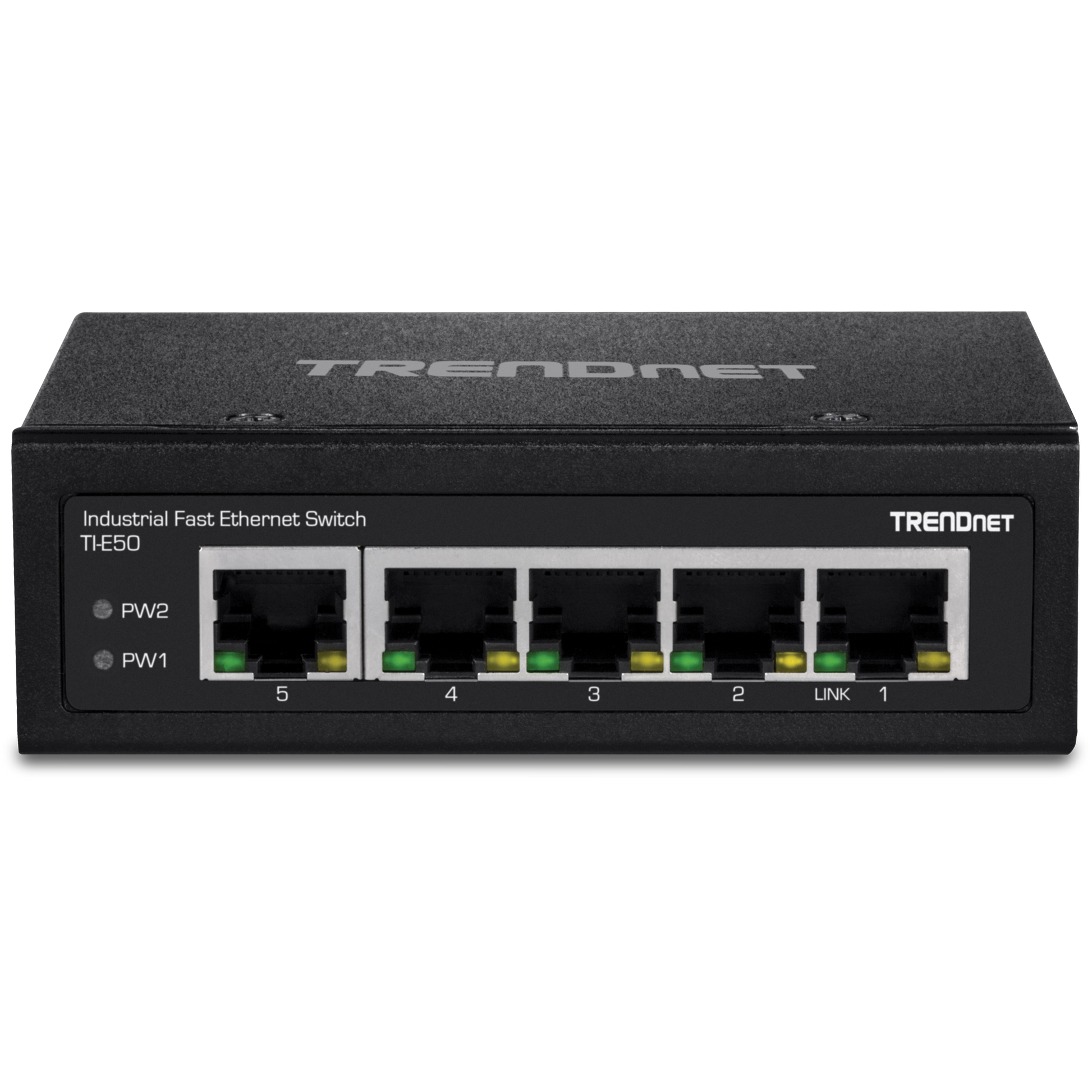

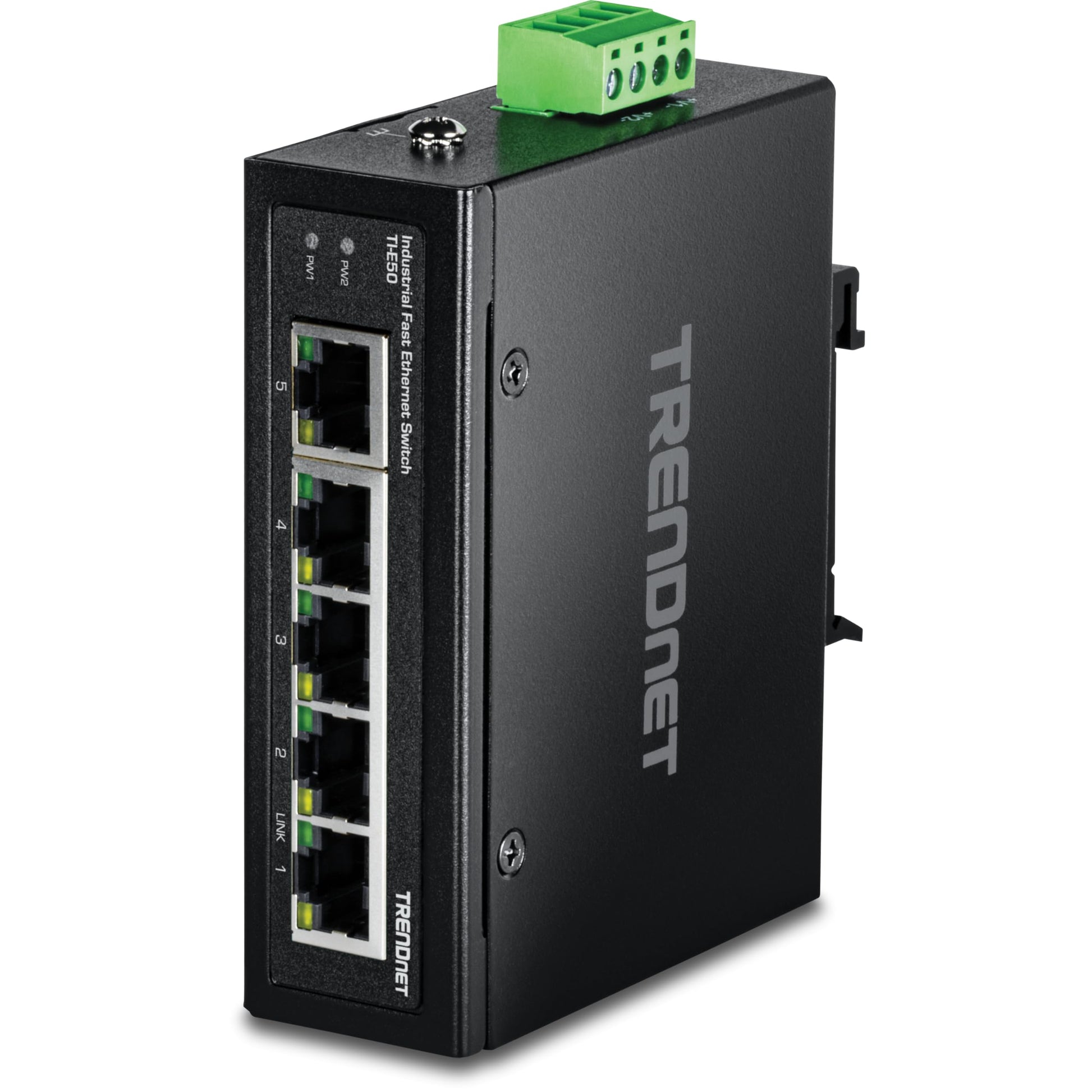

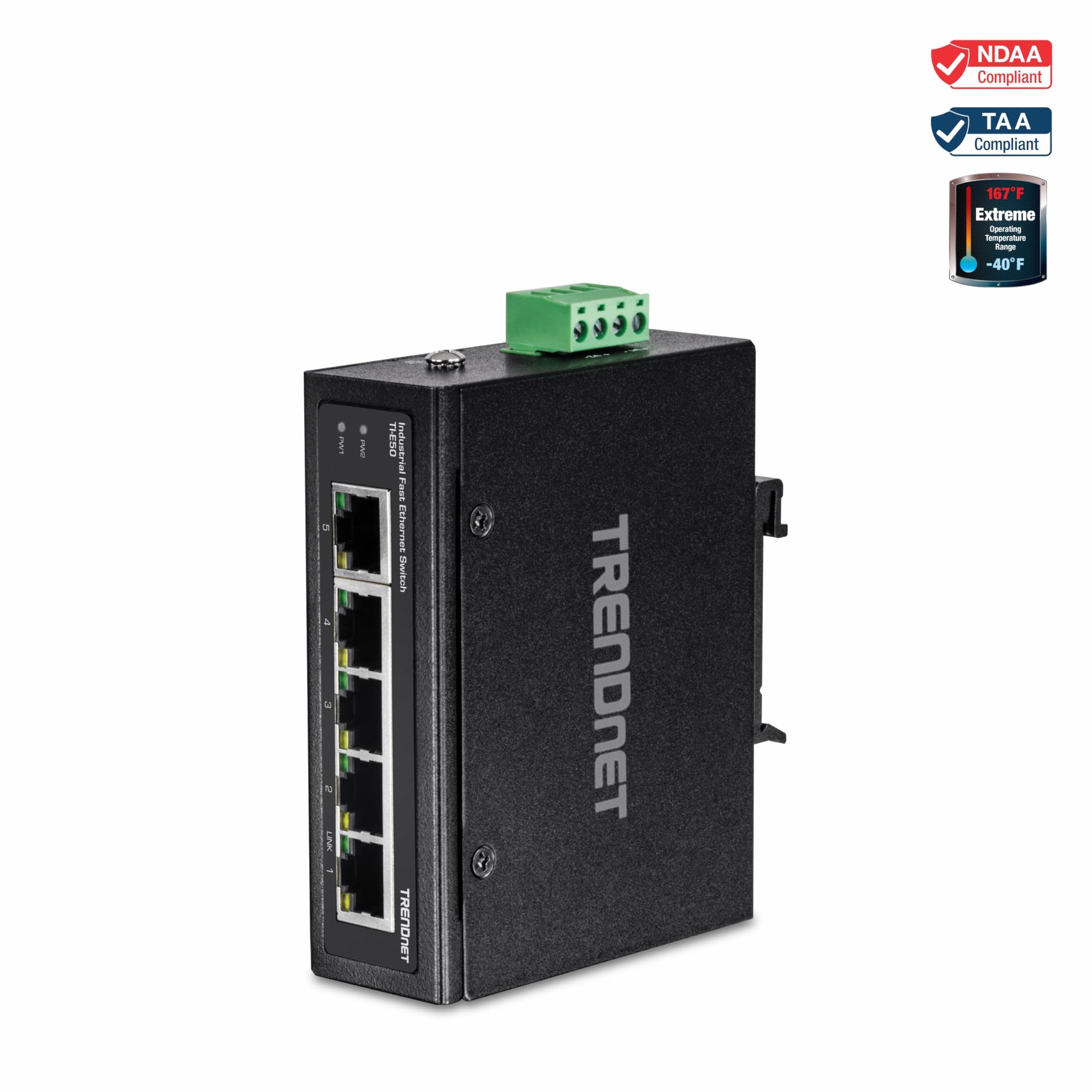

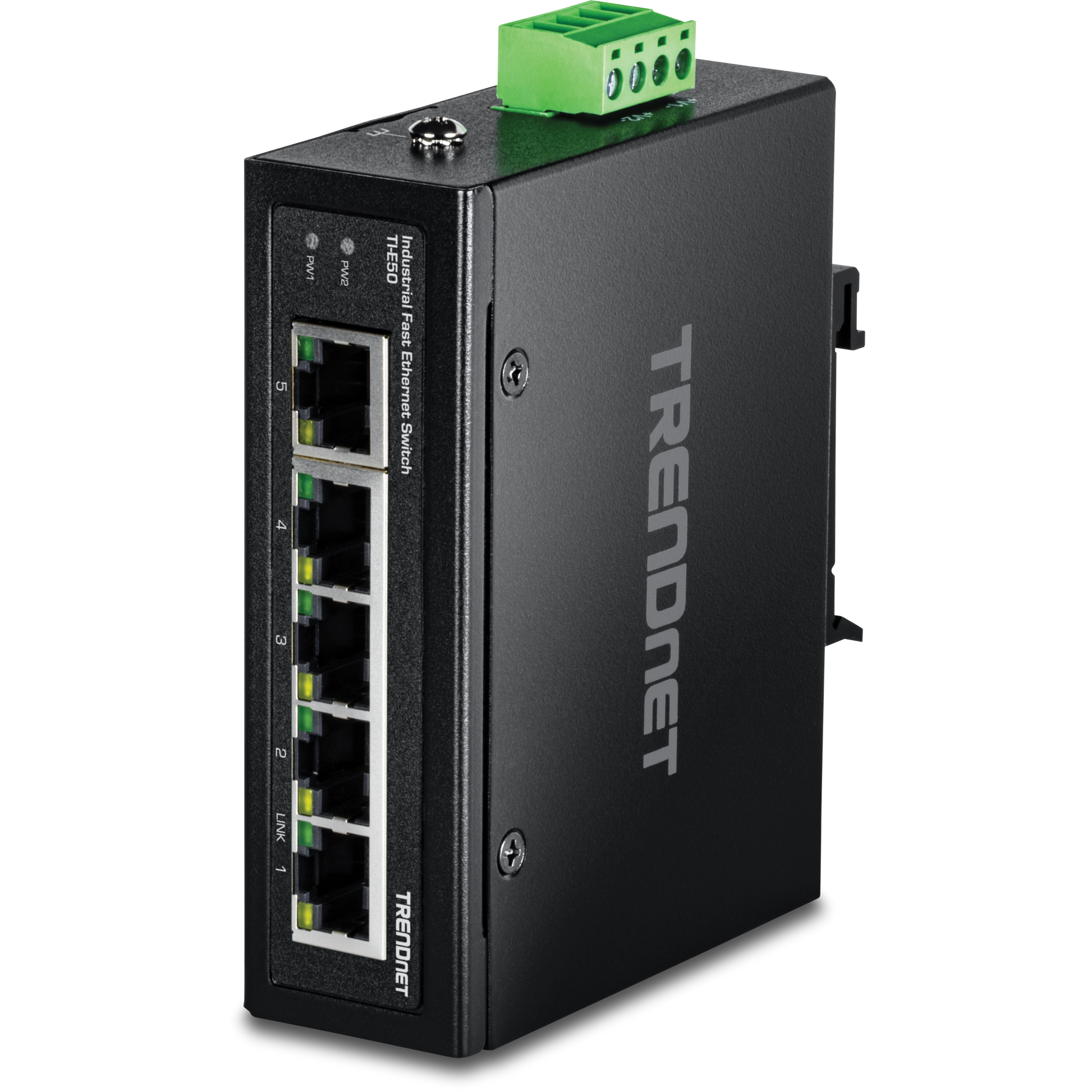

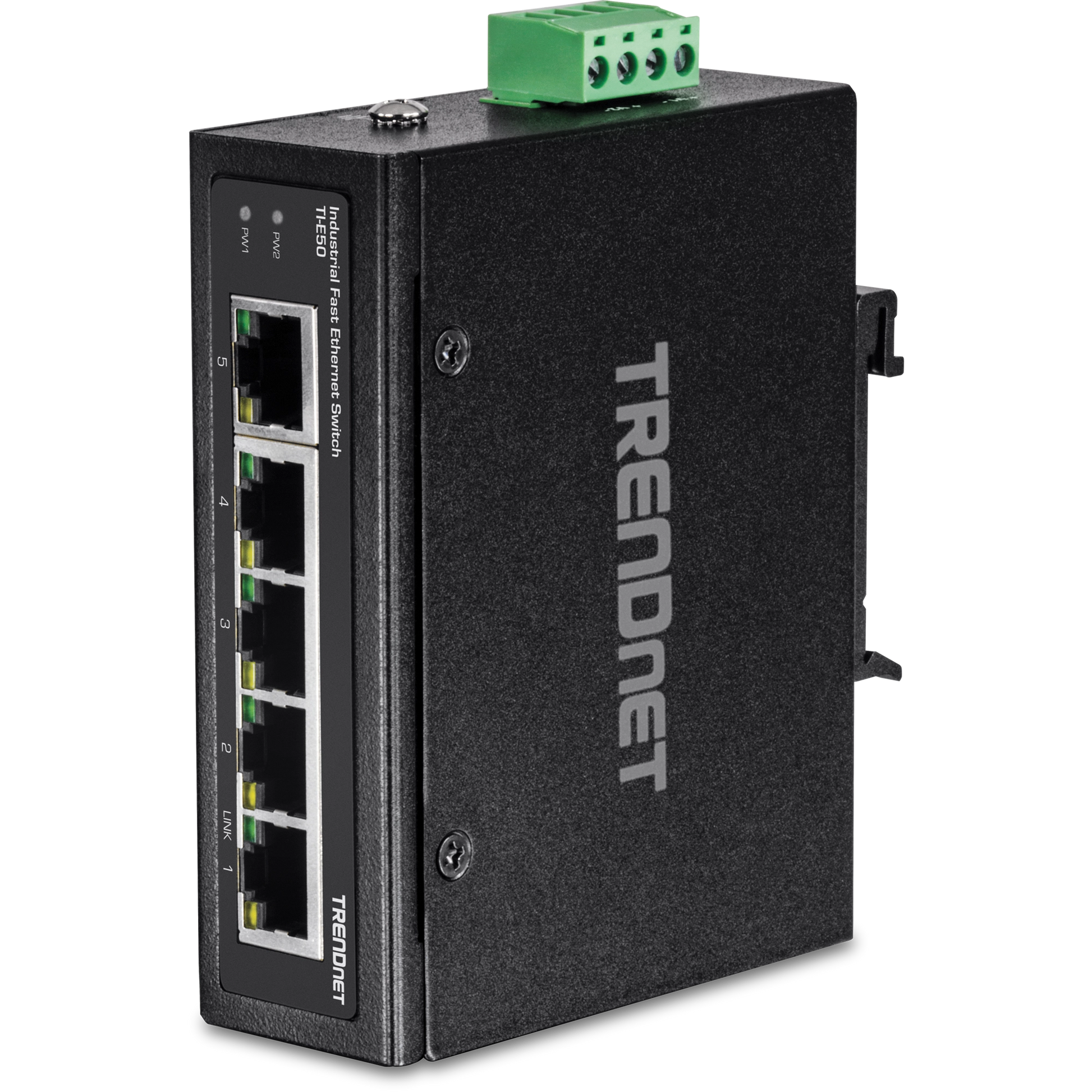

TRENDnet TI-E50 5-Port Industrial Fast Ethernet DIN-Rail Switch

VENDOR: TRENDNET Mfg Part#: TI-E50 UPC#: 710931161755
1 5
Photo is for illustration purposes only. Actual product may be different.
$93.00
$93.00
Sale Sold out
MSRP: $97.00
Shipping calculated at checkout.
  • 5 x 10/100 Mbps Fast Ethernet ports with 1 Gbps switching capacity
  • DIN-rail mountable, industrial design with -40°C to 75°C operating range
  • Lifetime product warranty with MTBF of 580159 hours at 25°C
  • Compact dimensions: 4 x 3.2 x 1.2 inches; weight: 5.7 ounces
  • 1K-entry MAC address table for efficient traffic management
  • LED status indicators for real-time port and device monitoring

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Engineered for dependable performance in extreme industrial environments with wide operating temperature support (-40°C to 75°C).
  • Backed by an industry-leading lifetime warranty and high MTBF, reducing maintenance costs and downtime for long-term deployments.
  • Compact, DIN-rail-mountable form factor ensures flexible installation in tight spaces for demanding applications.

Product Overview

TRENDNET TI-E50 - 5-Port Industrial Fast Ethernet DIN-Rail Switch - Wired - 200Mbps - MTBF 580159 hours @ 25 C - MAC Address Table: 1K entries - LED indicators - Lifetime Warranty

Specifications

Product Overview
Product Type Unmanaged Industrial Ethernet Switch
Model TI-E50
Form Factor DIN-Rail Mountable
Switching Capacity 1 Gbps
MAC Address Table Size 1K entries
Power Requirements 12 – 56V DC terminal block input
Redundant Power Inputs Yes
Power Consumption (Max) 1.2W
Weight 5.7 oz (162 g)
Warranty Lifetime

Physical & Environmental
Width 4 in. (101.6 mm)
Depth 3.2 in. (81.28 mm)
Height 1.2 in. (30.48 mm)
Enclosure Type Metal Housing
DIN Rail Mountable Yes
Operating Temperature Range -40 °C to 75 °C
Storage Temperature -40 °C to 85 °C
Humidity Range (Operating) Max 95% RH, non-condensing
MTBF 580,159 hours @ 25 °C
IP Rating IP30

Cloud Management & Licensing
Cloud Management Not Supported
Management Type Unmanaged

Interfaces
Ethernet Ports 5 x 10/100BASE-T
Port Type RJ-45
Auto MDI/MDI-X Yes
Auto Negotiation Yes
Data Transfer Rate 200 Mbps (full duplex)
Data Link Protocol Fast Ethernet
LED Indicators Link/Activity, Power

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, EN 61000-6-2, EN 61000-6-4
RoHS Compliant Yes

Advanced Security Features
Physical Security Grounding Point and Overload Protected Power Inputs
EMI Protection Yes – Industrial-grade EMI protection
