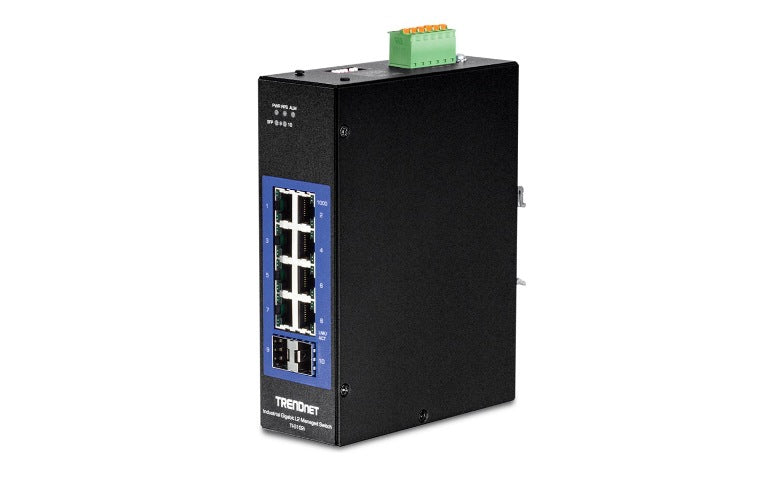

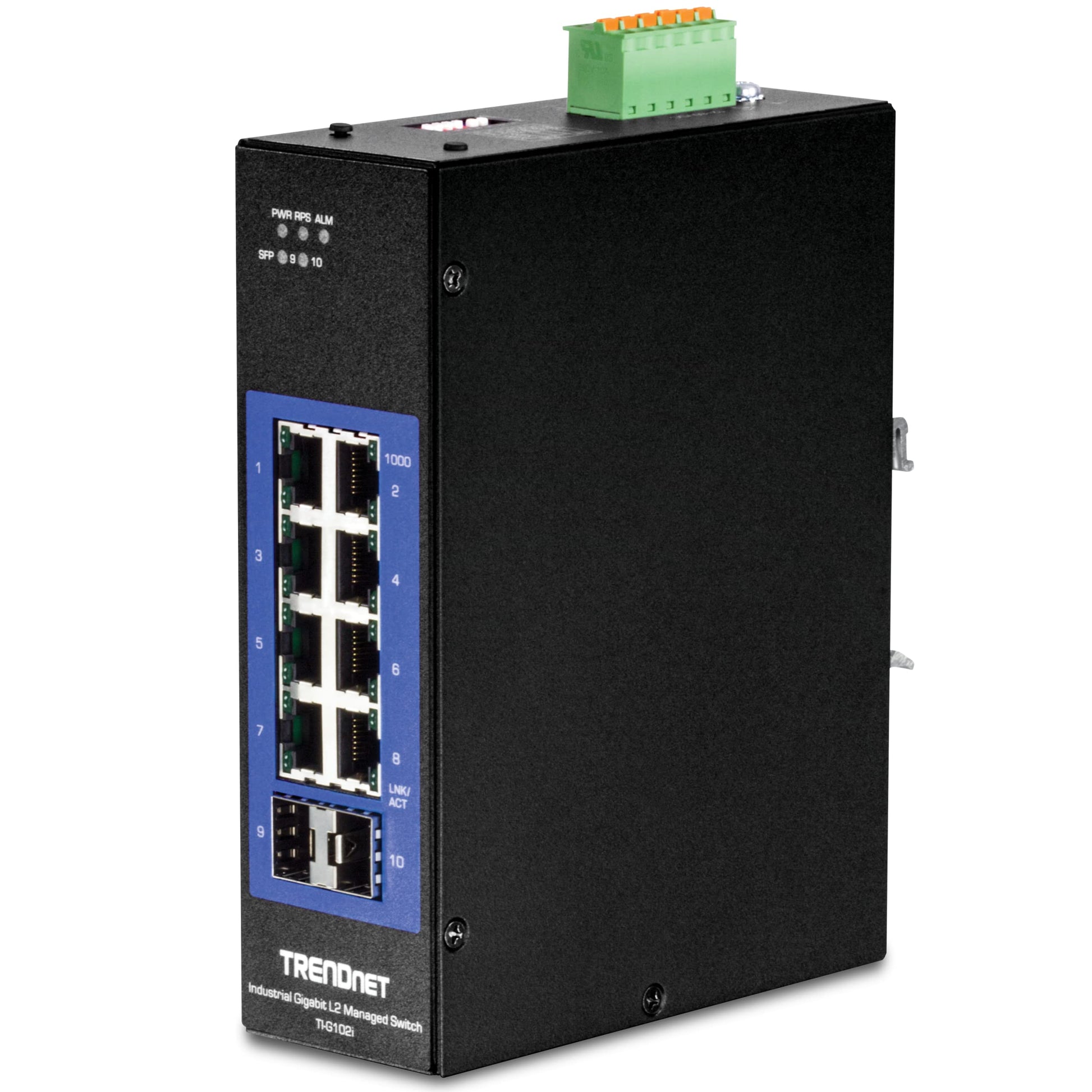

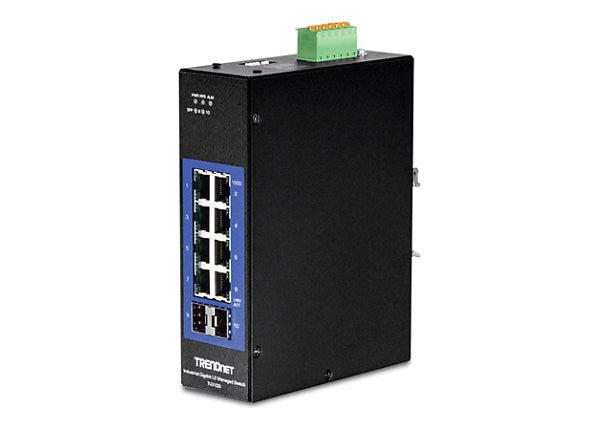

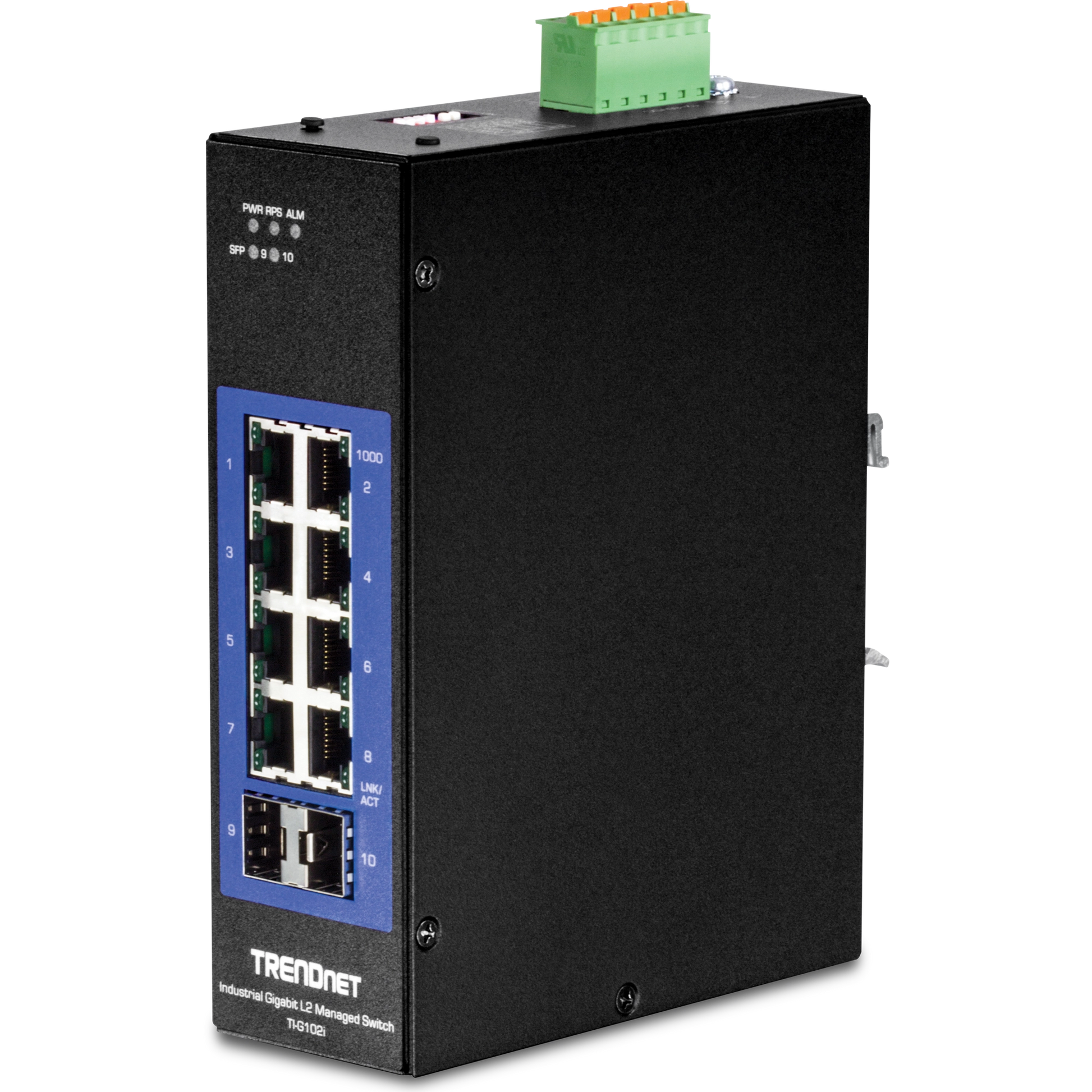

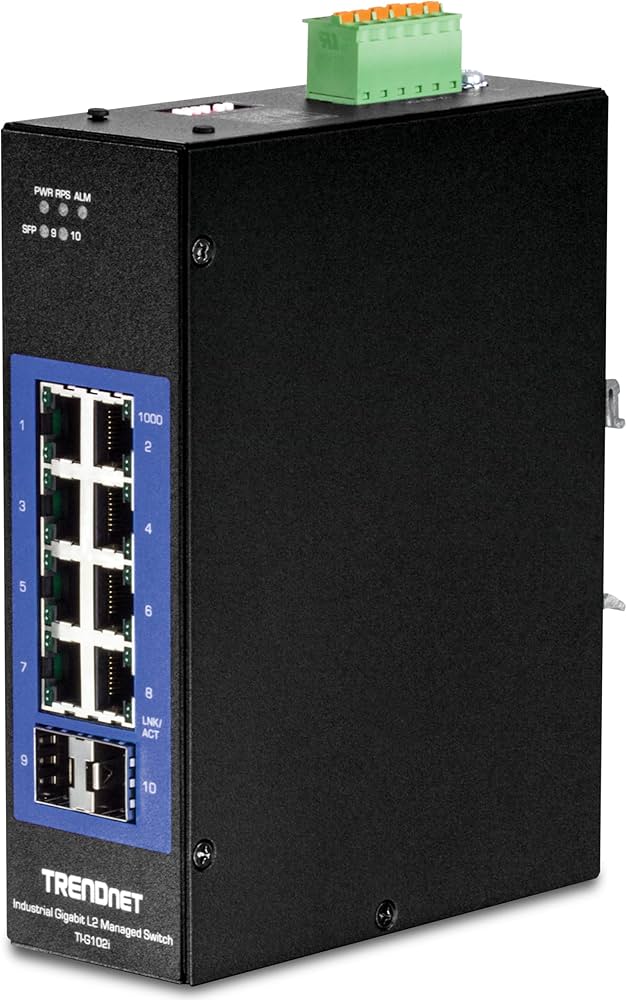

TRENDnet TI-G102I 10-Port Industrial Gigabit L2 DIN-Rail Switch

VENDOR: TRENDNET Mfg Part#: TI-G102I UPC#: 710931161557
1 5
Photo is for illustration purposes only. Actual product may be different.
$572.00
$572.00
Sale Sold out
MSRP: $588.00
Shipping calculated at checkout.
  • 10 ports: 8 Gigabit Ethernet + 2 x 100/1000Mbps SFP slots
  • 20 Gbps switching capacity with jumbo frame support up to 10KB
  • L2 management with SNMP, RMON, Telnet, SSH, HTTP, and Syslog
  • Wide temperature operation: -40°C to 75°C
  • DIN-rail mountable and supports 12–60V DC input power
  • Advanced security via RADIUS and 802.1X authentication

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Engineered for harsh environments with wide temperature range and industrial-grade build
  • Advanced Layer 2 management and remote control protocols enhance network efficiency
  • Lifetime warranty and high MTBF ensure operational longevity and low total cost of ownership

Product Overview

TRENDNET TI-G102I - 10-Port Industrial Gigabit L2 Managed DIN-Rail Switch - Wired - 2Gbps - Networking / Ports Qty: 10 - Gigabit Ethernet - 12 60V DC - MAC address table: 8K entries, Jumbo frames: 10KB - 8 x Gigabit ports, 2 x 100/1000Mbps SFP slots - Lifetime Warranty

Specifications

Product Overview
Manufacturer TRENDnet
Model TI-G102I
Product Type Industrial Layer 2 Managed Ethernet Switch
Form Factor DIN-Rail Mountable
Connectivity Technology Wired
Total Switching Capacity 20 Gbps
MAC Address Table Size 8K entries
Jumbo Frame Support 10 KB
Power Requirements 12–60V DC
Maximum Power Consumption 13 Watts
MTBF (25°C) 617,085 hours
MTBF (75°C) 113,378 hours
Weight 1.95 lbs.

Cloud Management & Licensing
Remote Management Protocols SNMP, RMON, SSH, Telnet, HTTP, Syslog
Authentication Methods RADIUS, 802.1X

Physical & Environmental
Width 6.3 in
Depth 4.72 in
Height 1.97 in
Enclosure Type Metal
Cooling Type Passive (Fanless)
Installation DIN-Rail or Wall Mount
Operating Temperature Range -40°C to 75°C
Storage Temperature -40°C to 85°C
Operating Humidity 5% – 95% (non-condensing)
Ingress Protection Rating IP30

Interfaces
Total Ports 10
RJ45 Gigabit Ethernet Ports 8
SFP Slots 2 x 100/1000 Mbps
Connector Type RJ-45, SFP
Data Link Protocol Gigabit Ethernet
Data Transfer Rate 2 Gbps
Supported Standards IEEE 802.1D, 802.1Q, 802.1p, 802.3, 802.3ab, 802.3x, 802.3az, 802.3u, 802.3z

Advanced Security Features
Port Security Yes
Access Control Lists (ACL) Yes
IEEE 802.1X Authentication Yes
RADIUS Authentication Yes
IP/MAC Binding Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, EN 61000-6-2, EN 61000-6-4, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32
RoHS Compliance Yes
Warranty Lifetime Warranty
