TRENDnet TI-G160I 16-Port Industrial Gigabit L2 Managed Switch

VENDOR: TRENDNET Mfg Part#: TI-G160I UPC#: 710931161694
1 5

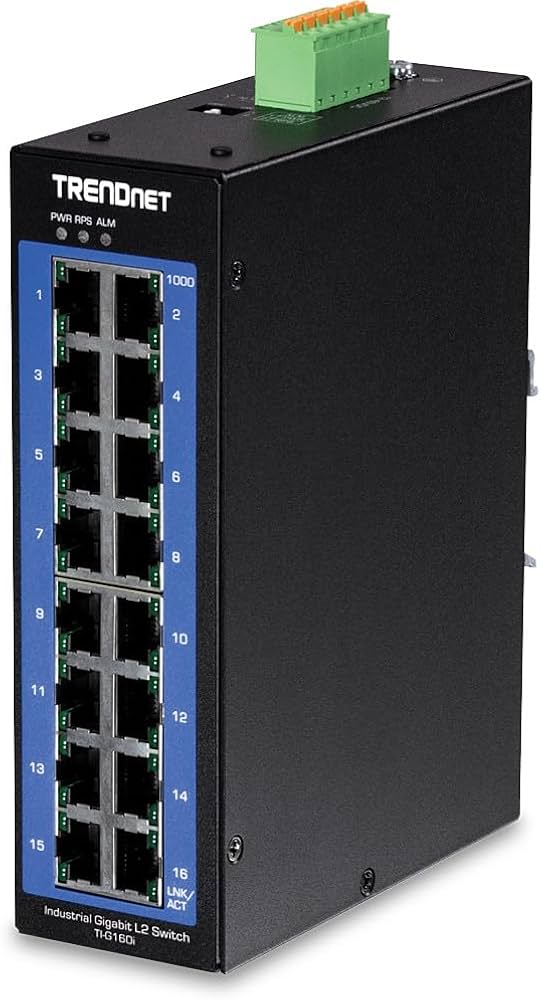

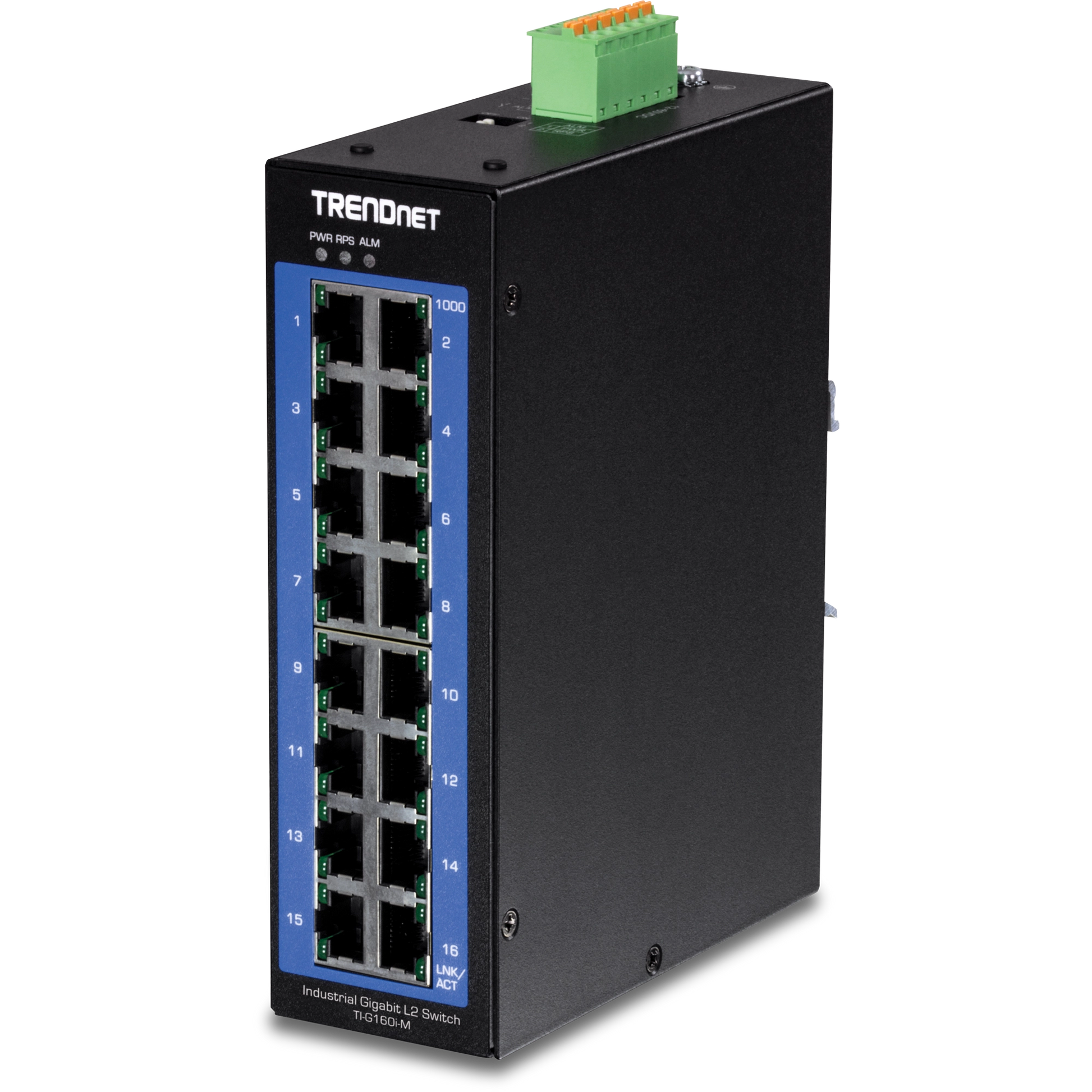

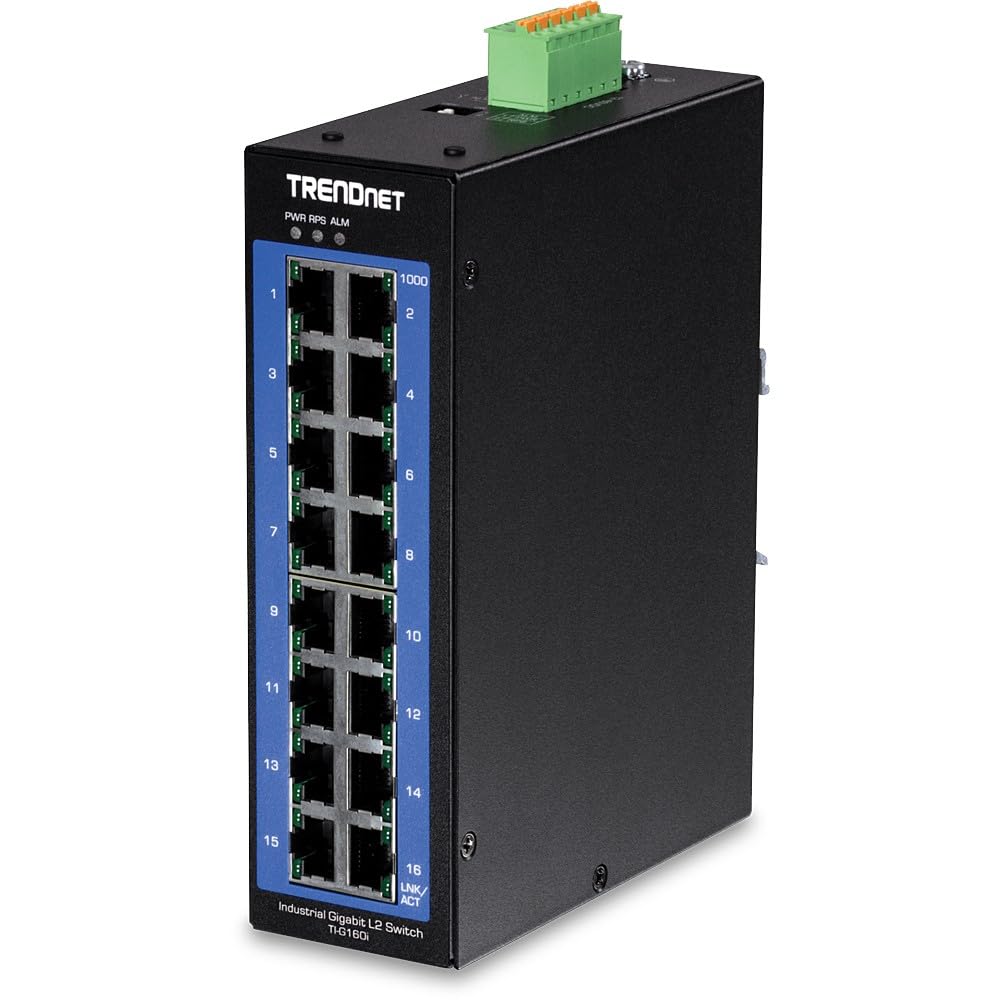

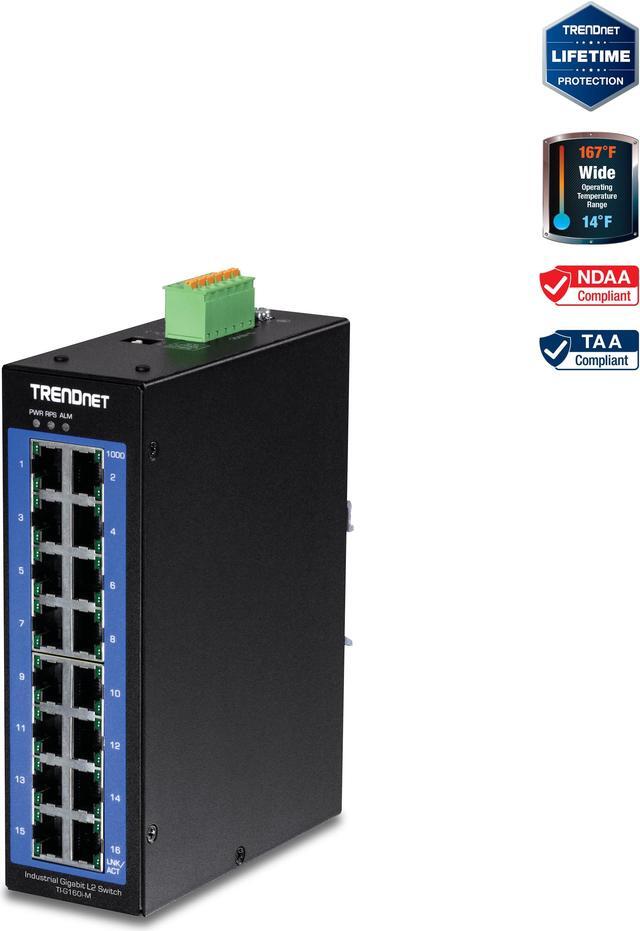

Photo is for illustration purposes only. Actual product may be different.
$715.00
$715.00
Sale Sold out
MSRP: $729.00
Shipping calculated at checkout.
  • 16 Gigabit Ethernet ports with 1Gbps data transfer rate
  • Switching capacity of 32Gbps for high-throughput environments
  • Supports 10KB jumbo frames to optimize large data transfers
  • Advanced management protocols: SNMP, RMON, HTTP, Syslog, and DHCP
  • IEEE 802.1d compliance with MAC address table capacity of 8K entries
  • Industrial-grade operating temperature: -40°C to 75°C with LED status indicators

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Engineered for industrial reliability with wide temperature tolerance and MTBF of over 1 million hours
  • Delivers comprehensive Layer 2 management and network monitoring capabilities via multiple remote access protocols
  • Includes lifetime warranty and is TAA compliant, ensuring long-term use and government project eligibility

Product Overview

TRENDNET TI-G160I - 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch - Wired - 1Gbps - Gigabit Ethernet - Switch fabric: 32Gbps - MAC address table: 8K entries - Jumbo frames: 10KB - Lifetime Warranty

Specifications

Product Overview
Manufacturer TRENDnet
Model TI-G160I
Product Type Industrial Gigabit L2 Managed Switch
Connectivity Technology Wired
Form Factor DIN-Rail Mountable
Switching Capacity 32 Gbps
Weight 1.95 lbs.
Power Input Dual 12 – 48V DC power inputs
Redundant Power Support Yes
Power Consumption (Max) 7.08W
MTBF 1072674 hours @ 25°C

Cloud Management & Licensing
Management Interface Web (HTTP/HTTPS), SNMP, RMON, CLI via Telnet/SSH
Remote Management Protocols SNMP, RMON, HTTP, Syslog, DHCP
Authentication Method 802.1X, RADIUS

Physical & Environmental
Width 6.3 inches
Depth 4.72 inches
Height 1.97 inches
Operating Temperature Range -40°C to 75°C
Storage Temperature -40°C to 85°C
Operating Humidity 5% to 95% (non-condensing)
Enclosure Type IP30-rated metal housing
Shock Resistance EN 60068-2-27
Vibration Resistance EN 60068-2-6

Interfaces
Total Port Count 16
Ethernet Ports 16 x 10/100/1000 Mbps Gigabit Ethernet
Port Type RJ-45
Data Transfer Rate 1 Gbps per port
MAC Address Table Size 8K entries
Jumbo Frame Support Up to 10KB
Switch Fabric Bandwidth 32 Gbps
PoE Support No

Advanced Security Features
Access Control IEEE 802.1X Port-Based Network Access Control
Storm Control Broadcast, multicast, and unknown unicast
VLAN Support IEEE 802.1Q Tagged VLANs
MAC Address Filtering Yes
Loop Protection Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, IEC 61000-6-2, IEC 61000-6-4
RoHS Compliant Yes
