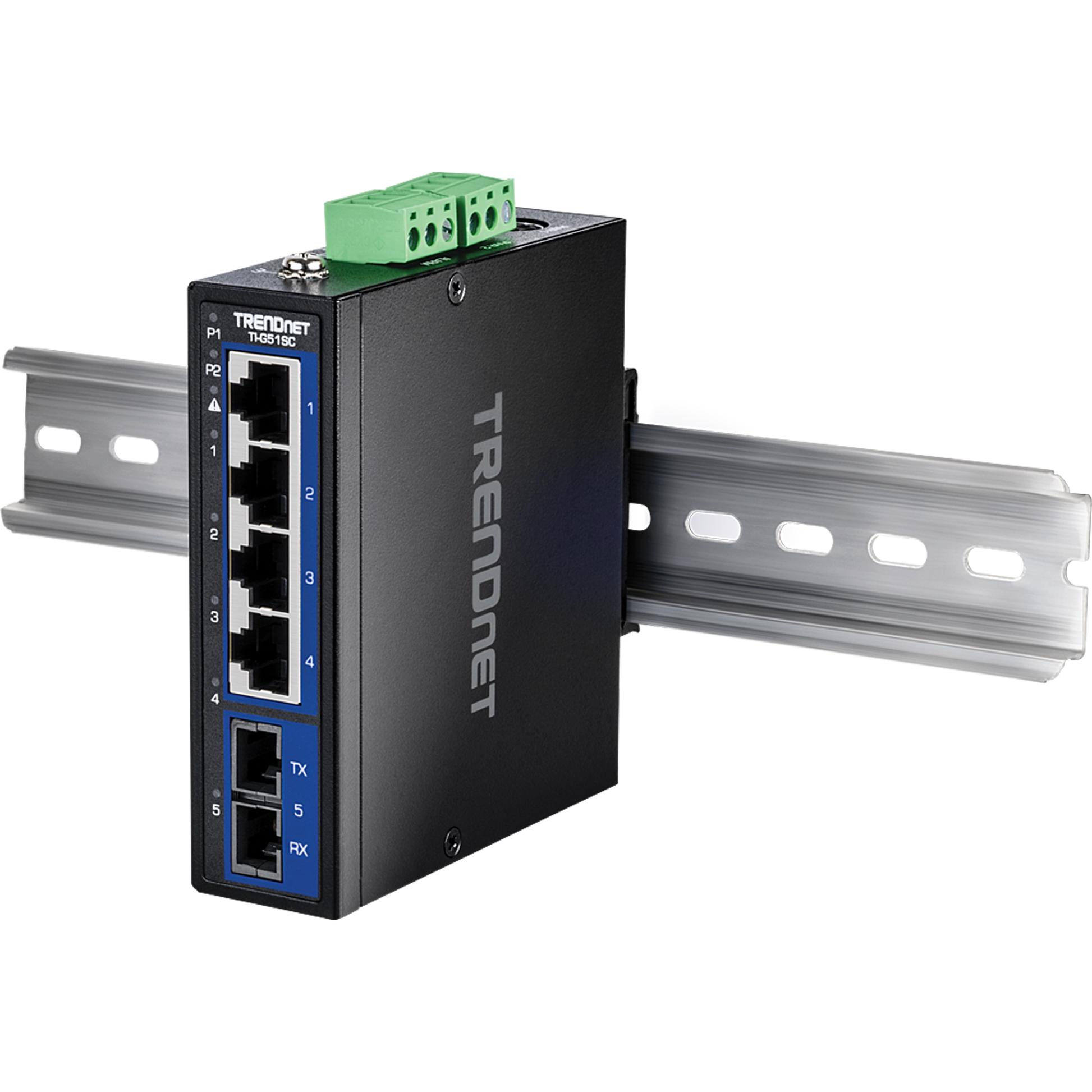

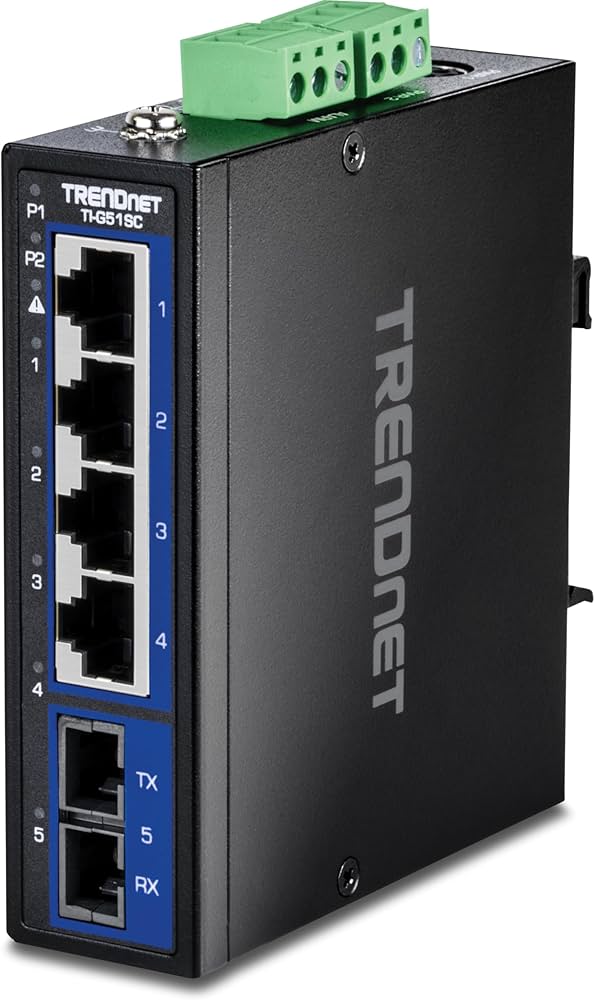

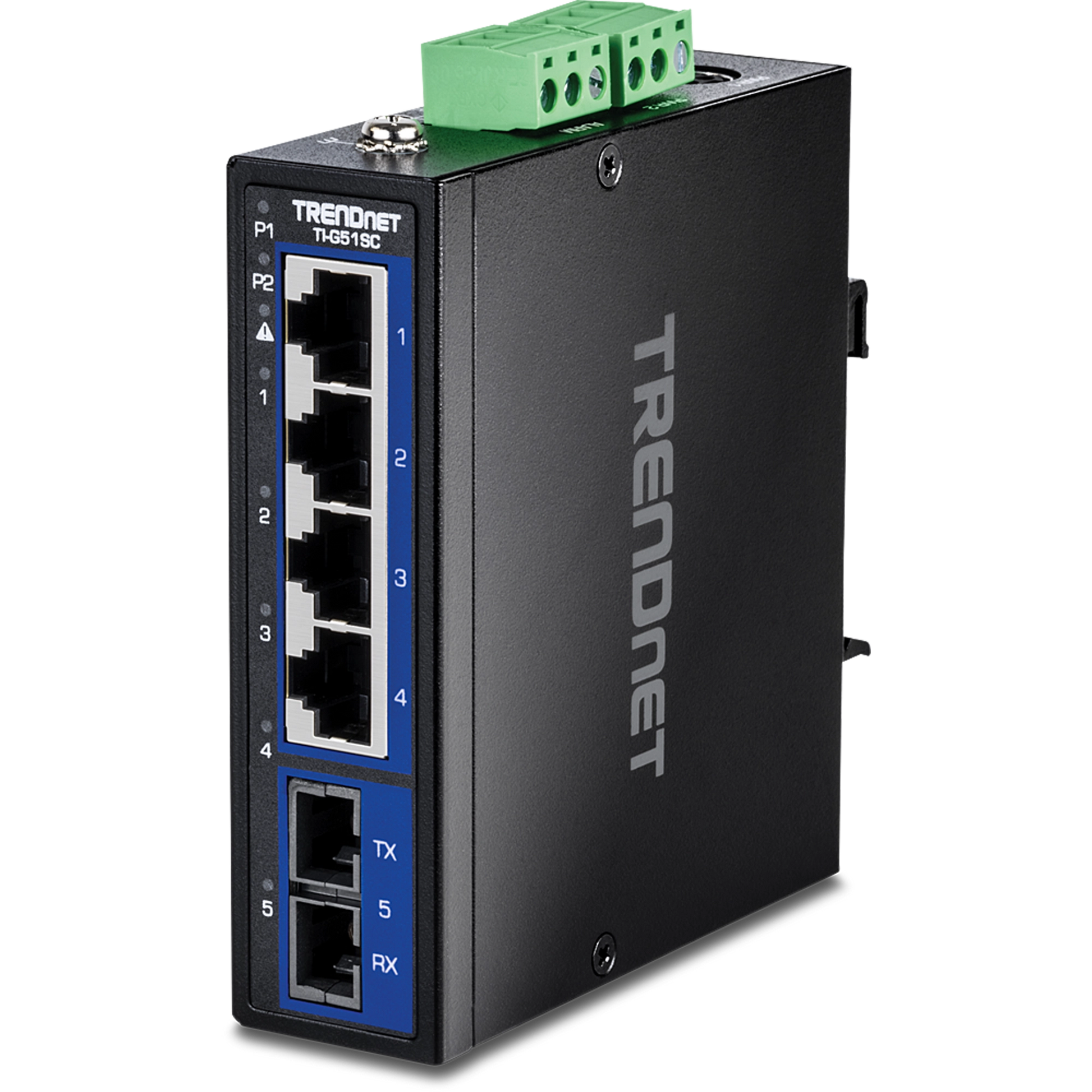

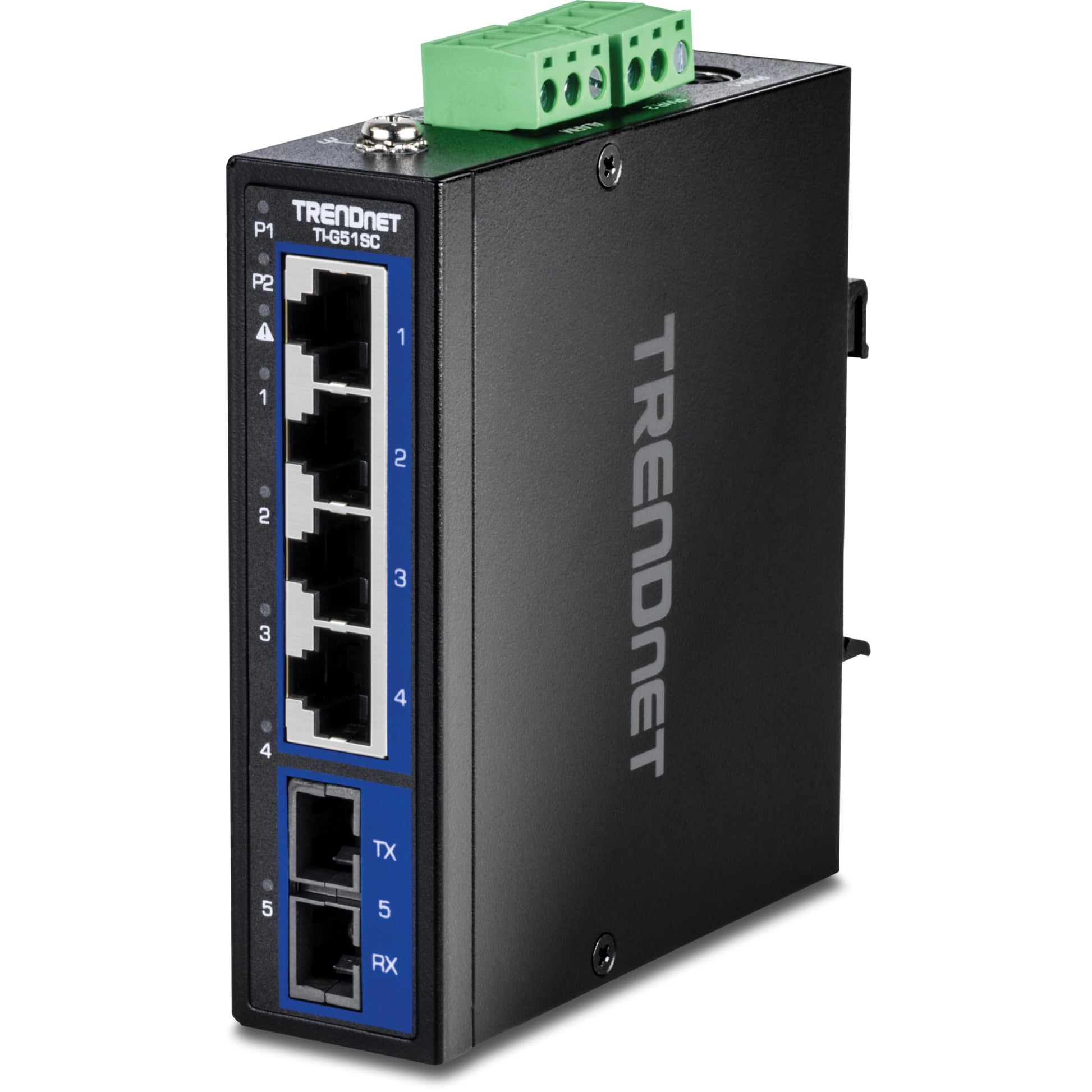

TRENDnet TI-G51SC 5-Port Industrial Gigabit DIN-Rail Switch with SC Port

VENDOR: TRENDNET Mfg Part#: TI-G51SC UPC#: 710931162844
1 5
Photo is for illustration purposes only. Actual product may be different.
$160.00
$160.00
Sale Sold out
MSRP: $164.00
Shipping calculated at checkout.
  • 4 x Gigabit Ethernet ports plus 1 Multi-Mode SC Fiber port
  • Data transfer rate of up to 2 Gbps
  • Supports jumbo frames up to 9KB
  • Alarm output triggered by power failure
  • Wide input power range: 9 - 60V DC
  • Operating temperature range: -40°C to 75°C

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Engineered for harsh environments with an industrial-grade temperature rating from -40°C to 75°C
  • Includes power failure alarm output and redundancy features to ensure consistent reliability in critical networks
  • Backed by a lifetime warranty and TAA compliance for long-term government and industrial deployment

Product Overview

5-Port Hardened Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port

Specifications

Product Overview
Product Type Industrial Ethernet Switch
Model TI-G51SC
Form Factor DIN-Rail or Wall-Mountable
Mount Type DIN-Rail (metal clip included), Wall Mount
Weight 0.64 lbs.
MTBF 71,955 hours
Power Requirements 9 – 60V DC, redundant power inputs
Maximum Power Consumption 3.6 Watts
Included Accessories DIN-Rail mount kit, Quick Installation Guide
Alarm Output Dry contact relay output triggered by power failure

Physical & Environmental
Width 3.89 inches (99 mm)
Depth 3.54 inches (90 mm)
Height 1.10 inches (28 mm)
Operating Temperature Range -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% RH (non-condensing)
Enclosure IP30-rated metal housing
Vibration Resistance IEC 60068-2-6
Shock Resistance IEC 60068-2-27
Freefall Resistance IEC 60068-2-32

Cloud Management & Licensing
Managed Unmanaged

Interfaces
Total Ports 5
Gigabit Ethernet Ports 4 x 10/100/1000 Mbps RJ-45
Fiber Port 1 x 100/1000Base-FX SC-type Multi-Mode
Jumbo Frame Support Up to 9216 bytes
Switching Capacity 10 Gbps
Forwarding Rate 7.44 Mpps (64-byte packet size)
MAC Address Table Size 2,000 entries
Backup Power Inputs Yes, dual input
Auto-MDIX Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, EN 60950-1, IEC 60068-2-6/-27/-32
RoHS Compliant Yes

Advanced Security Features
Surge Protection 6 kV for Ethernet ports
ESD Protection Contact 6 kV; Air 8 kV
