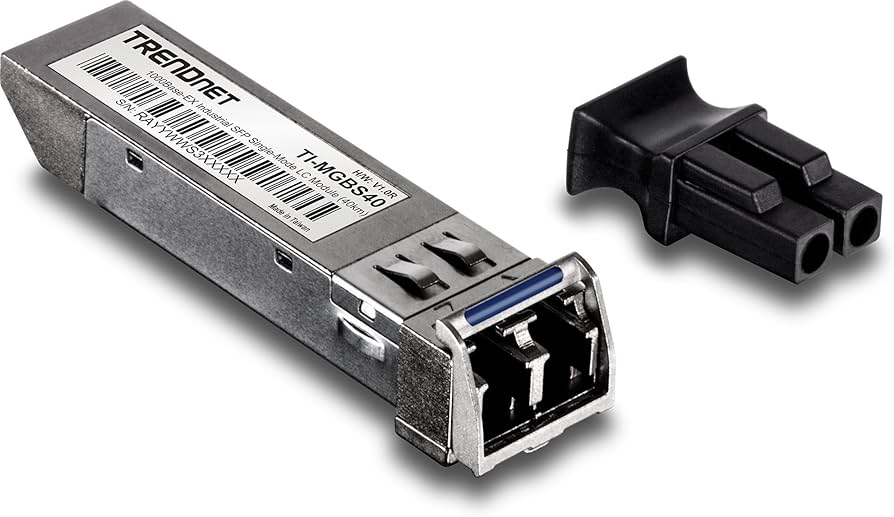

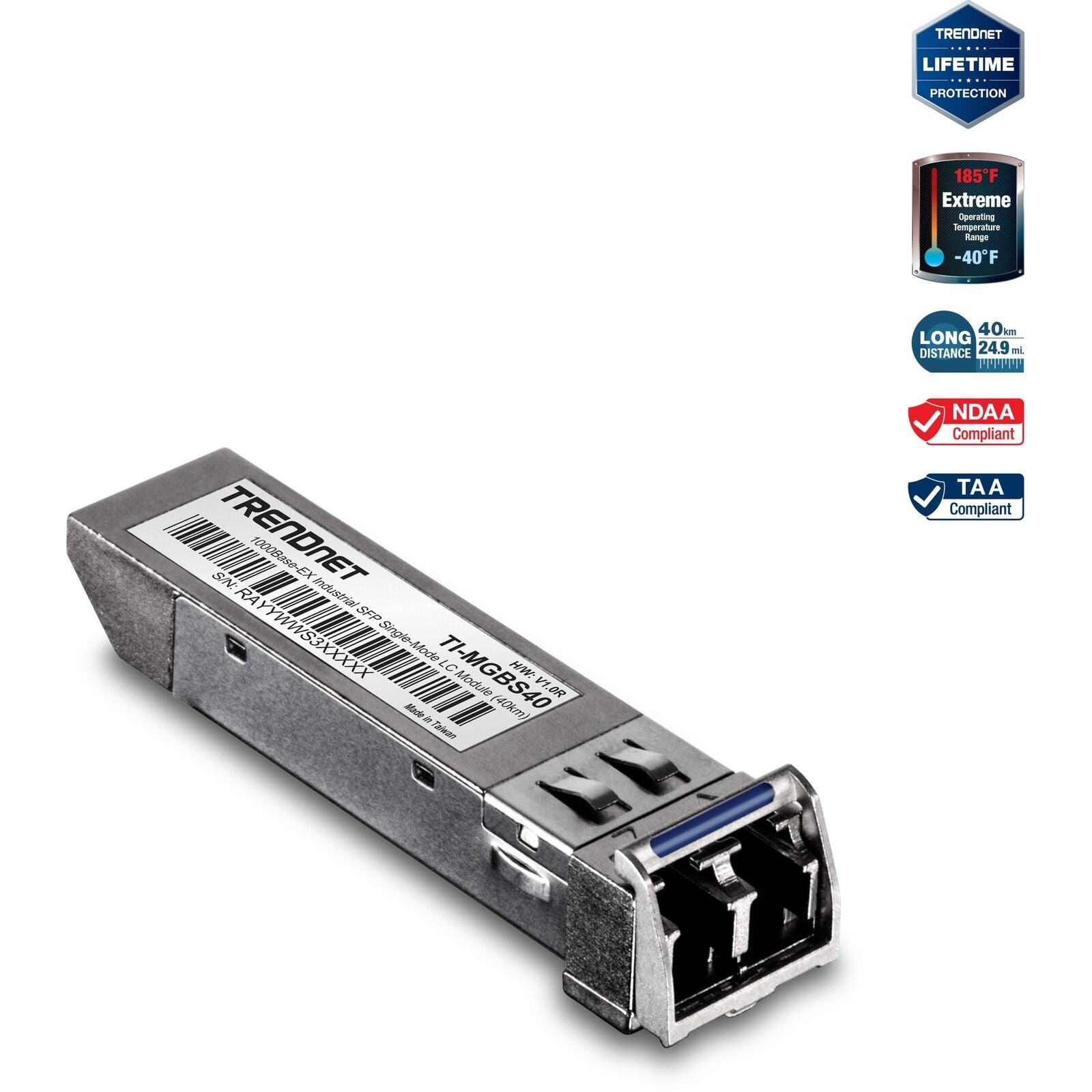

TRENDnet TI-MGBS40 Hardened SFP Single-Mode LC Module 40KM

VENDOR: TRENDNET Mfg Part#: TI-MGBS40 UPC#: 710931161069
1 4
Photo is for illustration purposes only. Actual product may be different.
$174.00
$174.00
Sale Sold out
MSRP: $176.00
Shipping calculated at checkout.
  • - Hardened SFP transceiver module suitable for industrial applications
  • - Single-mode LC optical interface supporting up to 40KM (24.84 miles)
  • - Compact Mini-GBIC (SFP) form factor for flexible deployment
  • - TAA compliant for government/Federal installations
  • - Manufactured in Taiwan
  • - Designed for high-reliability fiber optic communication

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports long-distance single-mode fiber transmission up to 40KM, reducing the need for repeaters or signal boosters.
  • Hardened SFP form factor enables deployment in harsh industrial conditions, minimizing failure rates and service calls.
  • TAA compliance and Taiwanese origin make it ideal for secure, government-regulated, or federally funded network projects.

Product Overview

The TRENDnet TI-MGBS40 is a hardened Mini-GBIC (SFP) transceiver designed for rugged industrial environments requiring long-range single-mode fiber connectivity. With a transmission distance of up to 40 kilometers (24.84 miles) using an LC connector, this module offers robust data communication across extended links. Its compact SFP form factor ensures easy integration with existing network infrastructure. Compliant with TAA standards and manufactured in Taiwan, it delivers the reliability and compliance necessary for both commercial and government networks.

Specifications

Product Overview
Product Type Hardened SFP Transceiver Module
Form Factor SFP
Module Type Mini-GBIC
Fiber Type Single-Mode
Wavelength 1310 nm
Max Transfer Distance 40 km (24.84 miles)
Power Budget 11 dB
Power Supply 3.3V
Housing Metal
Power Consumption < 1.0W
MTBF 200,000 hours

Physical & Environmental
Dimensions (W x D x H) 57 x 13.7 x 8.5 mm (2.24 x 0.54 x 0.33 in.)
Weight 20 g (0.7 oz)
Operating Temperature -40 to 85 °C (-40 to 185 °F)
Storage Temperature -40 to 85 °C (-40 to 185 °F)
Operating Humidity Max. 95% (non-condensing)
Storage Humidity Max. 95% (non-condensing)
Enclosure Type Hardened Industrial Metal
Hot-Swappable Yes

Cloud Management & Licensing
Cloud Management
License Requirements None
Plug-and-Play Yes

Interfaces
Interface SFP (LC connector)
Connector Type LC Duplex
Data Transfer Rate 1.25 Gbps
Compatible Devices MSA Compliant Networking Equipment
DMI Support (Digital Monitoring Interface) Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC

Advanced Security Features
Secure Data Transmission Fiber Medium—Immune to EMI and Interception
