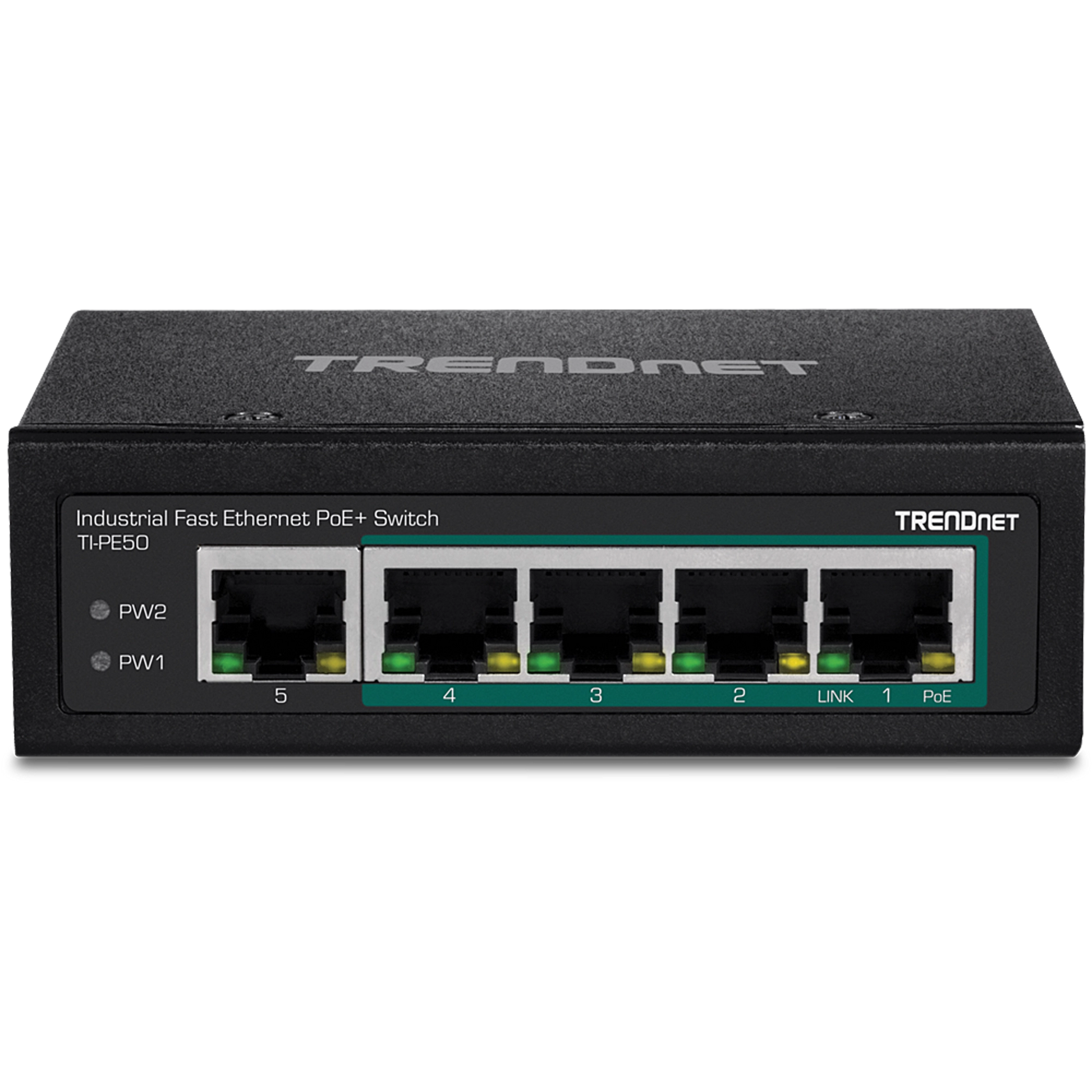

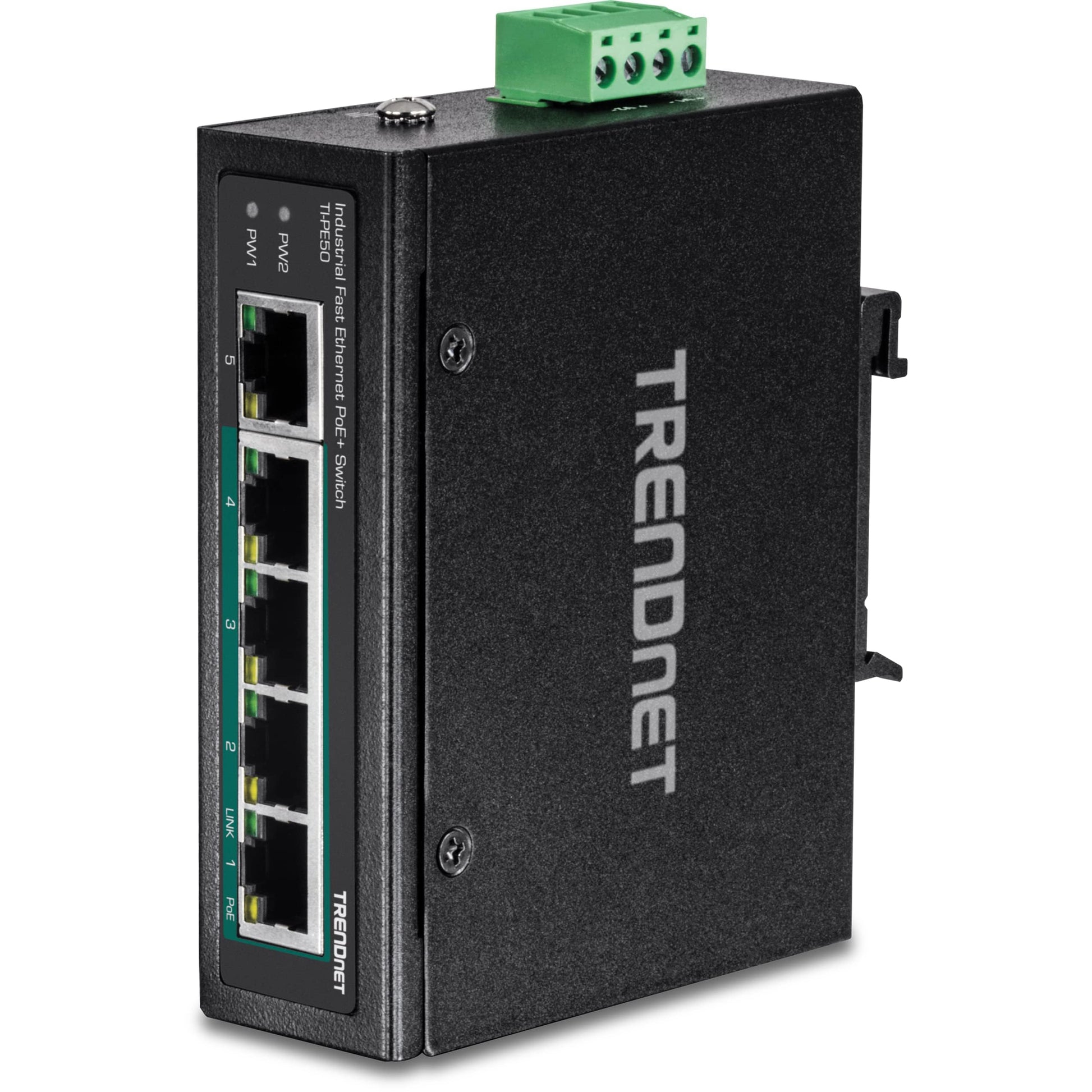

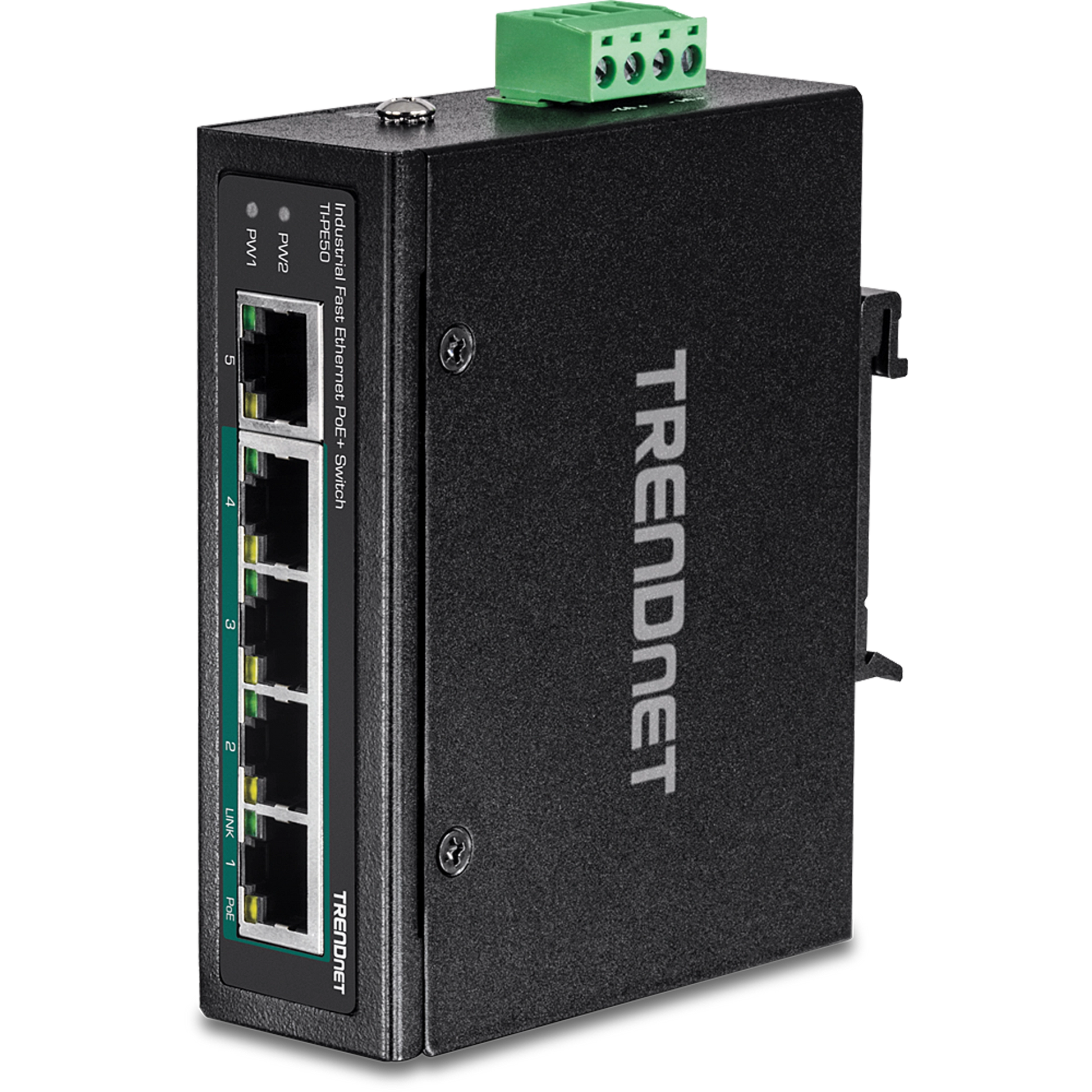

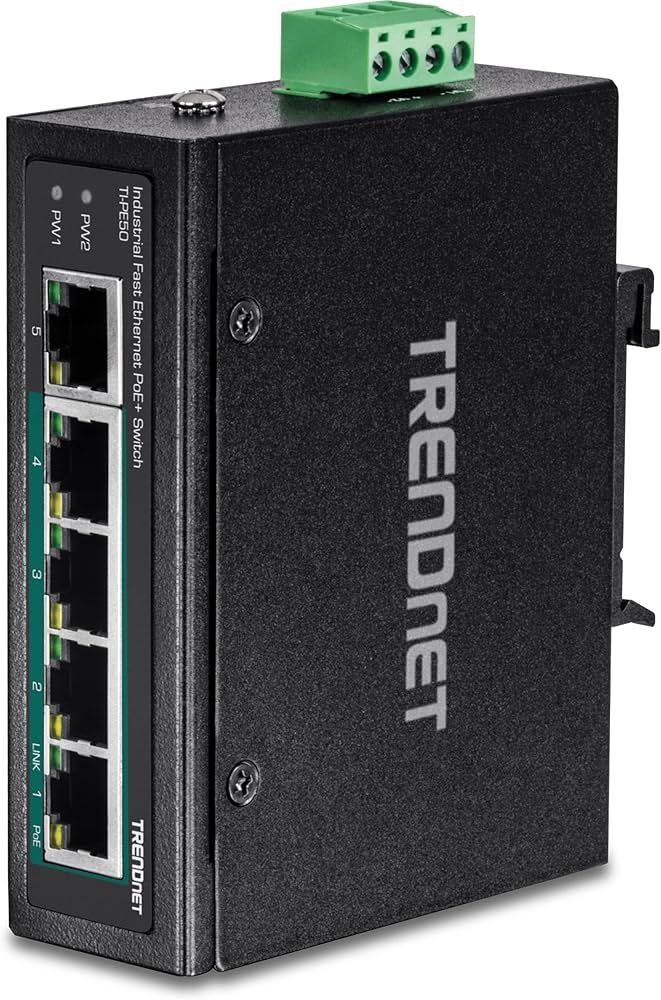

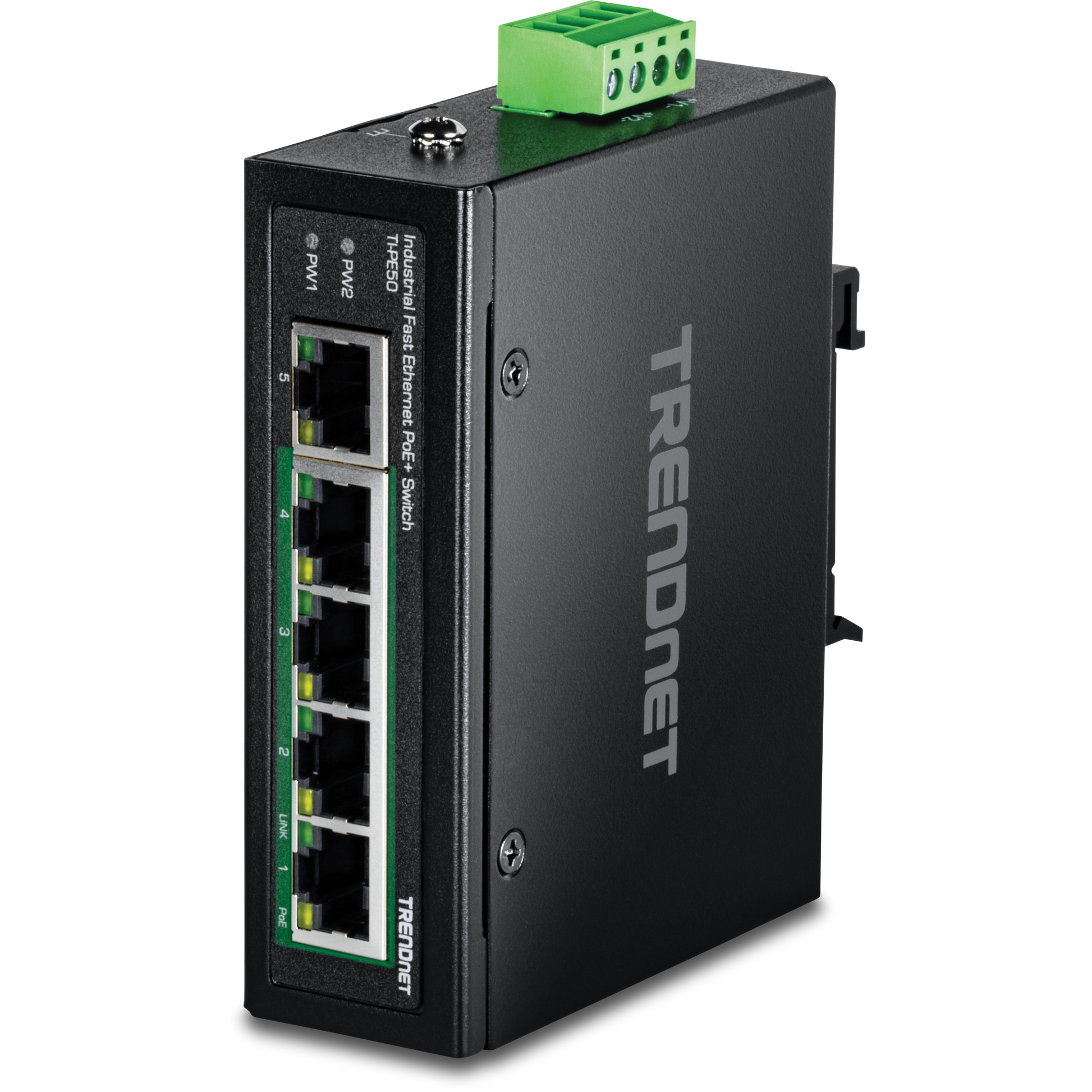

TRENDnet TI-PE50 5-Port Industrial Fast Ethernet PoE+ Switch

VENDOR: TRENDNET Mfg Part#: TI-PE50 UPC#: 710931161601
1 5
Photo is for illustration purposes only. Actual product may be different.
$135.00
$135.00
Sale Sold out
MSRP: $142.00
Shipping calculated at checkout.
  • 5-port Fast Ethernet switch with PoE+ support
  • Data transfer rate of 200 Mbps
  • Low power consumption of 2.24 Watts
  • Operates on 48–56 V DC power input
  • DIN-rail mountable, compact industrial design
  • Lifetime warranty and TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Provides power and data over Ethernet, simplifying installation in industrial environments.
  • Backed by a lifetime warranty, ensuring long-term investment protection.
  • Complies with TAA regulations, making it suitable for government and institutional use.

Product Overview

5-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch

Specifications

Product Overview
Product Type Unmanaged Industrial Fast Ethernet PoE+ Switch
Form Factor DIN-Rail Mountable
Power Consumption (Max) 2.24 Watts
Power Input 48 – 56 V DC
Weight 230 g (8.1 oz.)
Housing IP30 rated metal enclosure

Physical & Environmental
Width 101.6 mm (4.0 in.)
Depth 82.55 mm (3.25 in.)
Height 30.48 mm (1.2 in.)
Operating Temperature -40 to 75 °C (-40 to 167 °F)
Storage Temperature -40 to 85 °C (-40 to 185 °F)
Operating Humidity 5% – 95% (non-condensing)
MTBF 623,385 hours
Vibration EN 60068-2-6
Shock EN 60068-2-27
Freefall EN 60068-2-32

Cloud Management & Licensing
Cloud Management Not Supported
Management Interface Unmanaged – no configuration required
License Requirement None

Interfaces
Total Number of Ports 5
10/100 Mbps PoE+ Ports 4
10/100 Mbps Uplink Port 1
PoE Standard IEEE 802.3at/802.3af
PoE Budget 60 Watts
Data Transfer Rate 200 Mbps (Full Duplex)
Forwarding Mode Store-and-forward
Switching Capacity 1 Gbps
MAC Address Table Size 1K entries
Jumbo Frame Support Up to 2 KB
Backplane Bandwidth 1 Gbps

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, EN 61000-6-2, EN 61000-6-4, UL 61010-1
RoHS Compliant Yes

Advanced Security Features
Security Features Port isolation through physical segmentation only
