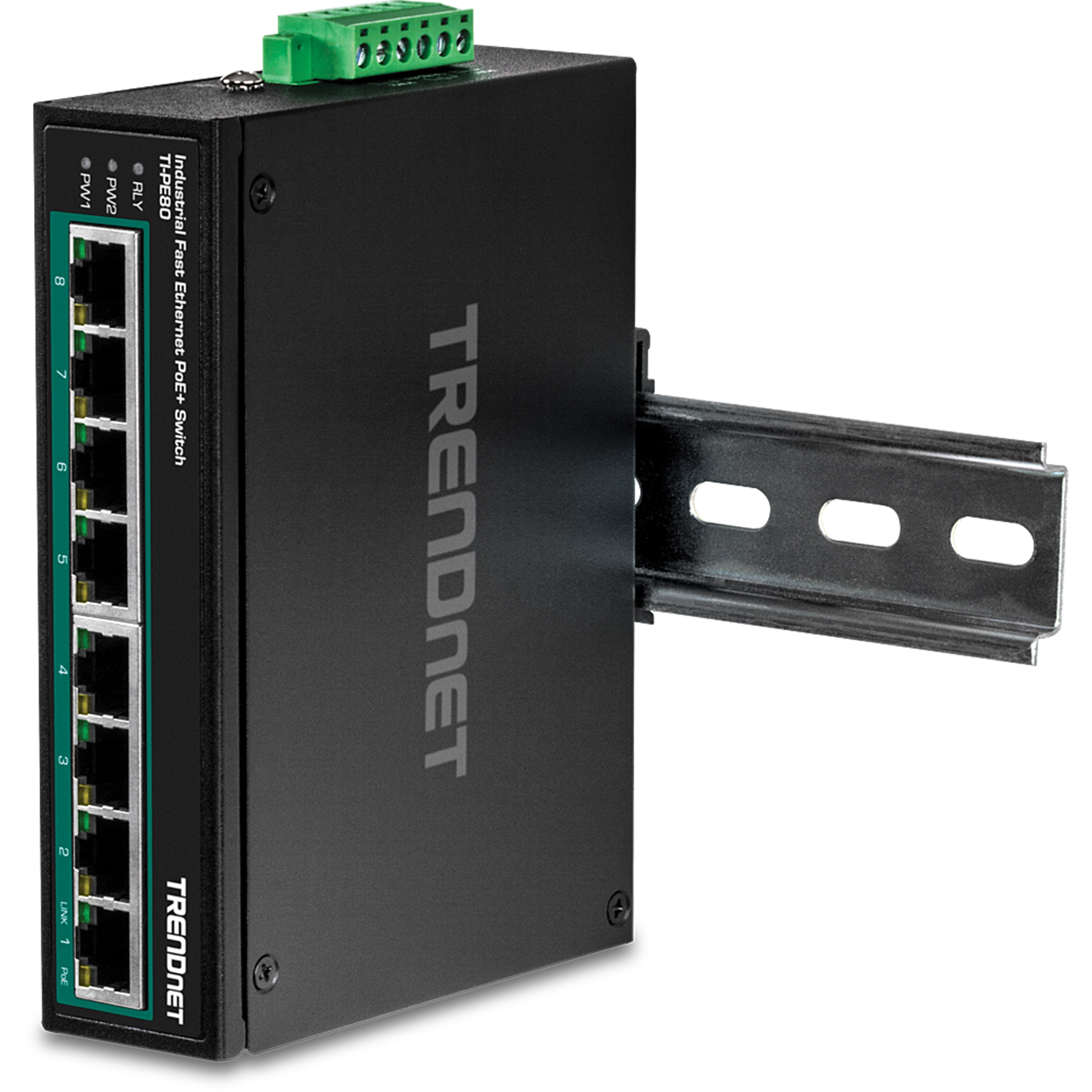

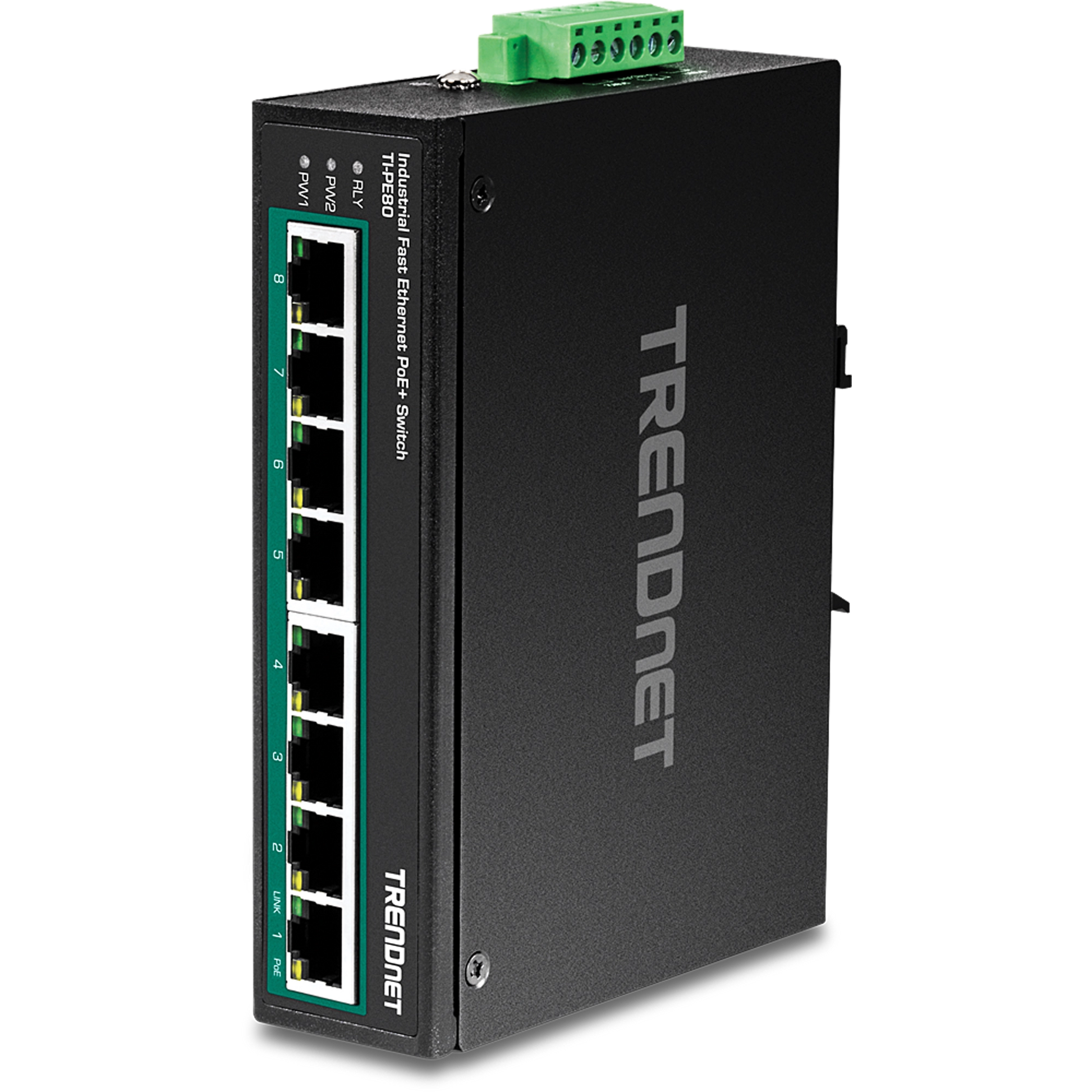

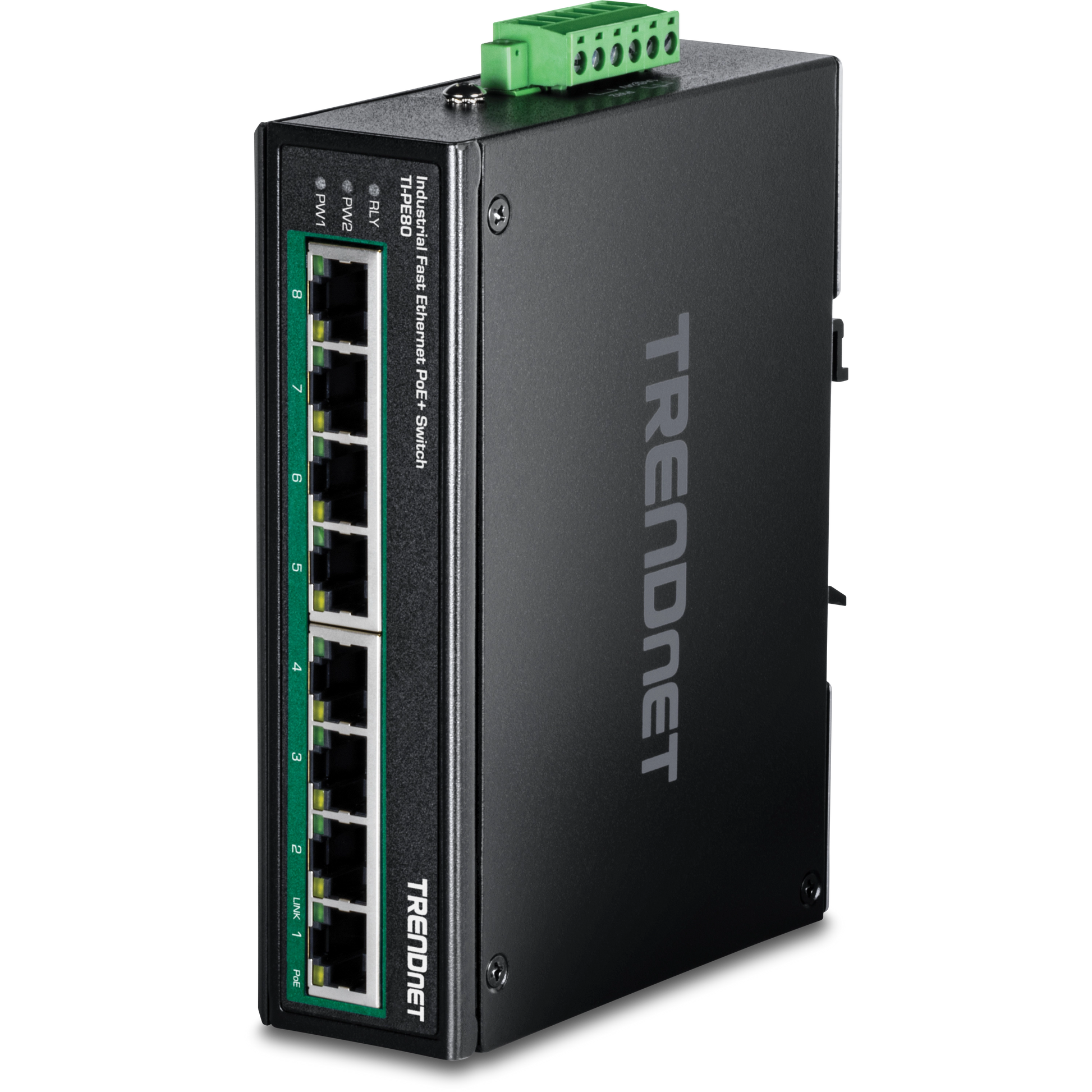

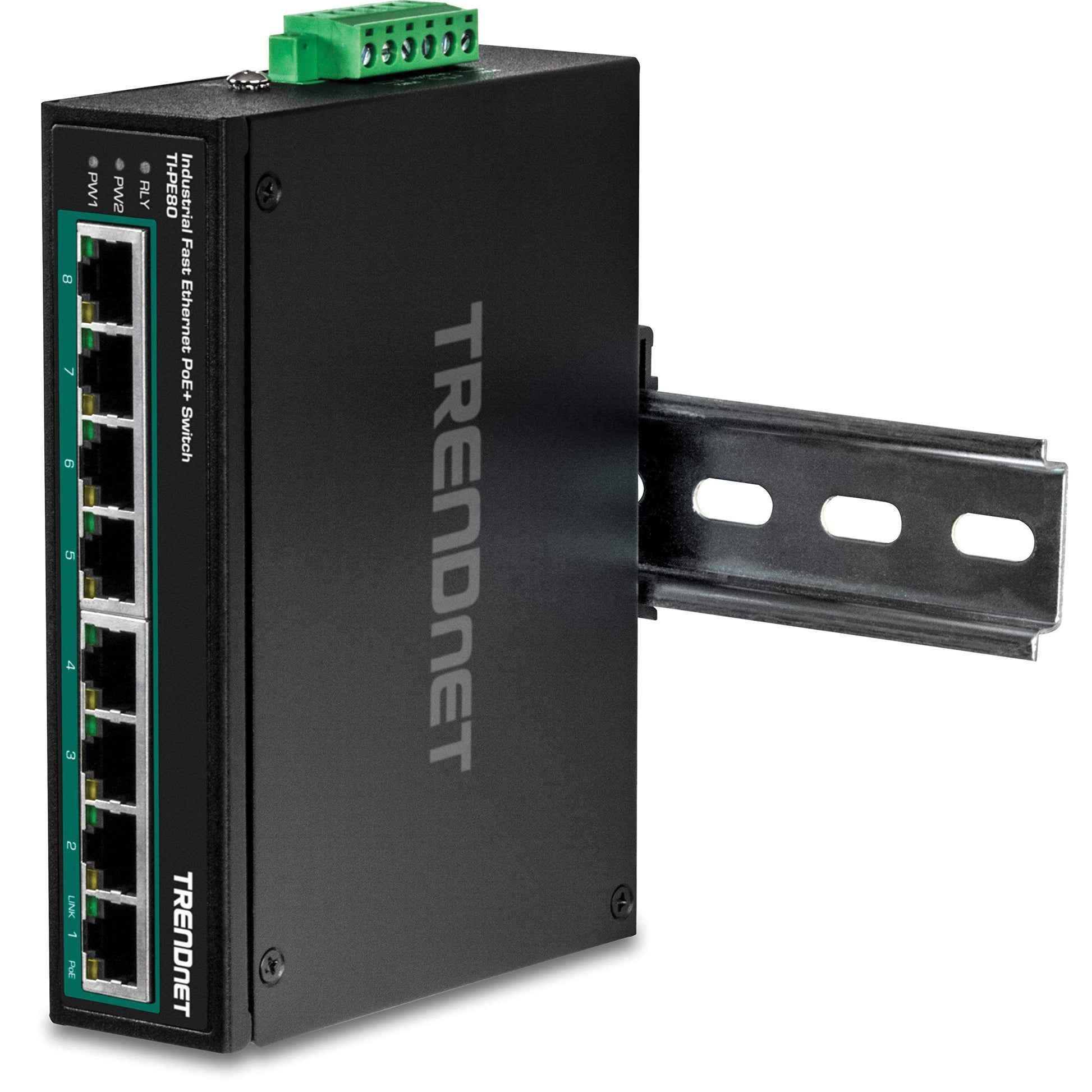

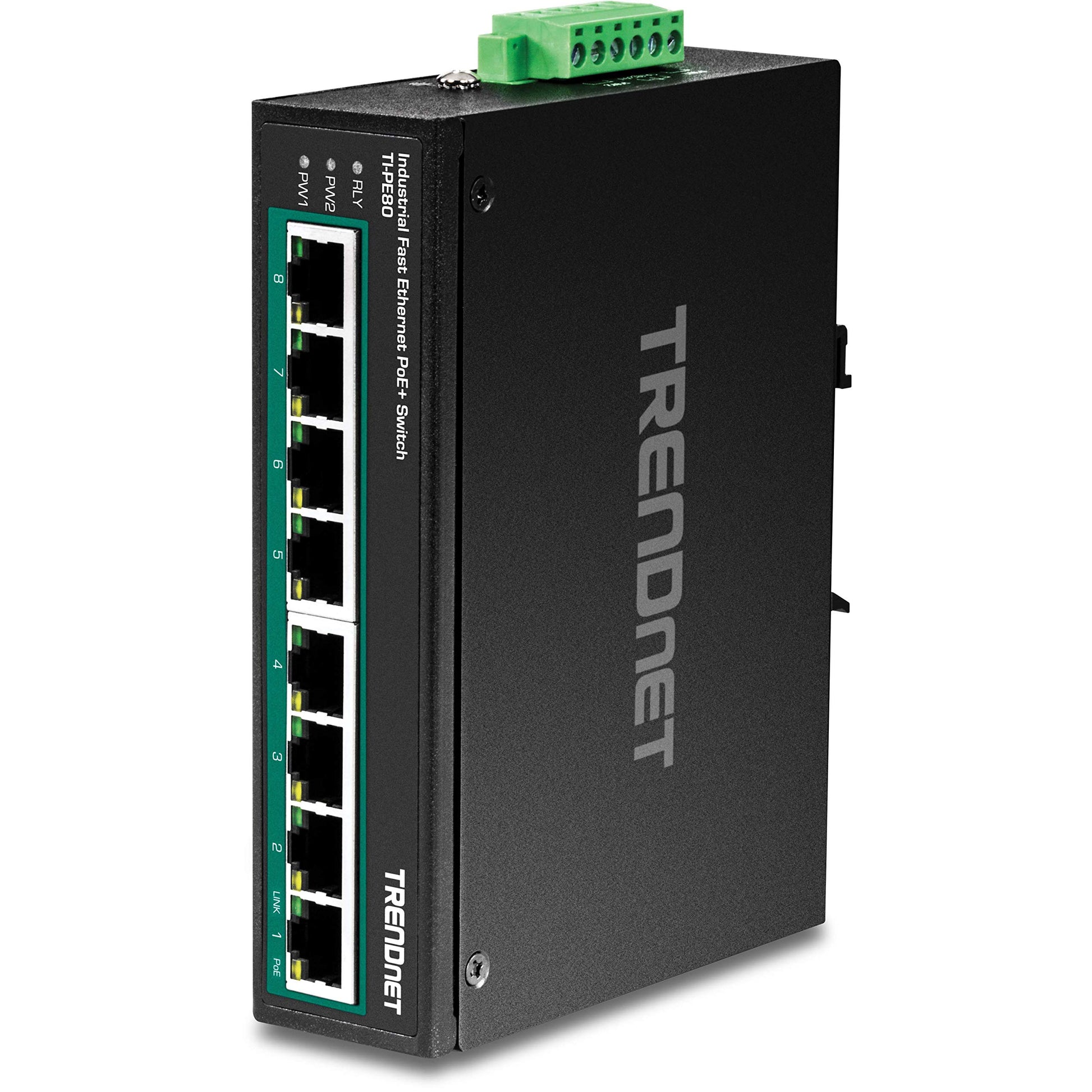

TRENDnet TI-PE80 8-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch

VENDOR: TRENDNET Mfg Part#: TI-PE80 UPC#: 710931161779
1 5
Photo is for illustration purposes only. Actual product may be different.
$207.00
$207.00
Sale Sold out
MSRP: $213.00
Shipping calculated at checkout.
  • 8 Fast Ethernet PoE+ ports with 200W total power budget
  • Supports wired 100 Mbps data transfer rate
  • 1.6 Gbps switching capacity for efficient data handling
  • Operating temperature range from -40°C to 75°C
  • LED status indicators for real-time diagnostics
  • Compact DIN-rail mount design with TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Designed for industrial and outdoor environments with wide -40°C to 75°C temperature tolerance
  • High PoE power budget (200W) supports multiple power-intensive PoE devices seamlessly
  • MTBF of 510,304 hours and a lifetime warranty ensure long-term reliability and reduced downtime

Product Overview

TRENDNET TI-PE80 - 8-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch - Wired - 100Mbps - MAC Address Table: 1K entries - MTBF 510304 hours - PoE budget: 200W - Lifetime Warranty

Specifications

Product Overview
Product Type Industrial Fast Ethernet PoE+ Switch
Model TI-PE80
Form Factor DIN-Rail Mountable
Switching Capacity 1.6 Gbps
Power Over Ethernet (PoE) Support Yes
PoE Budget 200 W
Total Ports 8
MAC Address Table Size 1K entries
Power Consumption (Max) 200 W
Warranty Lifetime Warranty
Connectivity Technology Wired
MTBF 510304 hours

Physical & Environmental
Width 5.6 in
Depth 4.1 in
Height 1.5 in
Weight 17.1 oz
Operating Temperature (Min) -40 °C
Operating Temperature (Max) 75 °C
Storage Temperature Range -40 °C to 85 °C
Operating Humidity Range 5% to 95% (non-condensing)
Enclosure Type Metal
Mounting Options DIN-Rail

Cloud Management & Licensing
Management Options Unmanaged
Cloud Management Features
Licensing Requirements None

Interfaces
Port Type Fast Ethernet PoE+
Port Count 8
Data Transfer Rate 100 Mbps
Uplink Ports None
Switching Performance 1.6 Gbps
LED Indicators Power, PoE, Link/Activity
Data Link Protocol Fast Ethernet (IEEE 802.3u)
Compliant Networking Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, IEC 60068-2-27 (Shock), IEC 60068-2-32 (Free fall), IEC 60068-2-6 (Vibration)
Safety Compliance UL Listed
EMI Standards FCC Part 15 Class A

Advanced Security Features
MAC Address Filtering No
VLAN Support No
Storm Control No
Security Features None (Unmanaged Switch)
