TRENDnet TI-PG160 16-Port Industrial Gigabit PoE+ DIN-Rail Switch

VENDOR: TRENDNET Mfg Part#: TI-PG160 UPC#: 710931161618
1 5

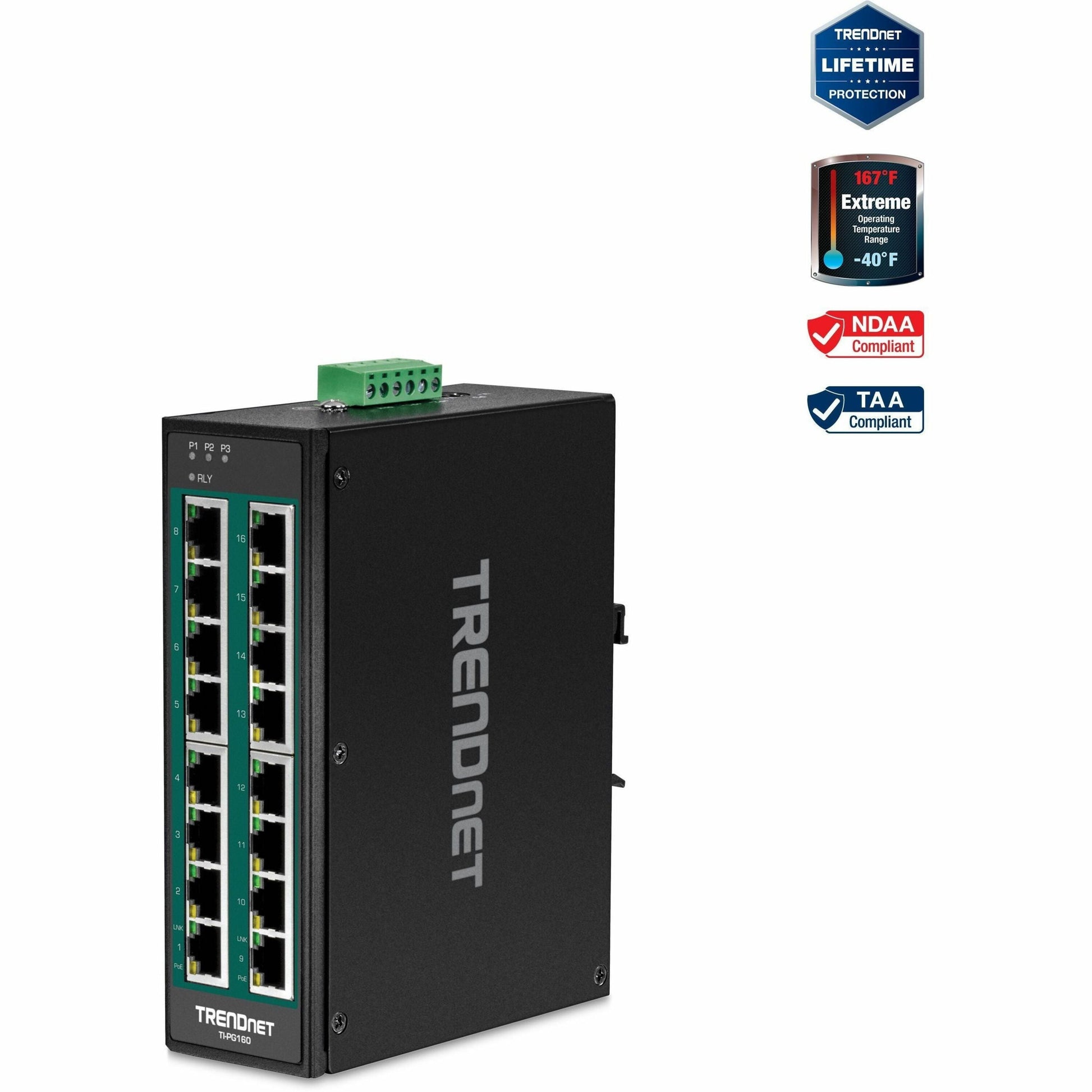

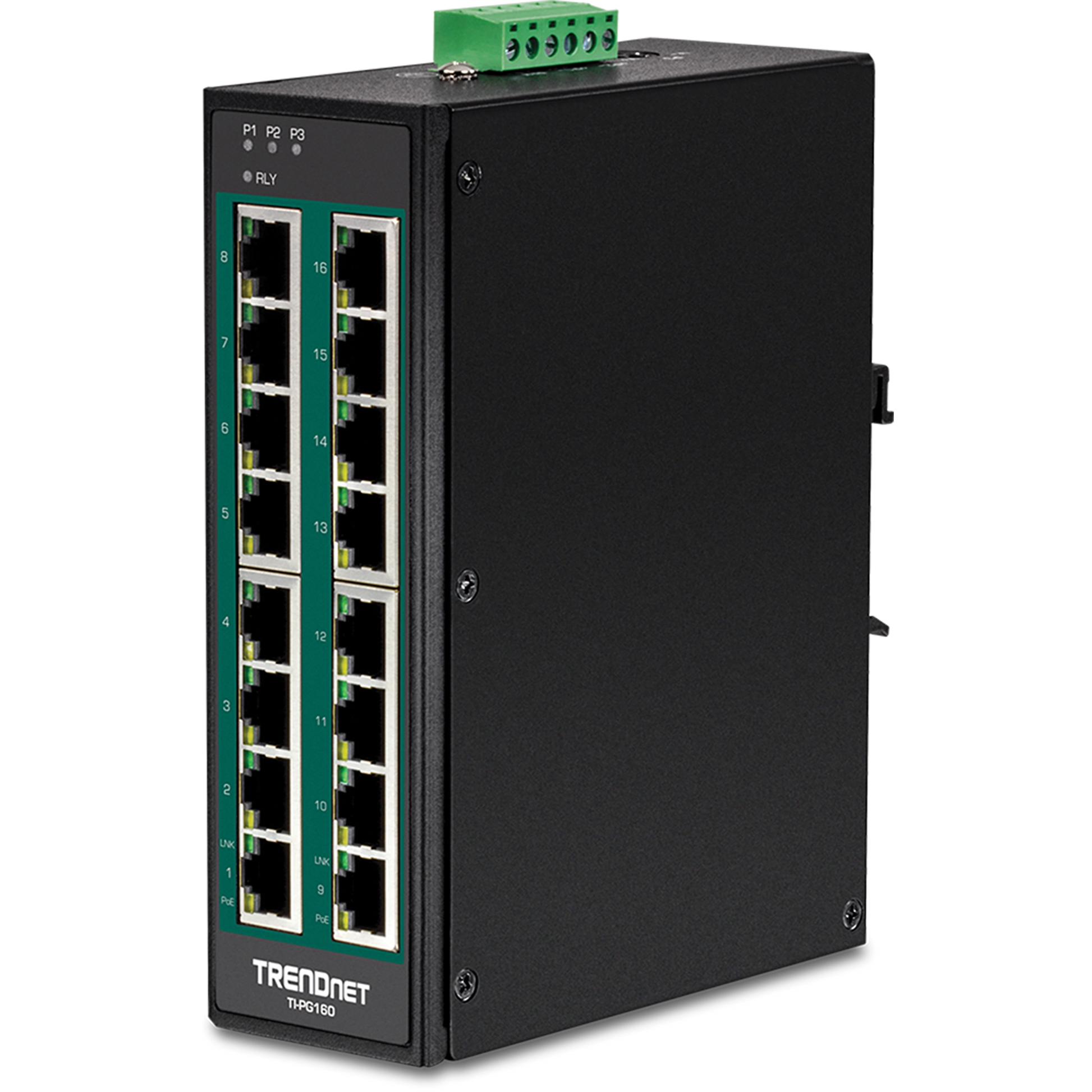

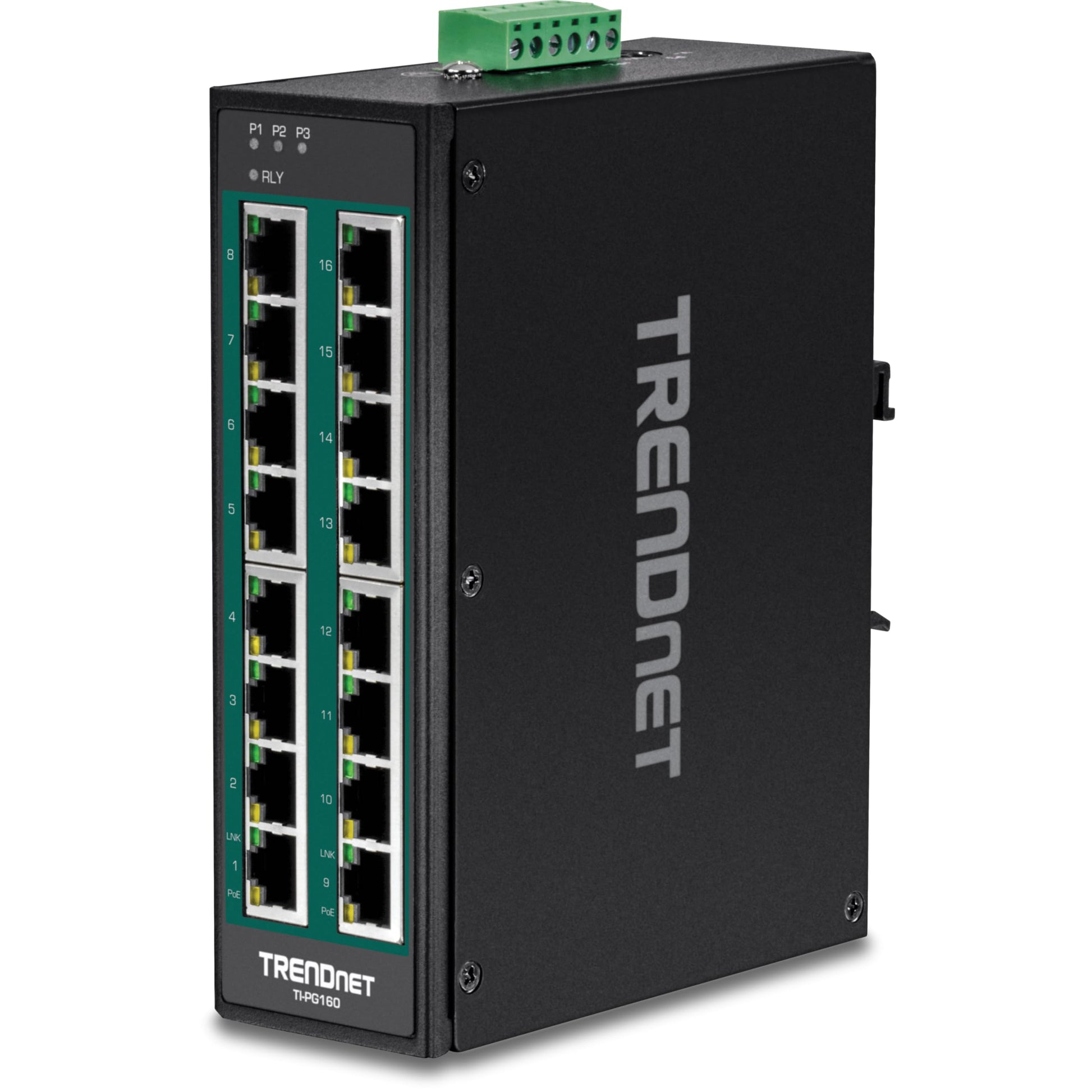

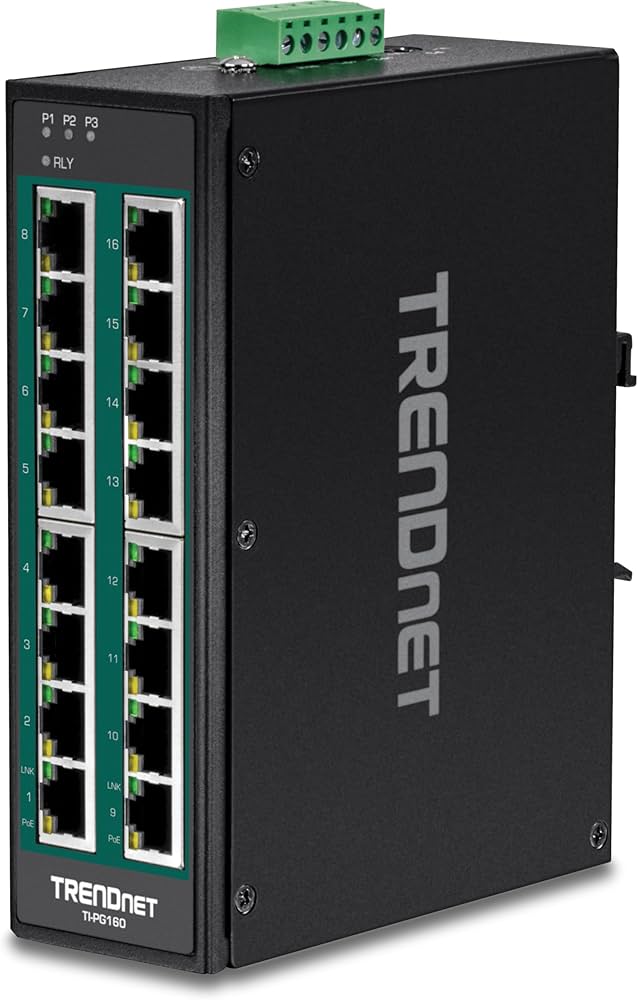

Photo is for illustration purposes only. Actual product may be different.
$619.00
$619.00
Sale Sold out
MSRP: $637.00
Shipping calculated at checkout.
  • 16 x Gigabit PoE+ ports with a total 240W power budget
  • IEEE 802.3 standards compliance with 32Gbps switching capacity
  • IP30-rated metal housing suitable for -40°C to 75°C environments
  • Jumbo frame support up to 9KB for efficient large-packet transfers
  • 8K MAC address table and real-time LED status indicators
  • Low power consumption of 5.76W (device-only), 48–56V DC input

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Engineered for industrial environments with IP30 housing and extreme temperature tolerance from -40°C to 75°C
  • Delivers strong PoE+ support with 240W total budget across 16 ports for powering industrial devices
  • Backed by a lifetime warranty and high MTBF of 699,103 hours for enhanced ROI and long-term reliability

Product Overview

16-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch

Specifications

Product Overview
Product Type Industrial Gigabit PoE+ Switch
Model TI-PG160
Form Factor DIN-Rail Mountable
Enclosure Type Metal (IP30 Rated)
Power Requirements 48 - 56V DC
Maximum Power Consumption 5.76 Watts
PoE Power Budget 240 Watts
Switching Capacity 32 Gbps
MAC Address Table Size 8K Entries
Jumbo Frame Support 9 KB
Mounting Type DIN-Rail
Weight 0.5 kg
MTBF 699103 hours

Physical & Environmental
Width 6 inches
Depth 4.7 inches
Height 1.9 inches
Minimum Operating Temperature -40 °C
Maximum Operating Temperature 75 °C
Storage Temperature Range -40 to 85 °C
Operating Humidity 5% to 95% (non-condensing)
Protection Rating IP30

Cloud Management & Licensing
Management Interface Unmanaged

Interfaces
Port Type Gigabit Ethernet
Total Number of Ports 16
PoE+ Ports 16 × 10/100/1000 Mbps (802.3at/af compatible)
PoE Standard IEEE 802.3at/af
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet
Status Indicators Power, PoE, Link/Activity LEDs
Throughput 23.8 Mpps

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications EN 55032, EN 55024, FCC Part 15 Subpart B Class A, CE
RoHS Compliant Yes

Advanced Security Features
Surge Protection 6kV on Ethernet ports, 6kV on power input
