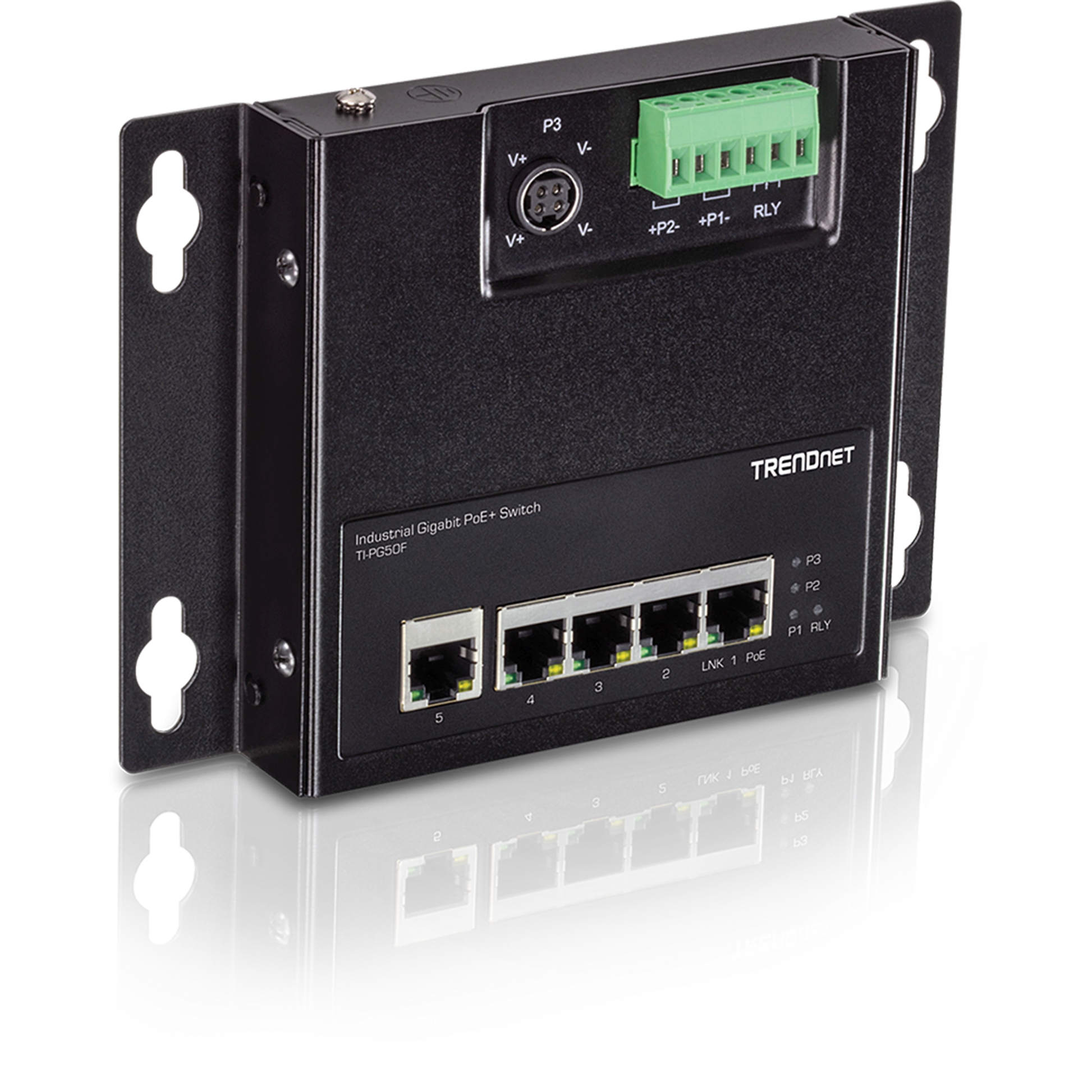

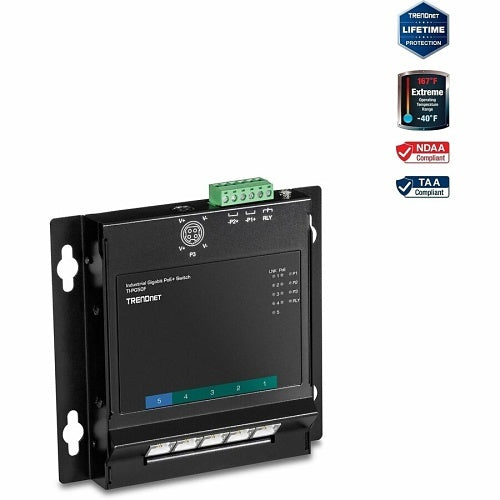

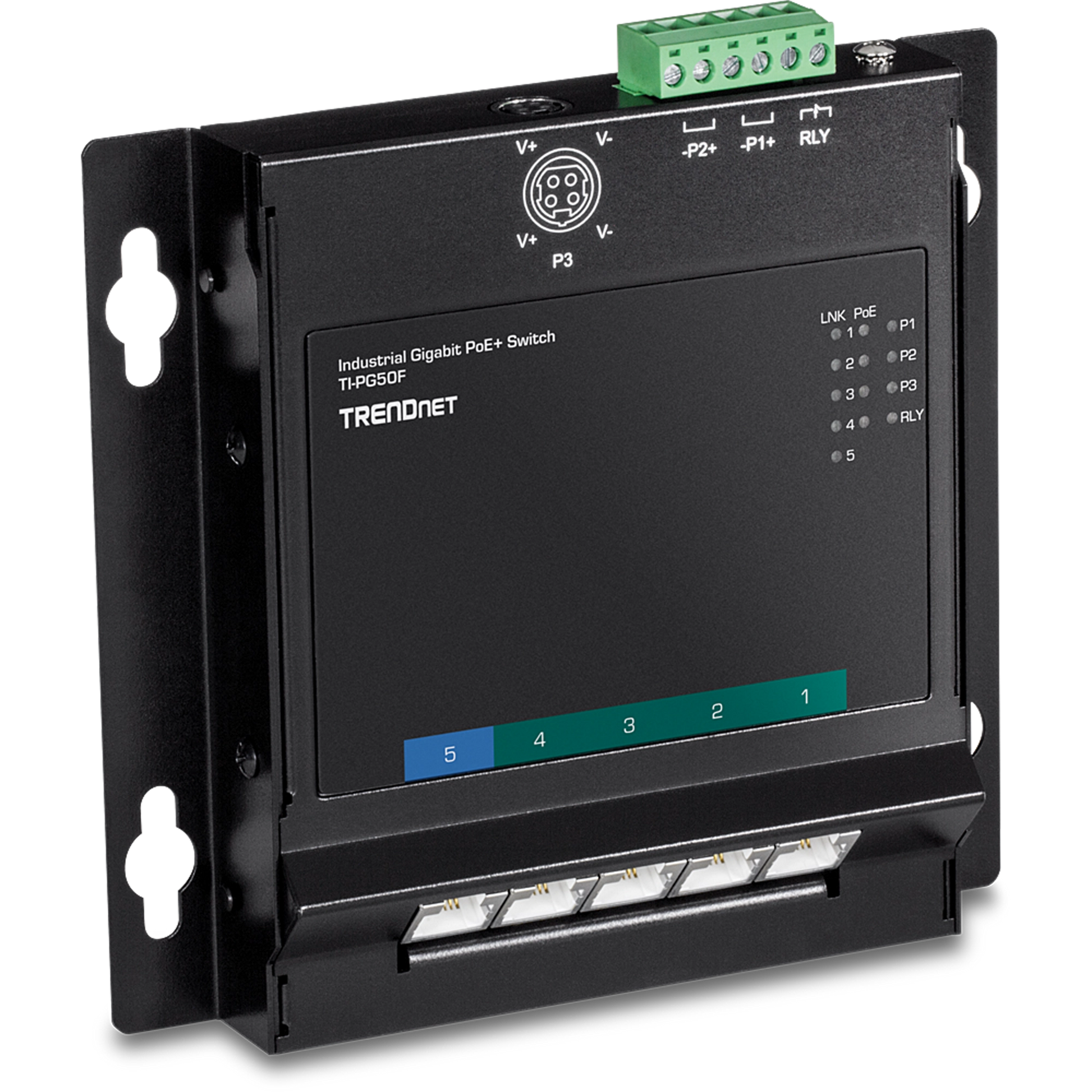

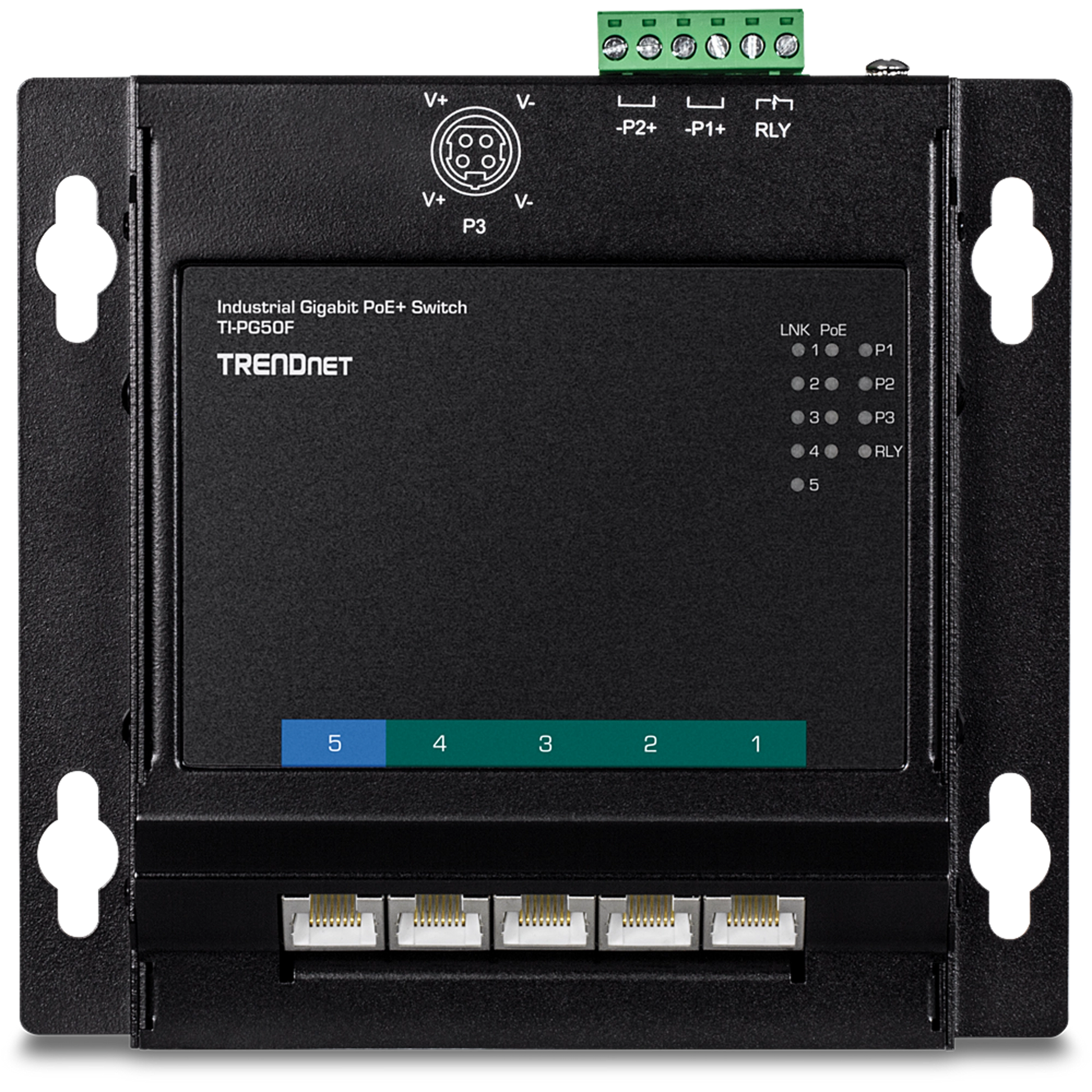

TRENDnet TI-PG50F 5-Port Industrial Gigabit PoE+ Switch

VENDOR: TRENDNET Mfg Part#: TI-PG50F UPC#: 710931161564
1 5
Photo is for illustration purposes only. Actual product may be different.
$286.00
$286.00
Sale Sold out
MSRP: $298.00
Shipping calculated at checkout.
  • 5 total Gigabit ports including 4 PoE+ enabled ports
  • 1 Gbps data transfer rate for high-performance networking
  • Wide voltage input range: 100 - 240 V AC, 50/60 Hz
  • Maximum power consumption: 160 Watts across PoE devices
  • Wall-mounted, front-access industrial design
  • TAA compliant and backed by a lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Offers power and data delivery over a single connection via 4 PoE+ ports—ideal for industrial applications.
  • TAA compliance and Taiwanese origin support deployment in regulated and secure environments.
  • Lifetime warranty provides long-term reliability and reduced total cost of ownership.

Product Overview

5-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

Specifications

Product Overview
Product Type Industrial Gigabit PoE+ Switch
Model TI-PG50F

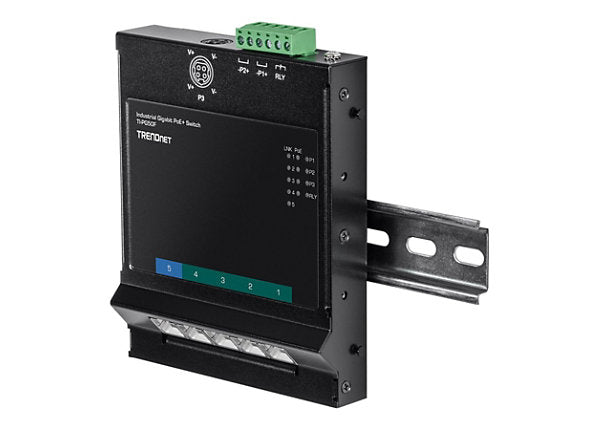

Form Factor DIN-Rail or Wall-Mountable
Mounting Type Wall-Mounted Front Access / DIN Rail
Weight 350 g (0.77 lb.)
Power Supply Type External Power Adapter (not included)
Power Requirements 100 – 240 V AC, 50/60 Hz
Maximum Power Consumption 160 Watt

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, UL
RoHS Compliance Yes

Advanced Security Features
Manageable Security Features None – Unmanaged switch

Interfaces
Total Number of Ports 5
PoE+ Ports 4 x Gigabit PoE+ (802.3at/af)
Non-PoE Port 1 x Gigabit Ethernet
Network Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
Data Transfer Rate 10/100/1000 Mbps
Switching Capacity 10 Gbps
MAC Address Table Size 2K entries
Jumbo Frame Support 9K bytes
Packet Buffer Size 512 KB
Forwarding Mode Store-and-Forward
PoE Budget 120 Watts

Physical & Environmental
Width 4.60 inch (117 mm)
Depth 4.60 inch (117 mm)
Height 0.90 inch (23 mm)
Operating Temperature -40 to 75 °C (-40 to 167 °F)
Storage Temperature -40 to 85 °C (-40 to 185 °F)
Operating Humidity 5% – 95% (non-condensing)
Enclosure Type Rugged metal
IP Rating IP30
Cooling Type Fanless

Cloud Management & Licensing
Cloud Management No
Management Interface Unmanaged
Licensing Required No
