| Product Type | Hardened Industrial Gigabit PoE+ Switch |
| Form Factor | DIN-Rail Mountable |
| Number of Ports | 5 |
| PoE Support | Yes, PoE+ |
| PoE Budget | 120 W |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 8.93 Mpps (64-byte packet size) |
| MAC Address Table Size | 8K entries |
| Buffer Memory | 1 Mbit |
| Power Input | Dual 48 – 57V DC Terminal Block |
| Power Consumption (Max) | 133 W |
| Weight | 1.25 lbs (0.57 kg) |

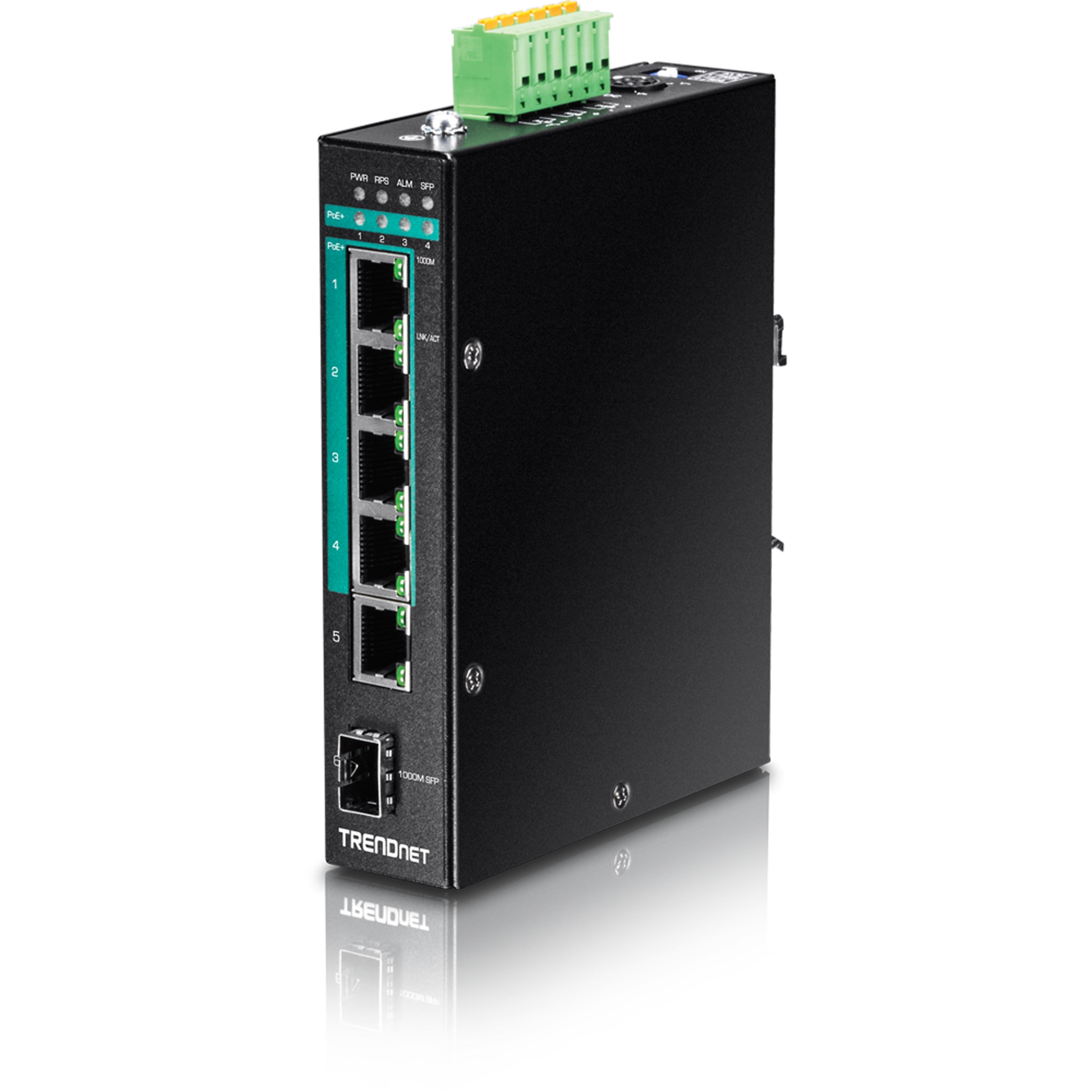

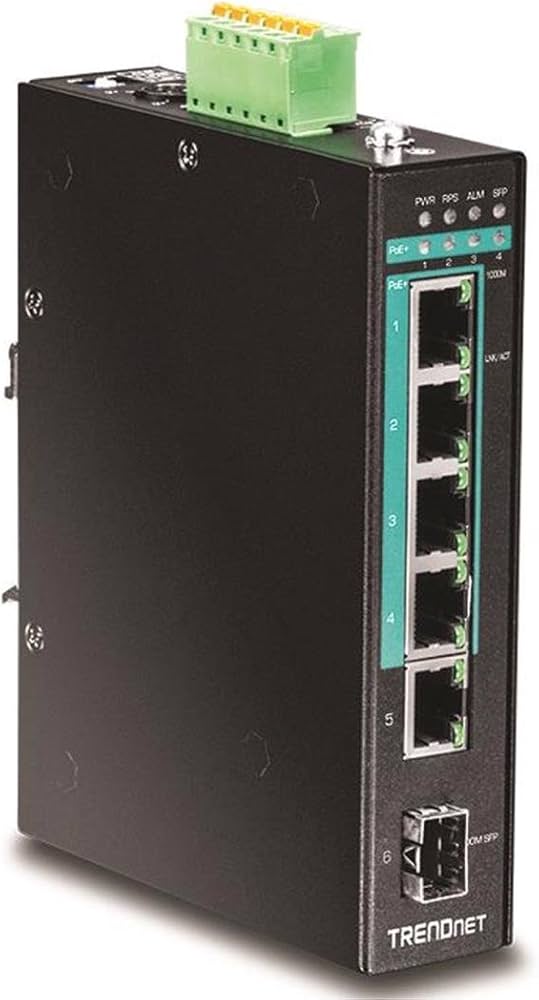

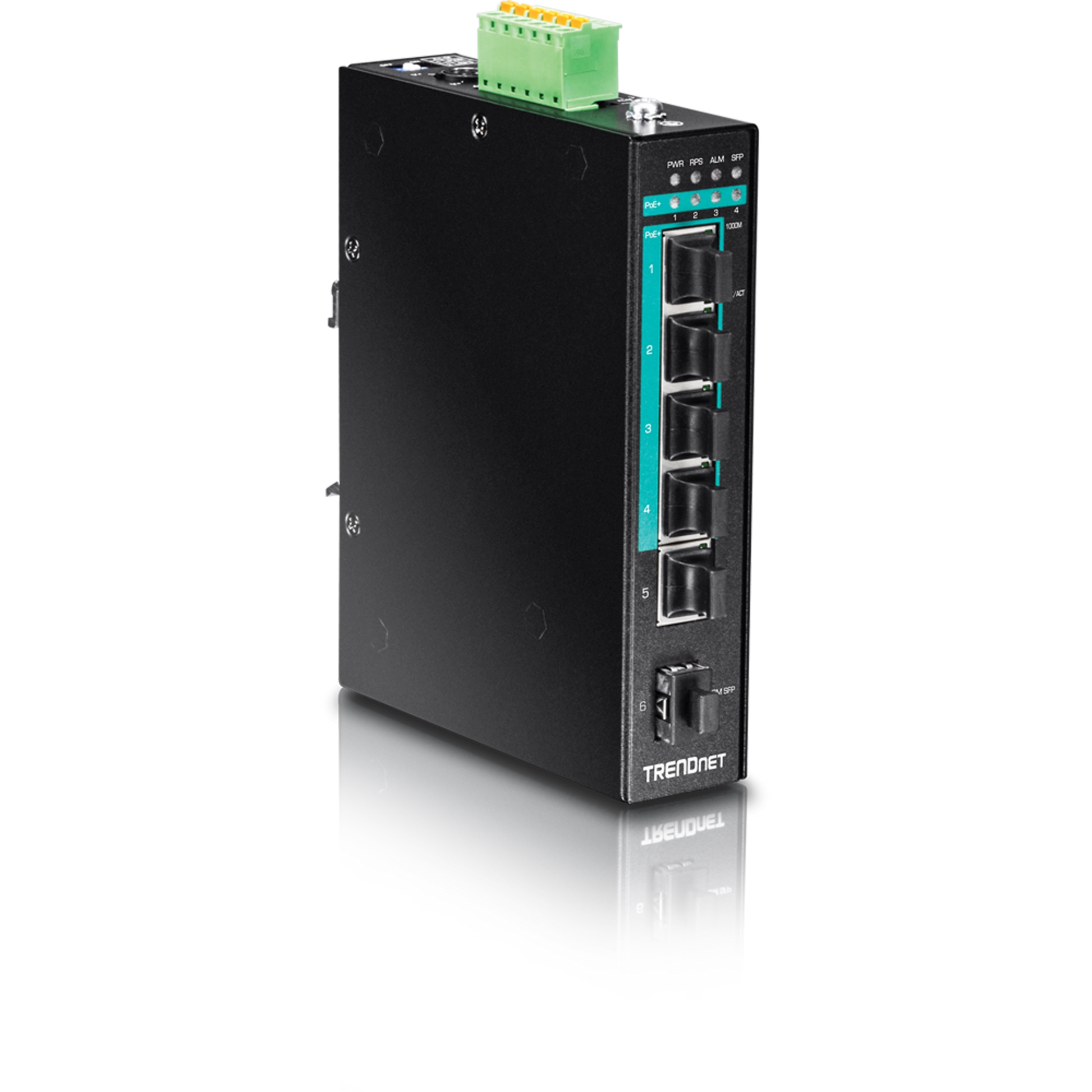

TRENDnet TI-PG541 5-Port Hardened Industrial Gigabit PoE+ Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$355.00
Regular price
Sale price
$355.00
Unit price
per
MSRP: $366.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 4 x Gigabit PoE+ ports, 1 x Gigabit port, and 1 x Gigabit SFP slot for extended connectivity
- Supports full 1 Gbps data transfer rate and multiple IEEE standards including 802.3at and 802.3af
- Hardened components rated for extreme temperatures, ideal for industrial installations
- Dual redundant power inputs and alarm output triggered by power failure enhance resilience
- Equipped with 8 KV ESD and 6 KV surge protection for increased hardware reliability
- Includes LED indicators, removable 6-pin terminal block, and integrated DIN-Rail mount for easy deployment
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Designed for harsh environments, with hardened components and surge/ESD protection ensuring operational reliability
- Flexible deployment with Gigabit PoE+ ports, SFP uplink, and DIN-Rail mounting suited to industrial and infrastructure networks
- Supported by a limited lifetime warranty and full TAA compliance, making it ideal for government and high-assurance deployments
Product Overview
5-port Hardened Industrial Gigabit PoE+ DIN-Rail SwitchSpecifications
Product Overview
Physical & Environmental
| Width | 5.31 in (135 mm) |
| Depth | 3.93 in (100 mm) |
| Height | 1.18 in (30 mm) |
| Mounting Option | DIN-Rail |
| Enclosure Type | IP30 rated metal housing |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
Cloud Management & Licensing
| Management Interface | Unmanaged |
Interfaces
| Total Ethernet Ports | 5 |
| Gigabit PoE+ Ports | 4 |
| Gigabit Non-PoE Ports | 1 |
| SFP Slots | 1 x Gigabit SFP |
| Data Rate | 10/100/1000 Mbps per port |
| Power Interface | 6-pin Terminal Block |
| Alarm Relay Output | 1 x Dry contact relay output (1A @ 24V DC) |
| LED Indicators | Power, PoE, Link/Activity |
Compliance & Origin
| Compliance Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at |
| Certifications | FCC, CE, IEC EN60950-1, EN55032 Class A, EN61000-3-2 |
| Protection | Electrostatic Discharge (ESD) 8kV, Surge Protection 6kV |
| TAA Compliant | Yes |
| Country of Origin | Taiwan |
Advanced Security Features
| Security Features | Hardware-based protection with surge and ESD shielding; Dry contact relay output for alerts on power failure |
