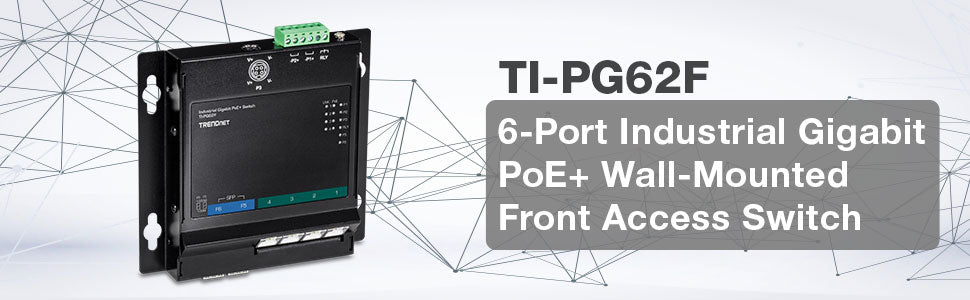

TRENDNET TI-PG62F 6-Port Industrial Gigabit PoE+ Switch

VENDOR: TRENDNET Mfg Part#: TI-PG62F UPC#: 710931161793
1 5
Photo is for illustration purposes only. Actual product may be different.
$379.00
$379.00
Sale Sold out
MSRP: $394.00
Shipping calculated at checkout.
  • 6 total ports including Gigabit PoE+ and SFP slots for diverse connectivity
  • 2000 Mbps data transfer rate supports high throughputs per port
  • Designed for wall-mount, front-access deployment in confined spaces
  • Compact industrial form factor: 5.9" W x 5.7" D x 1.1" H
  • TAA compliant and manufactured in Taiwan
  • Includes lifetime warranty for long-term support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-speed 2000 Mbps connections, ideal for bandwidth-intensive PoE devices like IP cameras.
  • Wall-mounted, front-access design enhances ease of installation and space efficiency in industrial enclosures.
  • Lifetime warranty and TAA compliance provide assurance for long-term federal and industrial deployment.

Product Overview

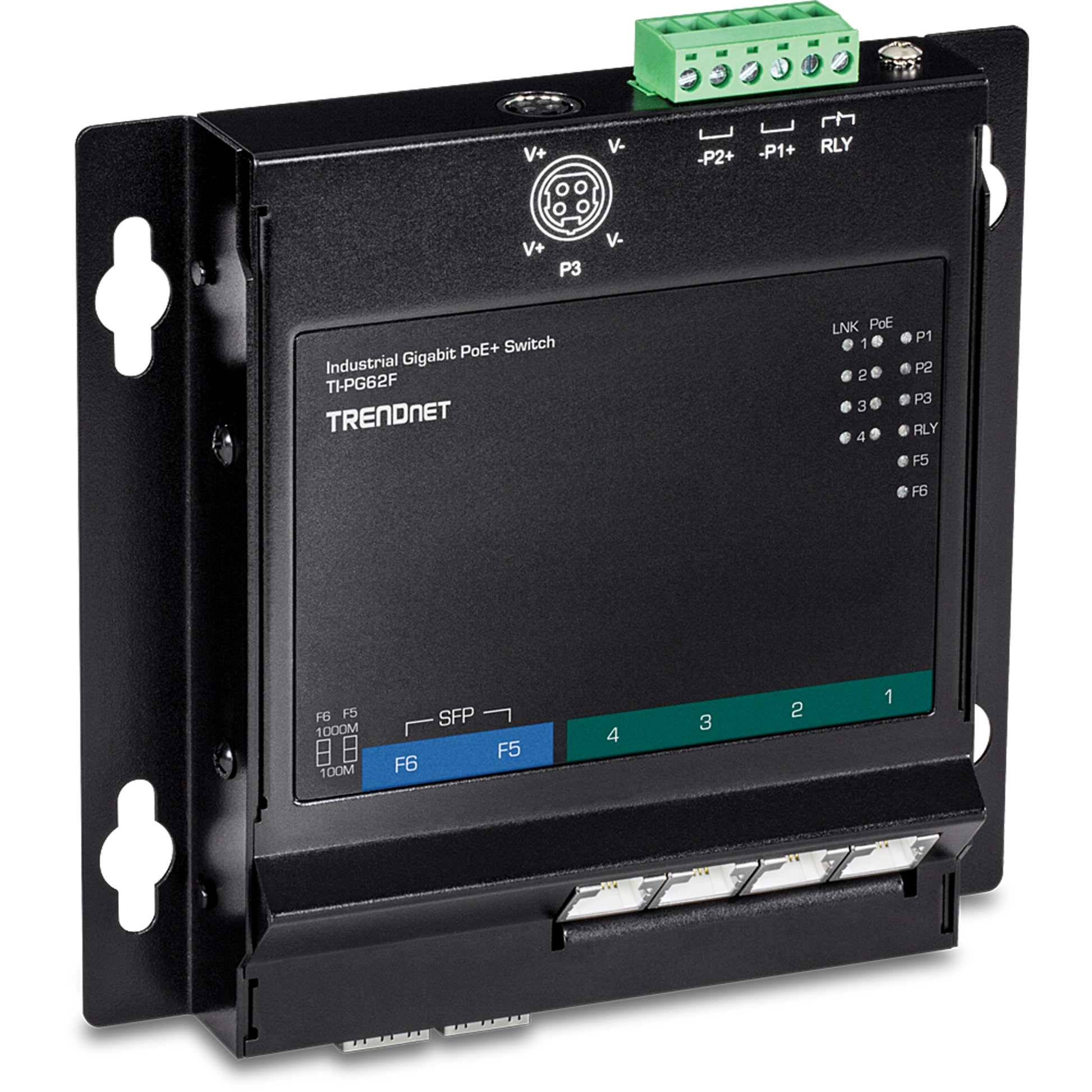

6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

Specifications

Product Overview
Product Type Industrial Gigabit PoE+ Switch
Form Factor Wall-mountable
Number of Ports 6
Switch Type Unmanaged
PoE Support Yes (PoE+)
PoE Budget 120 Watts
PoE Standards IEEE 802.3at/802.3af
Power Consumption (Max) 126 Watts
Power Input 48 – 57 VDC Terminal Block
Redundant Power Input Yes
Weight 1.38 lbs (0.63 kg)

Physical & Environmental
Width 5.9 in. (150 mm)
Height 1.1 in. (28 mm)
Depth 5.7 in. (145 mm)
Enclosure Type Metal

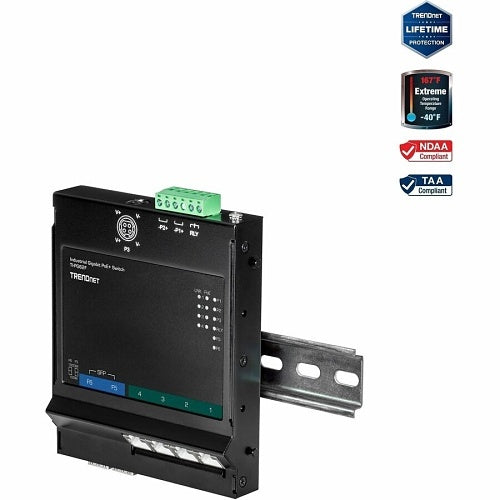

Installation Type DIN-rail or wall-mountable
Operating Temperature -40° – 75° C (-40° – 167° F)
Storage Temperature -40° – 85° C (-40° – 185° F)
Operating Humidity 5% – 95% (non-condensing)
MTBF 714,693 hours
Cooling Passive

Cloud Management & Licensing
Management Type Unmanaged switch
Cloud Management No
Licensing Requirements None

Interfaces
10/100/1000 Mbps Ports 4 x Gigabit PoE+
SFP Slots 2 x Gigabit SFP
Ethernet Standards IEEE 802.3, 802.3u, 802.3ab, 802.3z
Data Transfer Rate 2000 Mbps (Full Duplex)
MAC Address Table Size 8K entries
Packet Buffer Memory 1 Mb
Jumbo Frame Support Yes, up to 10 KB
Forwarding Mode Store-and-forward
Throughput 8.9 Mpps
Switching Capacity 12 Gbps

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, UL, EN 60950-1
Vibration Resistance IEC 60068-2-6
Shock Resistance IEC 60068-2-27
Free Fall IEC 60068-2-32
Ingress Protection Rating IP30
