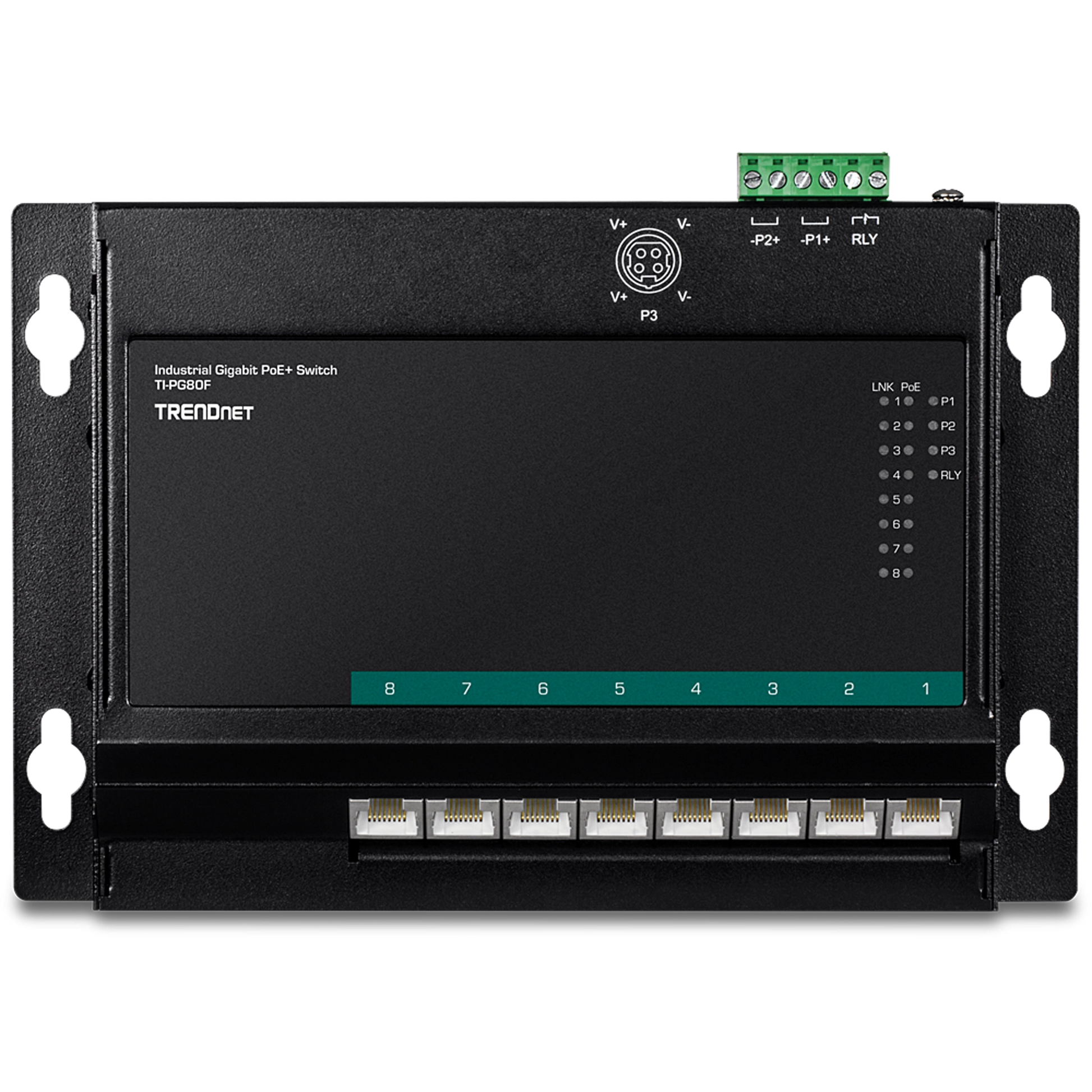

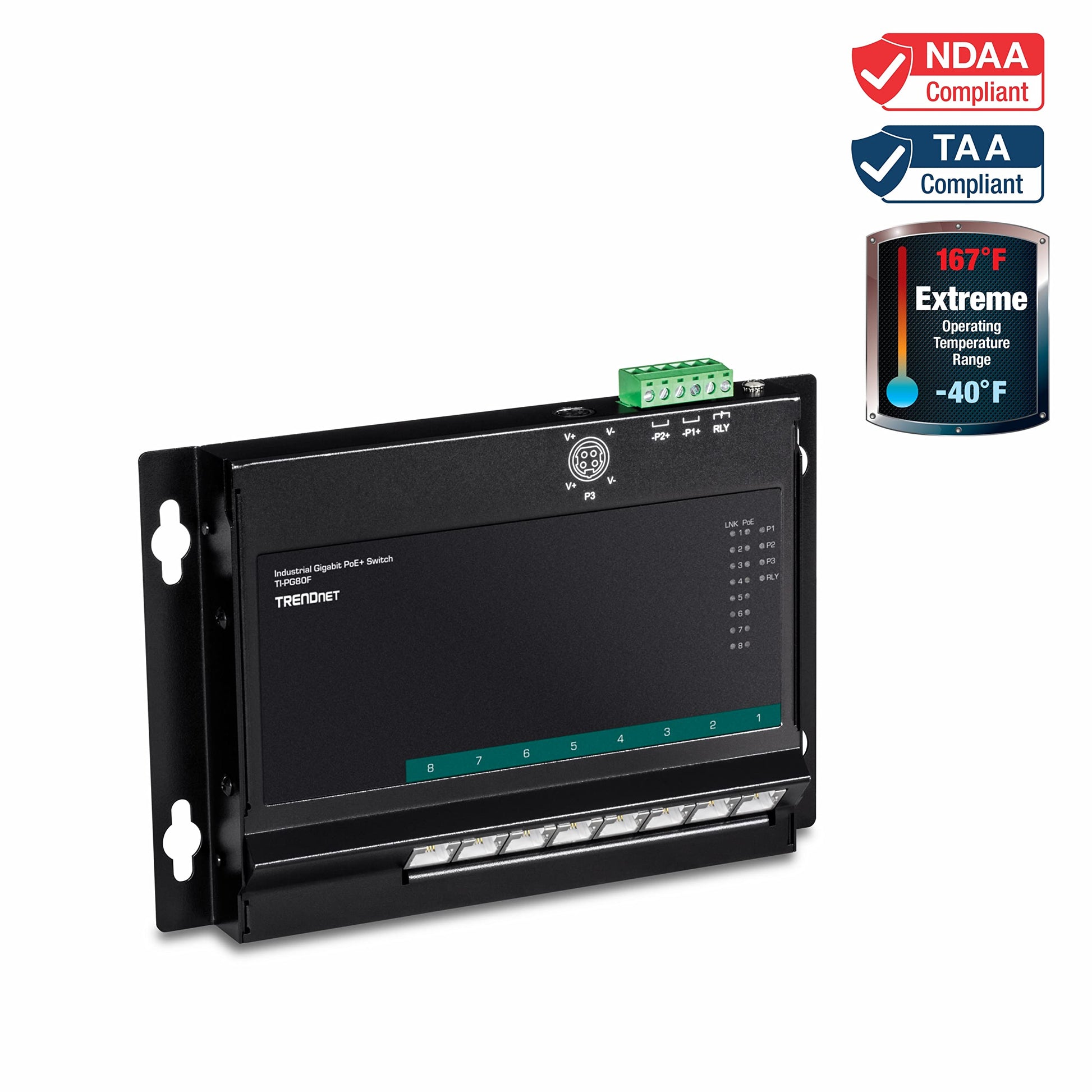

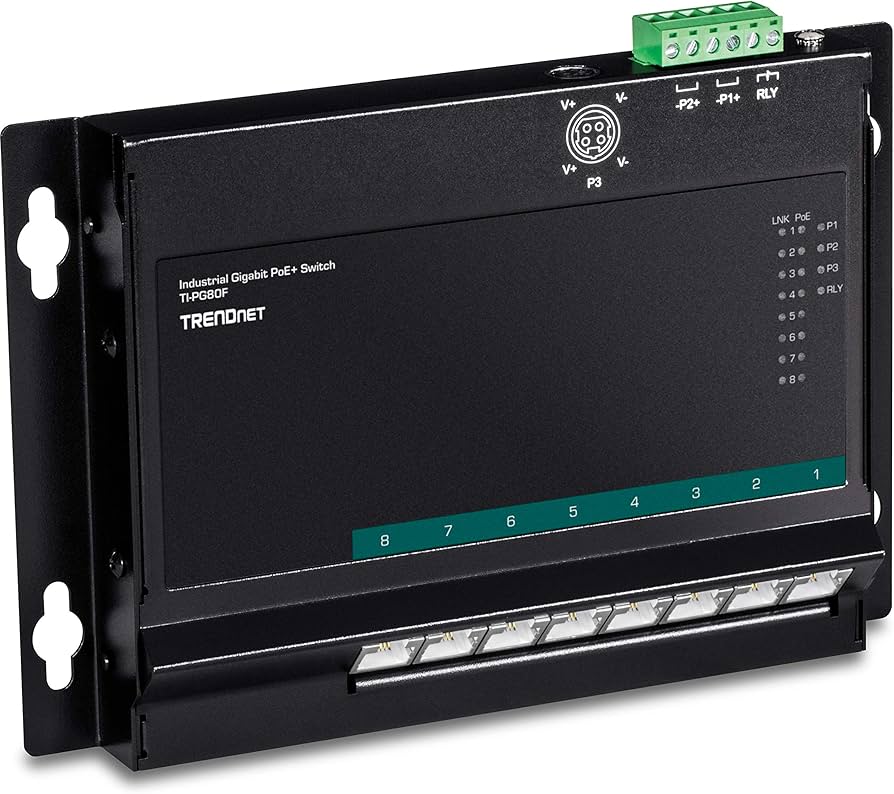

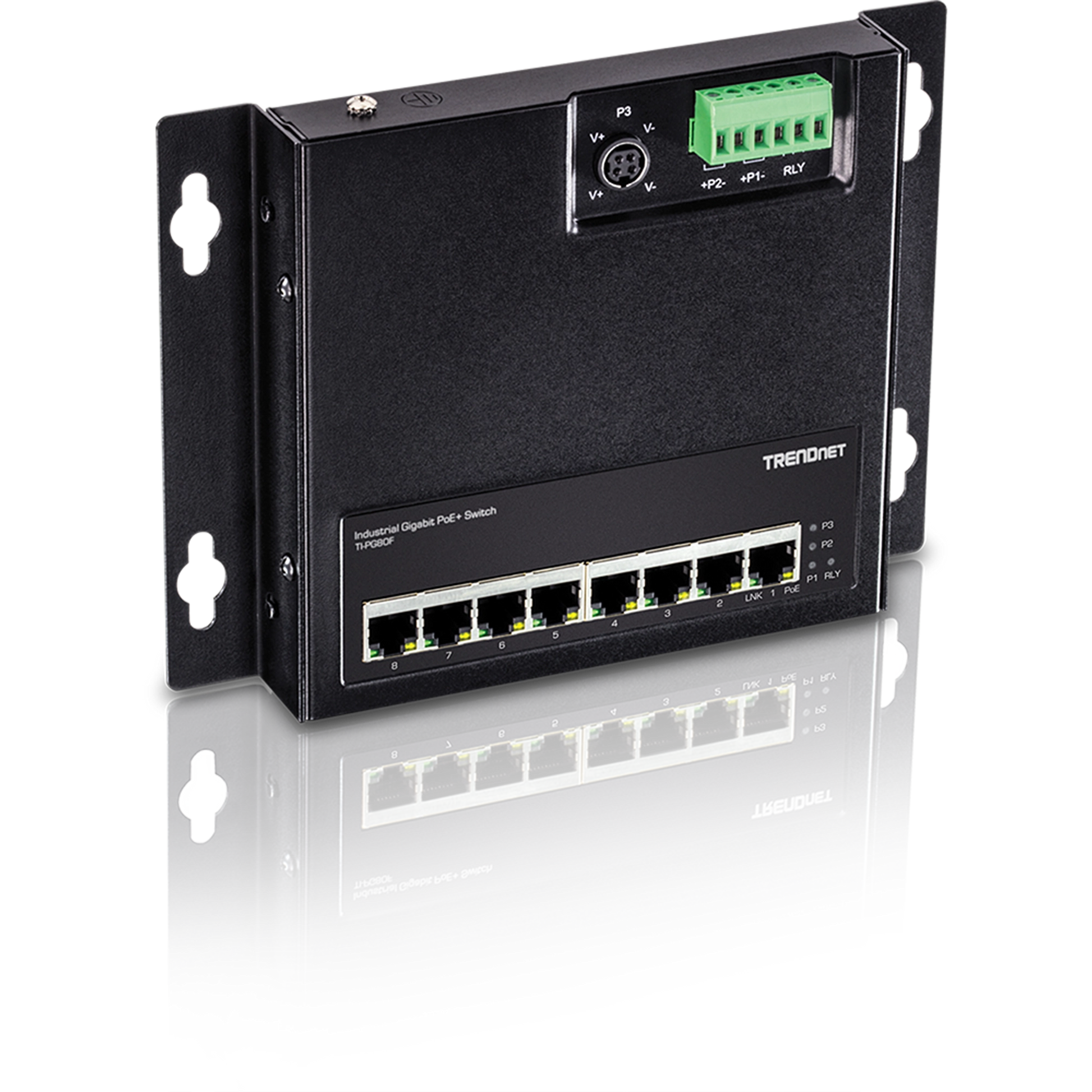

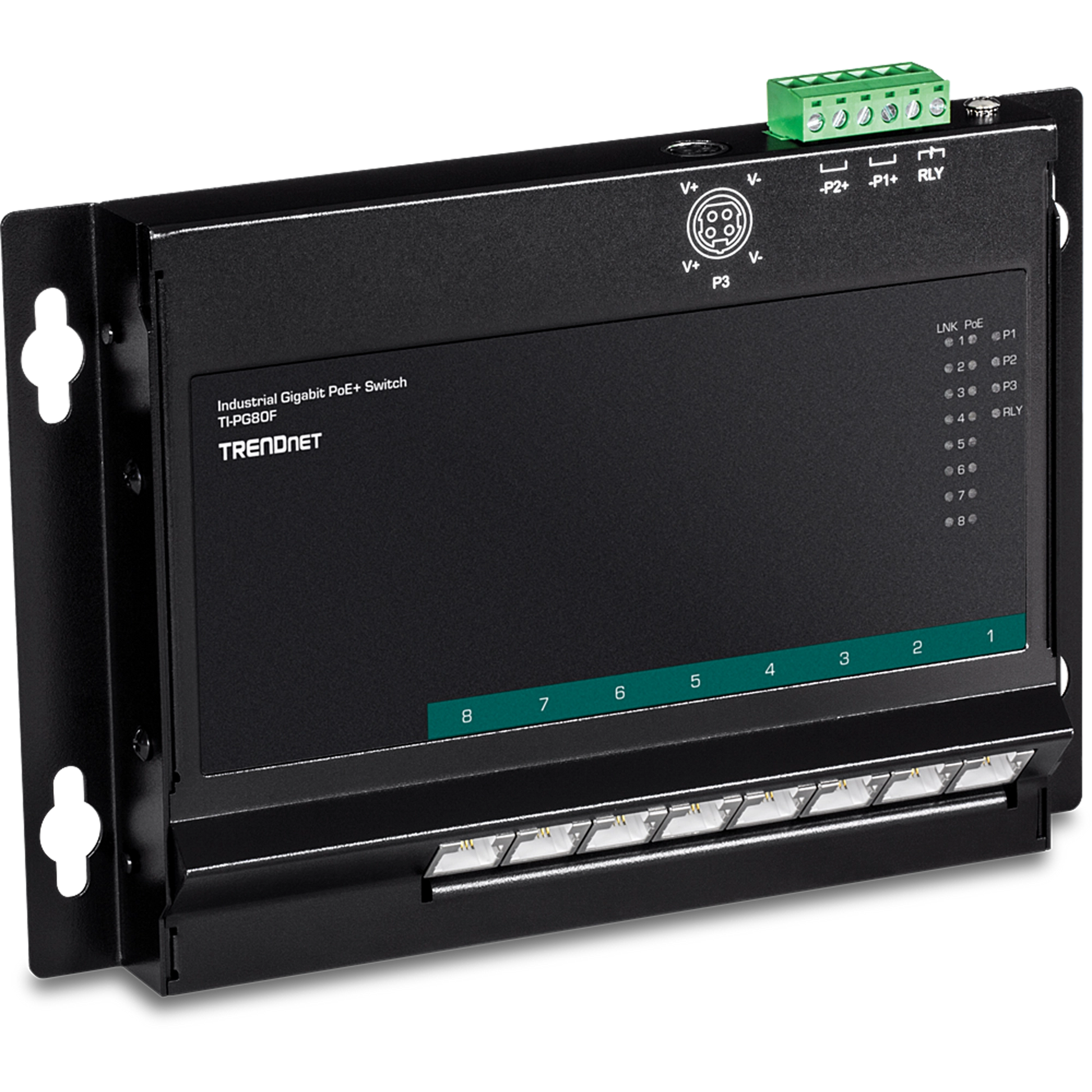

TRENDnet TI-PG80F 8-Port Industrial Gigabit PoE+ Wall-Mount Switch

VENDOR: TRENDNET Mfg Part#: TI-PG80F UPC#: 710931161496
1 5
Photo is for illustration purposes only. Actual product may be different.
$397.00
$397.00
Sale Sold out
MSRP: $411.00
Shipping calculated at checkout.
  • 8 x Gigabit Ethernet ports with PoE+ support
  • Supports data transfer rates up to 1 Gbps
  • Low maximum power consumption of 5.76 Watts
  • 48–56 V DC power input range for industrial compatibility
  • Wall-mountable design with front access and compact form factor
  • Lifetime warranty and TAA compliance for government applications

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables simplified powering and networking of PoE+ devices without additional power supplies
  • Designed for industrial environments with compact, wall-mountable, front-accessible build
  • Provides government-ready compliance through TAA certification and reliable operation with a lifetime warranty

Product Overview

8-Port Industrial Gigabit PoE+ Wall-Mount Front Access Switch

Specifications

Product Overview
Product Type Industrial Gigabit PoE+ Switch
Form Factor Wall-Mount, Front Access
Model TI-PG80F
Power Requirements 48 – 56 V DC
Maximum Power Consumption 5.76 Watts
PoE Power Budget 120 Watts
Installation Type DIN-rail and wall mountable
Weight 0.98 kg (2.16 lbs)

Physical & Environmental
Width 5.90 in. (150 mm)
Depth 5.70 in. (145 mm)
Height 1.10 in. (28 mm)
Weight 2.16 lb (0.98 kg)
Enclosure IP30-rated metal housing
Mounting Options DIN-Rail / Wall Mount
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Humidity 5% to 95% (non-condensing)
Shock EN 60068-2-27
Vibration EN 60068-2-6
MTBF 856,923 hours

Cloud Management & Licensing
Cloud Managed No
Management Type Unmanaged
Licensing Requirements None

Interfaces
Total Number of Ports 8
Port Type 10/100/1000 Mbps Gigabit Ethernet
PoE Ports 8 x Gigabit PoE+ (802.3at/802.3af)
PoE Standard IEEE 802.3at, IEEE 802.3af
Supported Network Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3az
Data Transfer Rate 1 Gbps
Switching Capacity 16 Gbps
Forwarding Rate 11.9 Mpps
Packet Buffer 1 Mbit
MAC Address Table Size 4,000 entries
Jumbo Frame Support Up to 10 KB

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, IEC 60068-2-27, IEC 60068-2-6, EN 60950-1
RoHS Compliant Yes

Advanced Security Features
VLAN Support No (Unmanaged switch)
Security Features None (Unmanaged switch)
