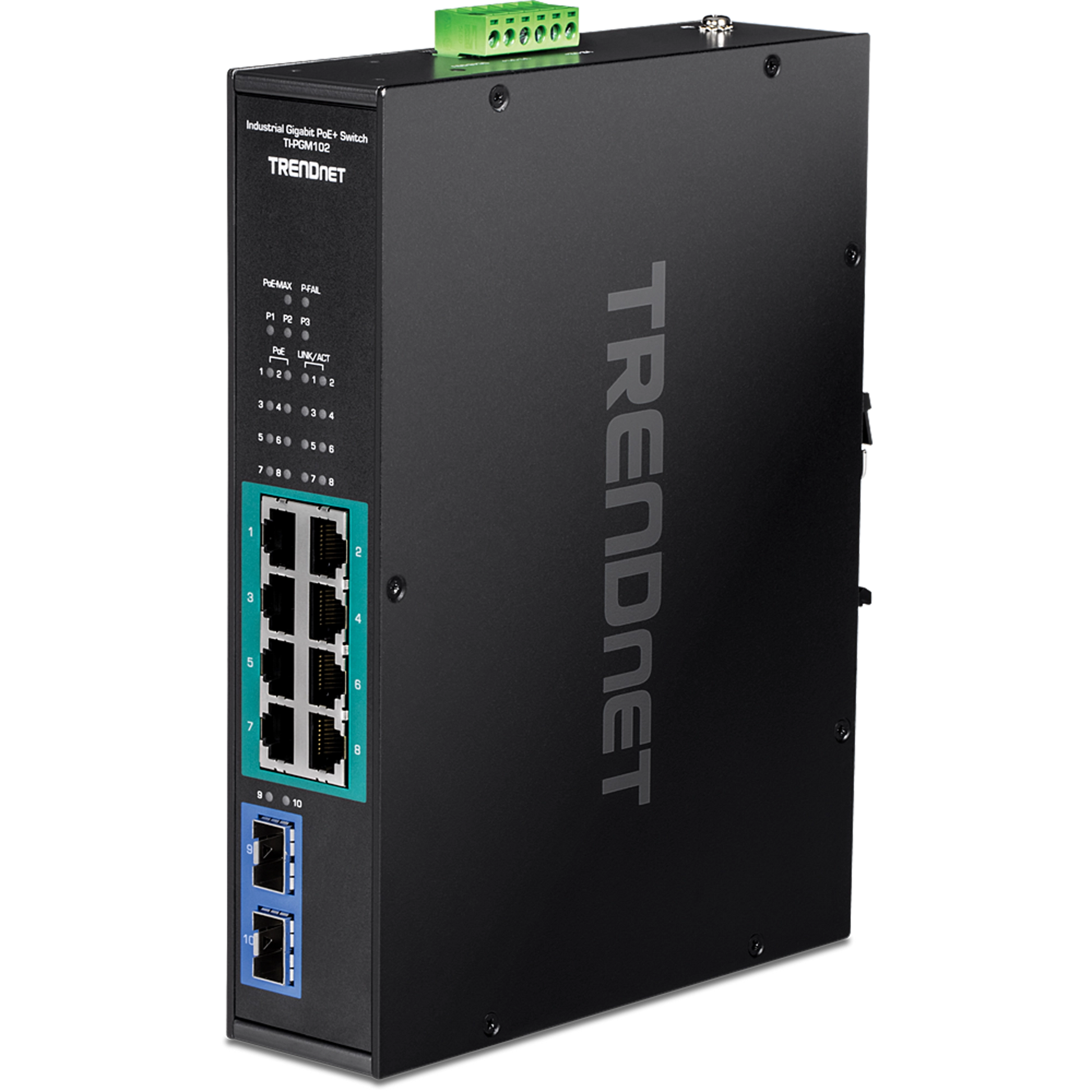

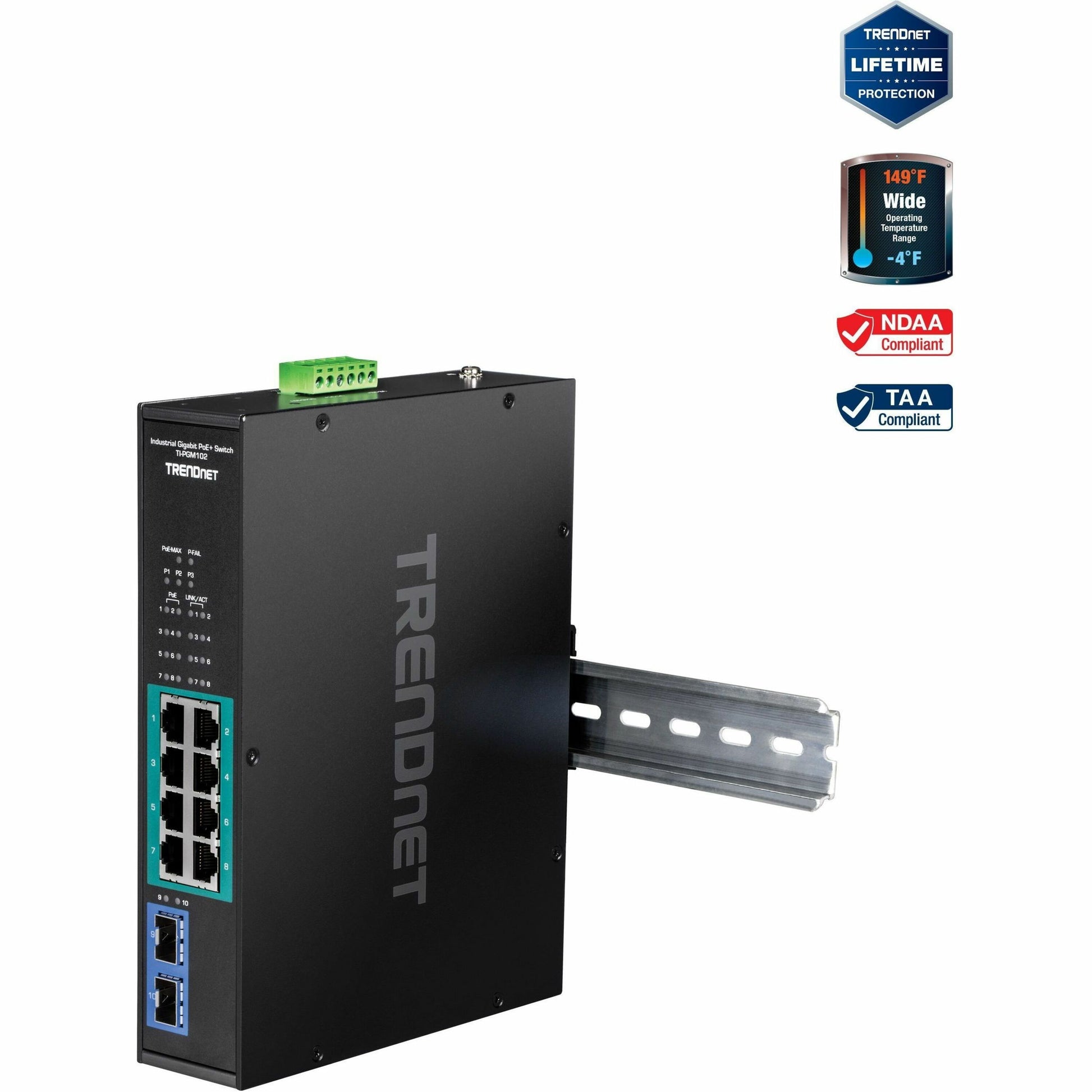

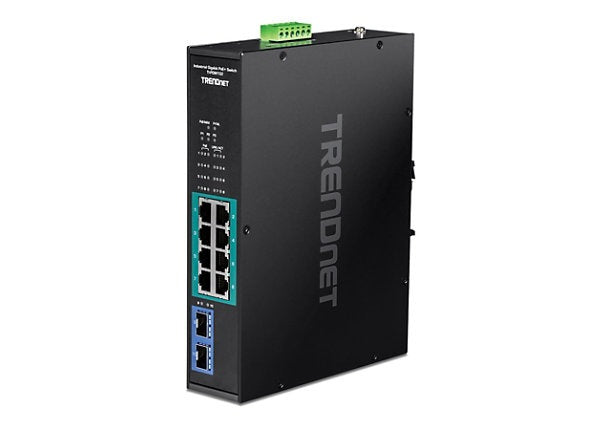

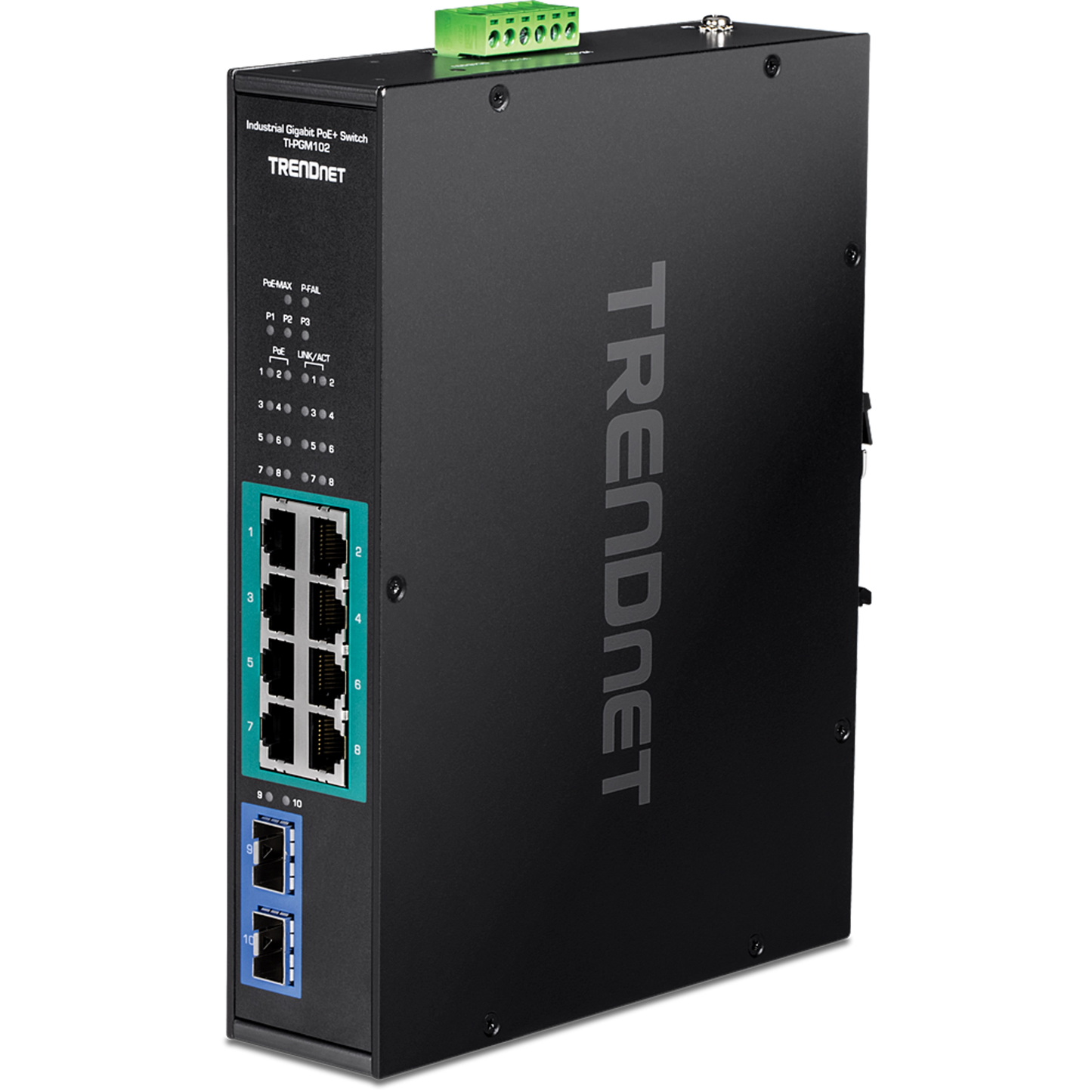

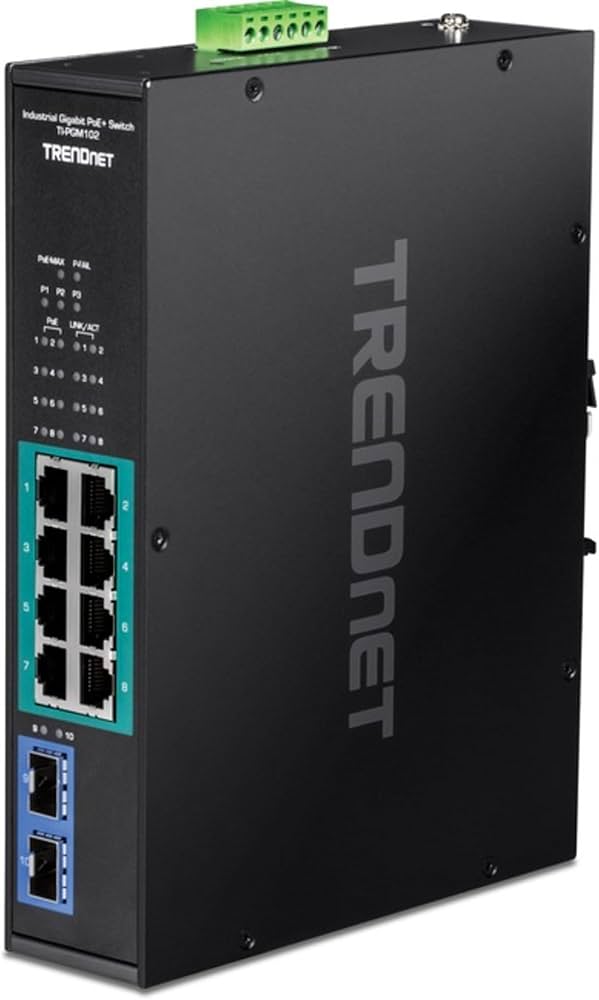

TRENDnet TI-PGM102 10-Port Industrial Gigabit PoE+ Switch

VENDOR: TRENDNET Mfg Part#: TI-PGM102 UPC#: 710931162202
1 5
Photo is for illustration purposes only. Actual product may be different.
$316.00
$316.00
Sale Sold out
MSRP: $324.00
Shipping calculated at checkout.
  • 10 Gigabit Ethernet ports including 8 PoE+ and 2 SFP uplinks
  • Supports total PoE+ power output of 240 Watts
  • Designed for industrial use with -20°C to 65°C temperature range
  • High data transfer rate of up to 20 Gbps
  • MTBF of 1,000,000 hours ensures long-term reliability
  • DIN-rail mountable compact form factor (210 x 160 x 45 mm)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Industrial-grade durability with extreme temperature support enhances reliability in harsh environments.
  • High total PoE+ power budget (240W) enables centralized powering of multiple devices, reducing infrastructure complexity.
  • Lifetime warranty and TAA compliance provide added peace of mind and make it suitable for government and enterprise use.

Product Overview

10-port Industrial Gigabit PoE+ DIN-Rail Switch -20 65 C (-4 149 F)

Specifications

Product Overview
Product Type Industrial Gigabit PoE+ Switch
Model TI-PGM102
Form Factor DIN-Rail Mountable
Weight 2.45 kg
Power Requirements 48–55 VDC input
Maximum Power Consumption 6.38 Watts (Device only), 240 Watts (with PoE load)
MTBF 1,000,000 hours @ 25°C
Redundancy Dual redundant power inputs
PoE Power Budget 240 Watts

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC
RoHS Compliant Yes

Advanced Security Features
802.1p QoS Yes (port based priority)
Broadcast Storm Control Yes

Interfaces
Total Ports 10
Copper Ports 8 x 10/100/1000 Mbps PoE+ RJ-45 ports
SFP Ports 2 x 100/1000 Mbps SFP slots
PoE Standard IEEE 802.3at/af PoE+
PoE+ Ports 8
Data Transfer Rate 20 Gbps switching capacity
Auto-Negotiation Supported
Auto MDI/MDI-X Supported
Jumbo Frame Up to 10KB
MAC Address Table 8K entries
Packet Buffer Size 1 Mbit

Physical & Environmental
Dimensions (W x D x H) 210 x 160 x 45 mm
Operating Temperature -20° to 65°C (-4°F to 149°F)
Storage Temperature -40° to 85°C (-40°F to 185°F)
Humidity (Operating) 5% to 95% non-condensing
Enclosure Type Metal IP30 rated
Mounting Options DIN-Rail or wall mounting
Surge Protection 6kV on all RJ-45 ports
Shock Resistance IEC 60068-2-27
Vibration Resistance IEC 60068-2-6

Cloud Management & Licensing
Cloud Management No
Management Interface Unmanaged switch
Licensing Requirements None
