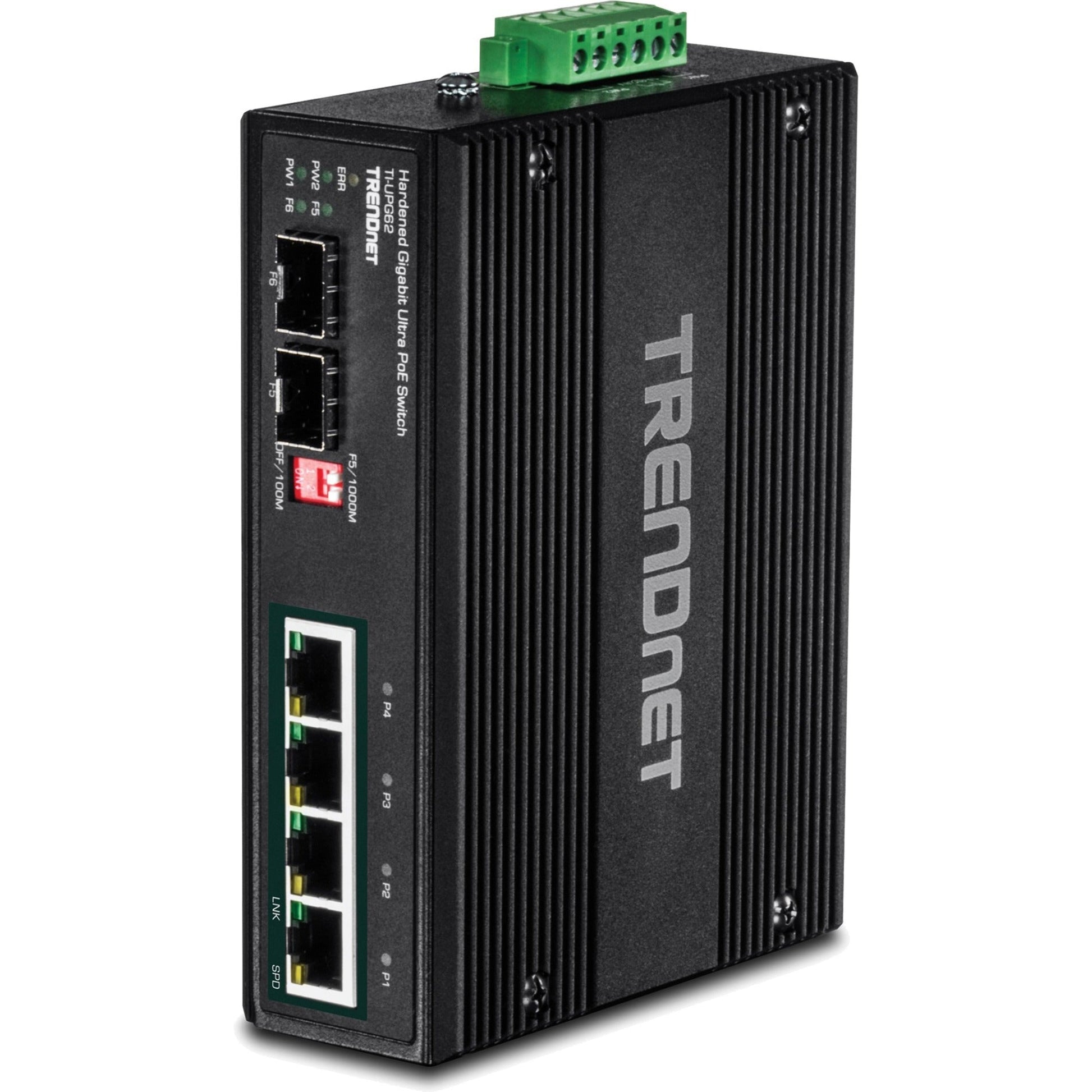

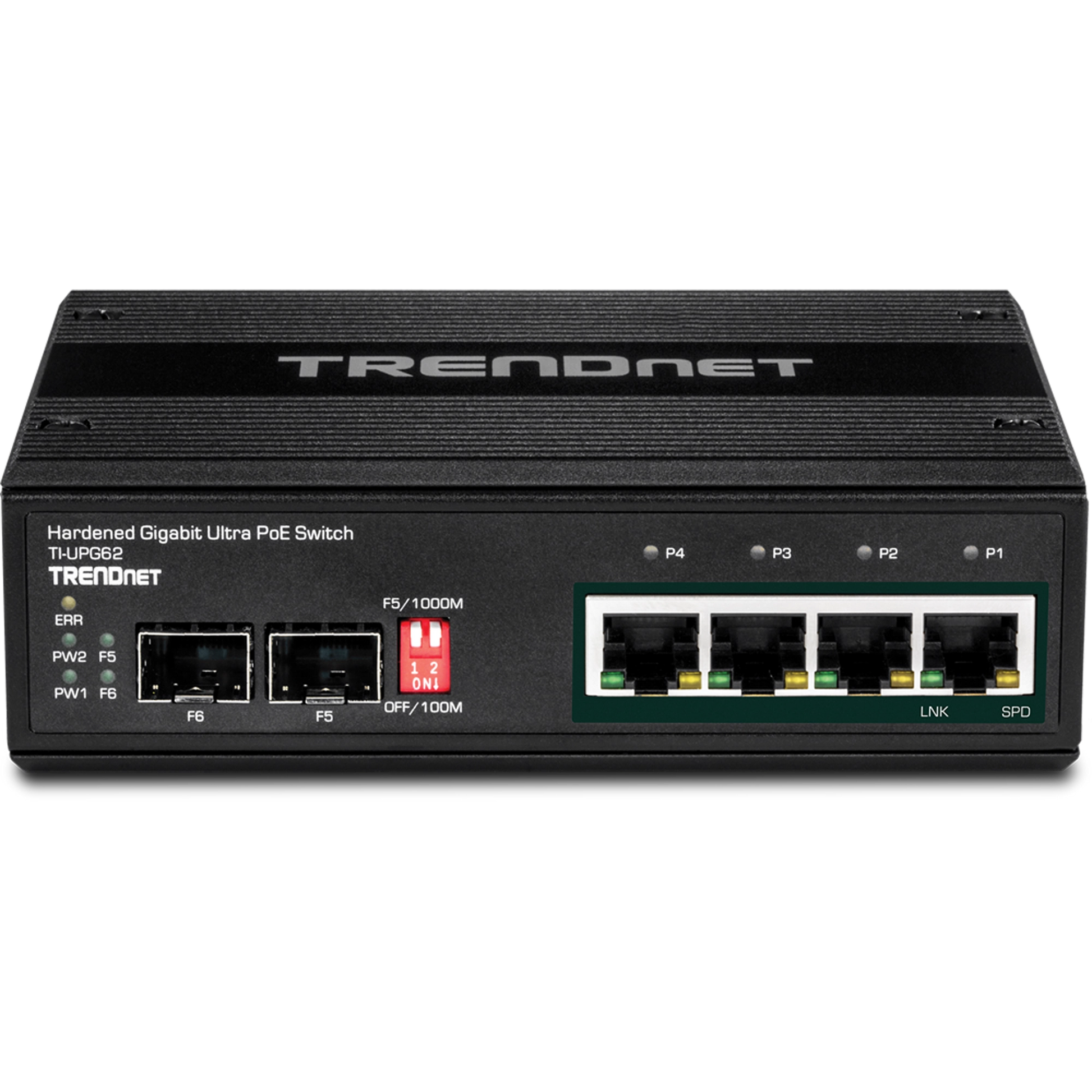

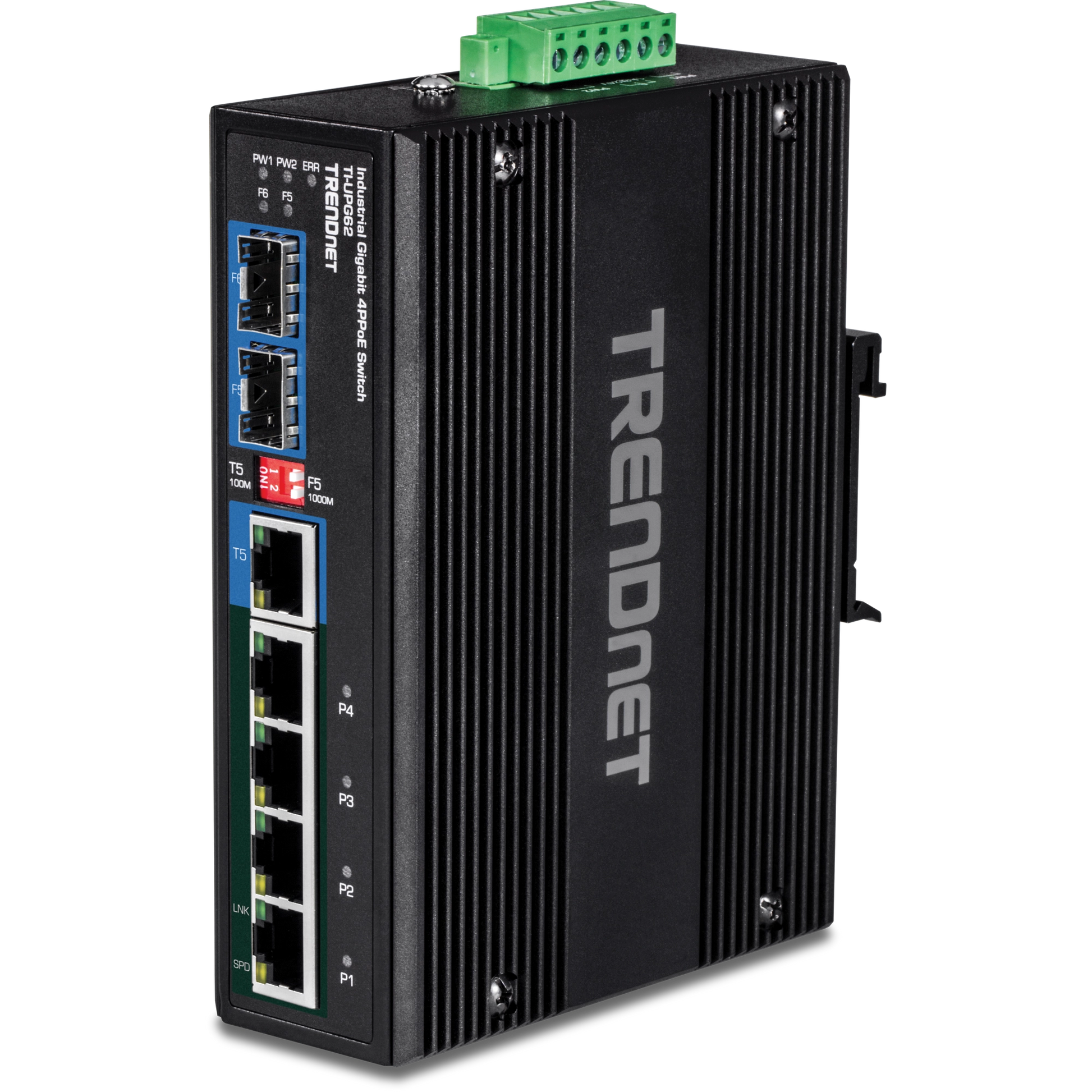

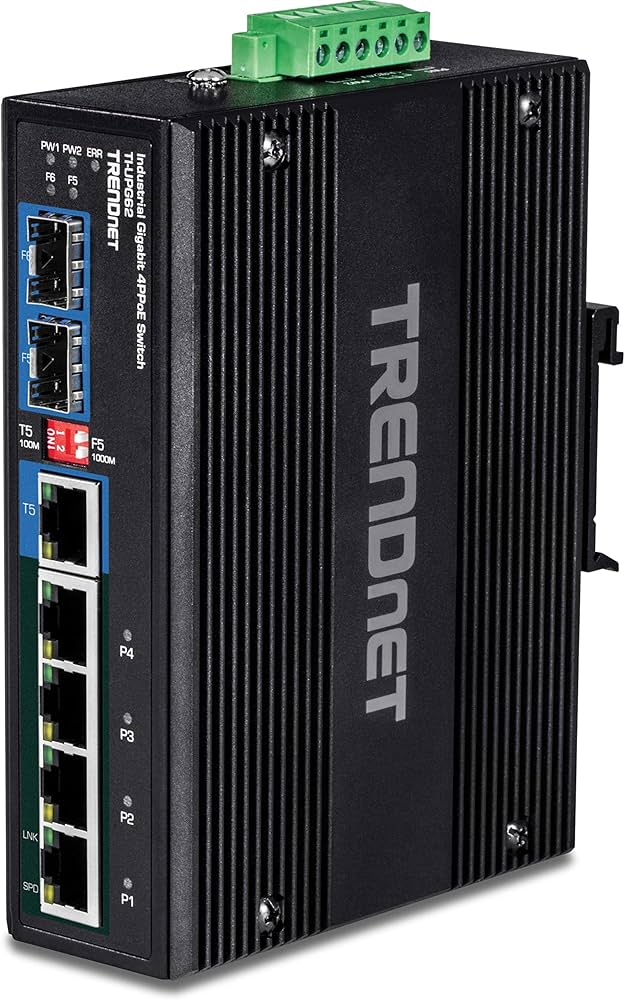

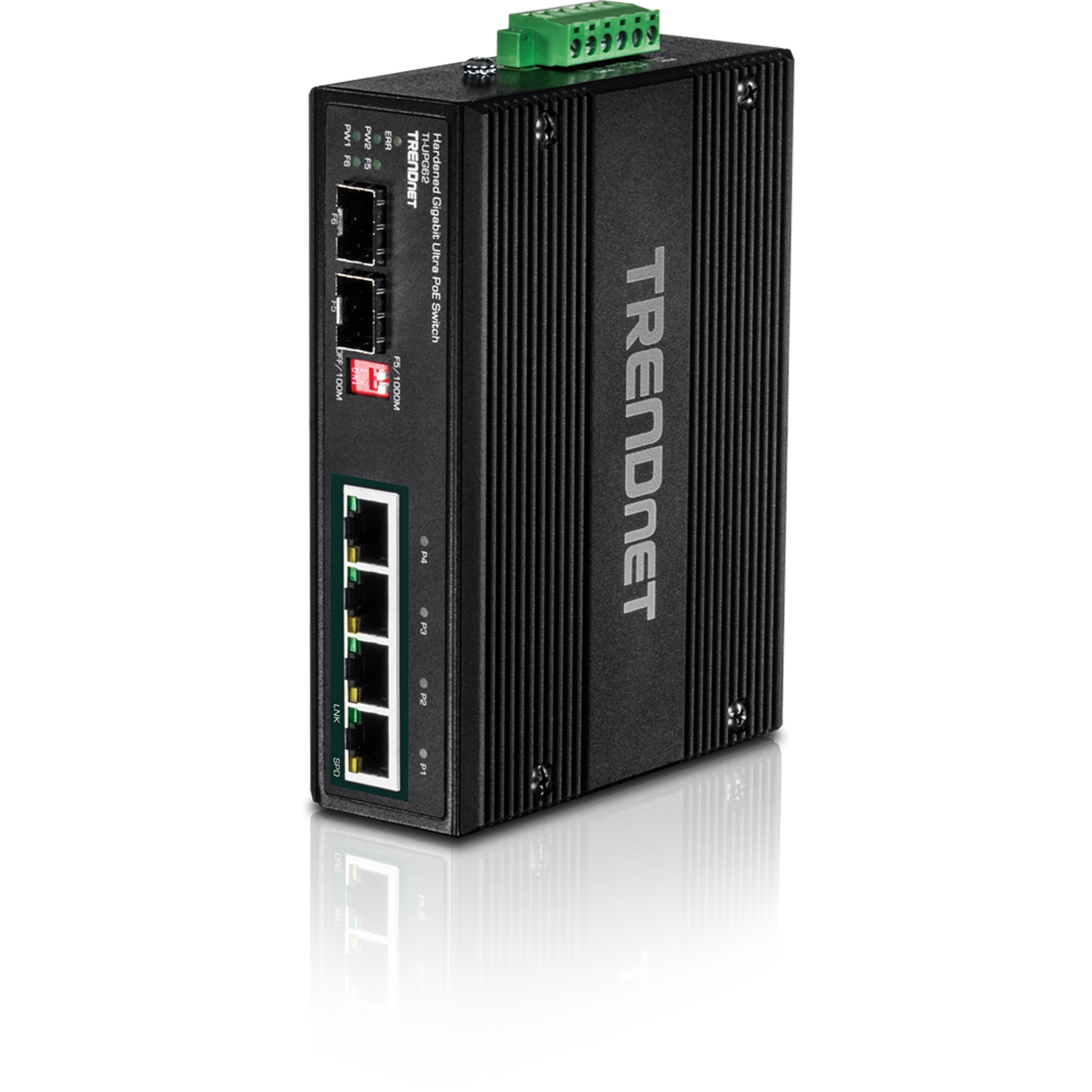

TRENDnet TI-UPG62 6-Port Industrial Gigabit Ultra PoE DIN-Rail Switch

VENDOR: TRENDNET Mfg Part#: TI-UPG62 UPC#: 710931160611
1 5
Photo is for illustration purposes only. Actual product may be different.
$524.00
$524.00
Sale Sold out
MSRP: $538.00
Shipping calculated at checkout.
  • Six Gigabit Ethernet ports supporting 1 Gbps data transfer rate
  • Ultra PoE capability for high-power devices
  • DIN-Rail mountable rugged design for industrial installations
  • TAA-compliant and manufactured in Taiwan
  • Compact size: 5.62" W x 4.13" D x 1.41" H
  • Limited lifetime warranty included

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for industrial environments requiring high-power PoE devices such as IP surveillance and automation systems
  • TAA compliance makes it suitable for government and legal-regulated deployments
  • Limited lifetime warranty offers added value and long-term protection for mission-critical networks

Product Overview

6-Port Hardened Industrial Gigabit Ultra PoE DIN-Rail Switch

Specifications

Product Overview
Product Type Industrial Gigabit PoE Switch
Model TI-UPG62
Form Factor DIN-rail mountable
Power Supply External 48 – 57VDC power input
Maximum Power Consumption 145W (with PoE load)
Weight 1.27 lbs (0.58 kg)

Physical & Environmental
Width 5.62 inches (143 mm)
Depth 4.13 inches (105 mm)
Height 1.41 inches (36 mm)
Enclosure IP30 rated metal housing
Mounting DIN-Rail mount or wall mount
Operating Temperature -40 to 75 °C (-40 to 167 °F)
Storage Temperature -40 to 85 °C (-40 to 185 °F)
Operating Humidity 5% to 95% non-condensing
Storage Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface Unmanaged

Interfaces
Total Ports 6
Gigabit Ethernet Ports 6 x 10/100/1000 Mbps
PoE Ports 4 x 802.3bt Type 4 (90W) PoE++ ports
Non-PoE Ports 2 x Gigabit Ethernet uplink ports
PoE Budget 240W
Switching Capacity 12 Gbps
Forwarding Rate 8.93 Mpps @ 64-byte Packet Size
MAC Address Table Size 2K entries
Jumbo Frame 10 KB
Flow Control IEEE 802.3x
Packet Buffer Size 1 Mbit

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, IEC 61000, EN55032, EN61000
EMI/EMS FCC Part 15 Class A, CE Class A
Shock Resistance IEC 60068-2-27
Vibration Resistance IEC 60068-2-6
Freefall Resistance IEC 60068-2-32

Advanced Security Features
Security Features Lacks Layer 3 or advanced security features due to unmanaged status
