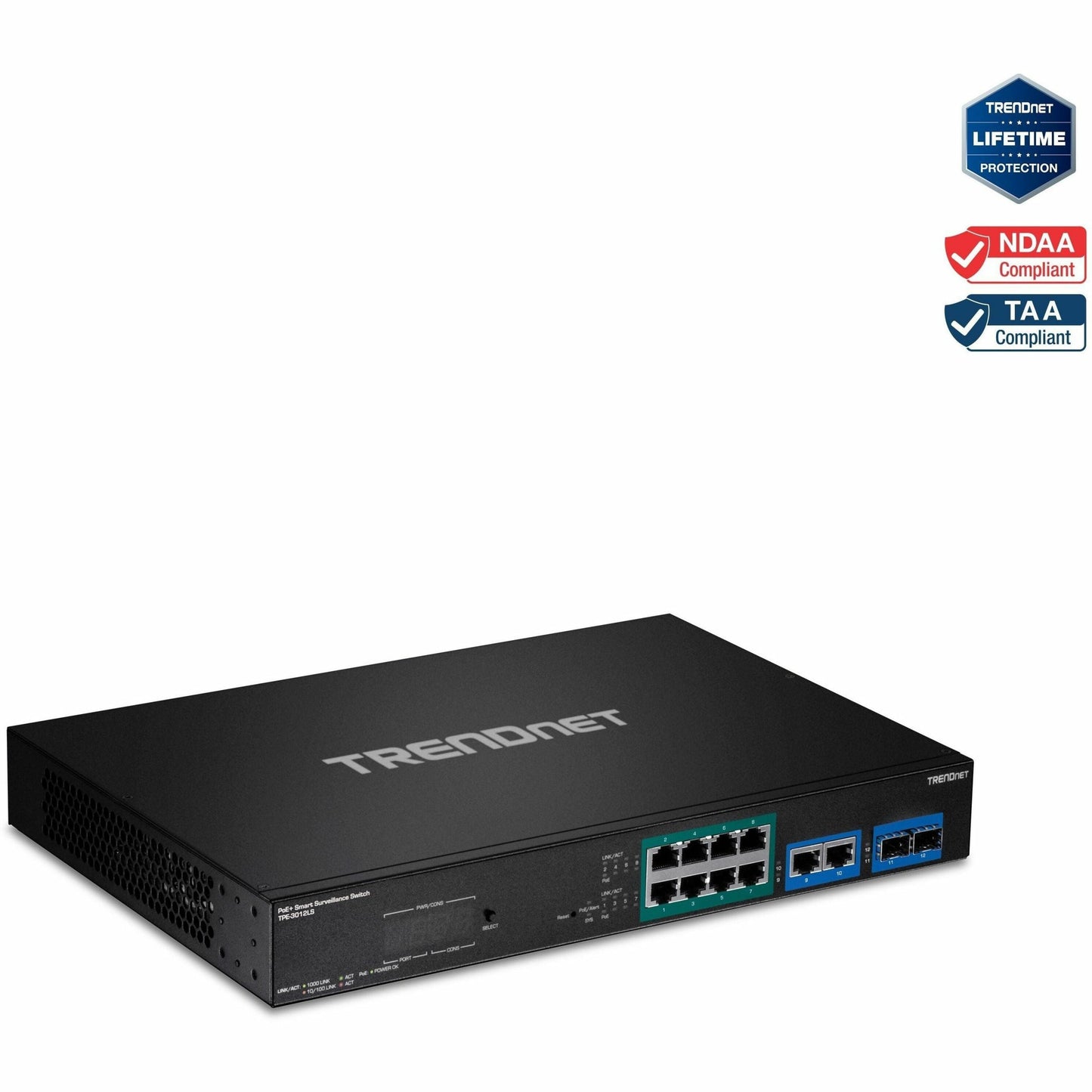

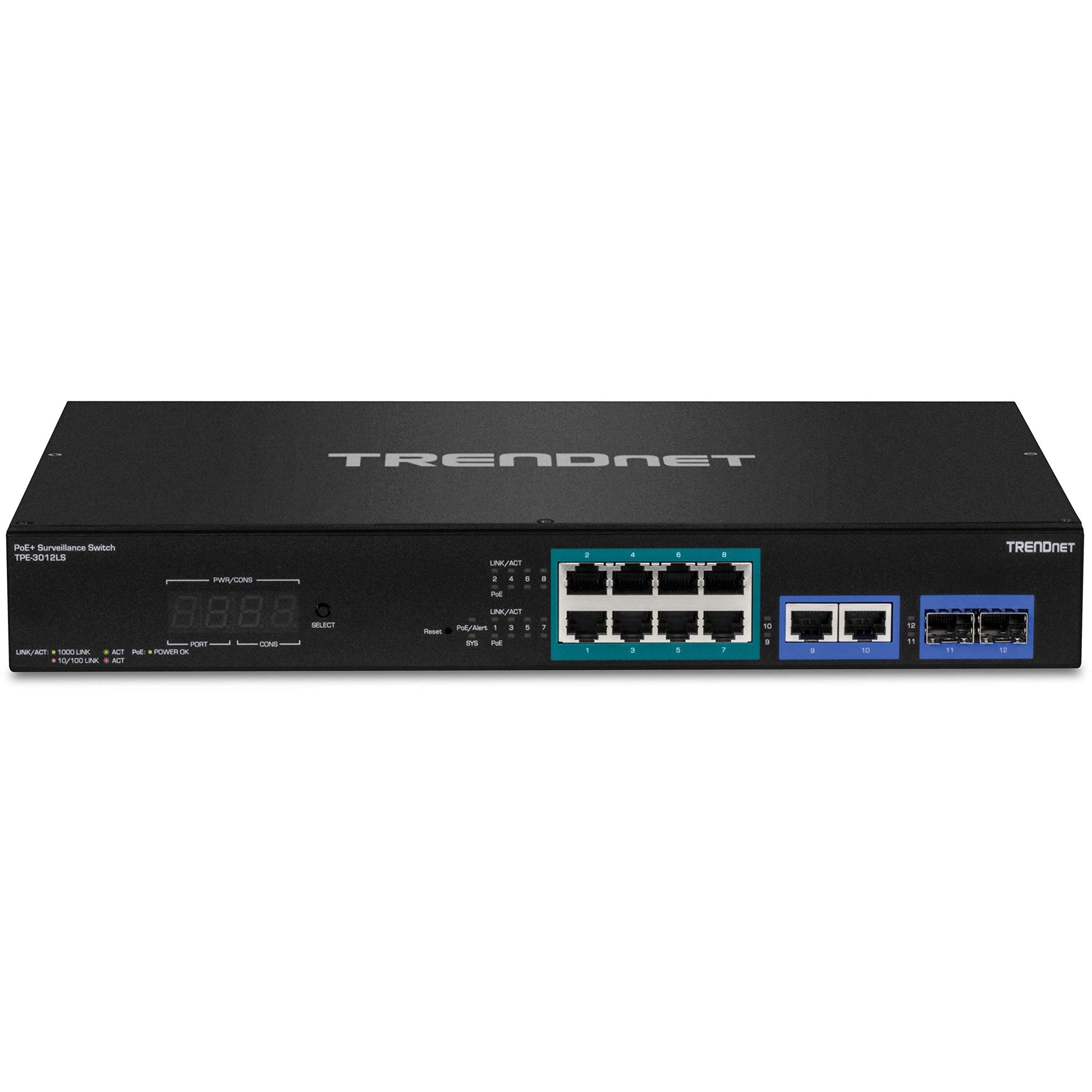

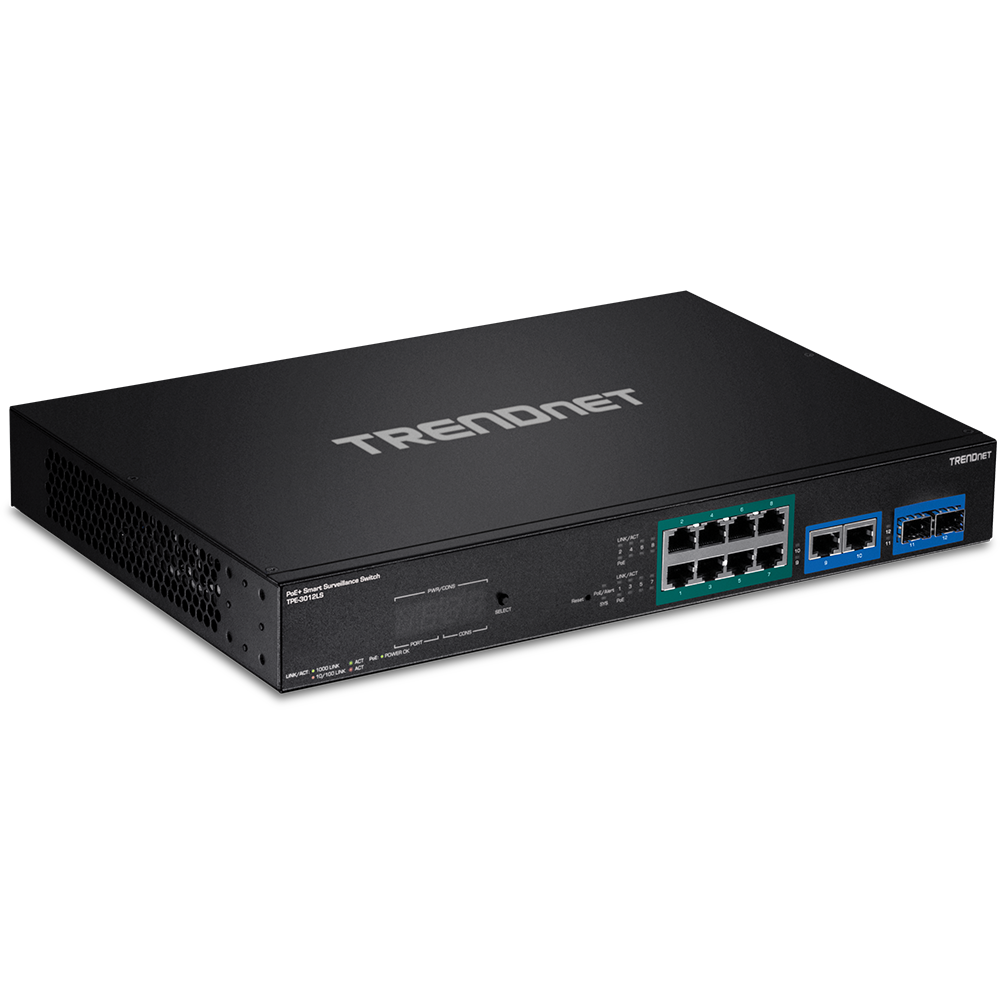

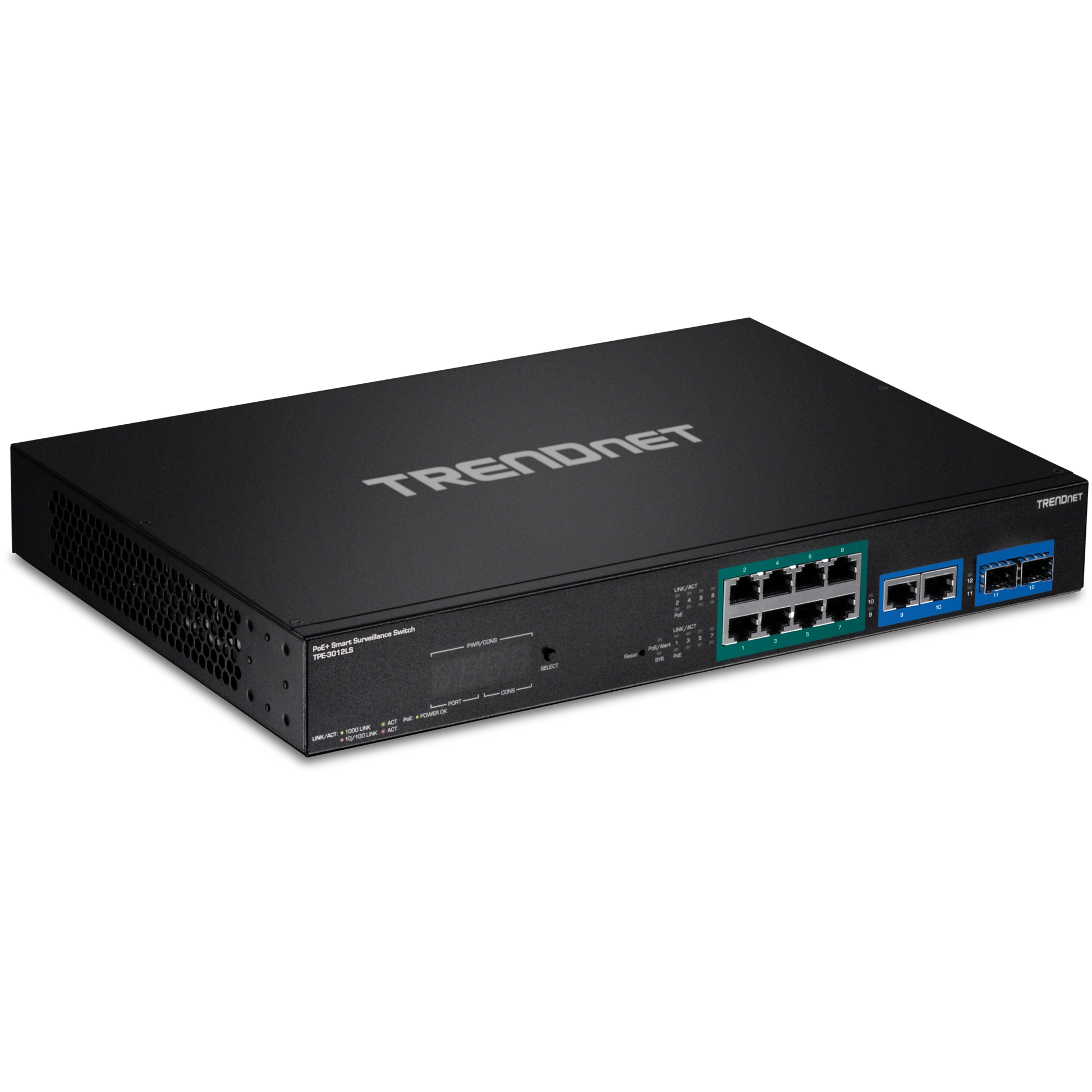

TRENDnet TPE-3012LS 12-Port Gigabit PoE+ Smart Surveillance Switch

VENDOR: TRENDNET Mfg Part#: TPE-3012LS UPC#: 710931161502
1 5
Photo is for illustration purposes only. Actual product may be different.
$347.00
$347.00
Sale Sold out
MSRP: $359.00
Shipping calculated at checkout.
  • 12 total Gigabit ports with 8 PoE+ support
  • 110W total PoE power budget for powering IP devices
  • 2000 Mbps data transfer rate for high-throughput applications
  • Compact 1U rackmount size with 100–240V AC input range
  • MTBF of 434,157 hours ensures long-term reliability
  • TAA compliant and includes lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for surveillance setups needing simultaneous data and power delivery over Ethernet
  • Ultra-reliable with over 434,000 hours MTBF and robust operating temperature support
  • TAA-compliant and lifetime warranty make it perfect for government and enterprise procurement

Product Overview

The TRENDnet TPE-3012LS is engineered for demanding surveillance and commercial networking environments. Equipped with 12 gigabit ports—8 of which are Gigabit PoE+—this smart switch efficiently powers a variety of PoE-compatible devices such as IP cameras, VoIP phones, and wireless access points. With a combined PoE power budget of 110 watts and a switching capacity of 2000 Mbps, it supports seamless data and power integration.

Designed for easy deployment, this switch includes fanless metal housing, 1U rackmount profile, and support for 100–240V AC input. Its reliability is reinforced by an MTBF of 434,157 hours and wide temperature tolerance (32–104°F), making it ideal for mission-critical environments. TAA compliance and lifetime warranty add further value for government or enterprise use.

Specifications

Product Overview
Product Type Smart Surveillance Switch
Model TPE-3012LS
Form Factor 1U Rackmount
Weight 2.26 Kg
Max Power Consumption 10 Watt
Power Supply Type Internal
PoE Power Budget 110 Watt
Switching Capacity 2 Gbps
MTBF 434,157 Hours

Physical & Environmental
Width 12.9 Inch
Depth 9.1 Inch
Height 1.75 Inch
Min Operating Temperature 32°F (0°C)
Max Operating Temperature 104°F (40°C)
Operating Humidity Range 10% to 90% (non-condensing)
Cooling System Fanless
Enclosure Type Metal
Rack Mountable Yes (1U)

Cloud Management & Licensing
Management Type Web Smart Management
Management Features Port-based VLAN, QoS, Port Trunking, Bandwidth Control, SNMP v1/v2c, IGMP Snooping

Interfaces
Total Number of Ports 12
Gigabit PoE+ Ports 8
Gigabit Non-PoE Ports 4
PoE Standard IEEE 802.3at/af
Port Type RJ-45
Data Transfer Rate 10/100/1000 Mbps
Switching Capacity 2000 Mbps

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, RoHS

Advanced Security Features
Security Features Port Security, Storm Control, Loop Prevention, 802.1x Authentication
