TRENDnet TPE-3018LS 18-Port Gigabit PoE+ Smart Surveillance Switch

VENDOR: TRENDNET Mfg Part#: TPE-3018LS UPC#: 710931161526
1 5

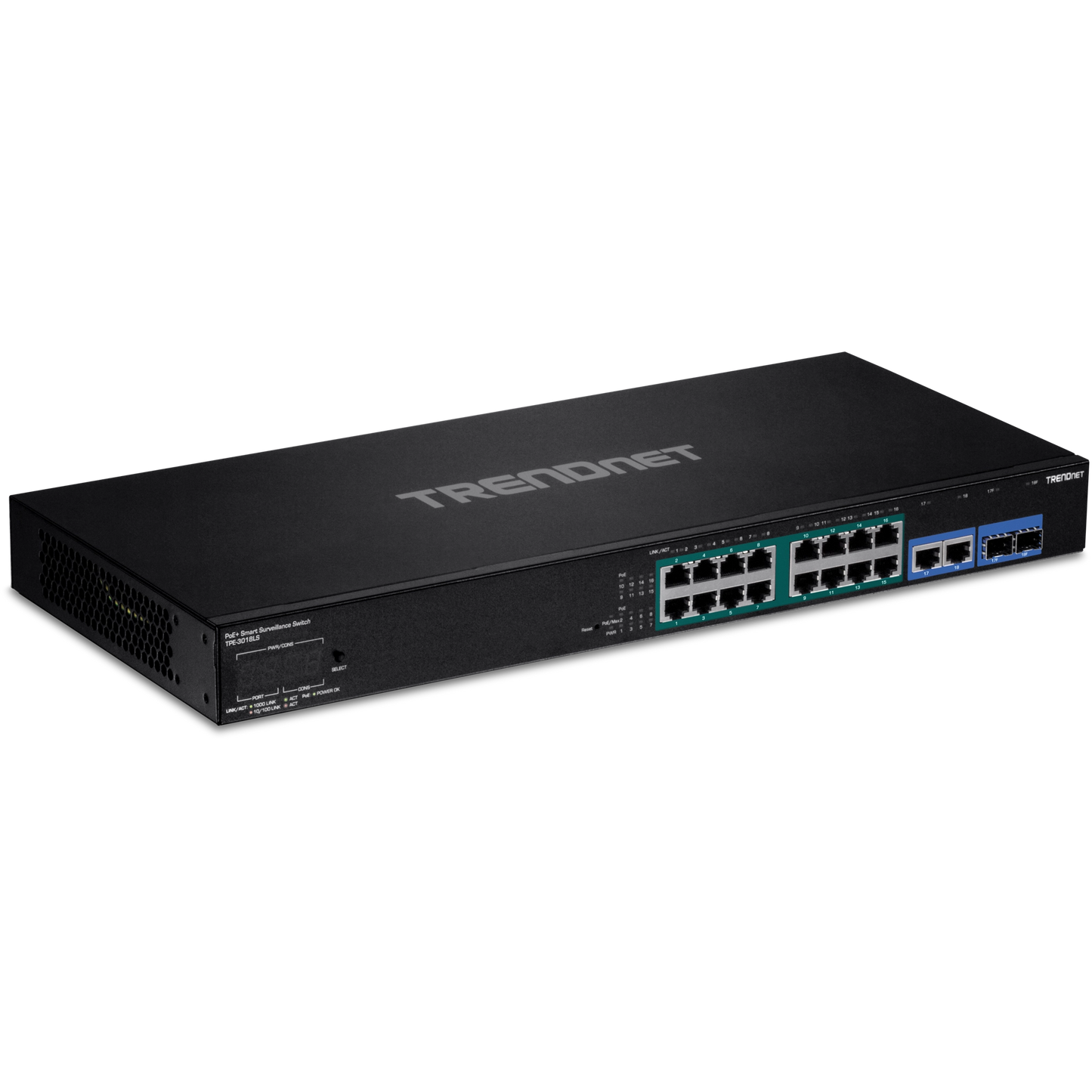

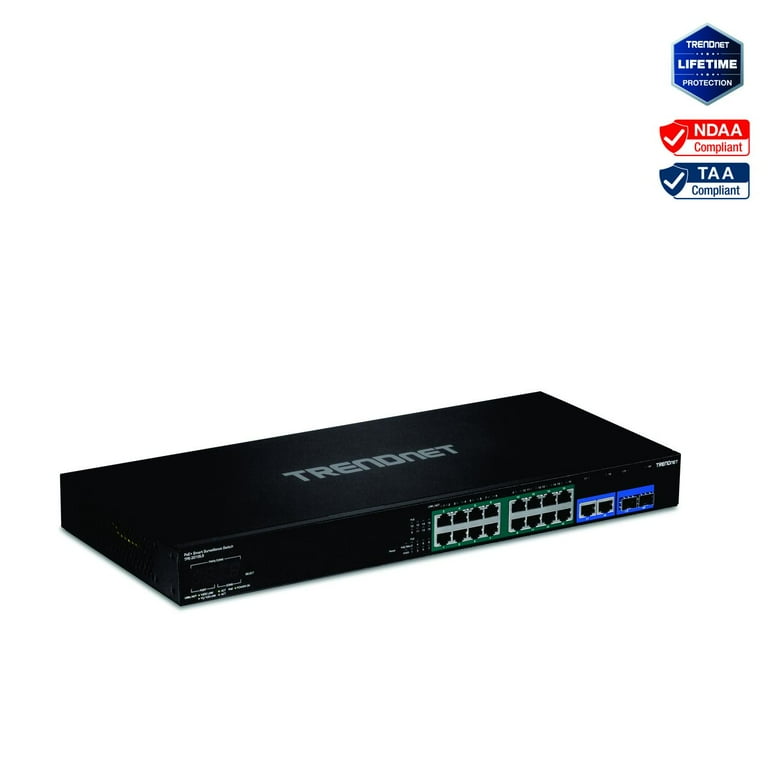

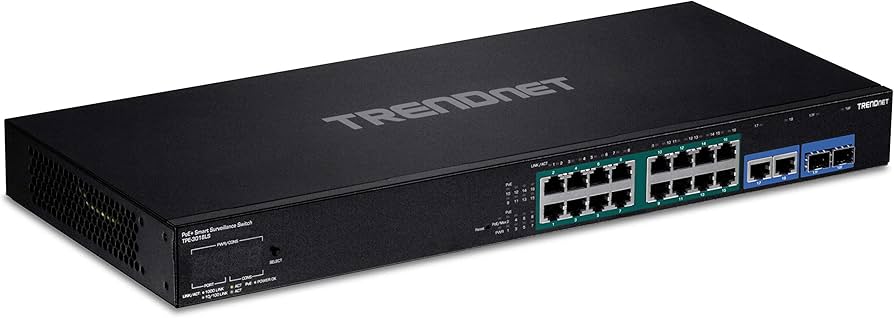

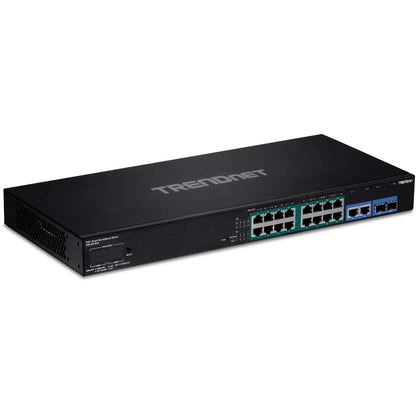

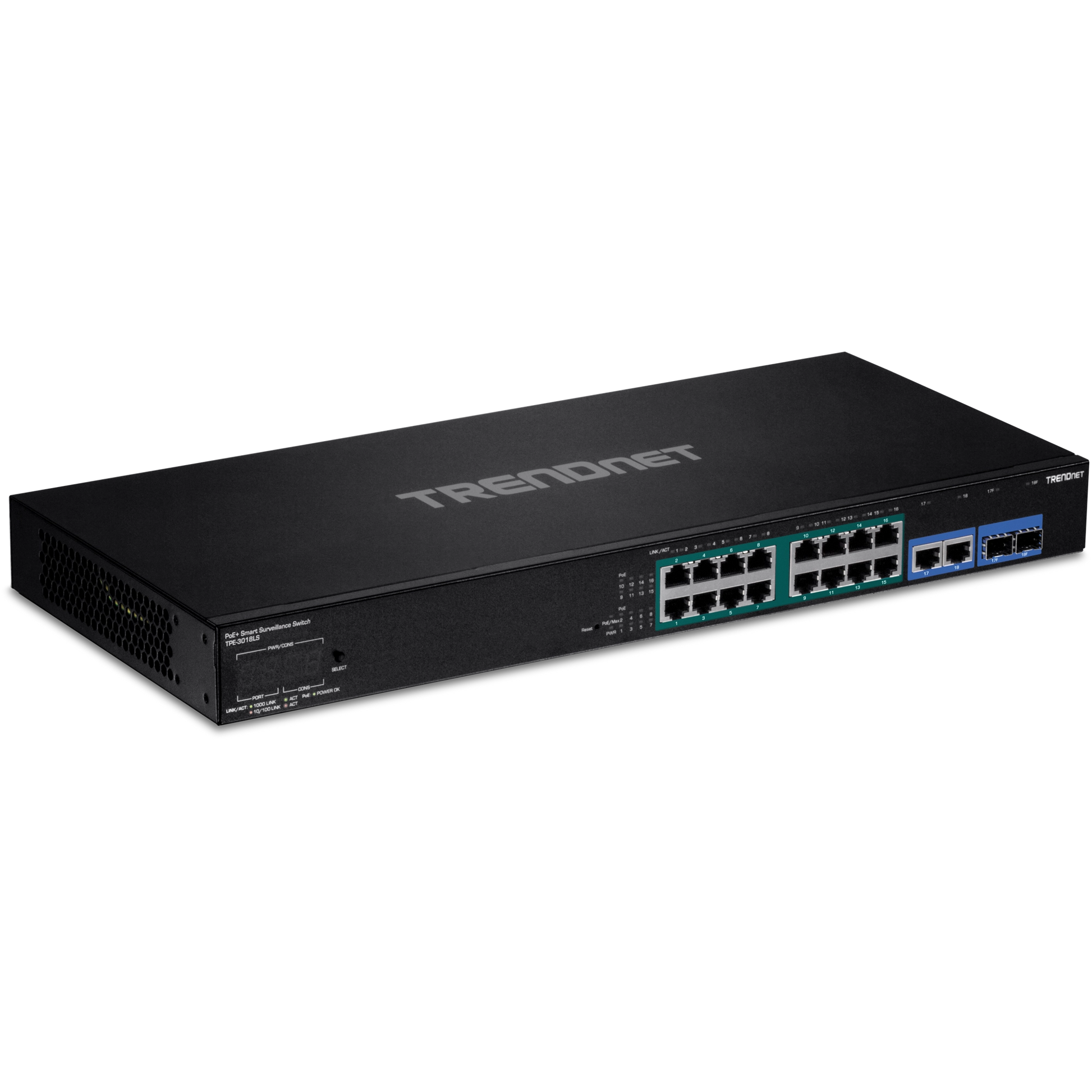

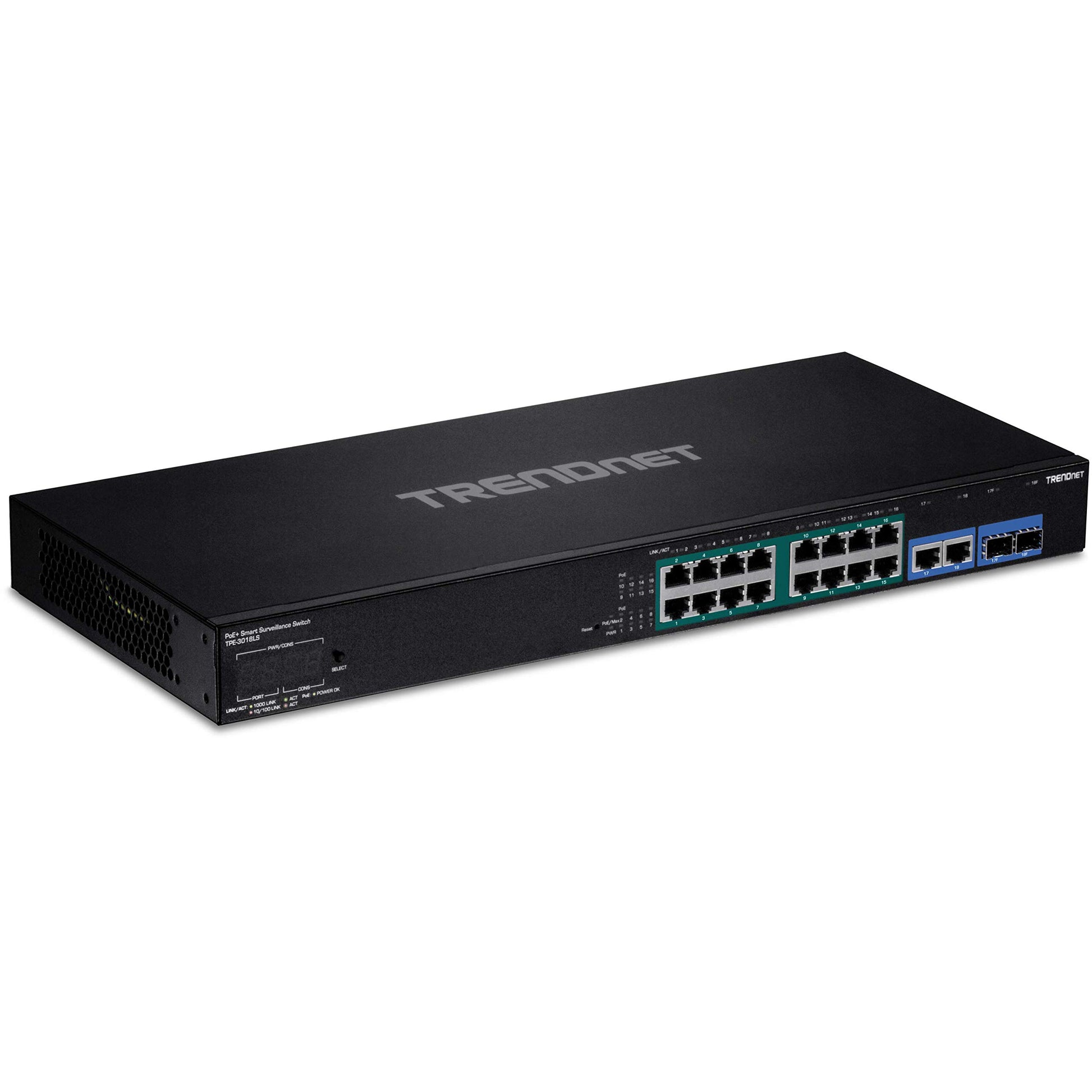

Photo is for illustration purposes only. Actual product may be different.
$442.00
$442.00
Sale Sold out
MSRP: $450.00
Shipping calculated at checkout.
  • 16 x Gigabit PoE+ ports support high-performance network devices
  • 2000 Mbps data transfer rate enhances throughput for surveillance traffic
  • 220W total PoE power budget for device flexibility
  • MTBF of 331,516 hours ensures long operational life
  • 1U durable metal chassis (17.3" x 9.8" x 1.74") fits standard racks
  • Wide operating range from 32°F to 104°F for varied environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed specifically for surveillance with 16 Gigabit PoE+ ports and smart features to optimize security camera deployments
  • High reliability supported by 331,516-hour MTBF and lifetime warranty, ideal for 24/7 critical applications
  • TAA compliance and Taiwanese origin suit public sector and government installations

Product Overview

The TRENDnet TPE-3018LS 18-Port Gigabit PoE+ Smart Surveillance Switch is purpose-built to support PoE-centric surveillance infrastructures. Outfitted with 16 Gigabit PoE+ ports, this device delivers both power and data to connected IP cameras, VoIP phones, and access points, ensuring optimal network performance with a 2000 Mbps switching capacity. A high total PoE budget of 220W simplifies installation by eliminating the need for nearby AC outlets for compatible devices.

Housed in a 1U rack-mountable metal chassis, the switch offers a compact form factor (17.3" W x 9.8" D x 1.74" H) and operates efficiently within a wide temperature range (32°F to 104°F). The TPE-3018LS features surveillance-optimized management tools for traffic segmentation, performance monitoring, and PoE allocation, making it ideal for securing scalable video security deployments. With an MTBF of over 331,000 hours and a lifetime warranty, this switch is built for reliability and minimal maintenance in always-on environments.

The unit is TAA-compliant and assembled in Taiwan, supporting government installation standards. It includes a universal 100-240V AC power supply and draws just 14W when idle. A quick installation guide is included to streamline setup. Designed with a balance of throughput, PoE capacity, and reliability, this model is a cost-effective solution for small to medium-sized IP surveillance networks.

Specifications

Product Overview
Product Type Gigabit PoE+ Surveillance Switch
Model TPE-3018LS
Form Factor 1U Rack-Mountable
Housing Material Metal
Weight 6.45 lbs.
Power Requirements 100-240V AC, 50/60Hz
Maximum Power Consumption 220 Watt (PoE budget), 14 Watt (idle)
MTBF 331,516 Hours
Warranty Lifetime Warranty

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, RoHS
Safety Standards cUL, UL 60950

Advanced Security Features
Access Control MAC Address Filtering
Storm Control Supported
Port Security Enabled
Loop Detection Yes
802.1x Port-Based Authentication Yes

Interfaces
Total Ethernet Ports 18
Gigabit PoE+ Ports 16
Gigabit SFP Slots 2
Ethernet Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3az
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.78 Mpps

Physical & Environmental
Width 17.3 Inch
Depth 9.8 Inch
Height 1.74 Inch
Operating Temperature Range 32°F to 104°F (0°C to 40°C)
Storage Temperature Range -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Cooling Method Fanless
Rack Mountable Yes

Cloud Management & Licensing
Management Interface Web-based GUI
Management Features VLAN, QoS, Port Trunking, IGMP Snooping, Port Mirroring, Bandwidth Control, PoE Scheduling
SNMP Support v1, v2c
Firmware Upgradable Yes
Included Software or Tools Smart Surveillance Switch Management Features
