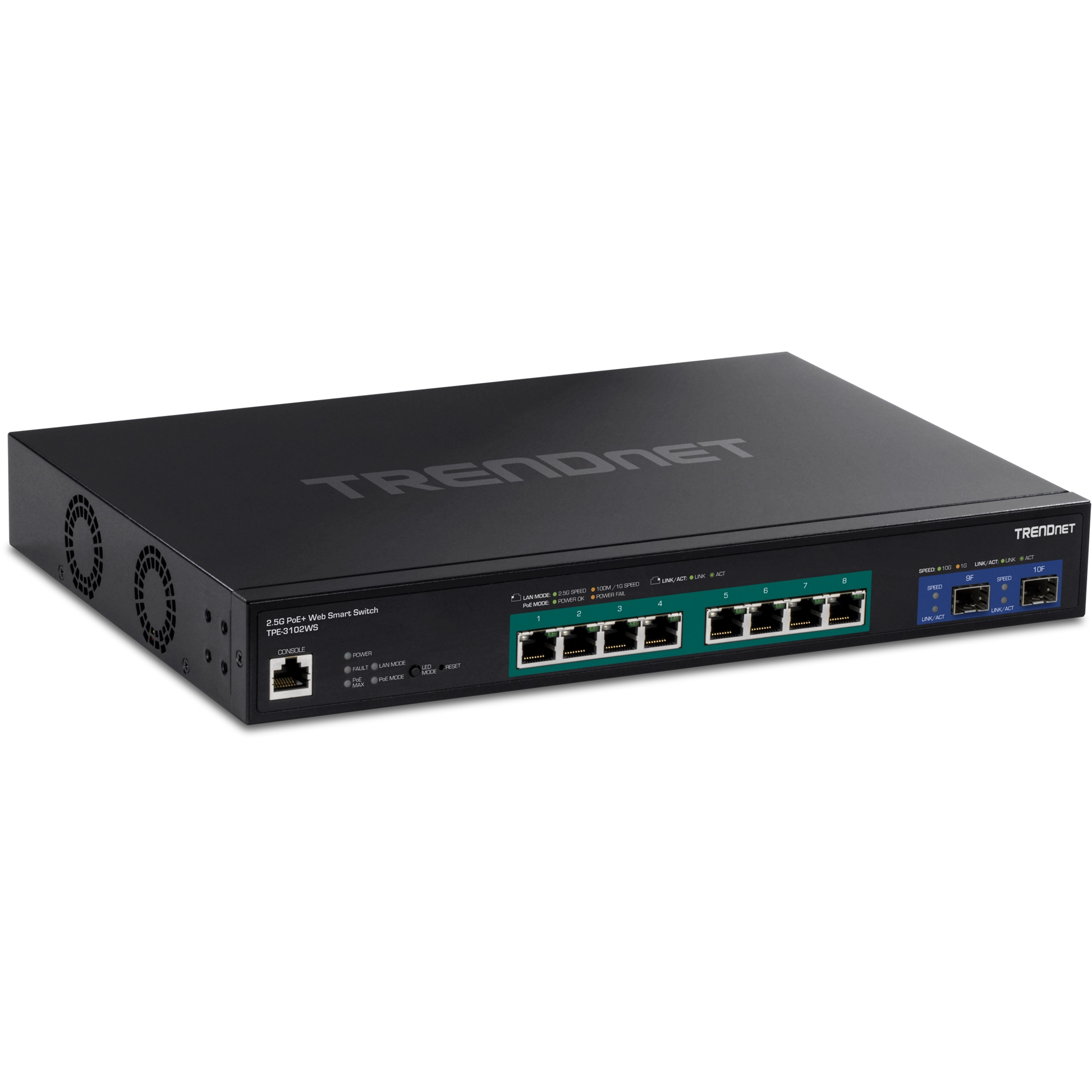

TRENDnet TPE-3102WS 10-Port 2.5G Smart PoE+ Switch w/ 10G SFP+ Slots

VENDOR: TRENDNET Mfg Part#: TPE-3102WS UPC#: 710931162448
1 5
Photo is for illustration purposes only. Actual product may be different.
$462.00
$462.00
Sale Sold out
MSRP: $476.00
Shipping calculated at checkout.
  • 8 x 2.5G Ethernet ports for high-speed connectivity
  • 2 x 10G SFP+ uplink slots supporting fiber extension
  • Supports Power over Ethernet Plus (PoE+) with 60W max consumption

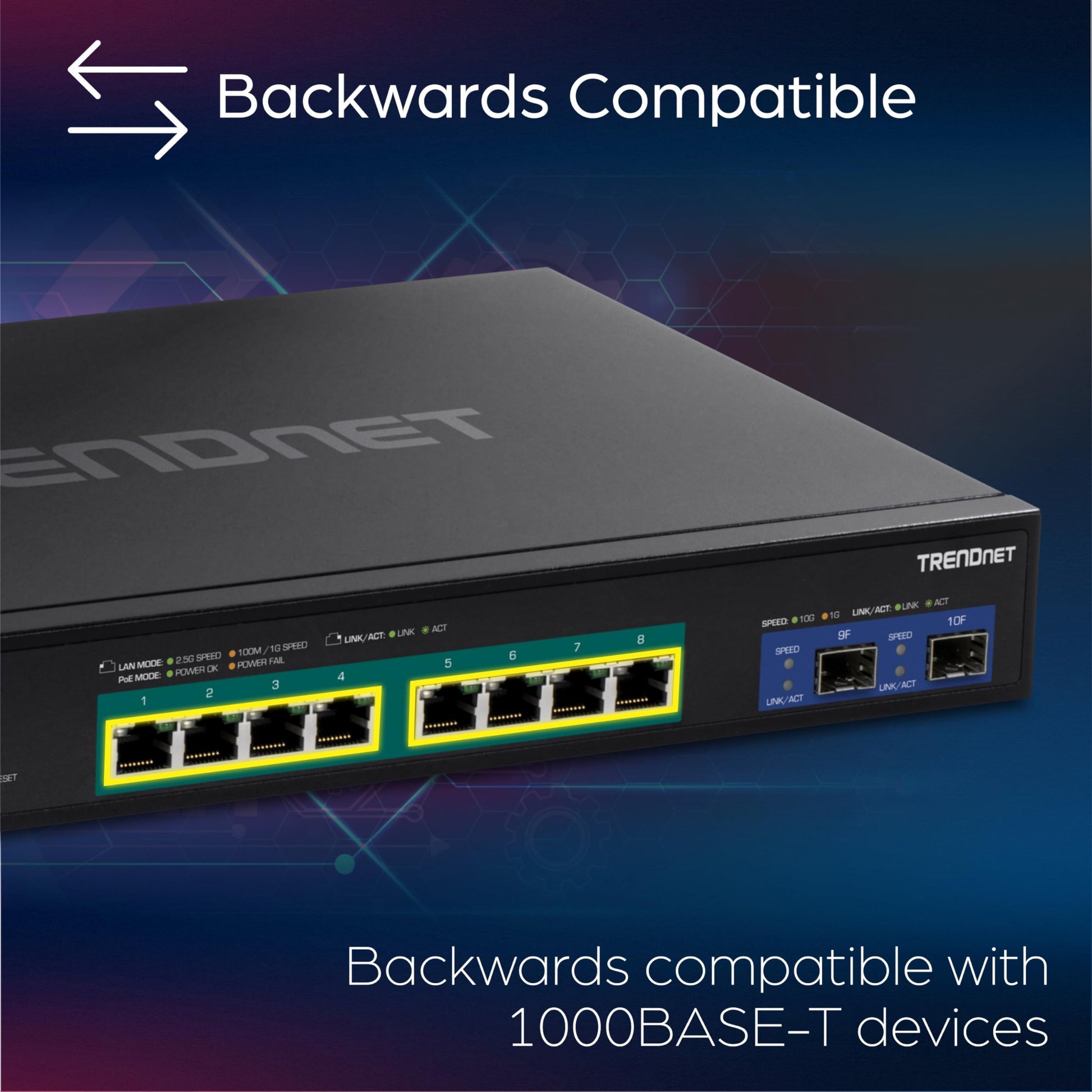

  • Fully backward compatible with 100/1000BASE-T devices

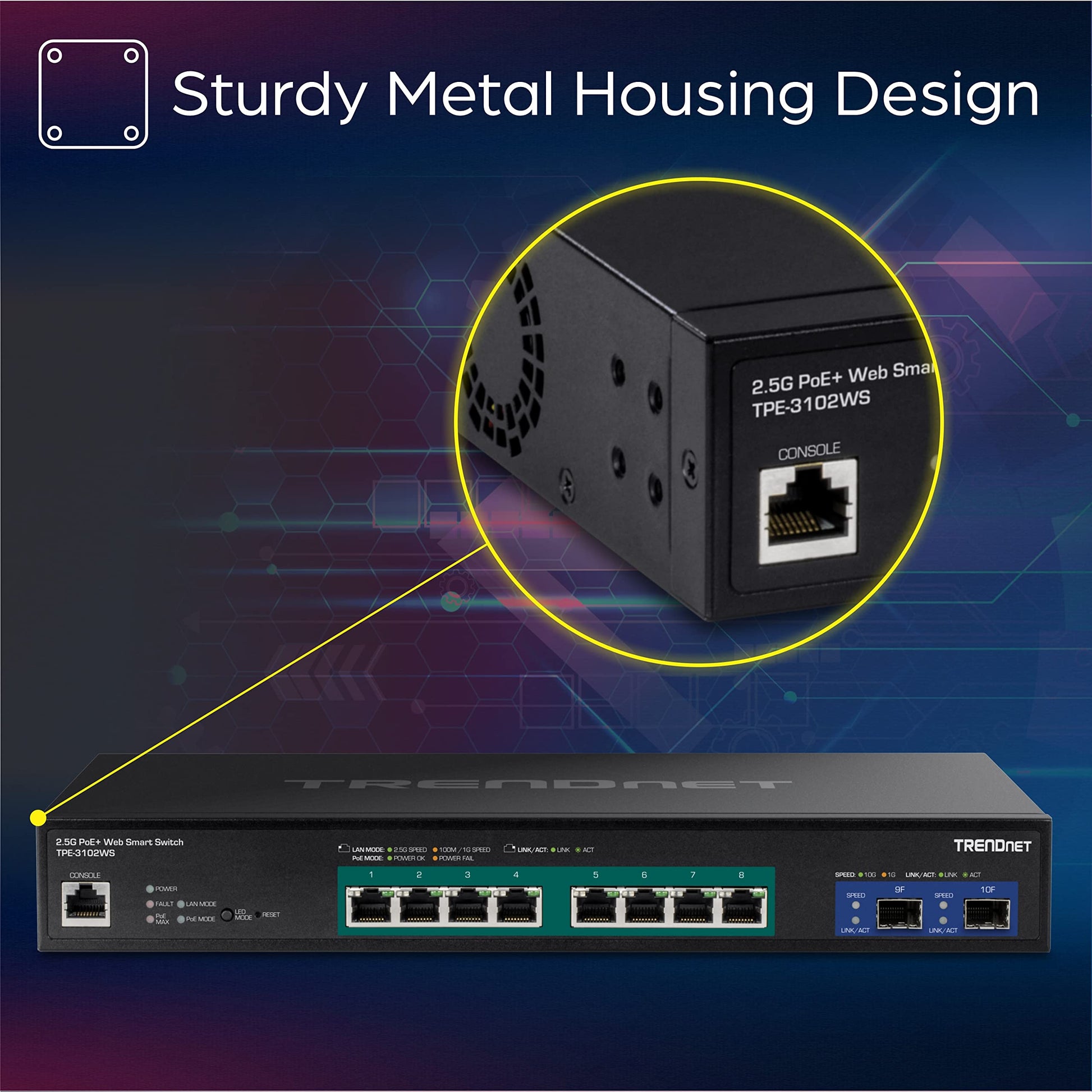

  • Compact form factor (13" x 9.06" x 1.73") and lightweight (1.46 lbs.)
  • Rated for operation between 0°C to 40°C and includes lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports 2.5G and 10G networking for future-proof deployments and high data throughput environments
  • Integrated PoE+ capability streamlines installations by eliminating the need for separate power lines

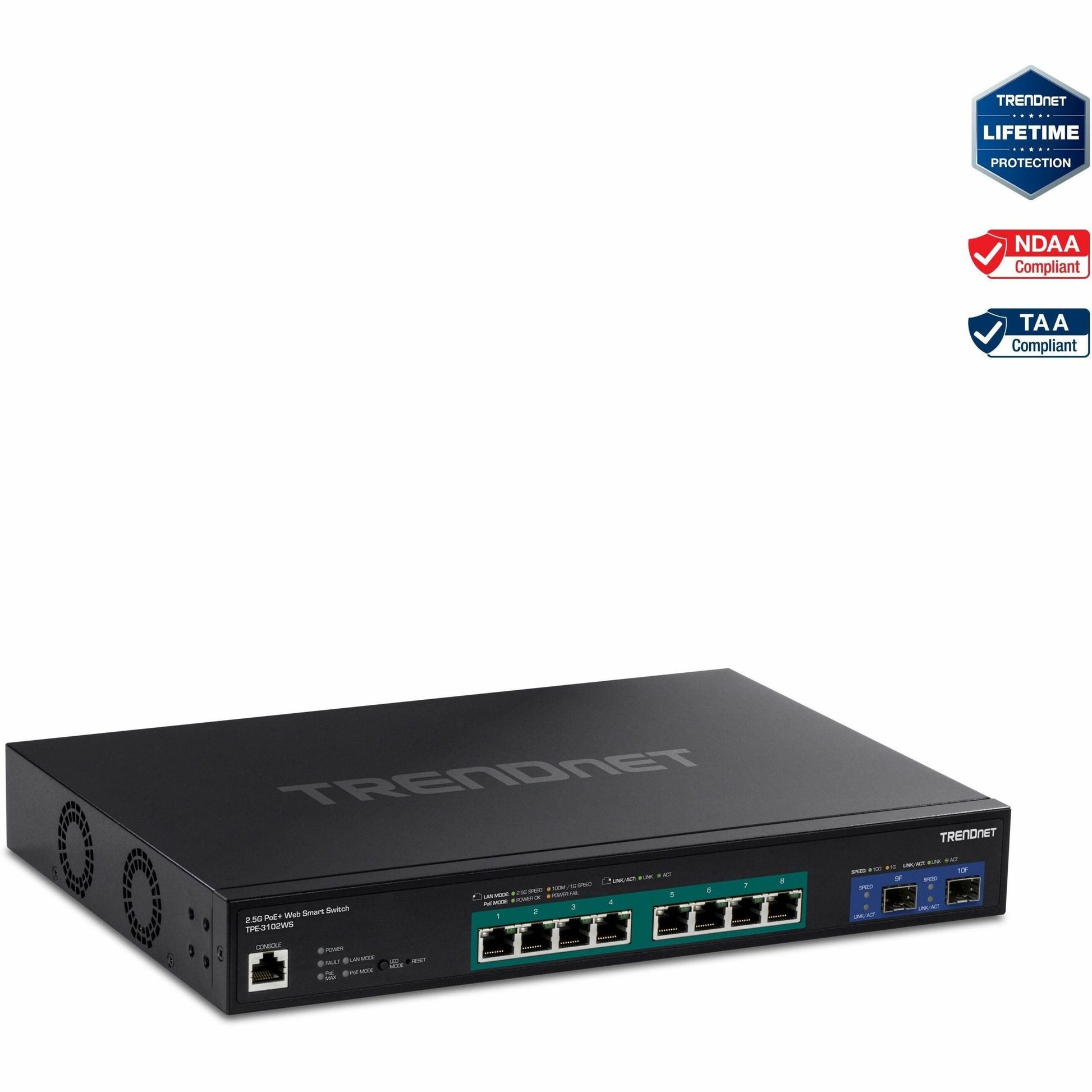

  • TAA compliance and lifetime warranty offer long-term value and suitability for regulated or government projects

Product Overview

10-Port 2.5G Web Smart PoE+ Switch with 10G SFP+ Slots

Specifications

Product Overview
Type Web Smart Managed PoE+ Switch
Model TPE-3102WS
Form Factor Rack-mountable / Desktop
Weight 1.46 lbs.
Power Consumption (Maximum) 60 Watts
Power Requirements 100 – 240V AC, 50/60Hz
Backplane Switching Capacity 60 Gbps
MTBF 421,929 hours

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Warranty Lifetime Warranty

Advanced Security Features
Port Security Yes
Access Control List (ACL) Yes
Storm Control Broadcast, Multicast, Unknown Unicast
802.1X Authentication Yes
DoS Attack Prevention Yes

Interfaces
Total Ethernet Ports 10
2.5G RJ-45 Ports 8 x 2.5GBASE-T
SFP+ Ports 2 x 10G SFP+
Auto-MDIX Yes
Packet Buffer Memory 2 MB
MAC Address Table Size 16K entries
Jumbo Frame Support 9 KB
PoE+ Support 8 x 2.5G RJ-45 Ports (802.3at/af compliant)
PoE Budget 240 Watts

Physical & Environmental
Dimensions (W x D x H) 13 x 9.06 x 1.73 inches
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 5% to 90% RH (non-condensing)
Fanless Design No (active cooling)

Cloud Management & Licensing
Management Interface Web-based GUI
Remote Management Yes
VLAN Support Yes (IEEE 802.1Q VLAN Tagging)
QoS Support Yes (802.1p, DSCP)
Link Aggregation Yes (802.3ad LACP)
Spanning Tree Protocol IEEE 802.1D STP, 802.1w RSTP, 802.1s MSTP
IGMP Snooping v1/v2/v3
Loop Detection Yes
Firmware Upgradeable Yes via web interface
