TRENDnet TPE-5240WS 52-Port Gigabit Web Smart PoE+ Switch

VENDOR: TRENDNET Mfg Part#: TPE-5240WS UPC#: 710931161144
1 5
Photo is for illustration purposes only. Actual product may be different.
$993.00
$993.00
Sale Sold out
MSRP: $1,019.00
Shipping calculated at checkout.
  • 52 Gigabit Ethernet ports for high-density connectivity
  • Supports 1 Gbps data transfer rate for fast performance
  • PoE+ capable for powering devices over Ethernet
  • Web Smart management features for network control
  • TAA compliant and manufactured in Taiwan
  • Includes limited lifetime warranty for peace of mind

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports 52 ports with PoE+ for powering and connecting dozens of network devices cost-effectively
  • Web Smart capabilities enable centralized network configuration and monitoring, reducing management overhead
  • TAA compliance makes it suitable for government contracts and enterprise installations requiring regulatory adherence

Product Overview

The TRENDnet TPE-5240WS is a 52-Port Gigabit Web Smart PoE+ switch engineered for efficient network management and expanded connectivity. Supporting 1 Gbps data transfer rate and compliant with Gigabit Ethernet protocols, this device is tailored for businesses requiring large-scale port availability and intelligent switching features. Its 52-port configuration enables comprehensive connectivity for access points, IP cameras, VoIP phones, and other PoE-enabled devices, significantly reducing cable clutter and deployment complexity.

With Web Smart management capabilities, the TPE-5240WS blends performance with control, allowing IT administrators to fine-tune network settings, monitor traffic, and enhance security. Its PoE+ functionality ensures reliable power delivery over Ethernet for compatible devices, consolidating power and data transmission over a single network cable. Built with TAA compliance and manufactured in Taiwan, the switch meets the regulatory requirements necessary for government and corporate environments.

Protected by a limited lifetime warranty, the TRENDnet TPE-5240WS promises long-term reliability and investment protection. It is an ideal networking backbone for organizations looking to deploy high-density, cost-effective Ethernet networks without compromising on performance or manageability.

Specifications

Product Overview
Type Web Smart PoE+ Switch
Form Factor Rack-mountable
Rack Units 1U
Weight 7.26 lbs (3.29 kg)
Power Requirements 100-240V AC, 50/60Hz
Power Consumption (Max) 470W
PoE Power Budget 370W
MTBF 699,662 hours

Cloud Management & Licensing
Management Interface Web Smart GUI
SNMP Support v1, v2c, v3
VLAN Support Yes, 802.1Q VLAN (support up to 256 groups)
Link Aggregation 802.3ad Dynamic/Static (8 groups, 8 ports per group)
Bandwidth Control Yes
QoS Support Yes, 802.1p with 4 priority queues
Port Mirroring Yes
Loop Detection Yes

Physical & Environmental
Width 17.3 in (440 mm)
Depth 12.6 in (320 mm)
Height 1.75 in (44.5 mm)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Cooling Type Internal fans

Interfaces

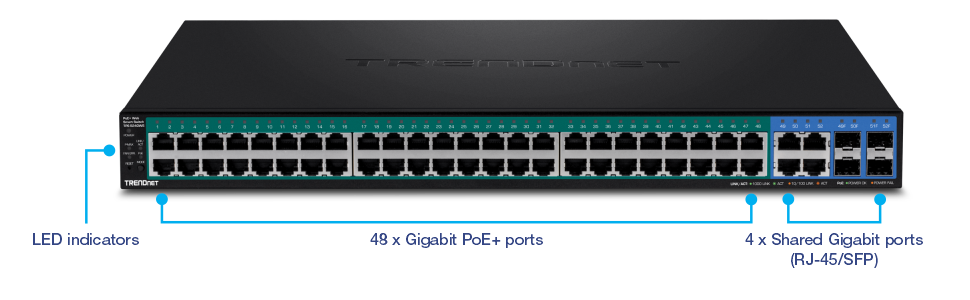

Total Number of Ports 52
10/100/1000 Mbps Gigabit Ethernet Ports 48
SFP Slots 4 (Shared with RJ-45 combo ports)
PoE Ports 48
PoE Standard IEEE 802.3af/802.3at (PoE+)
Switching Capacity 104 Gbps
Forwarding Rate 77.37 Mpps
MAC Address Table Size 16K entries
Packet Buffer Size 1.5 Mbits
Jumbo Frame Support Yes, up to 10KB

Advanced Security Features
Access Control Lists (ACL) Yes
Storm Control Yes
DoS Attack Prevention Yes
802.1X Authentication Yes
MAC Address Filtering Yes
IGMP Snooping Yes, v1/v2/v3
DHCP Snooping Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, RoHS
Warranty Limited Lifetime Warranty
